MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-517

NOTE: Check harness after checking intermediate connectors
D-16, C-90 and C-28. If intermediate connectors are damaged,
repair or replace them. Refer to GROUP 00E, Harness Con-
nector Inspection

P.00E-2

. Then go to Step 12.

Q: Is the harness wire in good condition?

YES : Replace the ECM or PCM. Then go to Step 12.
NO :  Repair it. Then go to Step 12.

STEP 12. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0446 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

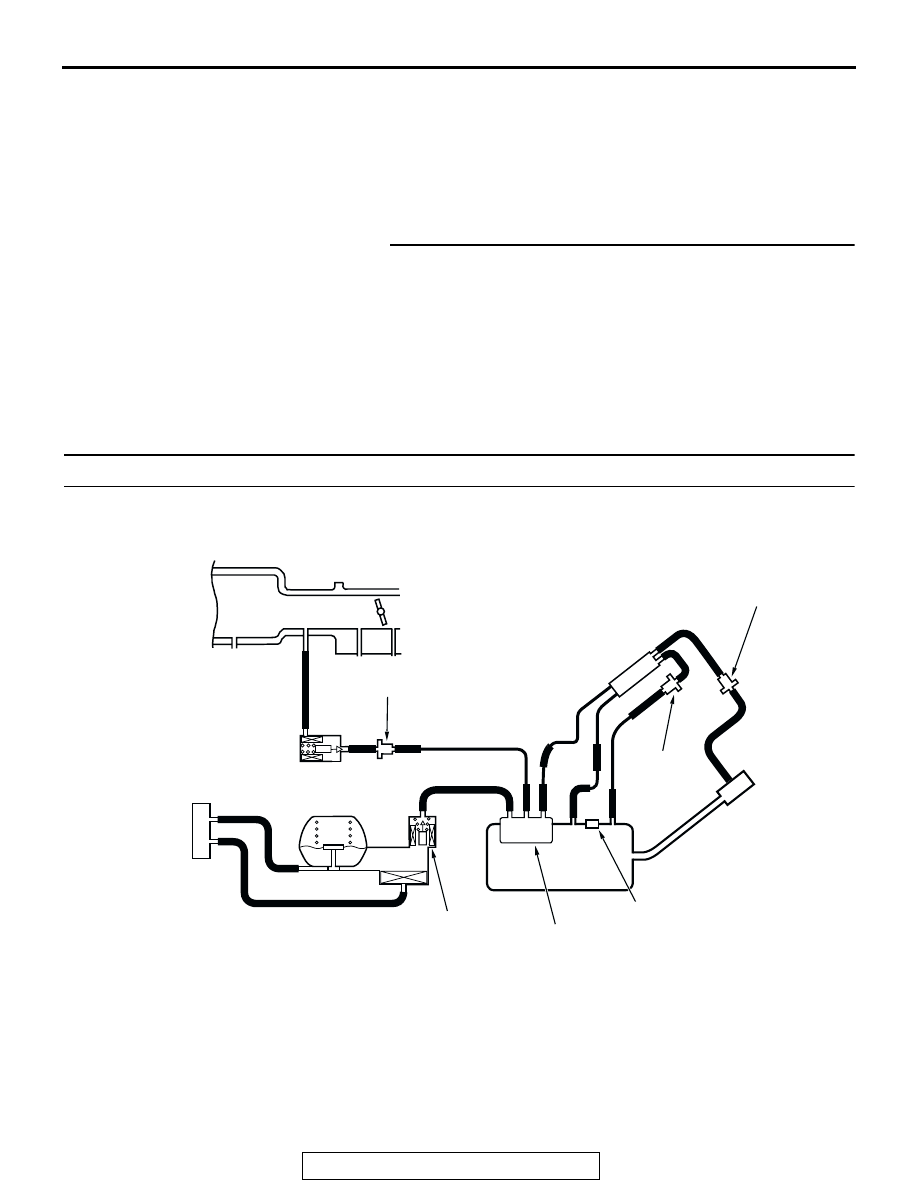

 DTC P0451: Evaporative Emission Control System Pressure Sensor Range/Performance

AC001943

A

B

C

EVAPORATIVE EMISSION
PURGE SOLENOID

EVAPORATIVE
EMISSION CANISTER

EVAPORATIVE
EMISSION
VENTILATION
SOLENOID

FUEL TANK

CHECK VALVE A

CHECK
VALVE B

INTAKE MANIFOLD

SYSTEM DIAGRAM

D

E

F

G

I

H

L

N

M

K

J

O

P

CHAMBER

AC

FUEL TANK DIFFRENTIAL
PRESSURE SENSOR

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-518

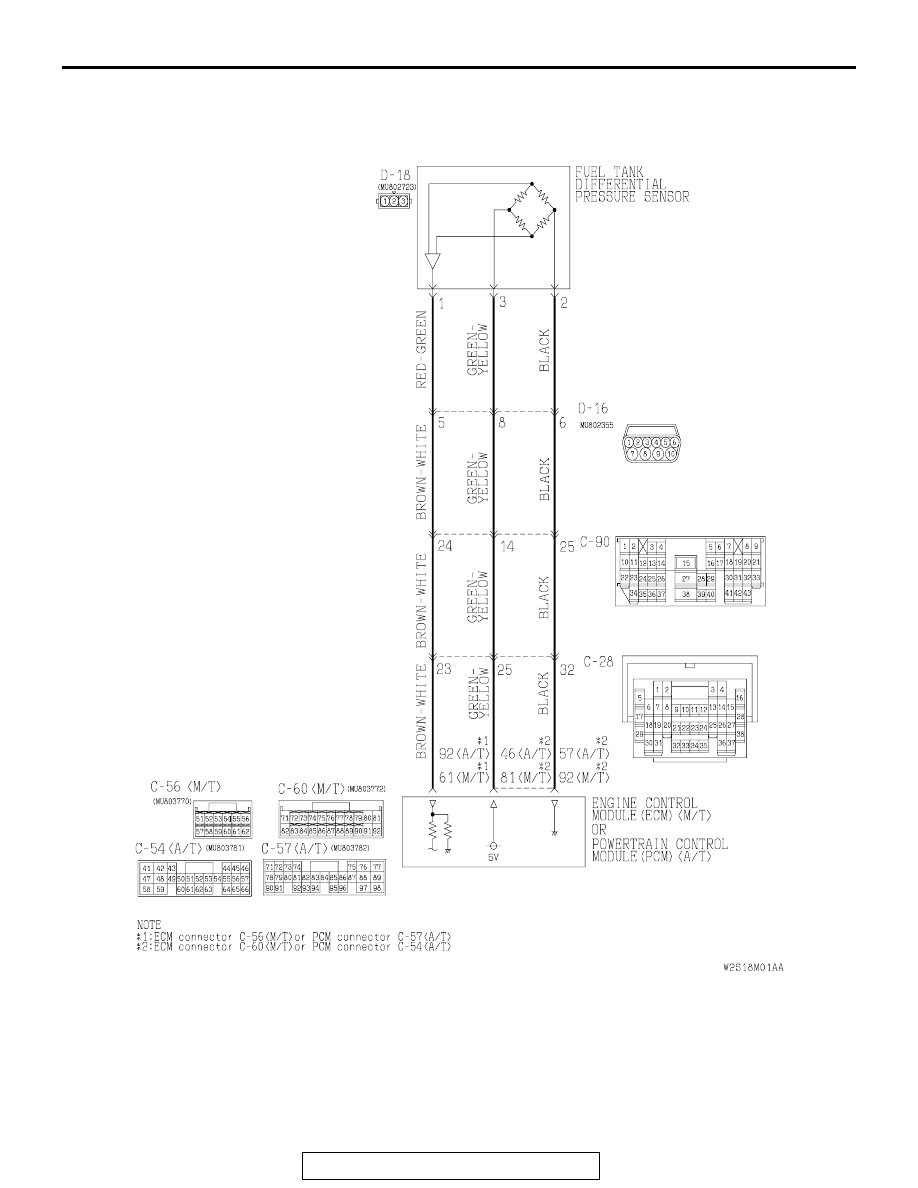

Fuel Tank Differential Pressure Sensor Circuit

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-519

.

CIRCUIT OPERATION

• A 5-volt voltage is supplied to the power terminal

of the fuel tank differential pressure sensor (ter-
minal 3) from the ECM (terminal 81) <M/T> or
PCM (terminal 46) <A/T>. The ground terminal
(terminal 2) is grounded with the ECM (terminal
92) <M/T> or PCM (terminal 57) <A/T>.

• A voltage proportional to the pressure in the fuel

tank is sent from the output terminal of the fuel
tank differential pressure sensor (terminal 1) to
the ECM (terminal 61) <M/T> or PCM (terminal
92) <A/T>.

.

TECHNICAL DESCRIPTION

• To judge if the fuel tank differential pressure sen-

sor is defective, the ECM <M/T> or PCM <A/T>
monitors the fuel tank differential pressure sensor
output voltage.

• Based on the test conditions and judgment crite-

ria, the ECM <M/T> or PCM <A/T> judges if the
fuel tank differential pressure sensor output volt-
age is normal.

.

DESCRIPTIONS OF MONITOR METHODS

• Detect malfunction if change of fuel tank differen-

tial pressure sensor output voltage during idling
stays large during specified go/stop operations.

.

MONITOR EXECUTION

• Continuous.

.

MONITOR EXECUTION CONDITIONS (Other
Monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Evaporative emission purge solenoid monitor

• Evaporative emission ventilation solenoid monitor

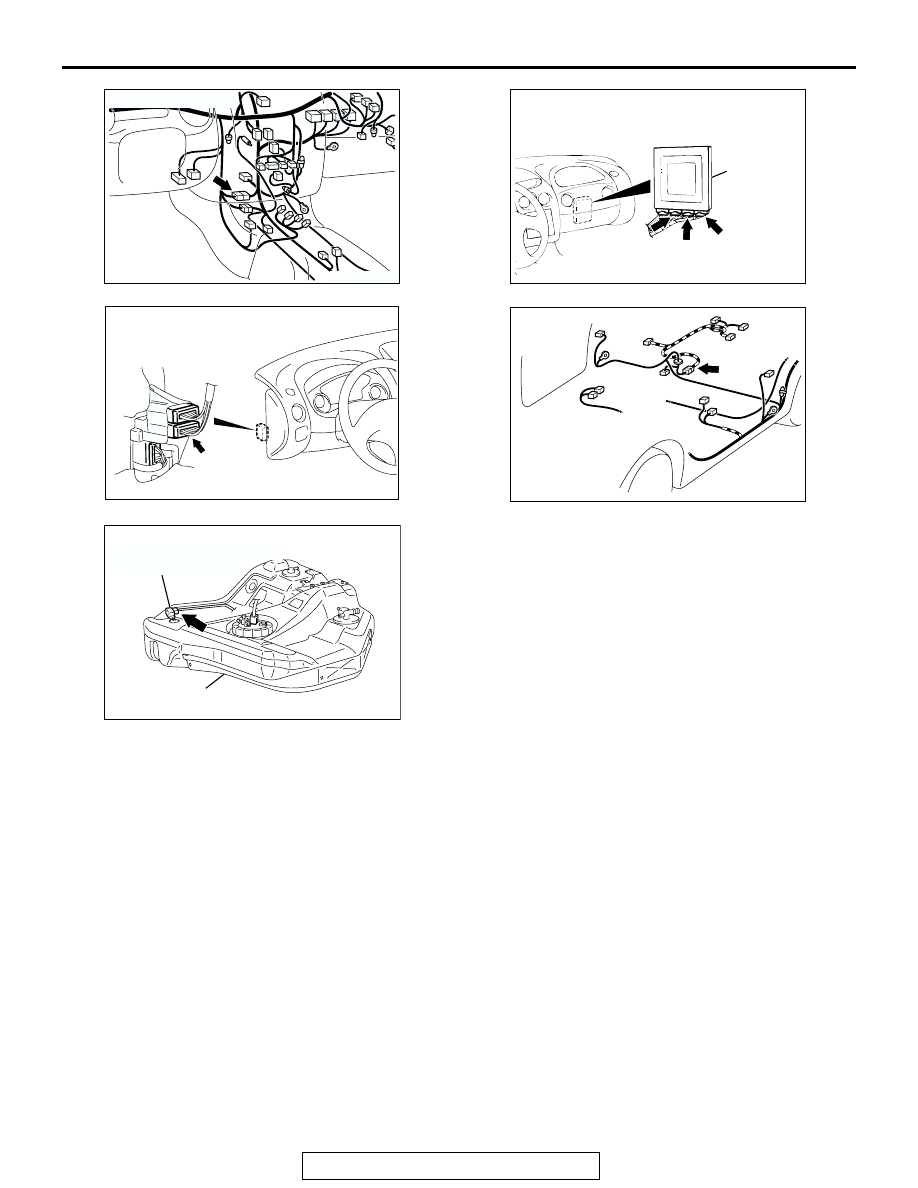

AC001741 AJ

CONNECTOR: C-28

AC001689

CONNECTORS: C-56, C-60<M/T>,
C-54, C-57 <A/T>

ECM <M/T>
OR
PCM <A/T>

AK

C-60
<M/T>

C-56 <M/T>,
C-57<A/T>

C-54
<A/T>

AC001991

CONNECTOR: C-90

CONNECTOR
BLOCK (LH)

AI

AC001787AD

CONNECTOR: D-16

AC103356

FUEL TANK

AD

CONNECTOR: D-18
FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-520

 Sensor (The sensors below are determined to be

normal)

• Volme airflow sensor

• Barometric pressure sensor

• Intake air temperature sensor

• Engine coolant temperature sensor

.

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Test Conditions: Electrical noise

• Throttle valve is closed.

• Vehicle speed is 1.5 km/h (0.9 mph) or less.

START

YES



NO

NO



OFF-IDLING CONDITION



IDLING CONDITION?



F1 = 0

END

NO

NO

YES

YES



MALFUNCTION



F1 > 20

SPECIFIED TIMES

MONITORED



FTPS OUTPUT



VOLTAGE      > 0.2V

FLUCTUATION



NO

YES



YES



F1 = F1 + 1

GOOD



YES



NO





OFF-IDLING CONDITION

AC210307

RATIONALITY - NOISE
