MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-429

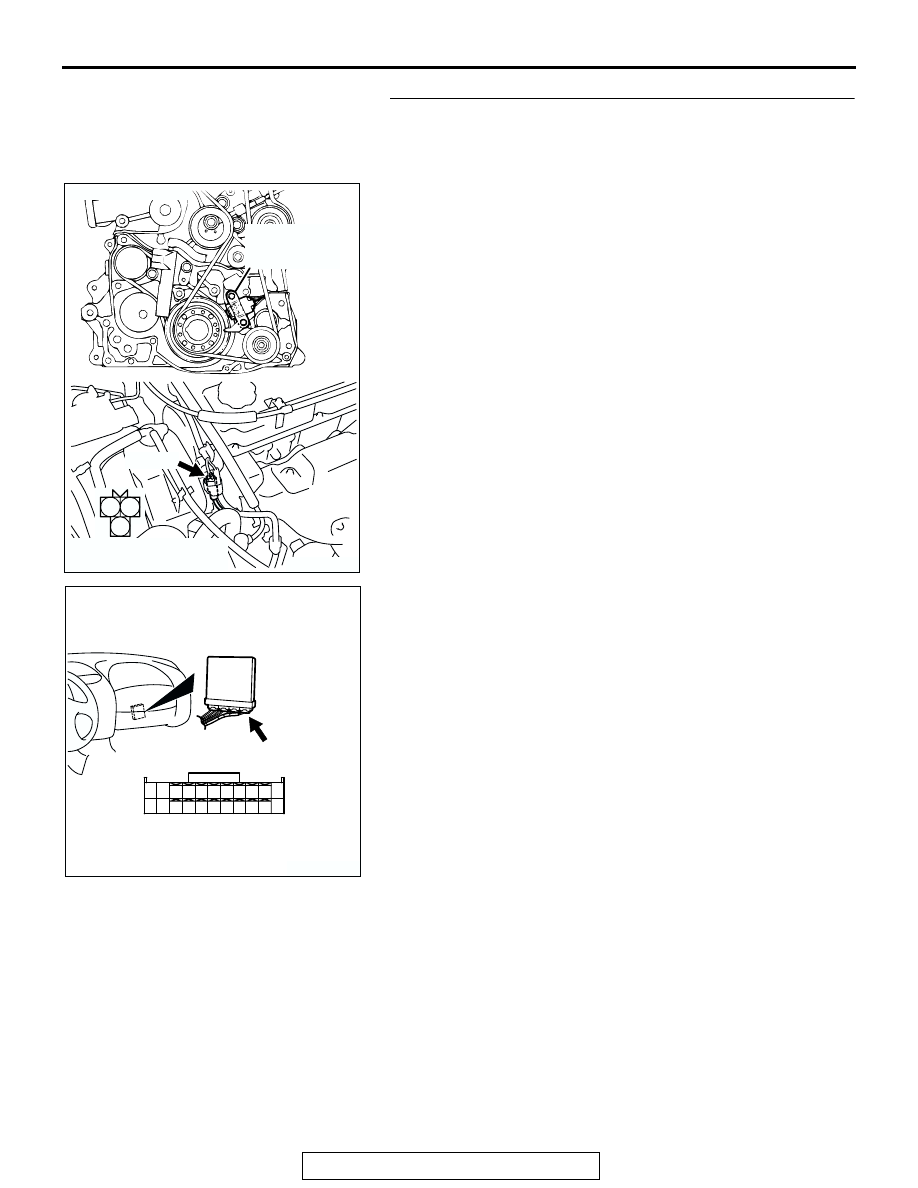

STEP 19. Check for harness damage between crankshaft
position sensor connector B-20 (terminal No. 2) and ECM
connector C-60 (terminal No. 89) <M/T> or PCM connector
C-54 (terminal No. 45) <A/T>.
Q: Is the harness wire in good condition?

YES : Go to Step 20.
NO :  Repair it. Then go to Step 21.

AK300428

1

2

3

AB

B-20 (B)

CRANKSHAFT
POSITION
SENSOR

CONNECTOR: B-20

HARNESS CONNECTOR:
COMPONENT SIDE

AK300415

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

CONNECTOR: C-60 <M/T>

AB

C-60 (G)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-430

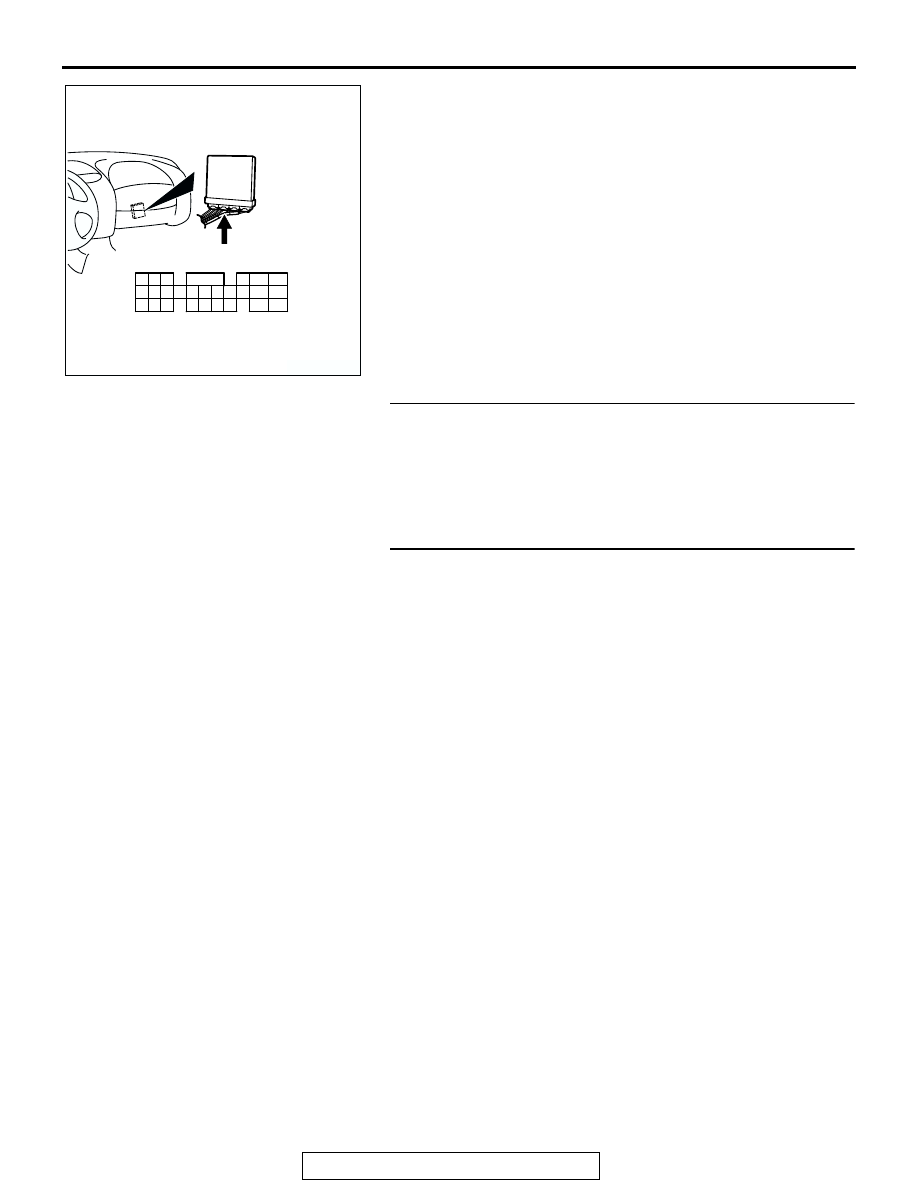

STEP 20. Check the crankshaft sensing blade.
Q: Is the crankshaft sensing blade in a good condition?

YES : Replace the crankshaft position sensor. Then go to

Step 21.

NO :  Replace the crankshaft sensing blade. Then go to

Step 21.

STEP 21. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0335 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK300412

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

C-54 (GR)

CONNECTOR: C-54 <A/T>

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-431

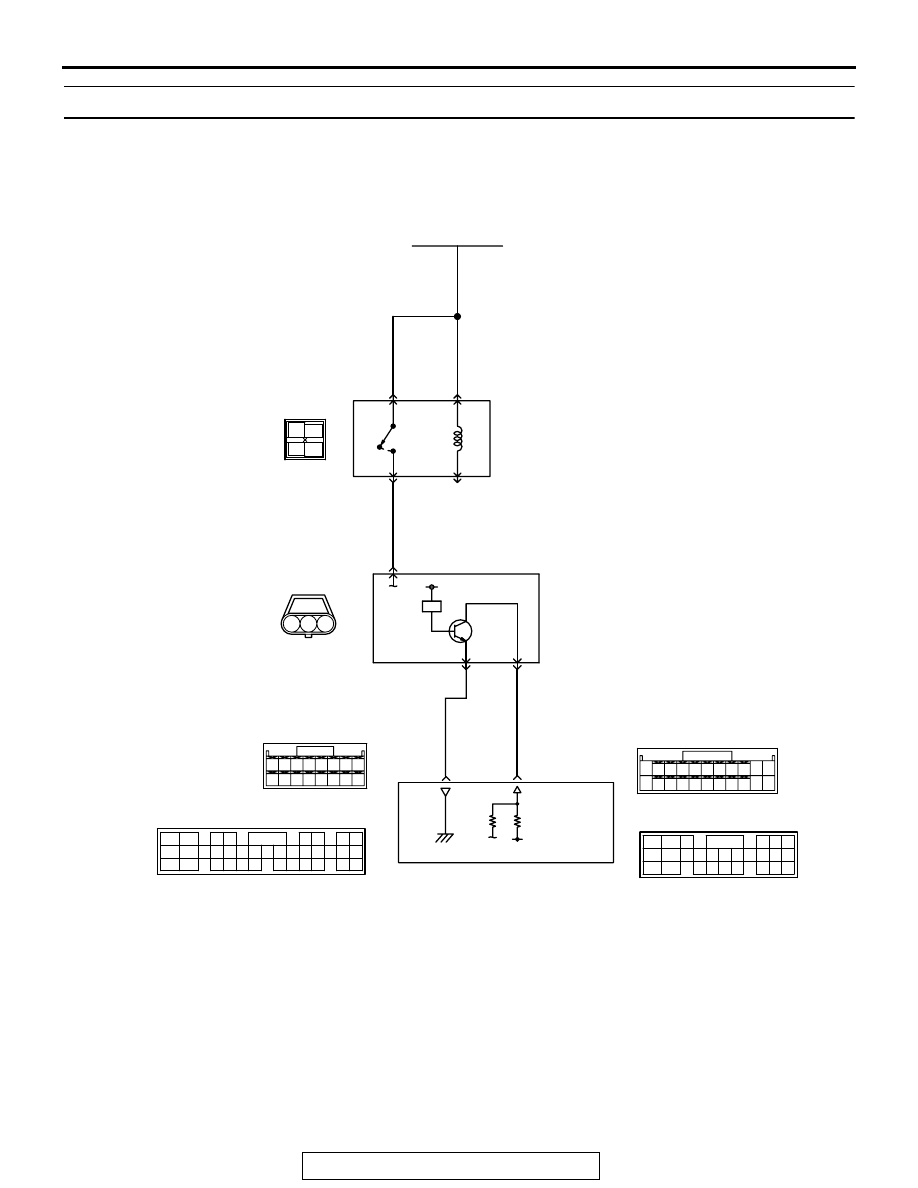

DTC P0340: Camshaft Position Sensor Circuit

AK101517

2

1

3

RED

-

WHITE

RED

-

WHITE

RED

-

WHITE

RED

BL

UE-

YELL

OW

BATTERY

MFI RELAY

CAMSHAFT
POSITION
SENSOR

     B-09
MU802337

C-54 <A/T>
(MU803781)

C-60 <M/T>
(MU803772)

5 V

1

1

2

2

3

3

4

ENGINE CONTROL
MODULE (ECM) <M/T>
OR
POWERTRAIN CONTROL
MODULE (PCM) <A/T>

42 43
48 49 50 51 52 53 54 55 56 57

46

45

44

58 59

60 61 62 63

64 65 66

47

41

82

78

81

80

89 90 91 92

79

87

71

74

73

72

76

75

77

85

88

83 84

86

2

3 4

5 6

7 8

9

11 12 13 14 15 16 17 18 19 20

30

21 22 23

24 25

26 27 28 29

3132 33

34 35

1

10

C-50 <A/T>
(MU803784)

NOTE
*1: ECM connector C-53 <M/T>
*2: ECM connector C-60 <M/T>
*3: PCM connector C-50 <A/T>
*4: PCM connector C-54 <A/T>

Camshaft Position Sensor Circuit

BROWN

40 <M/T>*1
16 <A/T>*3

88 <M/T>*2
56 <A/T>*4

C-53 <M/T>
(MU803771)

34

33

32

36

35

37

42

45

31

39

38

46

40 41

43 44

3 4

1 2

A-18X

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-432

.

CIRCUIT OPERATION

• The camshaft position sensor power is supplied

from the MFI relay (terminal No. 4).

• Terminal No. 1 of the camshaft position sensor is

grounded with ECM (terminal No. 40) <M/T> or
PCM (terminal No. 16) <A/T>.

• A 5-volt voltage is applied on the camshaft posi-

tion sensor output terminal (terminal No. 2) from
the ECM (terminal No. 88) <M/T> or PCM (termi-
nal No. 56) <A/T>. The camshaft position sensor
generates a pulse signal when the output termi-
nal is opened and grounded.

.

TECHNICAL DESCRIPTION

• The camshaft position sensor functions to detect

the top dead center position of the number 1 cyl-
inder and to convert that data to pulse signals
that are input to the ECM <M/T> or PCM <A/T>.

• When the engine is running, the camshaft posi-

tion sensor outputs a pulse signal.

• The ECM <M/T> or PCM <A/T> checks whether

pulse signal is input while the engine is cranking.

.

DESCRIPTIONS OF MONITOR METHODS

• Camshaft position sensor signal does not

change.

• Camshaft position sensor signal is not normal

pattern.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

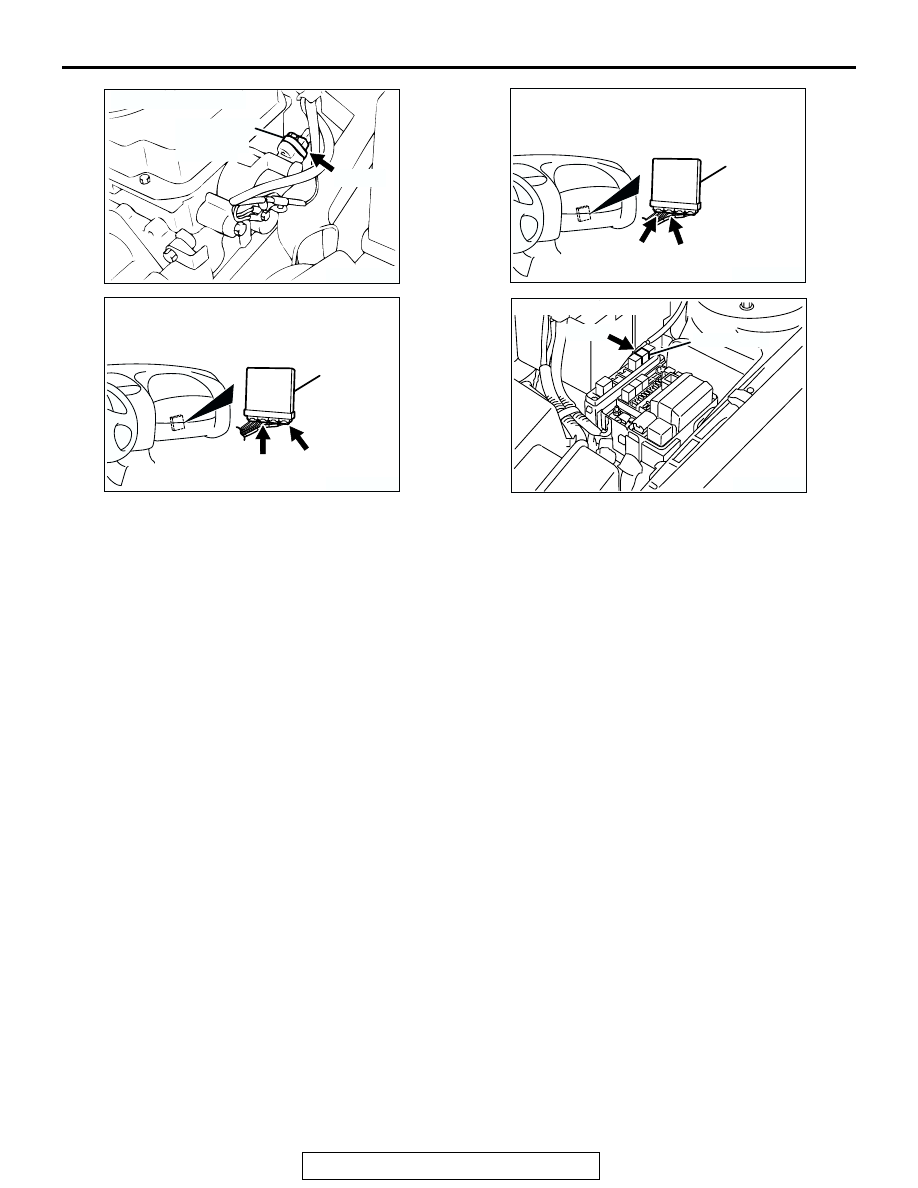

AK300059

CAMSHAFT
POSITION
SENSOR

B-09 (B)

AB

CONNECTOR: B-09

AK300060

ECM

CONNECTORS: C-53, C-60 <M/T>

AN

C-53 (G)

C-60 (G)

AK300060

PCM

CONNECTORS: C-50, C-54 <A/T>

AO

C-54 (GR)

C-50 (GR)

AK300121

MFI RELAY

CONNECTOR: A-18X

AB

A-18X
