MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-365

CIRCUIT OPERATION

• 5-volt voltage is applied to the fuel tank tempera-

ture sensor output terminal (terminal No. 3) from
the ECM (terminal No. 77) <M/T> or PCM (termi-
nal No. 51) <A/T> via the resistor in the ECM
<M/T> or PCM <A/T>.

• The fuel tank temperature sensor output voltage

increases when the resistance increases and
decreases when the resistance decreases. The
ground terminal (terminal No. 1) is grounded to
the vehicle body.

TECHNICAL DESCRIPTION

• The fuel tank temperature sensor converts the

fuel tank temperature to a voltage.

• The ECM <M/T> or PCM<A/T> detects the fuel

tank temperature in the fuel tank with this output
voltage.

DESCRIPTIONS OF MONITOR METHODS
Fuel tank temperature sensor output voltage is out of

specified range.

MONITOR EXECUTION
Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Engine coolant temperature sensor

• Intake air temperature sensor

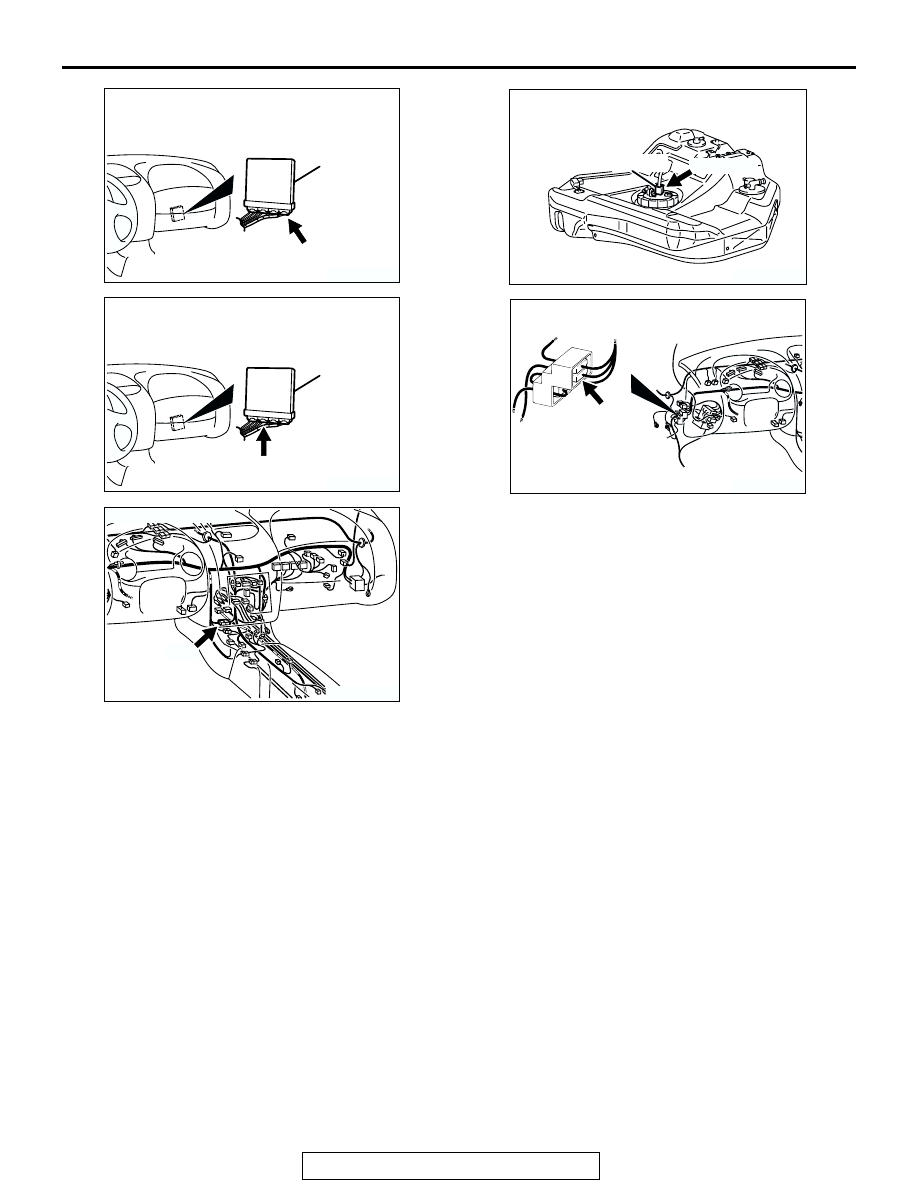

AK300060

ECM

CONNECTOR: C-60 <M/T>

C-60 (G)

AK300060AB

C-54 (GR)

PCM

CONNECTOR: C-54 <A/T>

AK300119

CONNECTOR: C-28

C-28

AK300120AB

D-17 (GR)

CONNECTOR: D-17

FUEL TEMPERATURE
SENSOR
(INTEGRATED IN
FUEL PUMP MODULE)

AK300118

CONNECTOR: C-90

C-90

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-366

DTC SET CONDITIONS

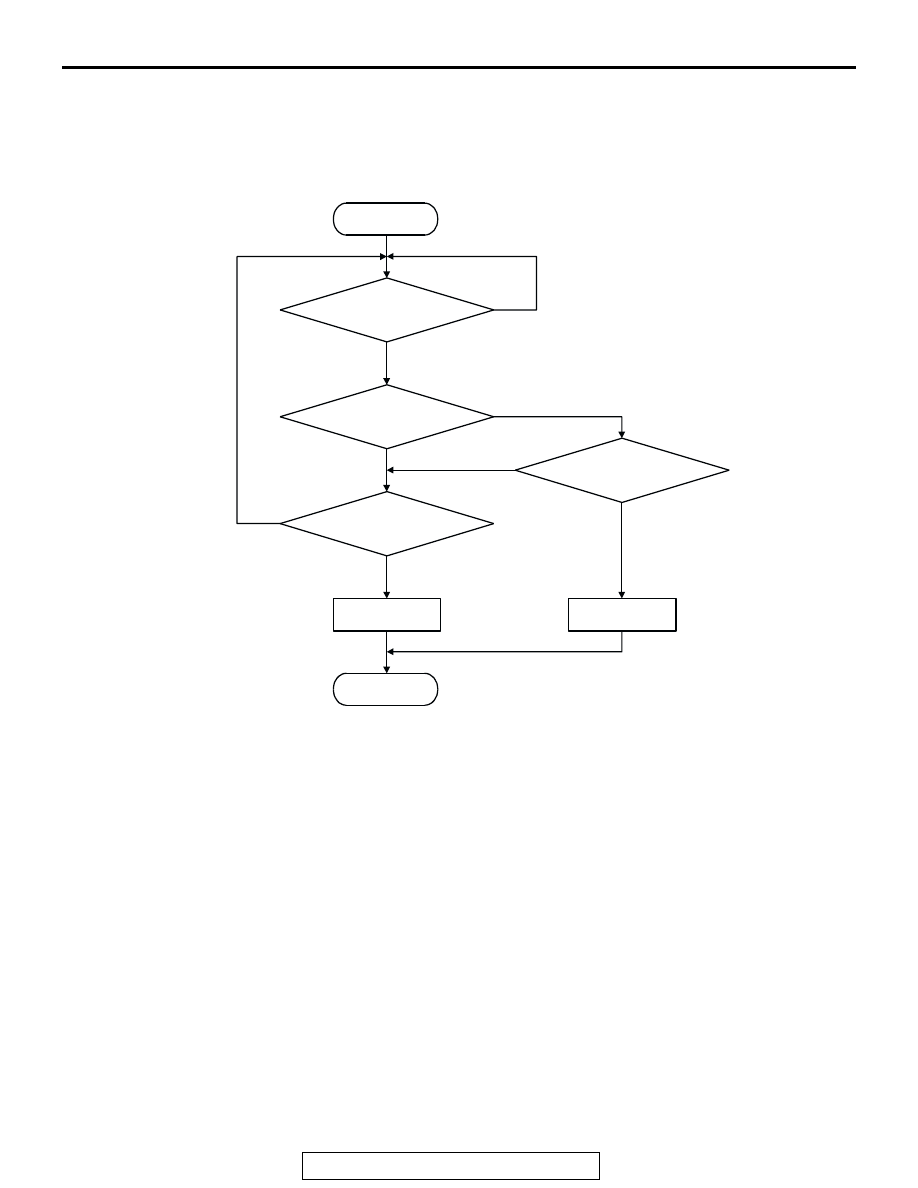

Logic Flow Chart

Check Conditions

• 2 seconds or more have passed since the start-

ing sequence was completed.

Judgement Criteria

• Fuel tank temperature sensor output voltage has

continued to be 4.6 volts or higher for 2 seconds.

OBD-ll DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 6

− Other Monitor

P.13A-5

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Fuel tank temperature sensor failed.

• Open fuel tank temperature sensor circuit, har-

ness damage or connector damage.

• ECM failed. <M/T>

• PCM failed. <A/T>

DIAGNOSIS

Required Special Tools:

• MB991958 (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

START

MONITORING

CONDITIONS

END

YES

MALFUNCTION

GOOD

OUTPUT VOLTAGE

< 0.1V

CONTINUOUS

FAILURE FOR 2secs

OUTPUT VOLTAGE

> 4.6V

YES

AK301445

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-367

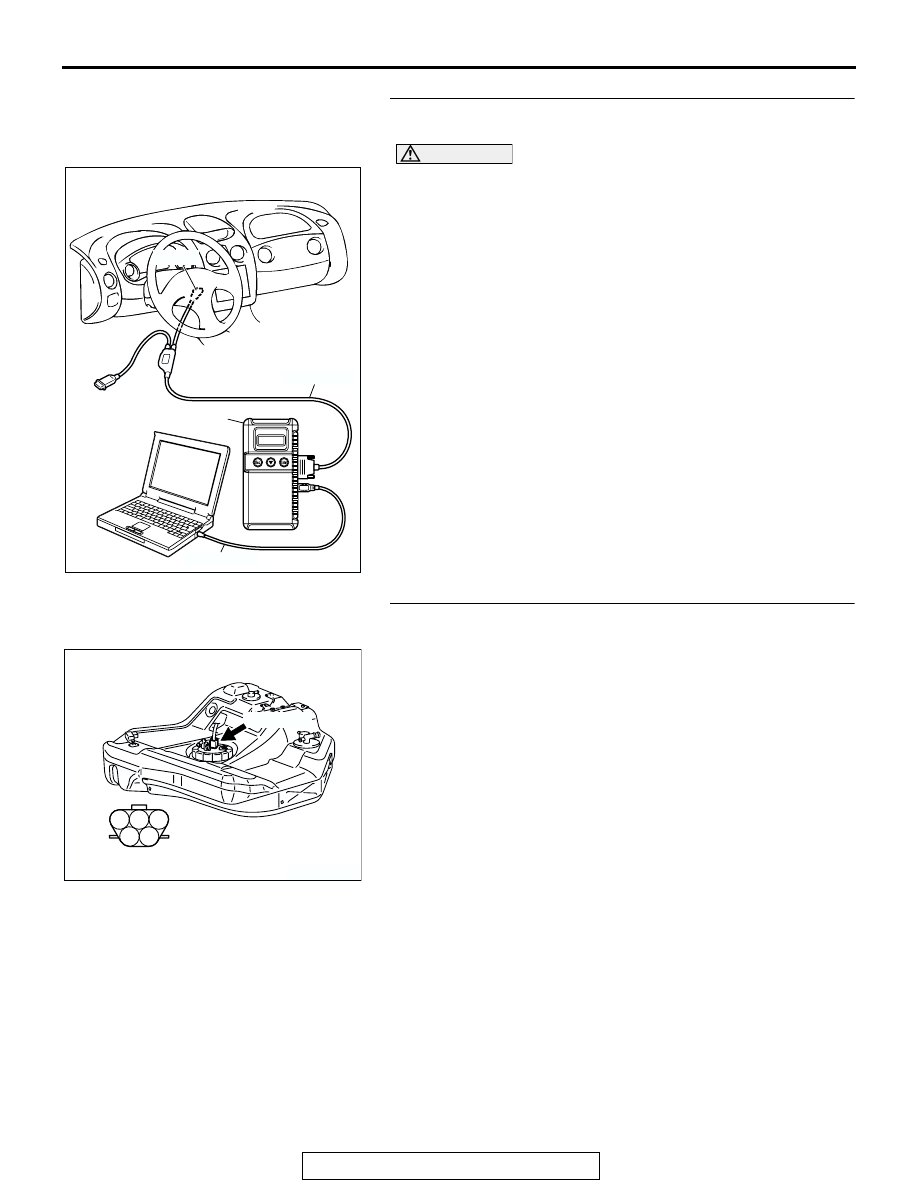

STEP 1. Using scan tool MB991958, check data list item
4A: Fuel Tank Temperature Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

4A, Fuel Tank Temperature Sensor.

• With the engine cool, the Fuel Tank Temperature should

be approximately the same as ambient air temperature.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

NO : Go to Step 2.

STEP 2. Check connector D-17 at the fuel tank temperature
sensor for damage.
Q: Is the connector in good condition?

YES : Go to Step 3.
NO : Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

AK300810

MB991911

16-PIN

MB991827

MB991824

AK300453

D-17 (GR)

CONNECTOR: D-17

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-368

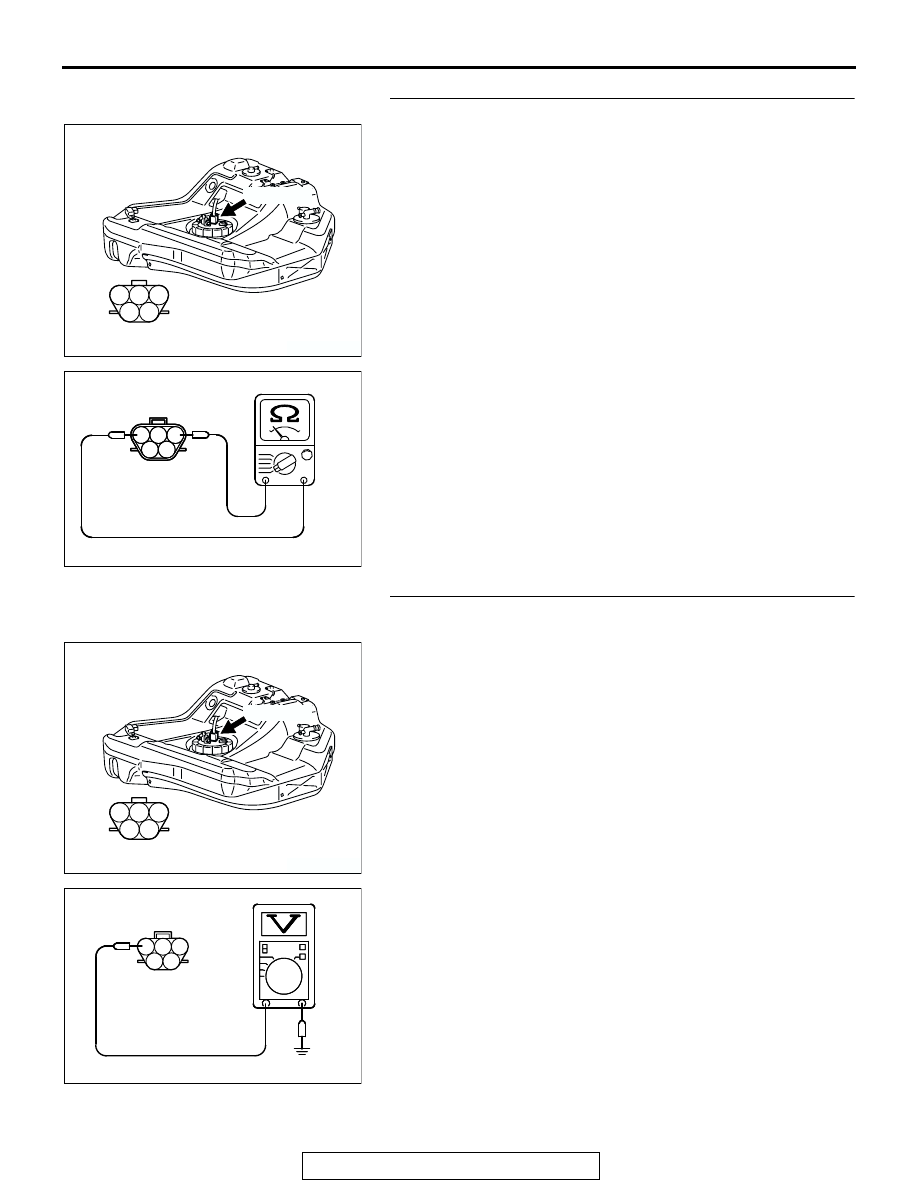

STEP 3. Check the fuel tank temperature sensor.
(1) Disconnect the fuel tank temperature sensor connector

D-17.

(2) Measure the resistance between terminal No. 1 and No. 3

of the fuel tank temperature sensor.

Standard value:

0.5

− 12.0 kΩ

Q: Is the resistance between 0.5 and 12.0 k

Ω?

YES : Go to Step 4.
NO : Replace the fuel tank temperature sensor. Then go to

Step 11.

STEP 4. Measure the sensor supply voltage at fuel tank
temperature sensor harness side connector D-17.
(1) Disconnect the connector D-17 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 3 and ground.

• Voltage should be between 4.5 and 4.9 volts

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.5 and 4.9 volts?

YES : Go to Step 8.
NO : Go to Step 5.

AK300453

D-17 (GR)

CONNECTOR: D-17

HARNESS CONNECTOR:
COMPONENT SIDE

AK101374

1 2 3

4 5

1 2 3

4 5

FUEL TEMPERATURE SENSOR
SIDE CONNECTOR

AK300453

D-17 (GR)

CONNECTOR: D-17

HARNESS CONNECTOR:
COMPONENT SIDE

AK101376

D-17 HARNESS
CONNECTOR:
COMPONENT SIDE
