MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-169

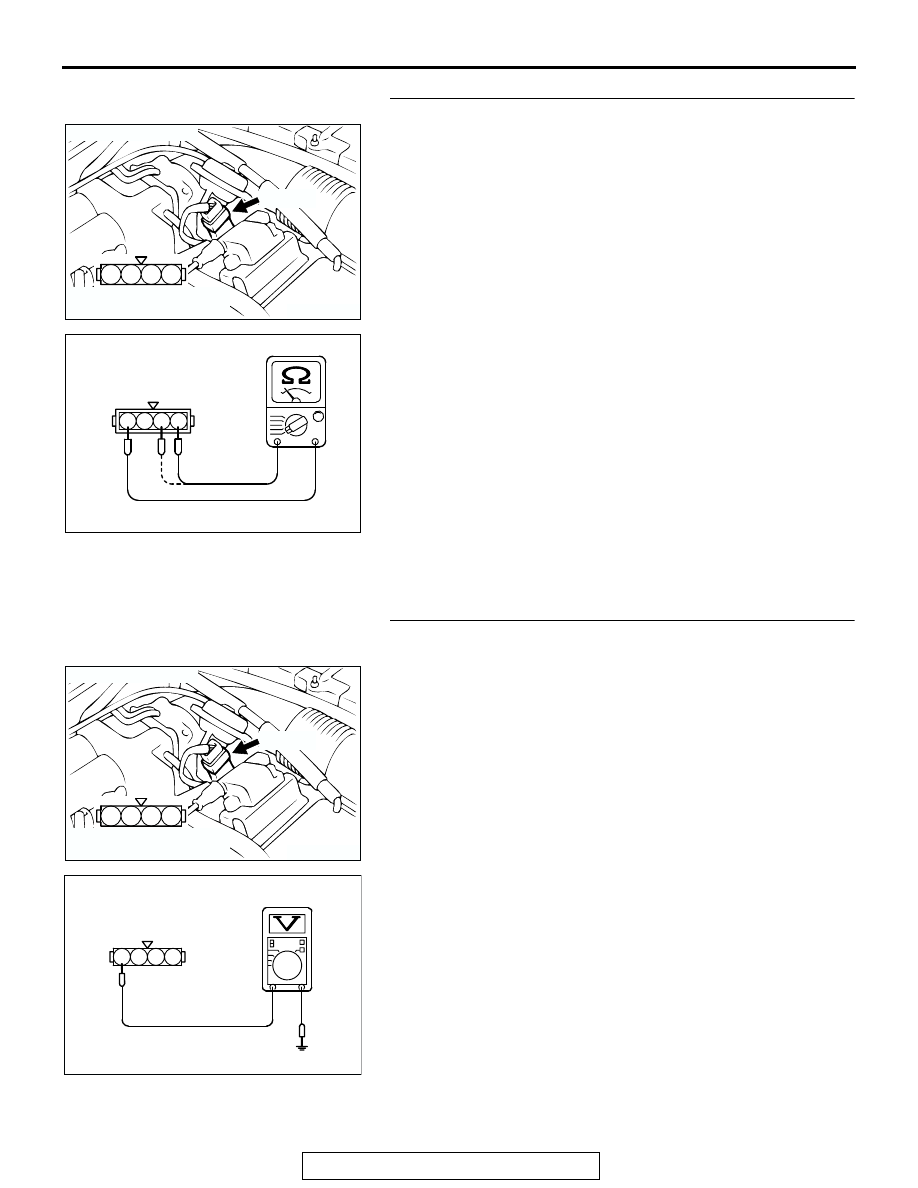

STEP3. Check the throttle position sensor.
(1) Disconnect the connector B-07.

(2) Measure the resistance between throttle position sensor

side connector terminal No. 1 and No. 4.

Standard value: 3.5

 6.5 k

(3) Measure resistance between the throttle position sensor

side connector terminal No. 1 and No. 3.

(4) Move the throttle valve from the idle position to the full-open

position.

• Resistance should change smoothly in proportion to the

opening angle of the throttle valve.

Q: Is the resistance normal?

YES : Go to Step 4.
NO :  Replace the throttle position sensor. Refer to

P.13A-946

, Throttle Body. Then go to Step 14.

STEP 4. Measure the sensor supply voltage at throttle
position sensor harness side connector B-07.
(1) Disconnect the connector B-07 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 4 and ground.

• Voltage should be between 4.8 and 5.2 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.8 and 5.2 volts?

YES : Go to Step 7.
NO :  Go to Step 5.

AK300402

2 1

3

4

CONNECTOR: B-07

AB

B-07 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000320

1 2 3 4

THROTTLE POSITION
SENSOR SIDE
CONNECTOR

AB

AK300402

2 1

3

4

CONNECTOR: B-07

AB

B-07 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000236 AJ

B-07 HARNESS
CONNECTOR:
COMPONENT SIDE

4 3 2 1

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-170

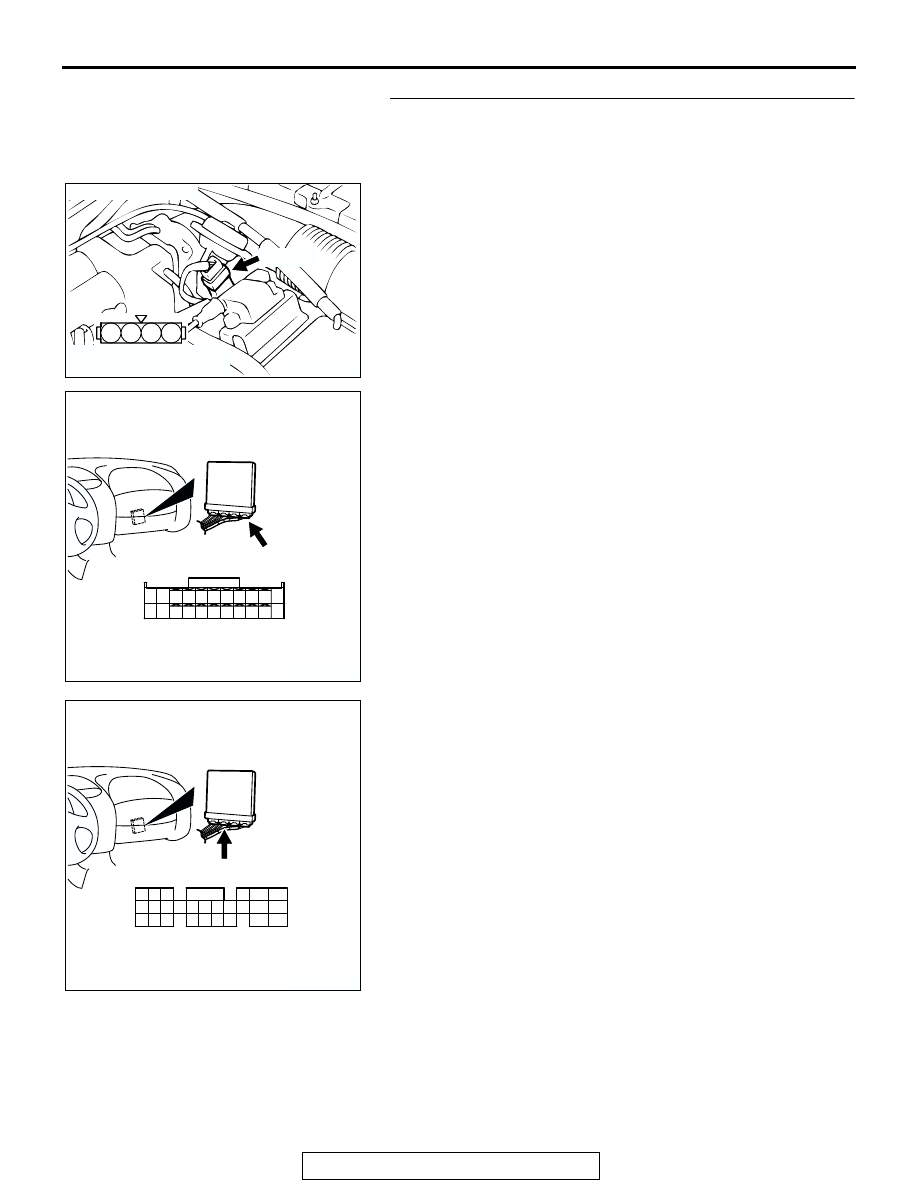

STEP 5. Check connector C-60 at ECM <M/T> or connector
C-54 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : . Go to Step 6.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

AK300415

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

CONNECTOR: C-60 <M/T>

AB

C-60 (G)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300412

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

C-54 (GR)

CONNECTOR: C-54 <A/T>

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-171

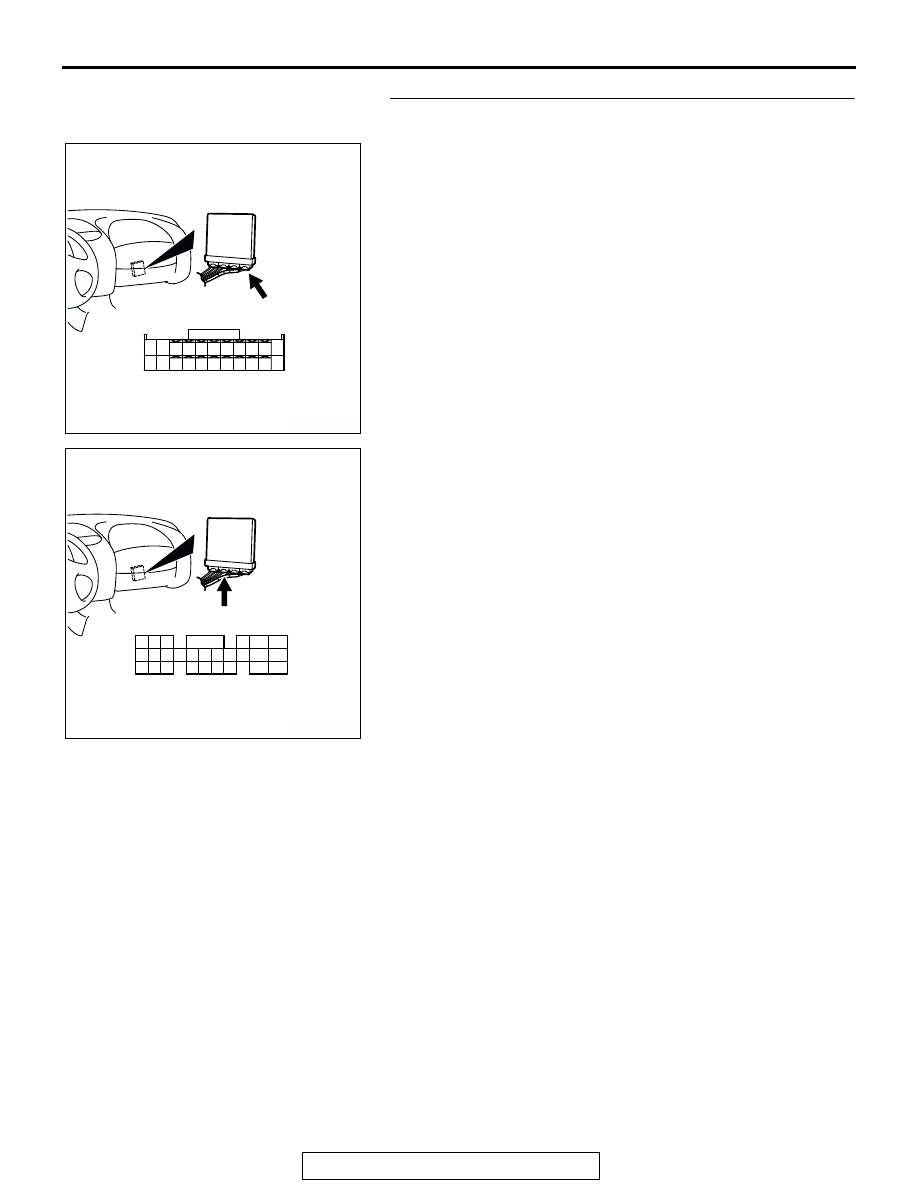

STEP 6. Check for harness damage between throttle
position sensor connector B-07 (terminal No. 3) and ECM
connector C-60 (terminal No. 81) <M/T> or PCM connector
C-54 (terminal No. 46) <A/T>.
Q: Is the harness wire in good condition?

YES : Replace the ECM or PCM. Then go to Step 14.
NO :  Repair it. Then go to Step 14.

AK300402

2 1

3

4

CONNECTOR: B-07

AB

B-07 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300415

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

CONNECTOR: C-60 <M/T>

AB

C-60 (G)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300412

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

C-54 (GR)

CONNECTOR: C-54 <A/T>

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-172

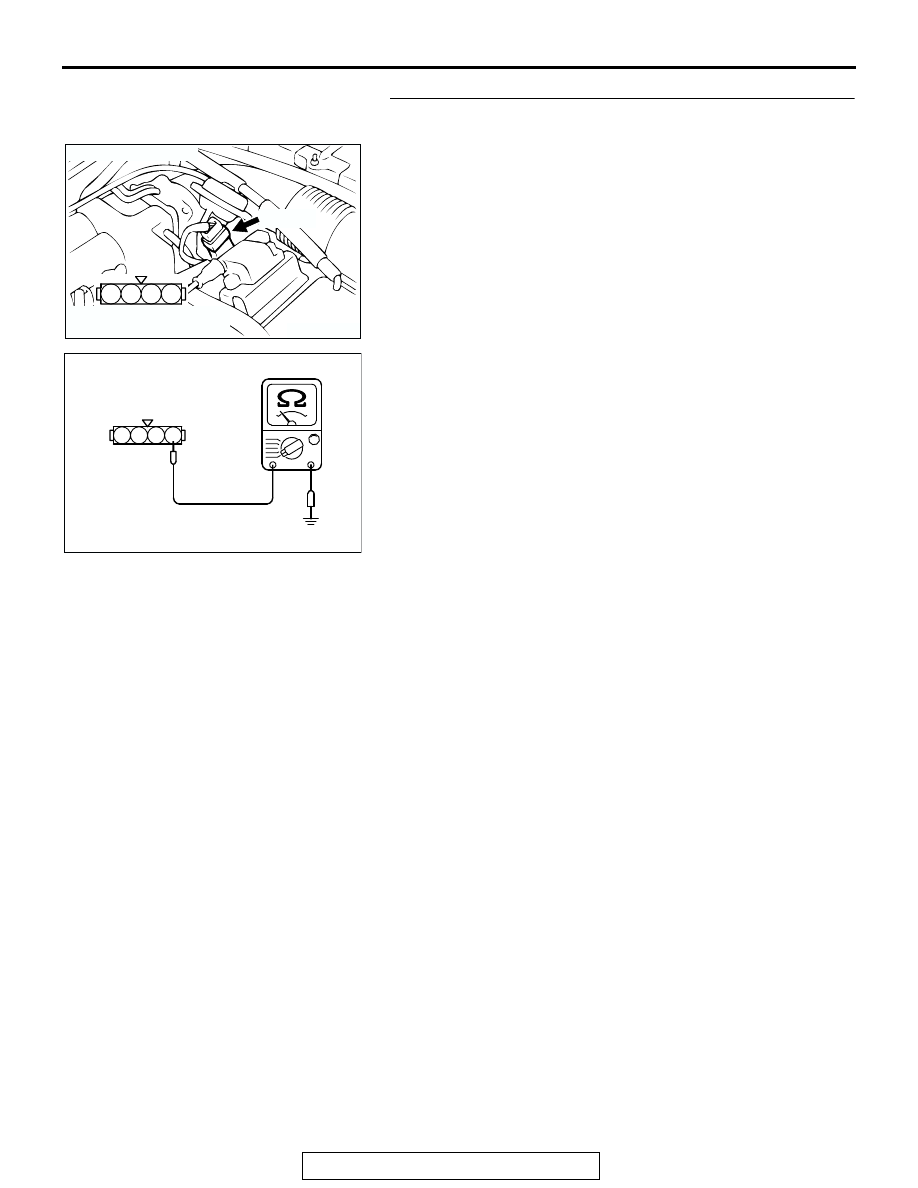

STEP 7. Check the continuity at throttle position sensor
harness side connector B-07.
(1) Disconnect the connector B-07 and measure at the harness

side.

(2) Measure the continuity between terminal No. 1 and ground.

• Should be less than 2 ohms.

Q: Is the continuity normal?

YES : Go to Step 10.
NO :  Go to Step 8.

AK300402

2 1

3

4

CONNECTOR: B-07

AB

B-07 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000237AI

B-07 HARNESS
CONNECTOR:
COMPONENT SIDE

4 3 2 1
