MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-153

DTC SET CONDITIONS

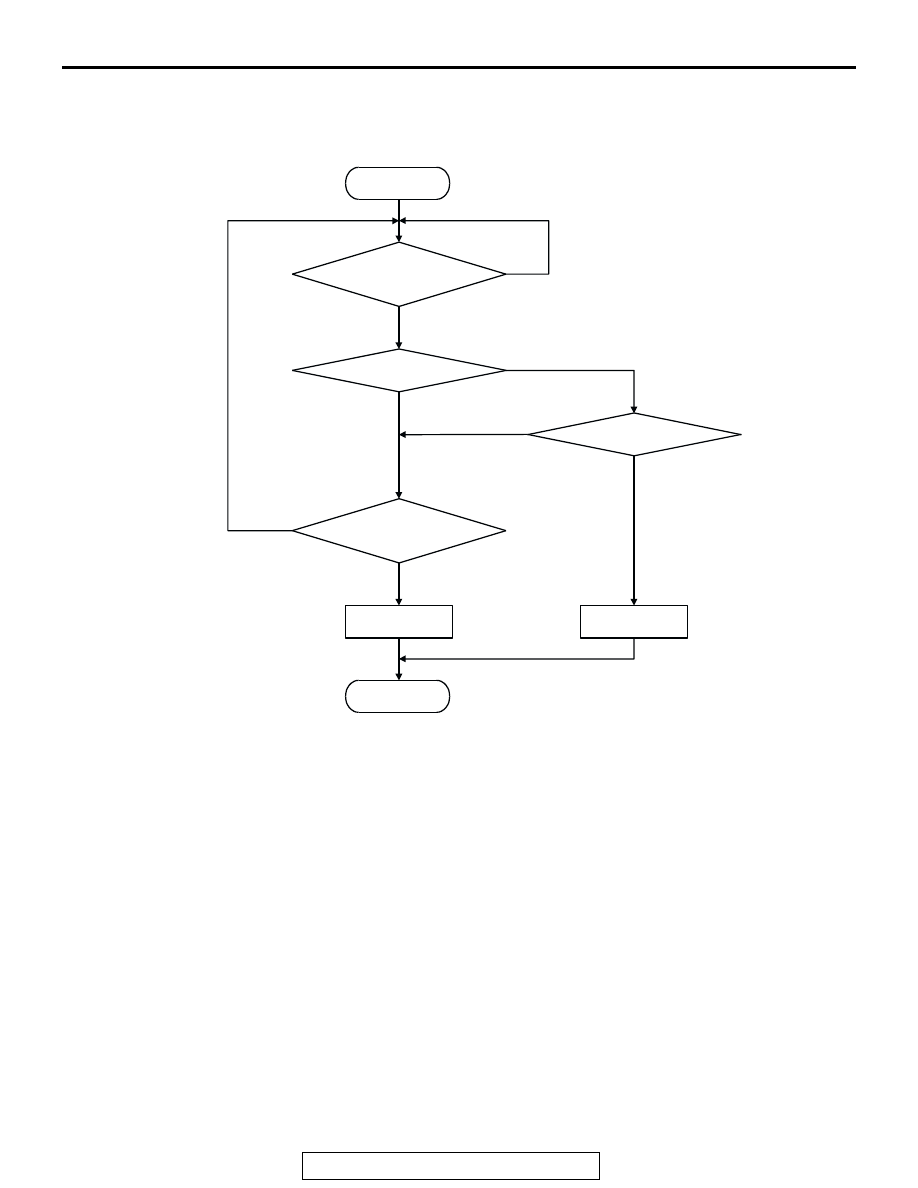

Logic Flow Chart

.

Check Conditions

• 2 seconds or more have passed since the staring

sequence was completed.

Judgement Criteria

• Engine coolant temperature sensor output volt-

age has continued to be 4.6 volts or higher [cor-
responding to a coolant temperature of

−45°C

(

−113°F) or lower] for 2 seconds.

.

OBD-ll DRIVE CYCLE PATTERN
Refer to Diagnostic Function

−OBD-ll Drive

Cycle

−Procedure 6−Other Monitor

P.13A-5

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Engine coolant temperature sensor failed.

• Open engine coolant temperature sensor circuit,

or connector damage.

• ECM failed. <M/T>

• PCM failed. <A/T>

DIAGNOSIS

Required Special Tools:

• MB991958 (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

START

OUTPUT VOLTAGE > 4.6V

OUTPUT VOLTAGE < 0.1V

END

NO

NO

NO

YES

YES

YES

MALFUNCTION

GOOD

CONTINUOUS

FAILURE FOR 2secs

MONITORING

CONDITIONS?

NO

YES

AK301426

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-154

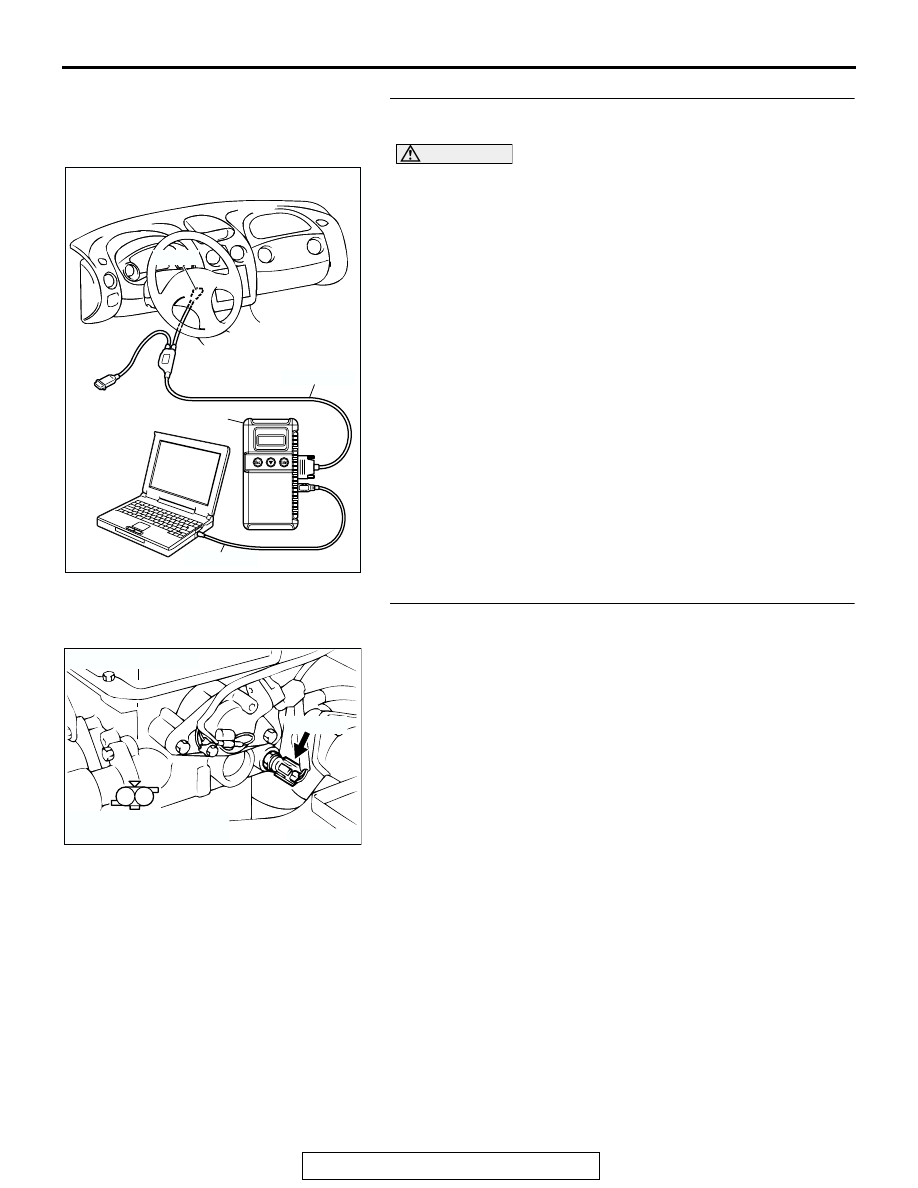

STEP 1. Using scan tool MB991958, check data list item 21:
Engine Coolant Temperature Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

21, Engine Coolant Temperature Sensor.

• The engine coolant temperature and temperature

shown with the scan tool should approximately match.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Go to Step 2.

STEP 2. Check connector B-11 at the engine coolant
temperature sensor for damage.
Q: Is the connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824

AK300404

1

2

CONNECTOR: B-11

AB

B-11 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-155

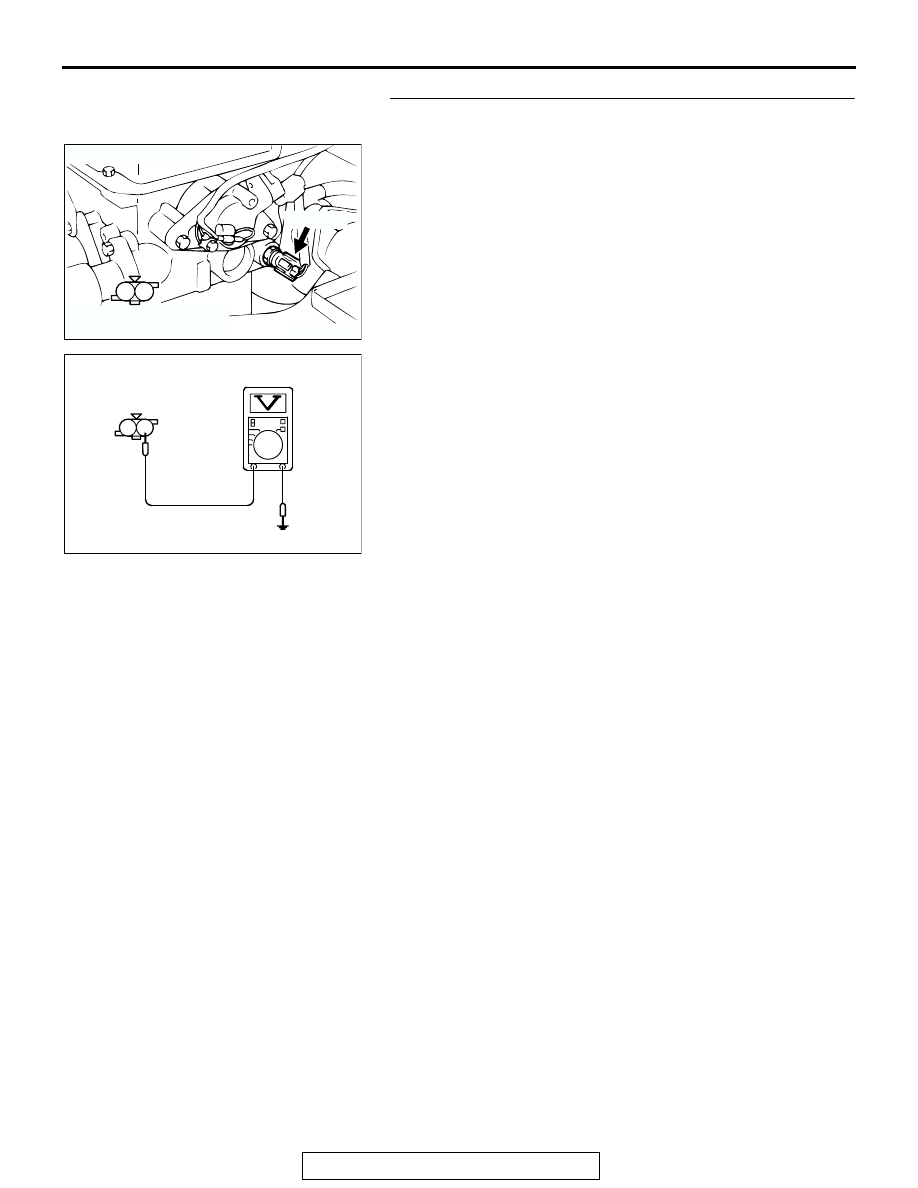

STEP 3. Measure the sensor supply voltage at engine
coolant temperature sensor harness side connector B-11.
(1) Disconnect the connector B-11 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 1 and ground.

• Voltage should be between 4.5 and 4.9 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.5 and 4.9 volts?

YES : Go to Step 7.
NO :  Go to Step 4.

AK300404

1

2

CONNECTOR: B-11

AB

B-11 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000234

B-11 HARNESS
CONNECTOR:
COMPONENT SIDE

2 1

AN

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-156

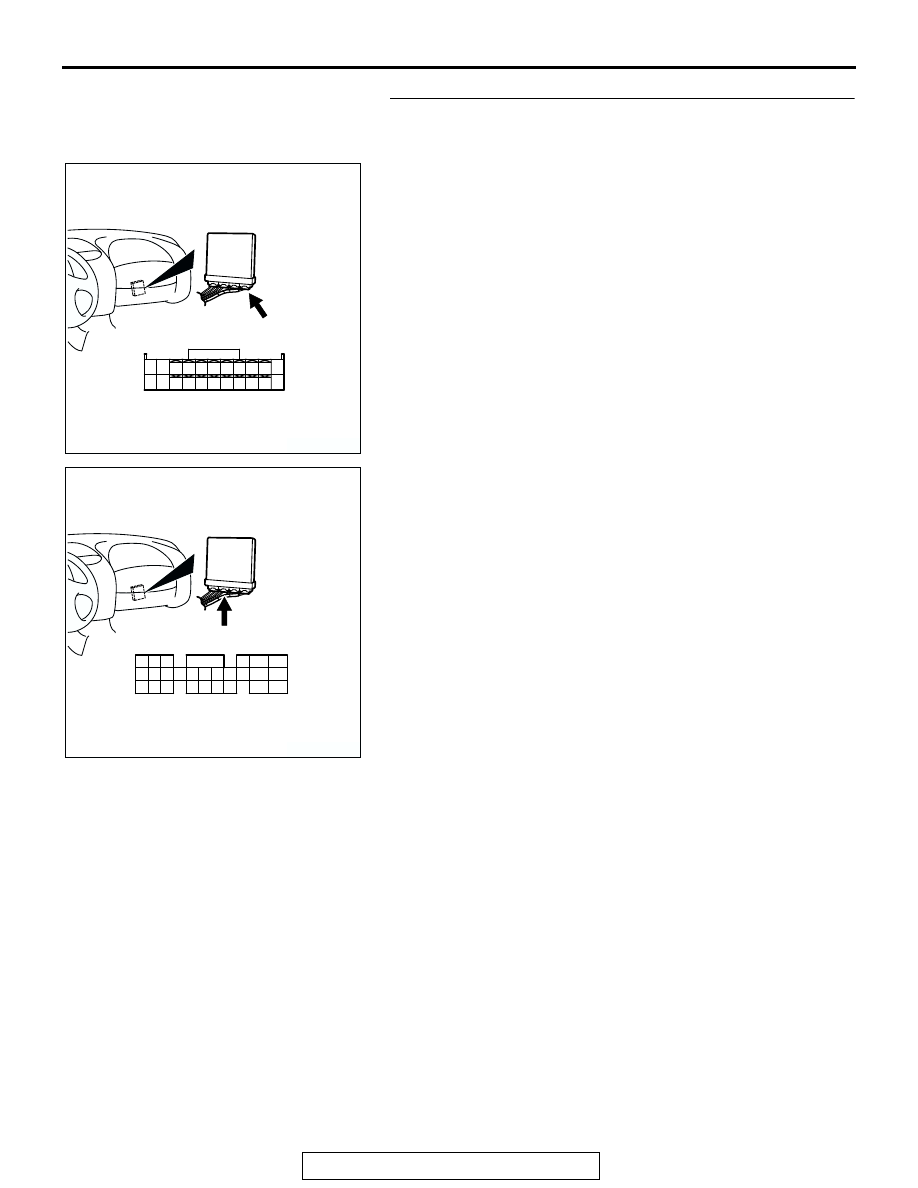

STEP 4. Measure the sensor supply voltage at ECM
connector C-60 <M/T> or PCM connector C-54 <A/T> by
backprobing.
(1) Do not disconnect the ECM connector C-60 <M/T> or PCM

connector C-54 <A/T>.

(2) Disconnect the engine coolant temperature sensor

connector B-11.

(3) Turn the ignition switch to the "ON" position.

AK300415

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

CONNECTOR: C-60 <M/T>

AB

C-60 (G)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300412

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

C-54 (GR)

CONNECTOR: C-54 <A/T>

AB

HARNESS CONNECTOR:
COMPONENT SIDE
