Mitsubishi Eclipse. Manual - part 149





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-89

STEP 18. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0107 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

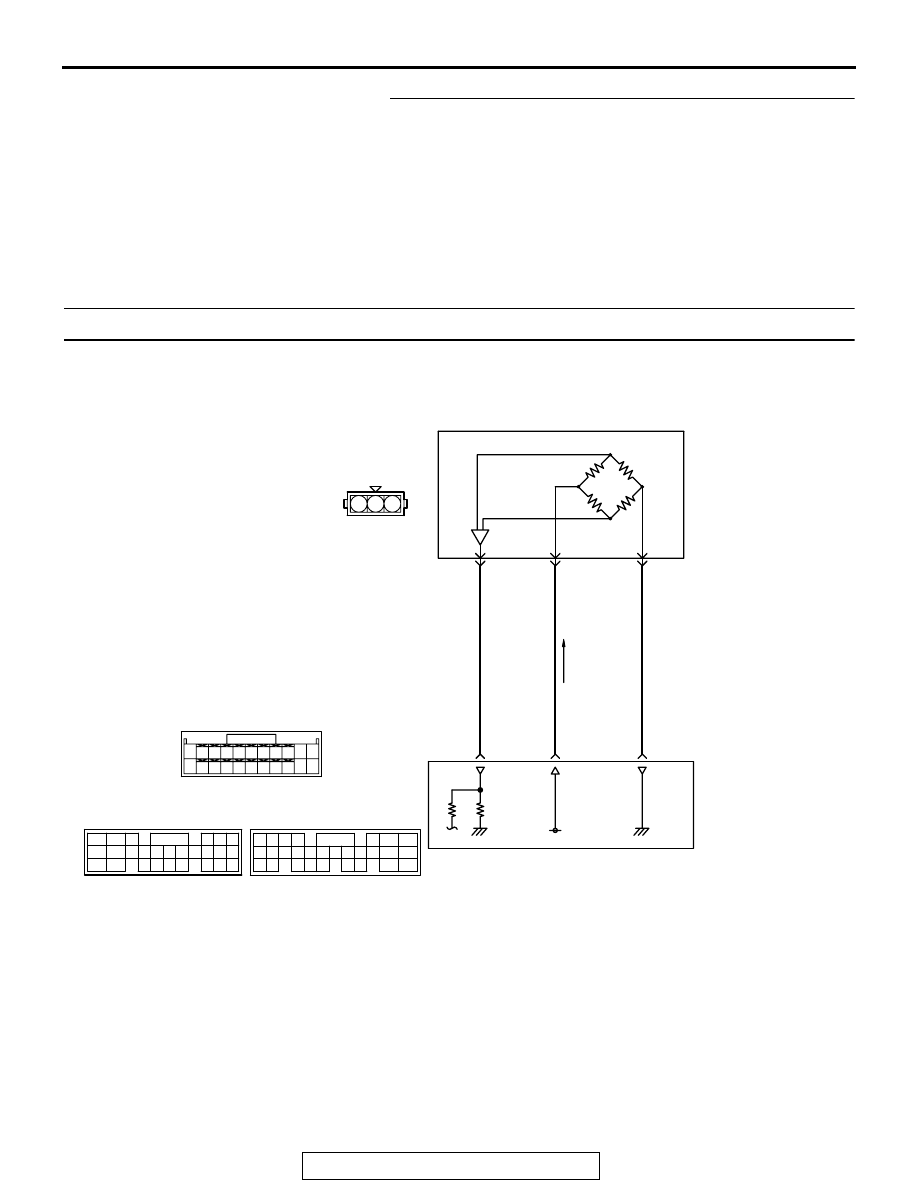

DTC P0108: Manifold Absolute Pressure Circuit High Input

AK301717

1 2 3

SK

Y BL

UE

GREEN-

YELL

O

W

BL

ACK

ENGINE CONTROL
MODULE (ECM) <M/T>
OR
POWERTRAIN CONTROL
MODULE (PCM) <A/T>

MANIFOLD
ABSOLUTE
PRESSURE
(MAP) SENSOR

      B-04
(MU802723)

C-60 <M/T>
(MU803772)

C-54 <A/T>
(MU803781)

C-57 <A/T>
(MU803782)

73 <M/T>
91 <A/T>*2

81 <M/T>
46 <A/T>*1

92 <M/T>
57 <A/T>*1

NOTE
*1:PCM connector C-54 <A/T>
*2:PCM connector C-57 <A/T>

1

2

3

5V

82

78

81

80

89 90 91 92

79

87

71

74

73

72

76

75

77

85

88

83 84

86

98

78

71

88 89

76 77

72
79
91

73
80

74

75

81
92

8283
93

8485

94

8687

9596

90

97

42 43
48 49 50 51 52 53 54 55 56 57

46

45

44

58 59

60 61 62 63

64 65 66

47

41

Manifold Absolute Pressure Sensor Circuit

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-90

.

CIRCUIT OPERATION

• A 5-volt voltage is supplied to the manifold abso-

lute pressure sensor power terminal (terminal No.
3) from ECM (terminal No. 81) <M/T> or PCM
(terminal No. 46) <A/T>. The ground terminal
(terminal No. 2) is grounded with the ECM (termi-
nal No. 92) <M/T> or PCM (terminal No. 57)
<A/T>.

• A voltage that is proportional to the intake mani-

fold pressure is sent to the ECM (terminal No. 73)
<M/T> or PCM (terminal No. 91) <A/T> from the
manifold absolute pressure sensor output termi-
nal (terminal No. 1).

.

TECHNICAL DESCRIPTION

• The manifold absolute pressure sensor outputs a

voltage which corresponds to the intake manifold
pressure.

• The ECM <M/T> PCM <A/T> checks whether this

voltage is within a specified range.

.

DESCRIPTIONS OF MONITOR METHODS
Manifold absolute pressure sensor output voltage is

out of specified range.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Engine coolant temperature sensor

• Throttle position sensor

.

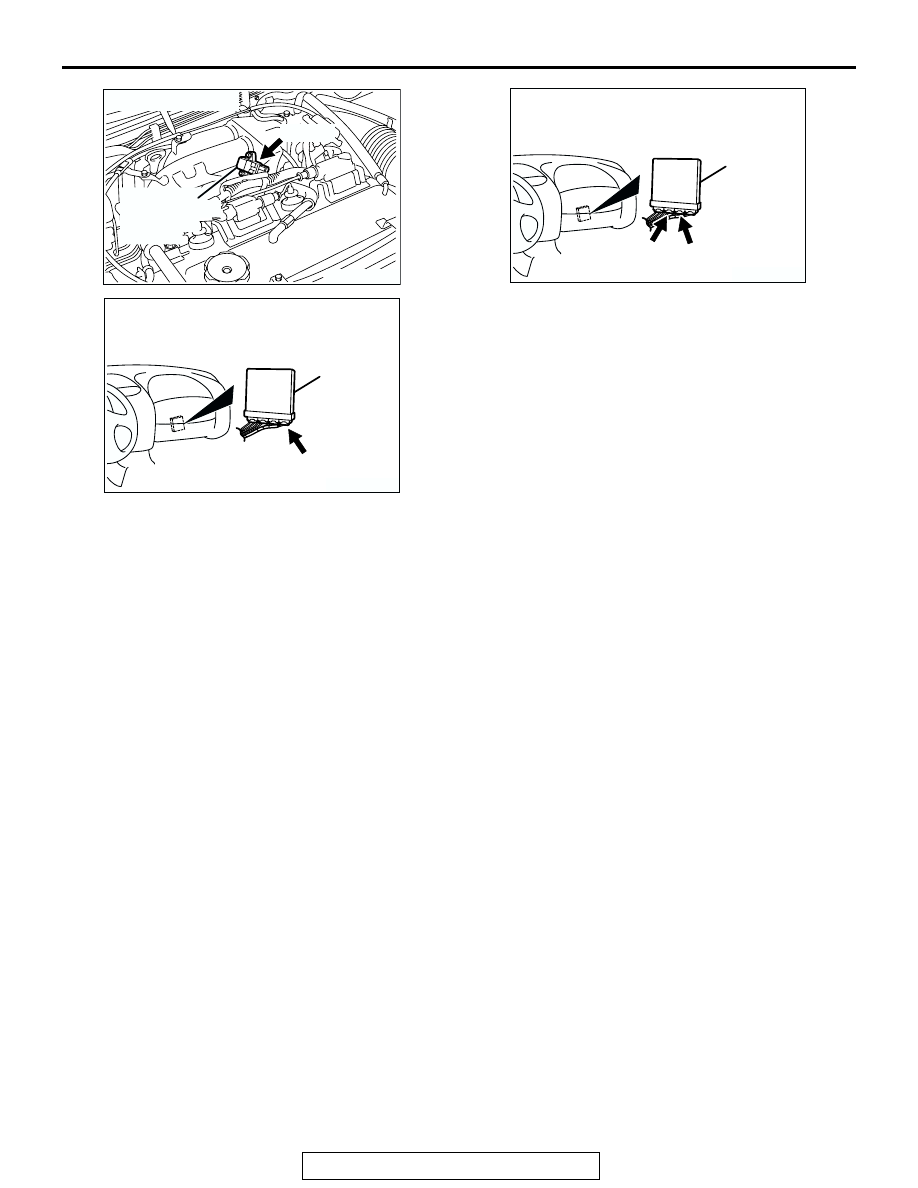

AK300106AB

CONNECTOR: B-04

B-04 (B)

MANIFOLD
ABSOLUTE
PRESSURE
SENSOR

AK300060

ECM

CONNECTOR: C-60 <M/T>

AE

C-60 (G)

AK300060

PCM

CONNECTORS: C-54, C-57 <A/T>

AI

C-57 (GR)

C-54 (GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-91

DTC SET CONDITION

Logic Flow Chart

.

Check Conditions

• 8 minutes or more have passed since the starting

sequence was completed, when the engine cool-
ant temperature at engine start is 0

°C (32°F) or

lower.

Judgement Criteria

• Manifold Absolute pressure is 117 kPa (34.6

in.Hg) or higher for 2 seconds.

.

OBD-ll DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 6

− Other Monitor

P.13A-5

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Manifold Absolute pressure sensor failed.

• Open manifold absolute pressure sensor circuit,

or connector damage.

• ECM failed <M/T>.

• PCM failed <A/T>.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

YES

YES

YES

YES

NO

NO

NO

NO

MONITORING

CONDITIONS

PRESSURE < 4.9kPa (1.4in.Hg)

PRESSURE > 117kPa (34.6in.Hg)

CONTINUOUS

FAILURE FOR 2secs

MALFUNCTION

END

GOOD

START

AK301416

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-92

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

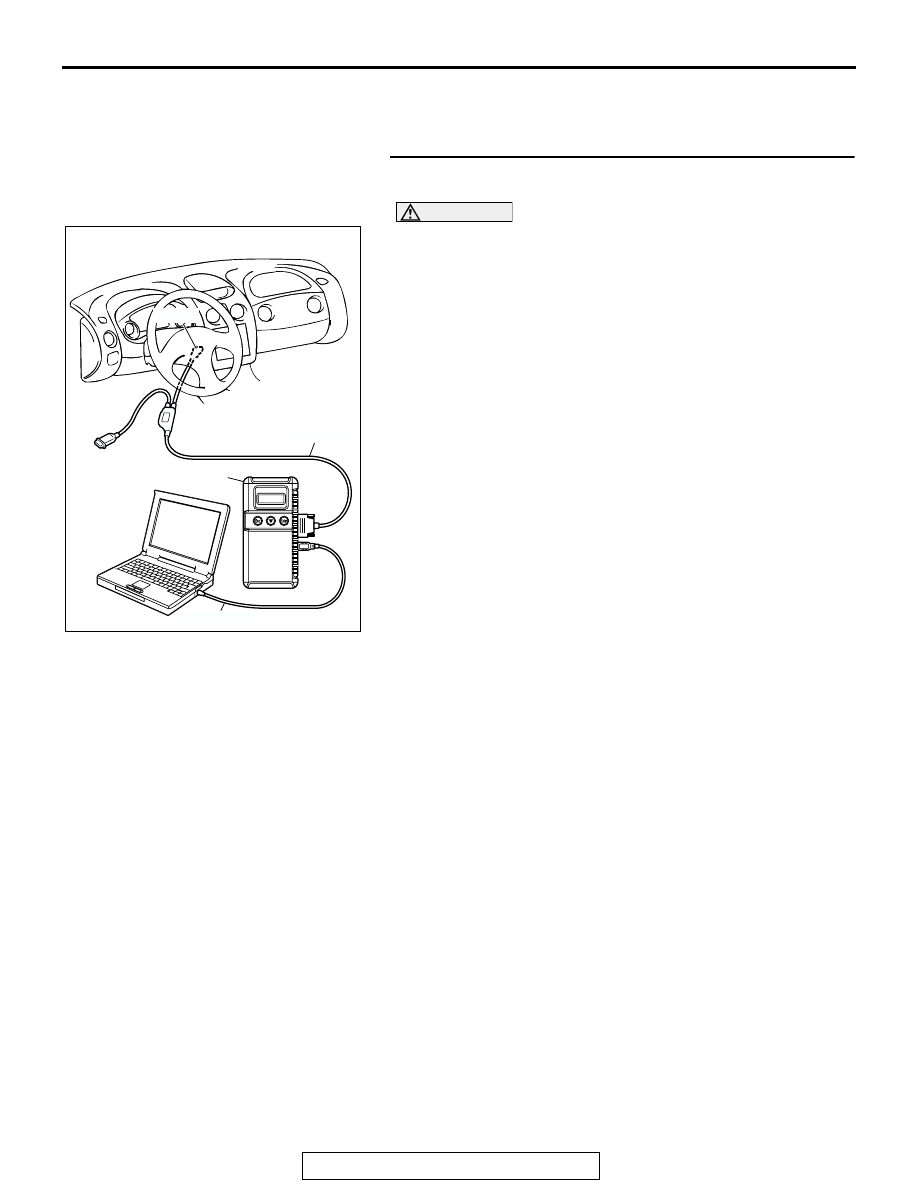

STEP 1. Using scan tool MB991958, check data list item 95:
Manifold Absolute Pressure Sensor.

CAUTION

To prevent damage to scan tool  MB991958, always turn
the ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

95, Manifold Absolute Pressure Sensor.

• When altitude is 0 m (0 foot), 101 kPa (29.8 in.Hg).

• When altitude is 600 m (1,969 feet), 95 kPa (28.1 in.Hg).

• When altitude is 1,200 m (3,937 feet), 88 kPa (26.0

in.Hg).

• When altitude is 1,800 m (5,906 feet), 81 kPa (23.9

in.Hg).

(4) Start the engine.

• When the engine is idling, 16 − 36 kPa (4.7 − 10.6

in.Hg).

• When the engine is suddenly revved, manifold absolute

pressure increases.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Go to Step 2.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824
