CRANKSHAFT REAR OIL SEAL

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-31

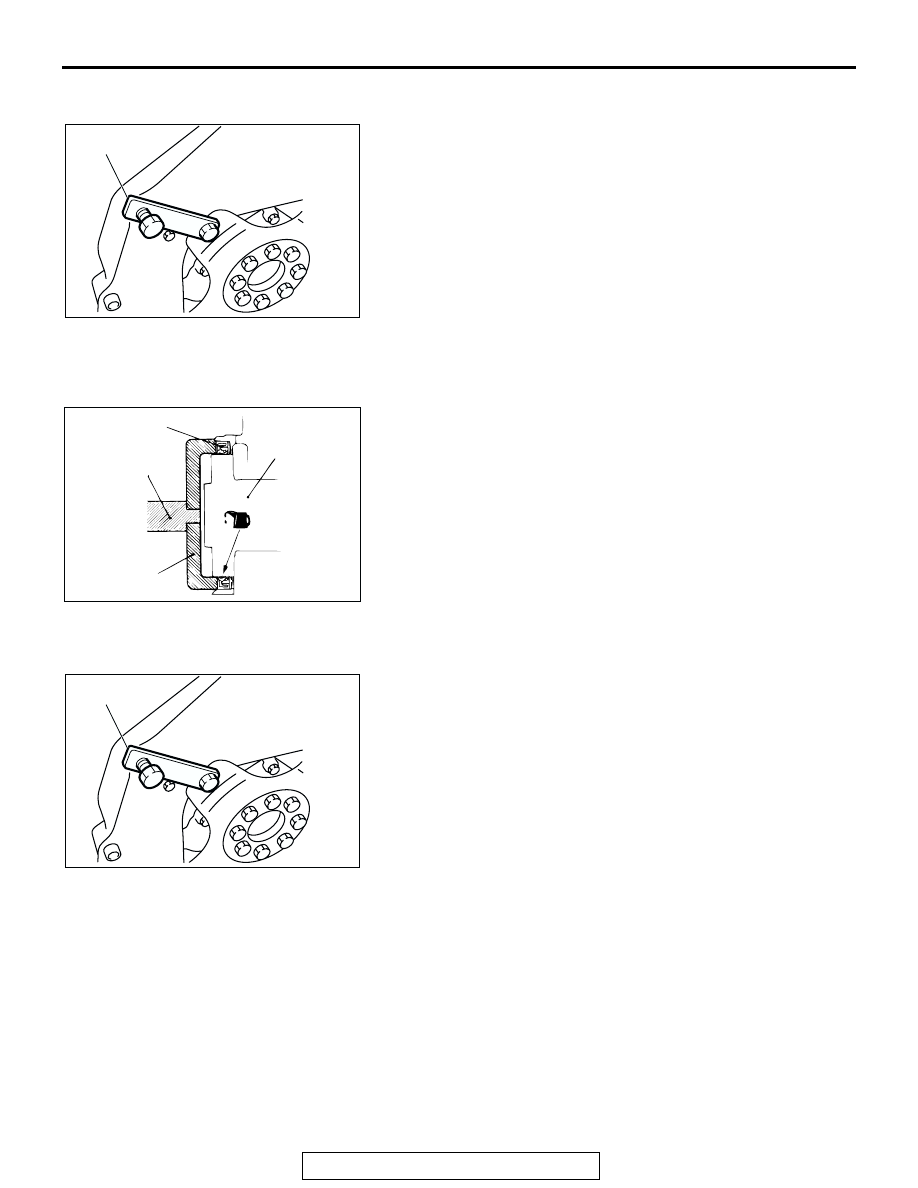

<<B>> ADAPTER PLATE/FLYWHEEL <M/T>/DRIVE PLATE
<A/T>/ADAPTER PLATE <M/T> REMOVAL
Use special tool MD998781 to secure the flywheel or drive
plate, and remove the bolt.

INSTALLATION SERVICE POINTS

.

>>A<< CRANKSHAFT REAR OIL SEAL INSTALLATION
1. Apply a small amount of engine oil to the entire inside

diameter of the oil seal lip.

2. Use special tools MB990938 and MD998776 to tap in the oil

seal as shown in the illustration.

.

>>B<< ADAPTER PLATE <M/T>/DRIVE PLATE
<A/T>/FLYWHEEL <M/T>/ADAPTER PLATE INSTALLATION
Use special tool MD998781 to hold the flywheel or drive plate
in the same manner as removal, and install the bolt.

ACX00296AB

MD998781

AC000140

CRANKSHAFT
REAR OIL SEAL

CRANKSHAFT

MB990938

MB998776

AB

ACX00296AB

MD998781

CYLINDER HEAD GASKET

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-32

CYLINDER HEAD GASKET

REMOVAL AND INSTALLATION

M1112004000677

Pre-removal Operation
• Fuel Line Pressure Reduction [Refer to GROUP 13A,

On-vehicle Service

− Fuel Pump Relay Disconnection

(How to Reduce Pressurized Fuel Lines)

P.13A-932

.]

• Engine Oil Draining (Refer to GROUP 12, On-vehicle Ser-

vice

− Engine Oil Replacement

P.12-3

.)

• Engine Coolant Draining [Refer to GROUP 00, Mainte-

nance Service

− Engine Coolant (Change)

P.00-58

.]

• Strut Tower Bar Removal (Refer to GROUP 42, Strut

Tower Bar

P.42-11

.)

• Air Cleaner Removal (Refer to GROUP 15, Air Cleaner

P.15-6

.)

• Thermostat Case Assembly Removal (Refer to GROUP

14, Water Hose and Water Pipe

P.14-28

.)

• Front Exhaust Pipe Removal (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-22

.)

Post-installation Operation
• Front Exhaust Pipe Installation (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-22

.)

• Thermostat Case Assembly Installation (Refer to GROUP

14, Water Hose and Water Pipe

P.14-28

.)

• Air Cleaner Installation (Refer to GROUP 15, Air Cleaner

P.15-6

.)

• Strut Tower Bar Installation (Refer to GROUP 42, Strut

Tower Bar

P.42-11

.)

• Engine Oil Refilling (Refer to GROUP 12, On-vehicle Ser-

vice

− Engine Oil Replacement

P.12-3

.)

• Engine Coolant Refilling [Refer to GROUP 00, Mainte-

nance Service

− Engine Coolant (Change)

P.00-58

.]

• Accelerator Cable Adjustment (Refer to GROUP 17,

On-vehicle Service

− Accelerator Cable Check and

Adjustment

P.17-4

.)

AC106493

O-RING

FUEL RAIL

18

ENGINE OIL

1

18

19

16

2

3

17

4

20

5

6

7

8

14

9

5

10

11

13

12

15

4.9 ± 1.0 N·m
44 ± 8 in-lb

N

12 ± 2 N·m
100 ± 22 in-lb

AB

CYLINDER HEAD GASKET

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-33

REMOVAL STEPS

1.

ACCELERATOR CABLE
CONNECTION

2.

PURGE HOSE CONNECTION

3.

BRAKE BOOSTER VACUUM
HOSE CONNECTION

4.

VACUUM HOSE CONNECTION

5.

IGNITION COIL CONNECTOR

6.

INJECTOR CONNECTOR

7.

MANIFOLD ABSOLUTE
PRESSURE SENSOR
CONNECTOR

8.

THROTTLE POSITION SENSOR
CONNECTOR

9.

HEATED OXYGEN SENSOR
(FRONT) CONNECTOR

10. CAPACITOR CONNECTOR
11. ENGINE COOLANT

TEMPERATURE SENSOR
CONNECTOR

12. CAMSHAFT POSITION

SENSOR CONNECTOR

13. KNOCK SENSOR CONNECTOR
14. ENGINE COOLANT

TEMPERATURE GAUGE UNIT
CONNECTOR

15. IDLE AIR CONTROL MOTOR

CONNECTOR

16. EVAPORATIVE EMISSION

PURGE SOLENOID VALVE
CONNECTOR

17. EGR VACUUM REGULATOR

SOLENOID VALVE
CONNECTOR

>>C<<

18. FUEL HIGH-PRESSURE HOSE

CONNECTION

19. FUEL RETURN HOSE

CONNECTION

20. PRESSURE HOSE

CONNECTION

REMOVAL STEPS (Continued)

CYLINDER HEAD GASKET

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-34

AC001695

12 ± 2 N·m
100 ± 22 in-lb

14 ± 1 N·m
117± 13 in-lb

22

21

N

(ENGINE OIL)

30

30 ± 2 N·m
23 ± 2 ft-lb

29

N

35

N

(ENGINE OIL)

<COLD ENGINE>
79 ± 4 N·m

→ 0 N·m → 20 ± 2 N·m → +90˚ → +90˚

58 ± 3 ft-lb

→ 0 in-lb → 15 ± 1 ft-lb → +90˚ → +90˚

25

27

26

9.8 ± 2.0 N·m
87 ± 17 in-lb

24

23

28

3.4 ± 0.5 N·m
31 ± 4 in-lb

34

29 ± 3 N·m
21 ± 3 ft-lb

31

49 ± 10 N·m
36 ± 7 ft-lb

29 ± 3 N·m
21 ± 3 ft-lb

49 ± 10 N·m
36 ± 7 ft-lb

32

33

35 ± 6 N·m
26 ± 4 ft-lb

35 ± 6 N·m
26 ± 4 ft-lb

AG

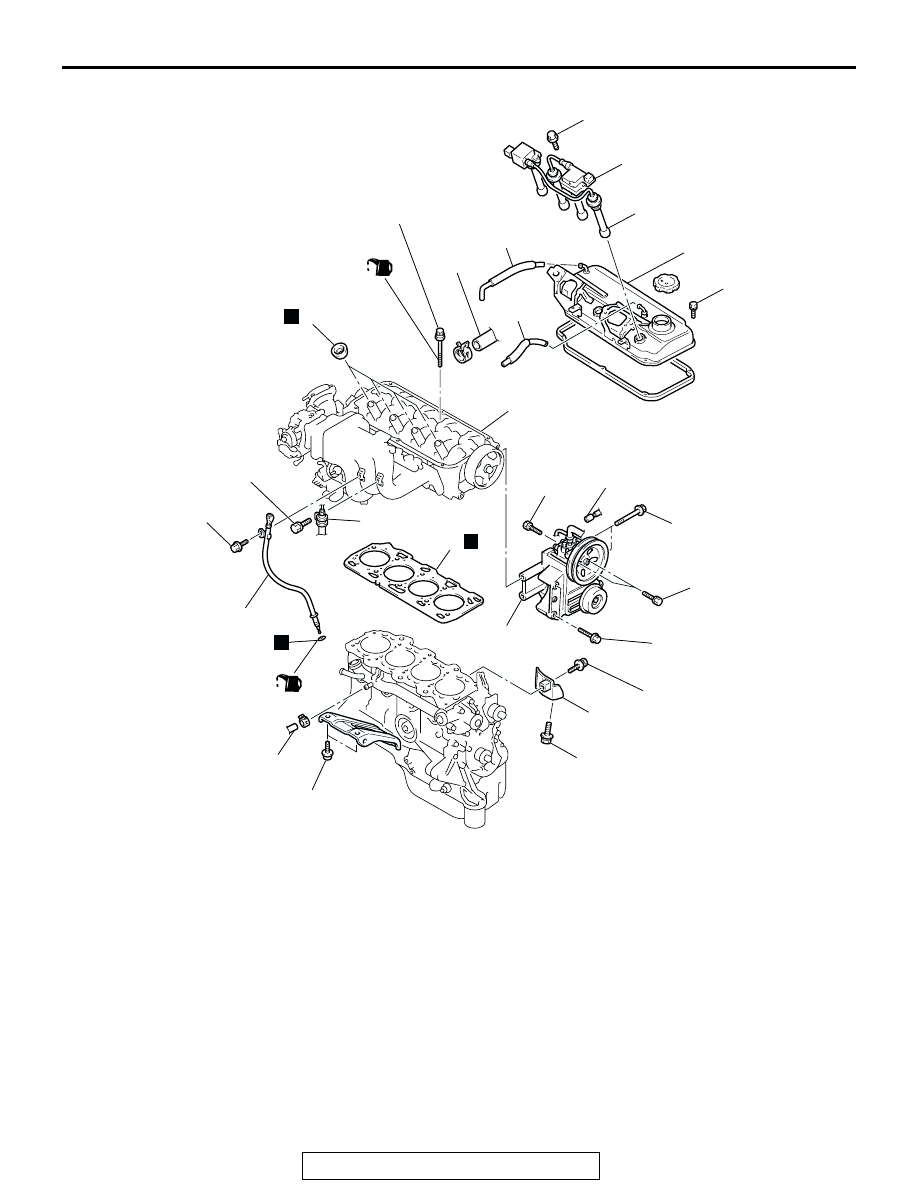

REMOVAL STEPS

21. OIL DIPSTICK AND DIPSTICK

GUIDE

22. PRESSURE HOSE

CONNECTION

23. SPARK PLUG CABLE
24. IGNITION COIL
25. RADIATOR UPPER HOSE

CONNECTION

26. PCV HOSE CONNECTION
27. BREATHER HOSE

CONNECTION

28. ROCKER COVER

29. SPARK PLUG GUIDE OIL SEAL
30. WATER HOSE CONNECTION
•

TIMING BELT (REFER TO

P.11A-38

.)

31. POWER STEERING PRESSURE

SWITCH CONNECTOR

<<A>>

32. POWER STEERING OIL PUMP

AND BRACKET ASSEMBLY

33. EXHAUST MANIFOLD

BRACKET

<<B>>

>>B<<

34. CYLINDER HEAD ASSEMBLY

>>A<<

35. CYLINDER HEAD GASKET

REMOVAL STEPS (Continued)
