Mitsubishi Eclipse. Manual - part 70

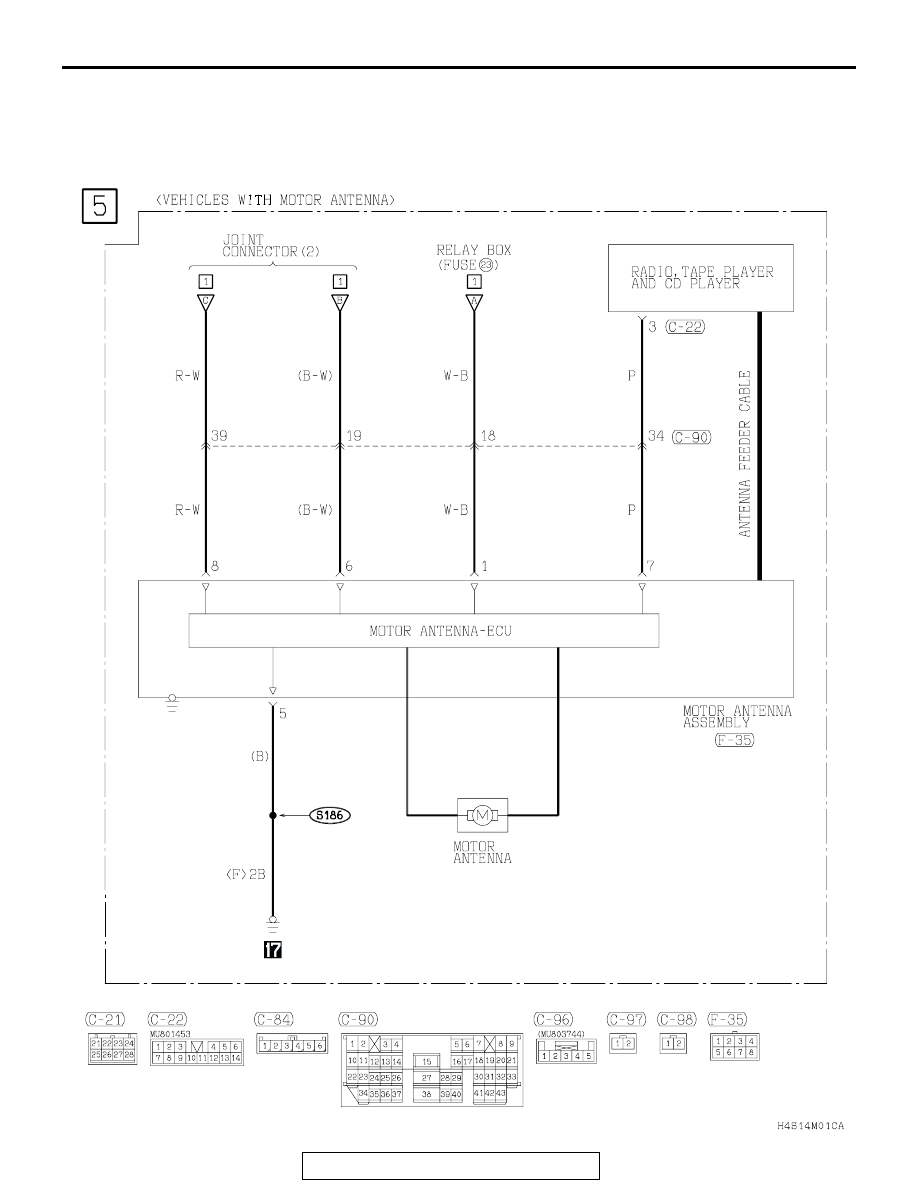

AUDIO SYSTEM <VEHICLES WITH AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-277

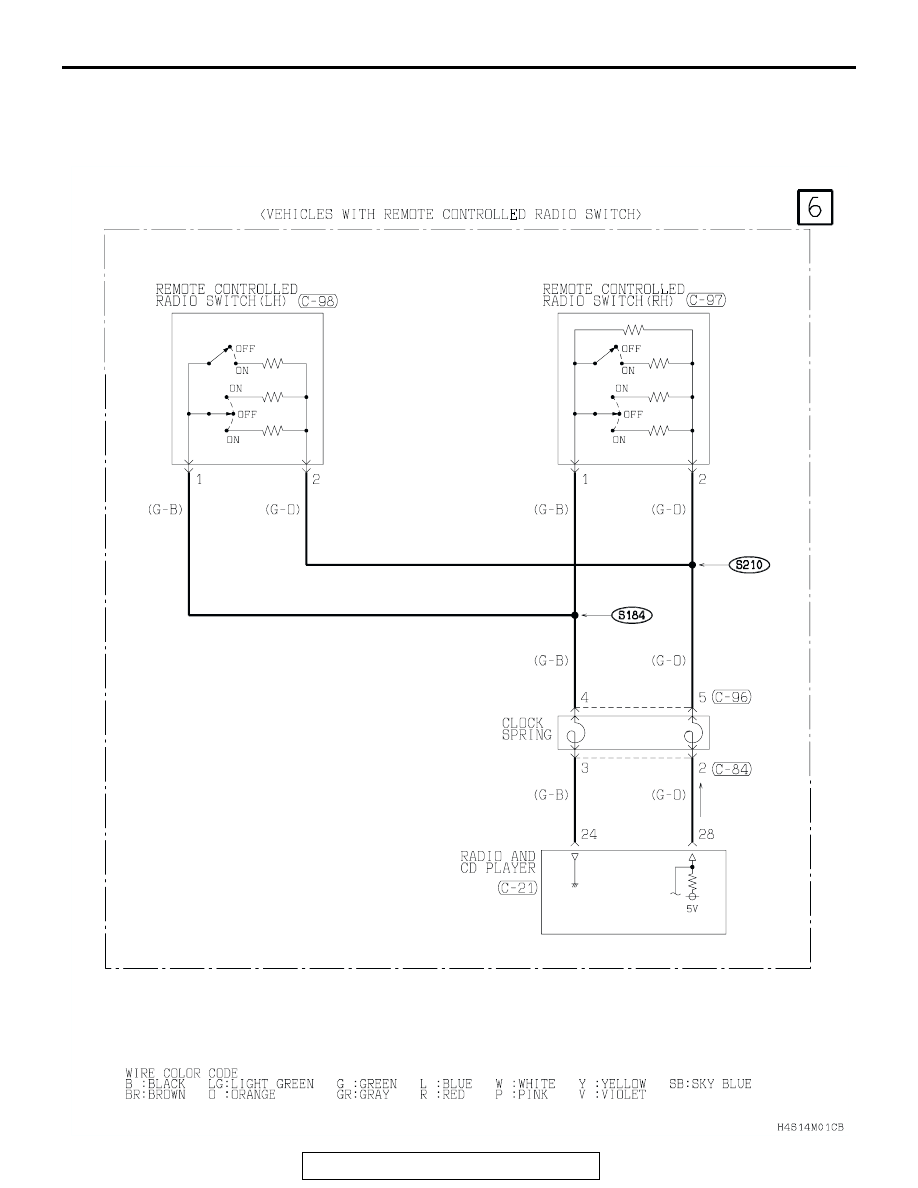

AUDIO SYSTEM <VEHICLES WITH AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-278

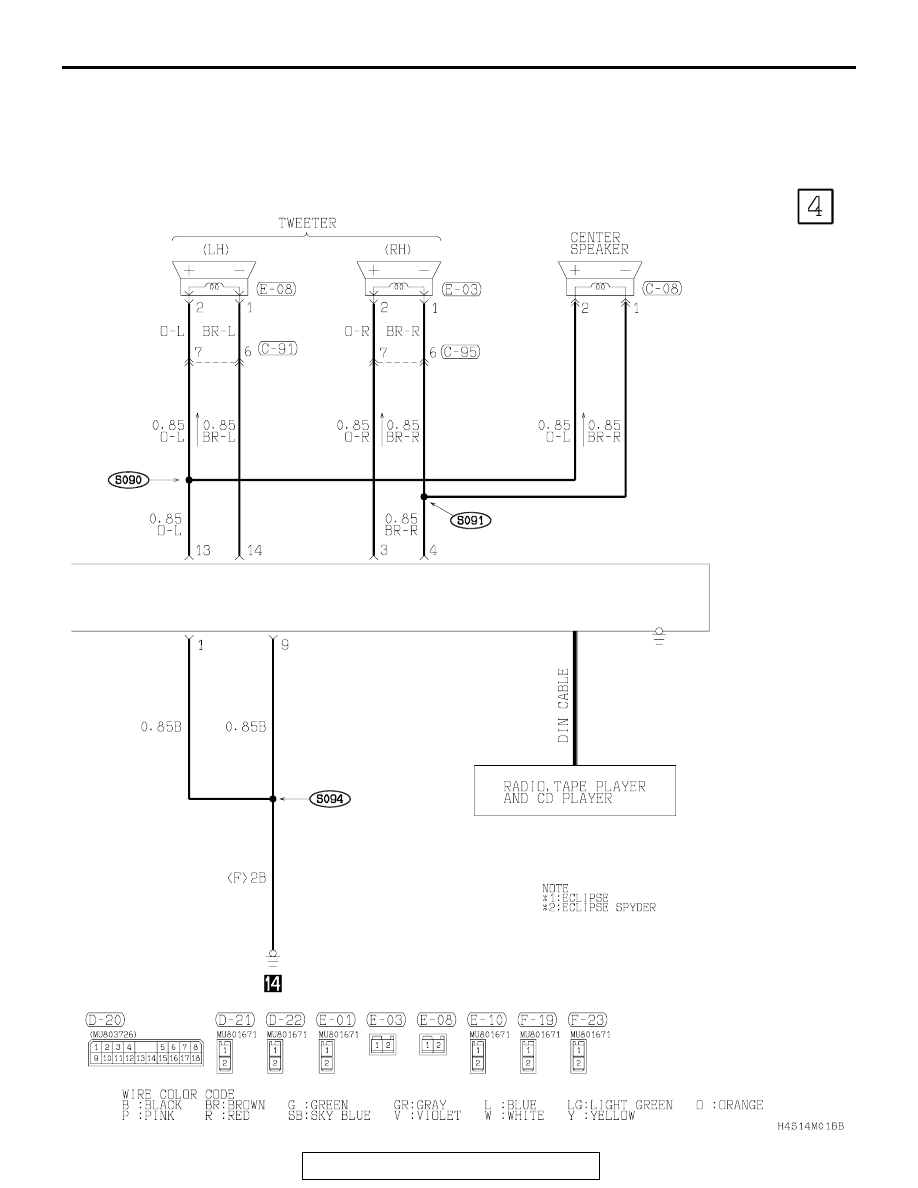

AUDIO SYSTEM <VEHICLES WITH AMPLIFIER> (CONTINUED)

AUDIO SYSTEM <VEHICLES WITH AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-279

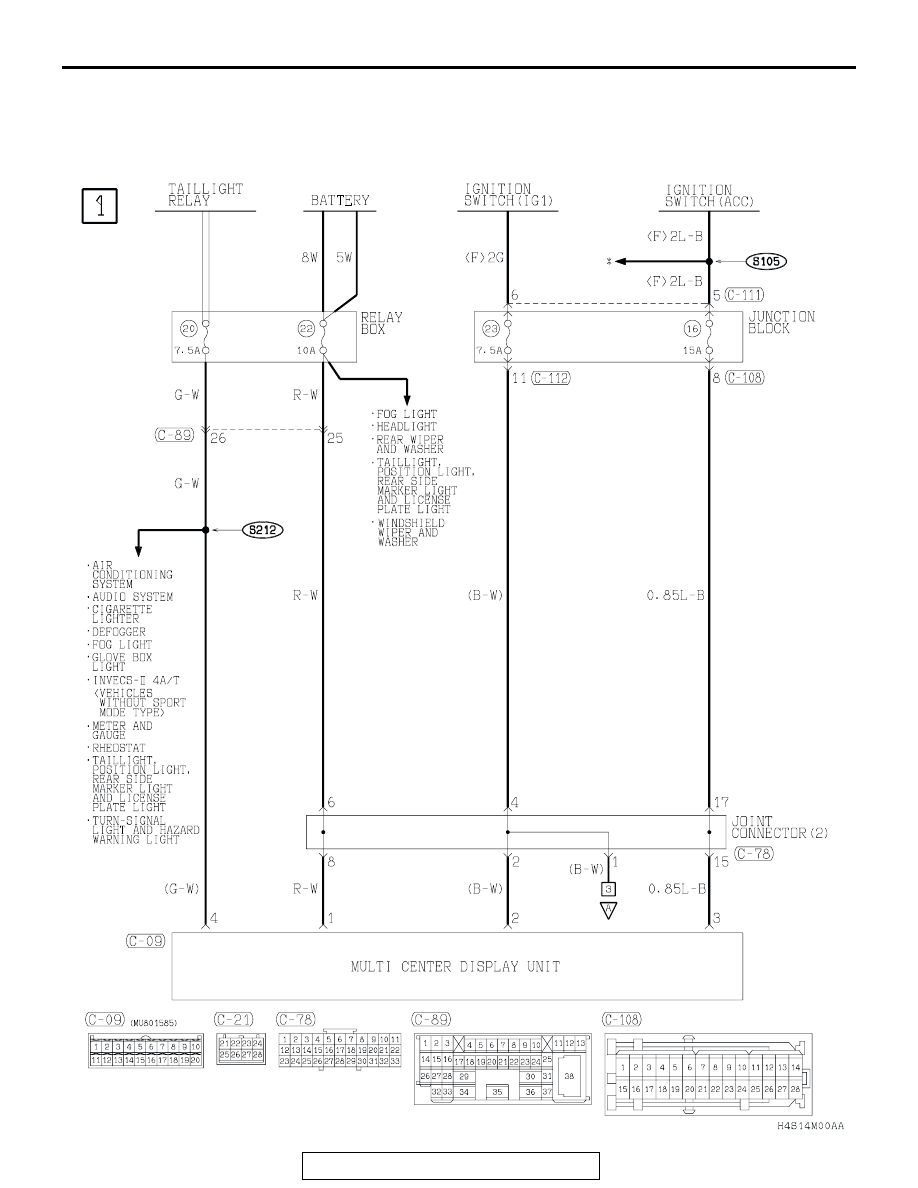

MULTI CENTER DISPLAY

TSB Revision

CIRCUIT DIAGRAMS

90-280

MULTI CENTER DISPLAY
