CENTRAL DOOR LOCKING SYSTEM <VEHICLES WITH KEYLESS ENTRY SYSTEM (WITH THEFT-ALARM SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-209

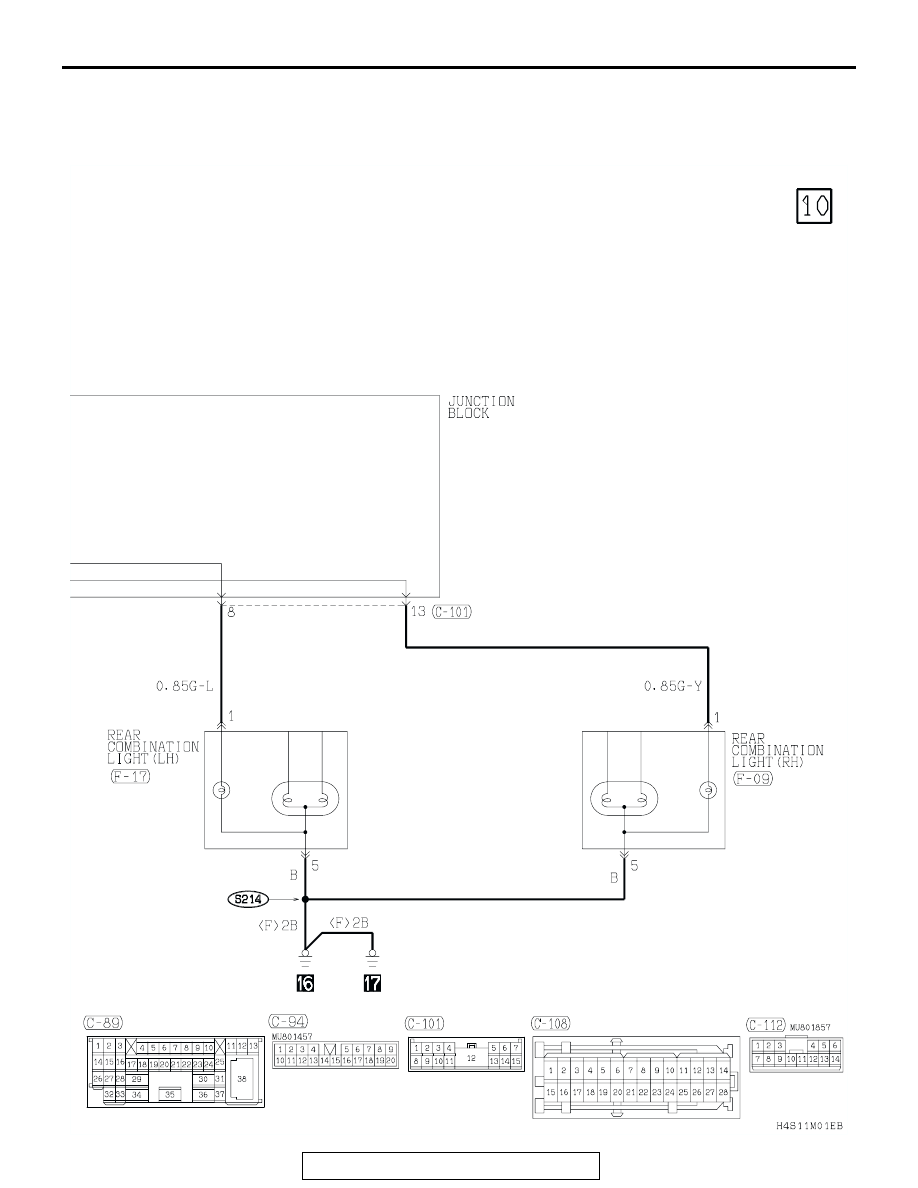

CENTRAL DOOR LOCKING SYSTEM <VEHICLES WITH KEYLESS ENTRY SYSTEM (WITH THEFT-ALARM SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-210

CENTRAL DOOR LOCKING SYSTEM <VEHICLES WITH KEYLESS ENTRY SYSTEM (WITH
THEFT-ALARM SYSTEM)> (CONTINUED)

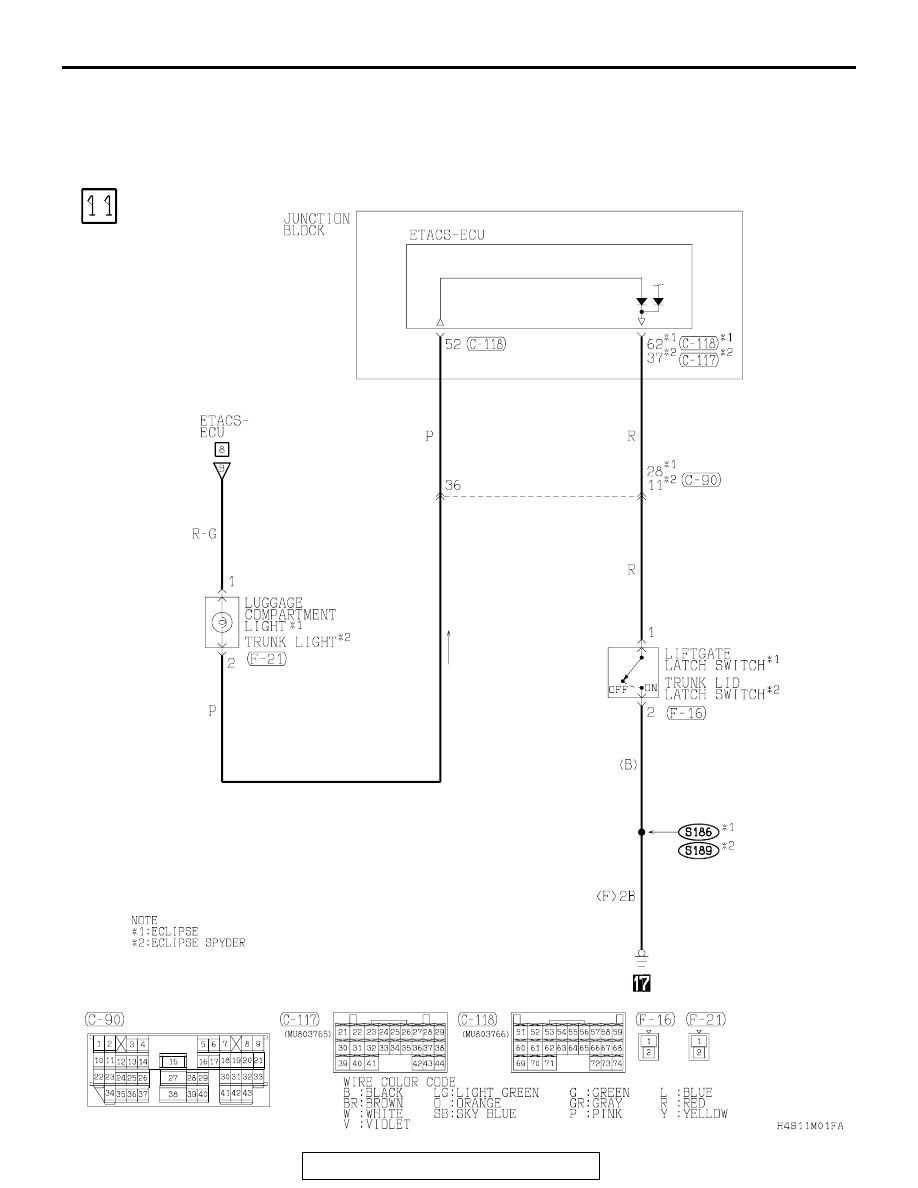

CENTRAL DOOR LOCKING SYSTEM <VEHICLES WITH KEYLESS ENTRY SYSTEM (WITH THEFT-ALARM SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-211

NOTES

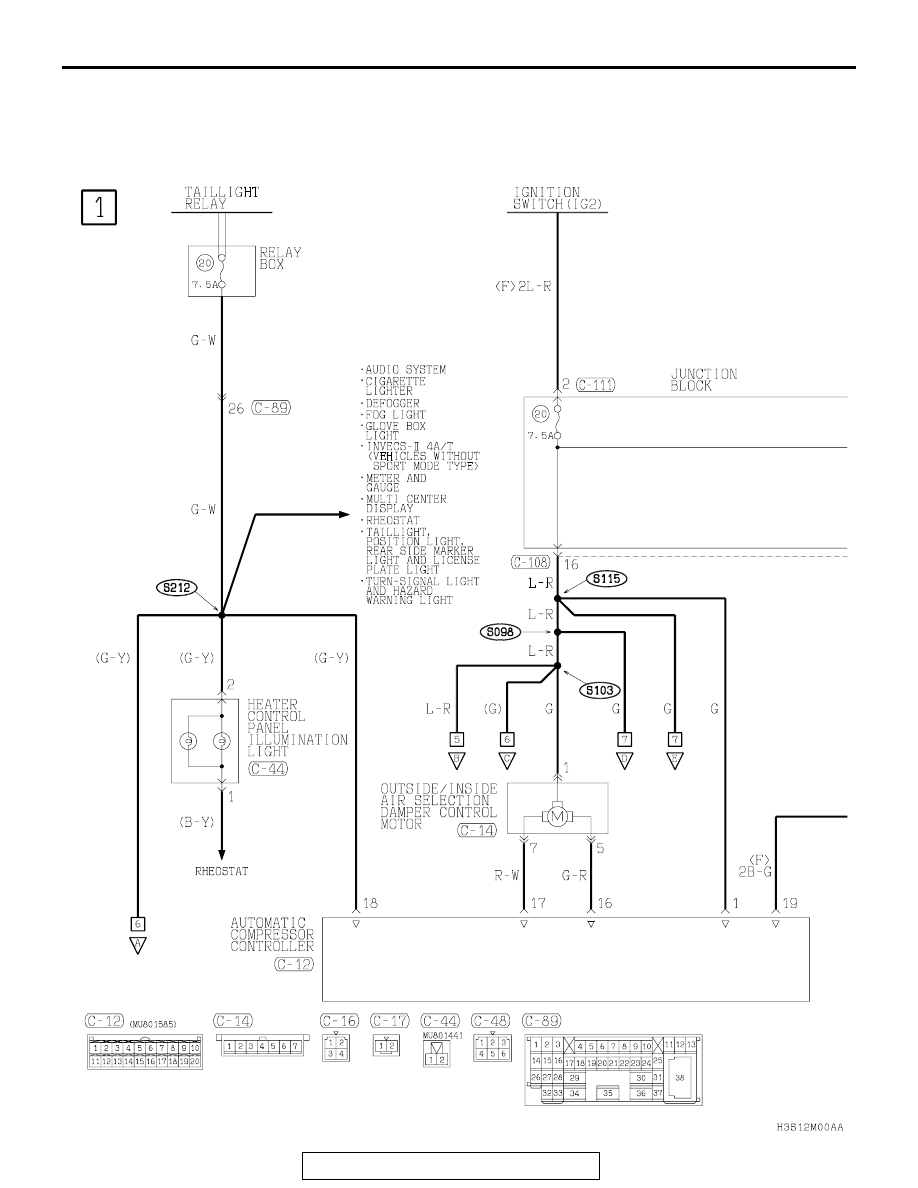

AIR CONDITIONING SYSTEM <2.4L ENGINE (ECLIPSE)>

TSB Revision

CIRCUIT DIAGRAMS

90-212

AIR CONDITIONING SYSTEM <2.4L ENGINE (ECLIPSE)>
