TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-329

STEP 4. Connector check: B-141 ignition switch
connector

Q: Is the check result normal?

YES :

Check intermediate connectors A-17, B-112

and B-129, and repair if necessary. If
intermediate connectors are normal, check
and repair harness between B-141 (terminal
No. 2) ignition switch connector and A-123,
A-126, A-127 and A-135 (terminal No. 1)
ignition coil connectors.

• Check power supply line for

open/short circuit.

NO :

Repair or replace.

STEP 5. Perform resistance measurement at
A-123, A-126, A-127 and A-135 ignition coil
connectors.

Disconnect connector and measure at harness side.

• Resistance between terminal No. 2 and earth.

OK: Continuity (2

 or less)

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Check and repair harness between A-123,

A-126, A-127 and A-135 (terminal No. 2)
ignition coil connectors and body earth.

• Check earthing line for open circuit

and damage.

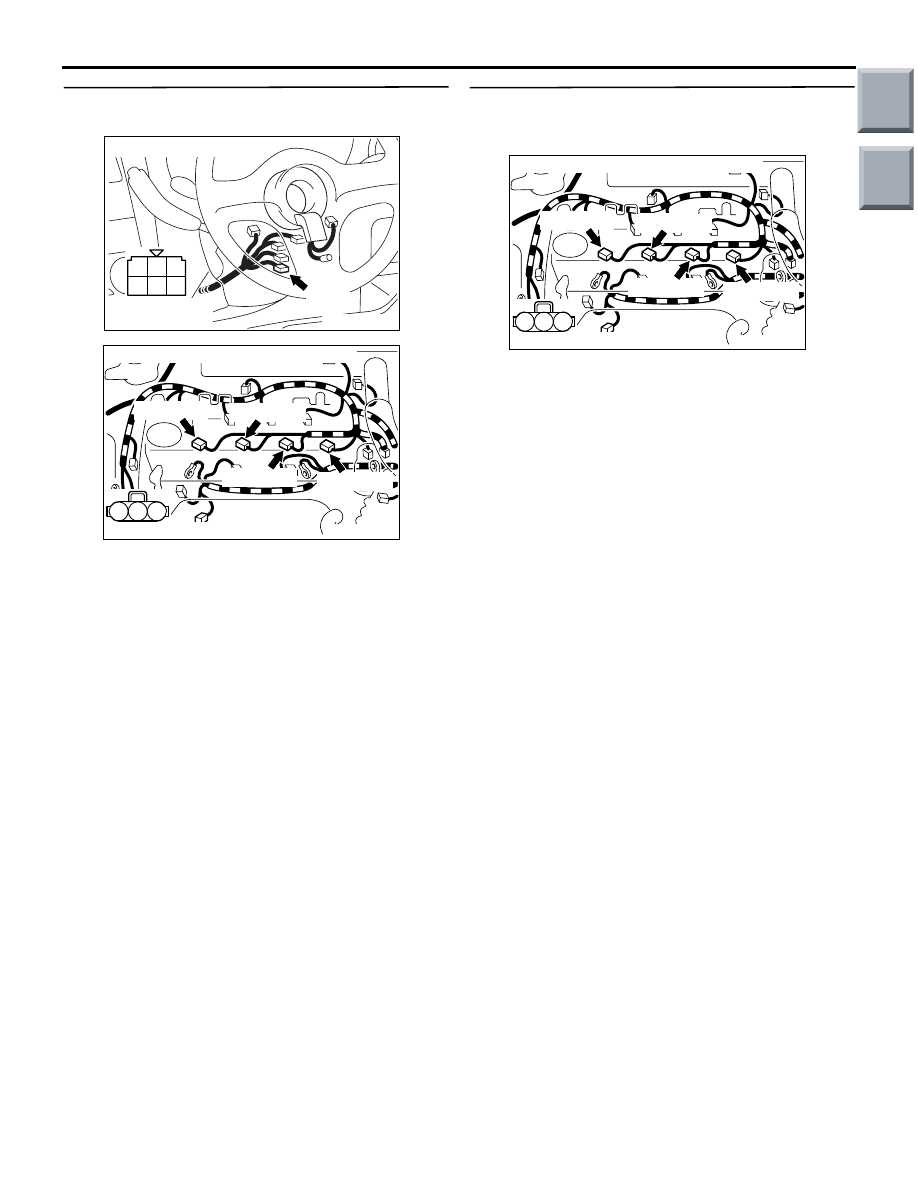

1

2

3

4

5

6

AK402103

Connector: B-141

Harness side
connector

B-141

AC

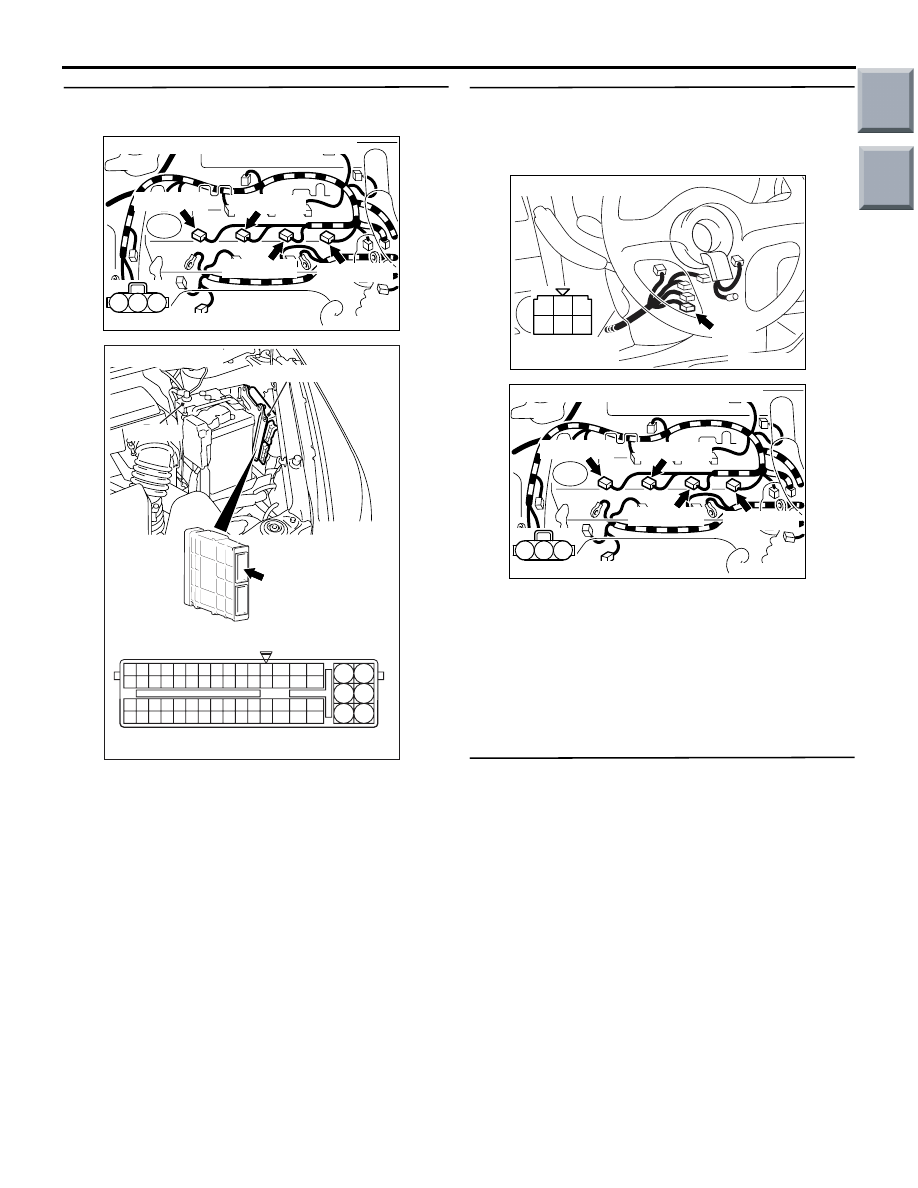

AK402093

1

2

3

A-123(DG)

A-126(DG)

A-127(DG)

A-135(DG)

AC

Harness side connector

Connector: A-123, A-126, A-127, A-135

AK402093

1

2

3

A-123(DG)

A-126(DG)

A-127(DG)

A-135(DG)

AC

Harness side connector

Connector: A-123, A-126, A-127, A-135

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-330

STEP 6. Check harness between ignition coil
connector and engine-ECU connector.

a.

Check and repair harness between A-135 (terminal

No. 3) No. 1 ignition coil connector and A-114
(terminal No. 10) engine-ECU connector.

b. Check and repair harness between A-127 (termi-

nal No. 3) No. 2 ignition coil connector and A-114
(terminal No. 25) engine-ECU connector.

c. Check and repair harness between A-126 (termi-

nal No. 3) No. 3 ignition coil connector and A-114
(terminal No. 40) engine-ECU connector.

d. Check and repair harness between A-123 (termi-

nal No. 3) No. 4 ignition coil connector and A-114
(terminal No. 55) engine-ECU connector.

• Check signal line for open/short circuit and dam-

age.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair.

STEP 7. Check harness between B-141 (terminal
No. 2) ignition switch connector and A-123,
A-126, A-127 and A-135 (terminal No. 1) ignition
coil connector.

NOTE: Before checking harness, check intermediate
connectors A-17, B-112 and B-129, and repair if nec-
essary.

• Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair.

STEP 8. Visual check of ignition spark.

• Remove the spark plug and install it to the ignition

coil.

• Connect the ignition coil connector.

• Remove all injector connector.

• At the engine start, check each spark plug pro-

duces a spark.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/Inspection

Service Points

− How to Cope with

Intermittent Malfunctions

P.00-13

).

NO :

Go to Step 9 .

AK402093

1

2

3

A-123(DG)

A-126(DG)

A-127(DG)

A-135(DG)

AC

Harness side connector

Connector: A-123, A-126, A-127, A-135

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

1

2

3

4

5

6

AK402103

Connector: B-141

Harness side
connector

B-141

AC

AK402093

1

2

3

A-123(DG)

A-126(DG)

A-127(DG)

A-135(DG)

AC

Harness side connector

Connector: A-123, A-126, A-127, A-135

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-331

STEP 9. Check spark plug.

• Check spark plug (Refer to GROUP 16 − Ignition

System

− On-vehicle Service

P.16-35

).

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Replace the spark plug.

STEP 10. Replace ignition coil.

• After a good ignition coil is temporarily installed,

do a test for spark at the ignition coil again.

Q: Is the check result normal?

YES :

Replace ignition coil.

NO :

Replace engine-ECU.

Inspection Procedure 27: Clutch Switch System

OPERATION

• The battery voltage is applied to the clutch switch

(terminal No. 1) from the engine-ECU (terminal
No. 44).

AK600601

R

92 93 94 95969798

77 78 79 808182838485868788899091

99

100

107 108 109 110 111112113114115116117118119120121
122 123 124 125126127128129130131132133134135136

101102103104105106

71 72

73 74

75 76

3

2

1

6

5

4

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet  PU: Purple

Engine-ECU

Clutch switch

A-114

B-61

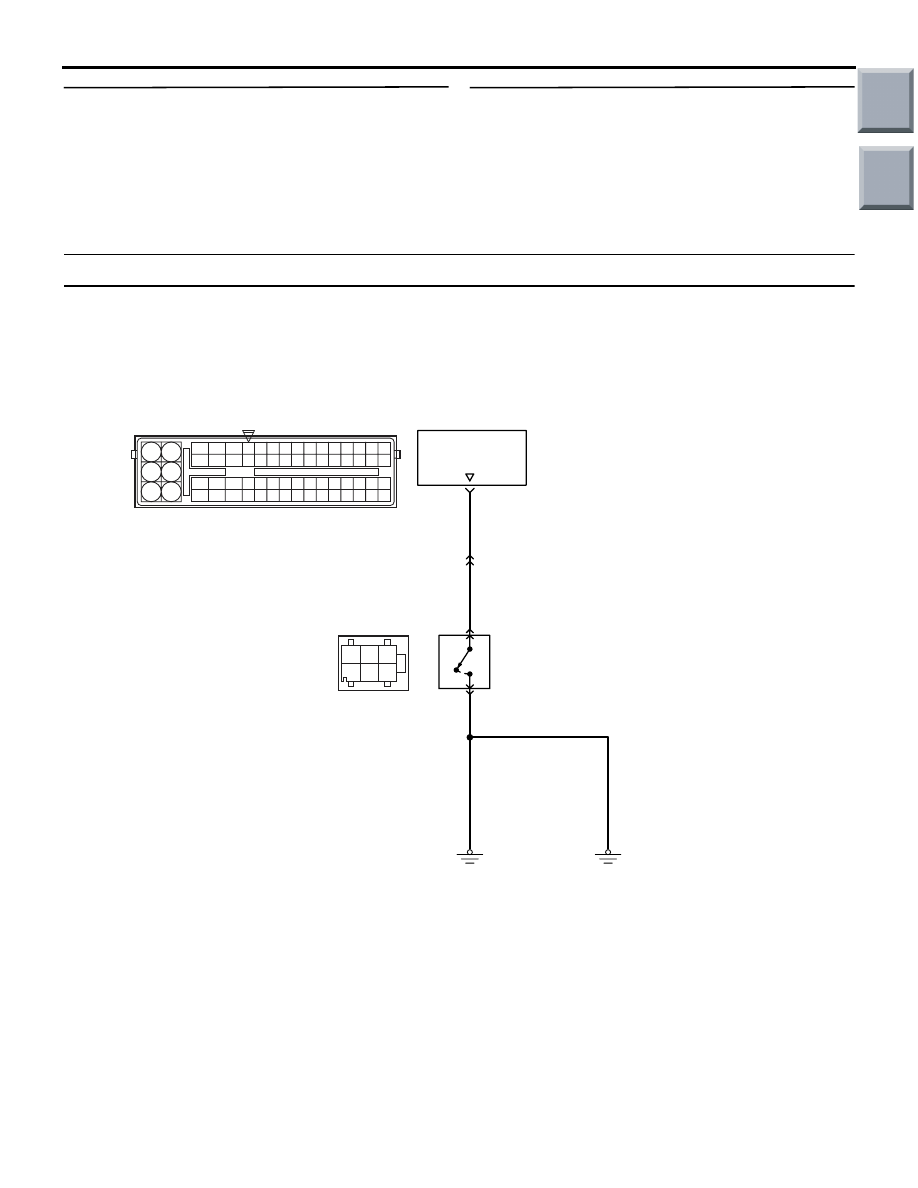

Clutch Switch Circuit

LG-B

LG-B

B

B

44

1

12

A-17

6

AB

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-332

FUNCTION

• Input, into the engine-ECU, the information

whether the clutch pedal is depressed or not.
When the clutch pedal is depressed to shift, the
engine-ECU takes control to close the throttle
valve and to retard the ignition timing.

PROBABLE CAUSES

• Failed clutch switch

• Open/short circuit and damage in clutch switch

circuit or loose connector contact

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. Connector check: B-61 clutch switch
connector

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Repair or replace the connector.

STEP 2. Check the clutch switch itself.

• Clutch switch check (Refer to GROUP 21A −

Clutch

− On-vehicle Service − Clutch monitor

Switch Check and Adjustment

P.21A-4

).

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Replace the clutch switch.

STEP 3. Perform voltage measurement at B-61
clutch switch connector.

• Disconnect connector, and measure at the har-

ness side.

• Ignition switch: ON

• Voltage between terminal No. 1 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Go to Step 4 .

STEP 4. Connector check: A-114 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair or replace the connector.

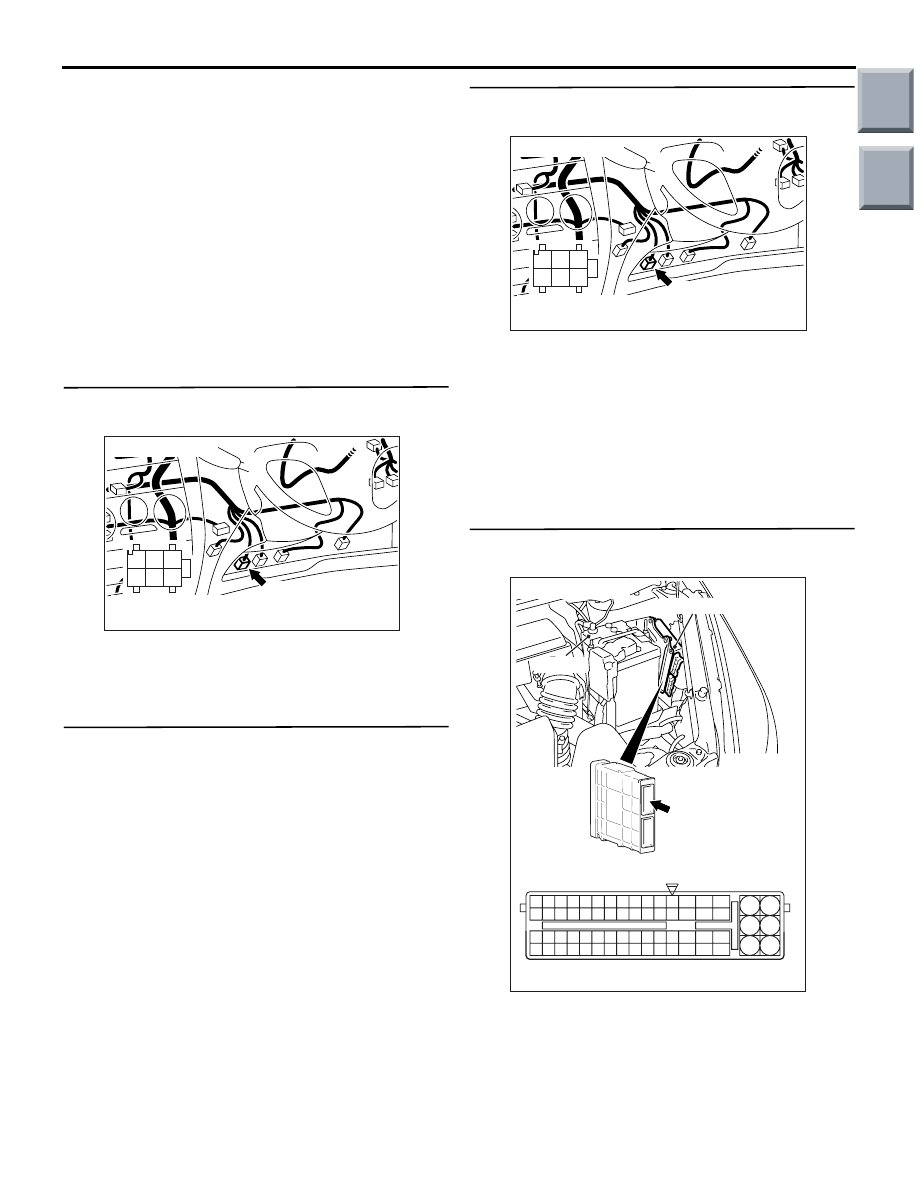

AK600405
