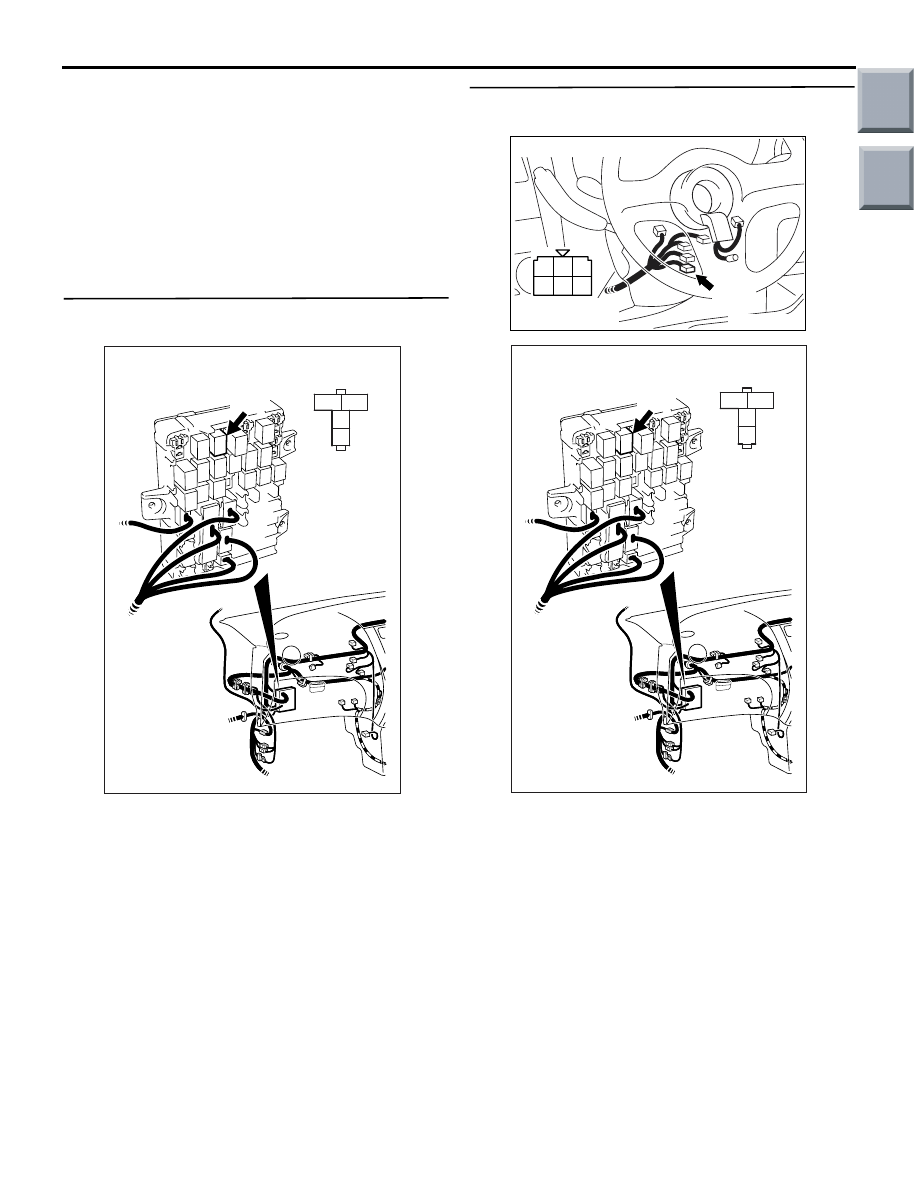

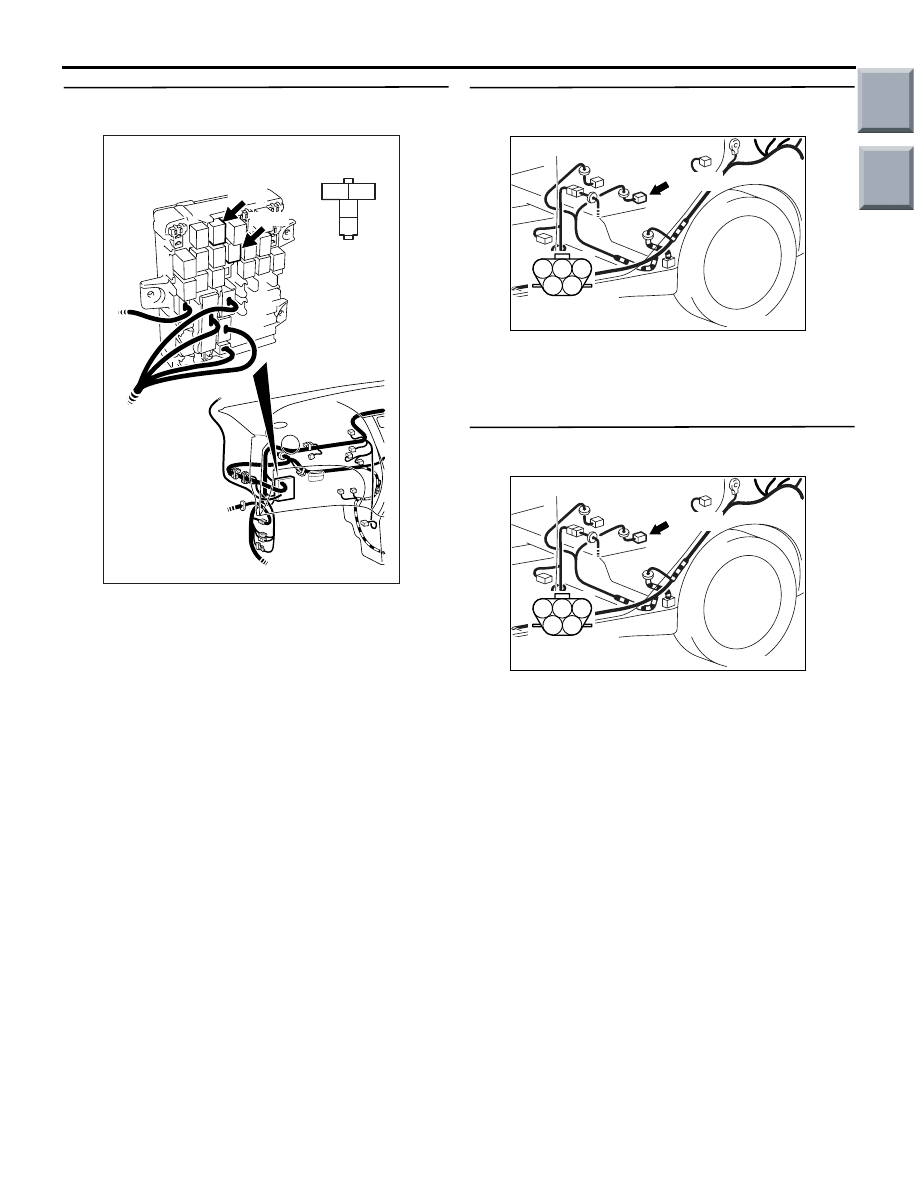

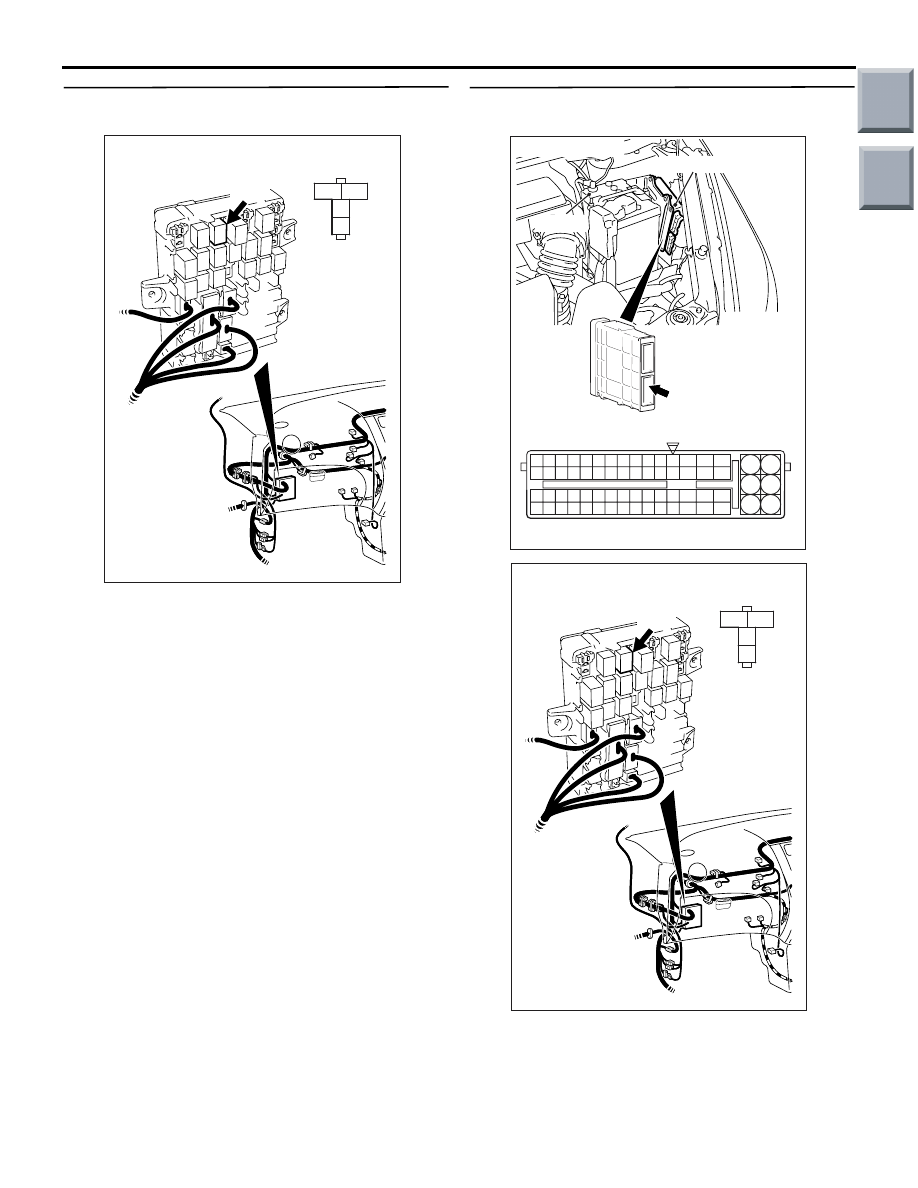

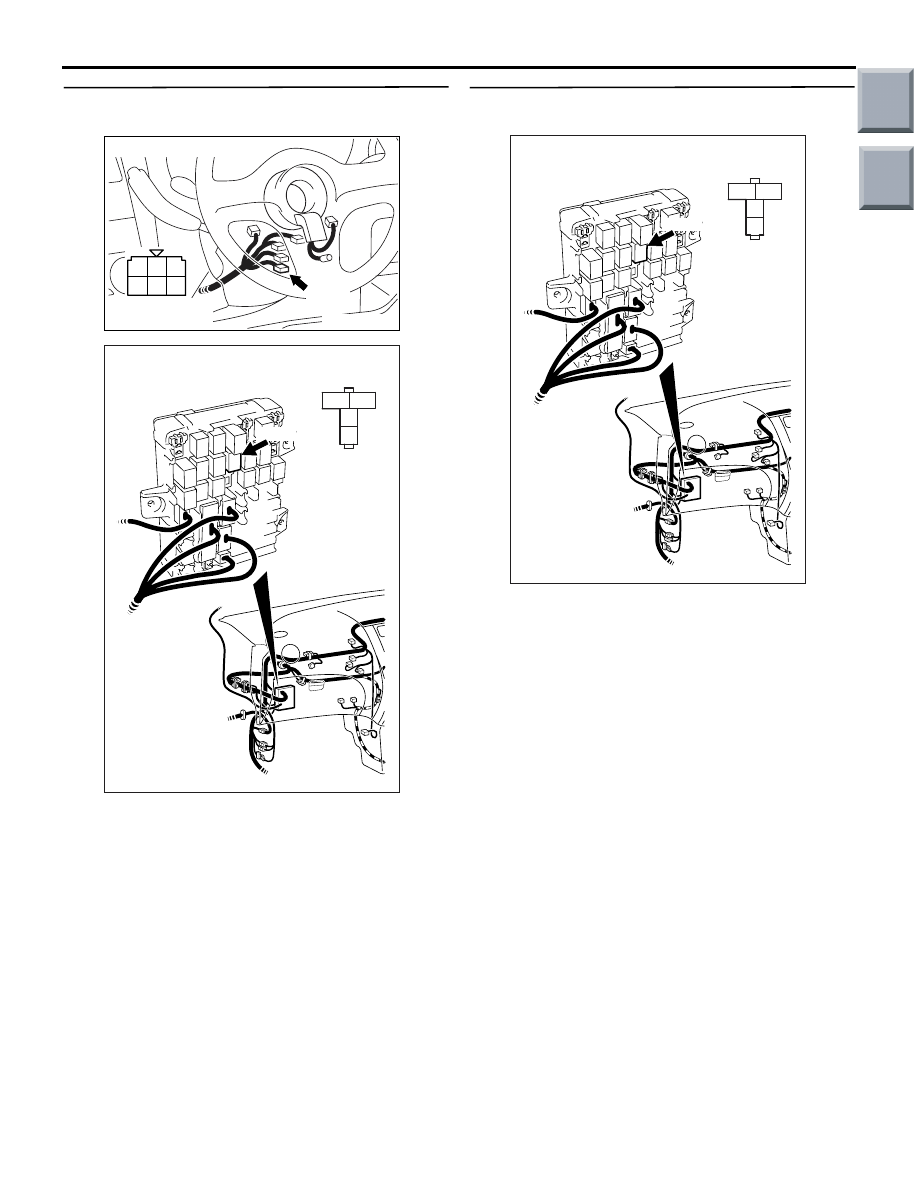

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-293

STEP 5. Connector check: B-141 ignition switch
connector

Q: Is the check result normal?

YES :

Check intermediate connector B-129, and

repair if necessary. If intermediate
connector is normal, check and repair
harness between B-117 (terminal No. 1) fuel
pump relay (1) connector and B-141
(terminal No. 2) ignition switch connector.

• Check power supply line for

open/short circuit.

NO :

Repair or replace.

STEP 6. Perform voltage measurement at B-117
fuel pump relay (1) connector.

• Remove relay, and measure at connector side.

• Voltage between terminal No. 3 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Check intermediate connector B-108, and

repair if necessary. If intermediate
connector is normal, check and repair
harness between battery and B-117
(terminal No. 3) fuel pump relay (1)
connector.

• Check power supply line for

open/short circuit.

1

2

3

4

5

6

AK402103

Connector: B-141

Harness side
connector

B-141

AC

AK402110

3

2

1

4

AC

J/B side
connector

Connector: B-117
J/B (front side)

B-117

AK402110

3

2

1

4

AC

J/B side
connector

Connector: B-117
J/B (front side)

B-117

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-294

STEP 7. Perform resistance measurement at
B-103 fuel pump relay (2) connector.

• Remove relay, and measure at connector side.

• Ignition switch: ON

• Resistance between terminal No. 2 and earth.

OK: Continuity

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Go to Step 8 .

STEP 8. Connector check: A-08 engine-ECU
connector

3

2

1

4

AK402111AC

J/B side
connector

Connector: B-103
J/B (front side)

B-103

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AI

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Engine-ECU

Battery

3

2

1

4

AK402111AC

J/B side
connector

Connector: B-103
J/B (front side)

B-103

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-295

Q: Is the check result normal?

YES :

Check intermediate connector B-110, and

repair if necessary. If the intermediate
connector is normal, check and repair
harness between B-103 (terminal No. 2) fuel
pump relay (2) connector and A-08 (terminal
No. 81) engine-ECU connector.

• Check earthing line for open/short

circuit.

NO :

Repair or replace.

STEP 9. Perform voltage measurement at B-103
fuel pump relay (2) connector.

• Remove relay, and measure at connector side.

• Ignition switch: ON

• Voltage between terminal No. 1 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Go to Step 10 .

STEP 10. Connector check: B-141 ignition switch
connector

Q: Is the check result normal?

YES :

Check intermediate connector B-129, and

repair if necessary. If the intermediate
connector is normal, check and repair
harness between B-103 (terminal No. 1) fuel
pump relay (2) connector and B-141
(terminal No. 2) ignition switch connector.

• Check power supply line for

open/short circuit.

NO :

Repair or replace.

3

2

1

4

AK402111AC

J/B side
connector

Connector: B-103
J/B (front side)

B-103

1

2

3

4

5

6

AK402103

Connector: B-141

Harness side
connector

B-141

AC

3

2

1

4

AK402111AC

J/B side
connector

Connector: B-103
J/B (front side)

B-103

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-296

STEP 11. Perform voltage measurement at B-103
fuel pump relay (2) connector.

• Disconnect relay, and measure at connector side.

• Ignition switch: ON

• Voltage between terminal No. 3 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 12 .

NO :

Check and repair harness between B-117

(terminal No. 4) fuel pump relay (1)
connector and B-103 (terminal No. 3) fuel
pump relay (2) connector.

• Check power supply line for

open/short circuit.

STEP 12. Connector check: C-16 fuel pump
connector

Q: Is the check result normal?

YES :

Go to Step 13 .

NO :

Repair or replace.

STEP 13. Perform resistance measurement at
C-16 fuel pump connector.

• Disconnect connector and measure at harness

side.

• Resistance between terminal No. 4 and earth.

OK: Continuity (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 16 .

NO :

Go to Step 14 .

AK402109

3

2

1

4

AC

J/B side
connector

Connector: B-103, B-117
J/B (front side)

B-117

B-103

AK402112

1

2

3

4

5

AC

Connector: C-16

Harness side
connector

C-16(G)

AK402112

1

2

3

4

5

AC

Connector: C-16

Harness side
connector

C-16(G)
