TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-145

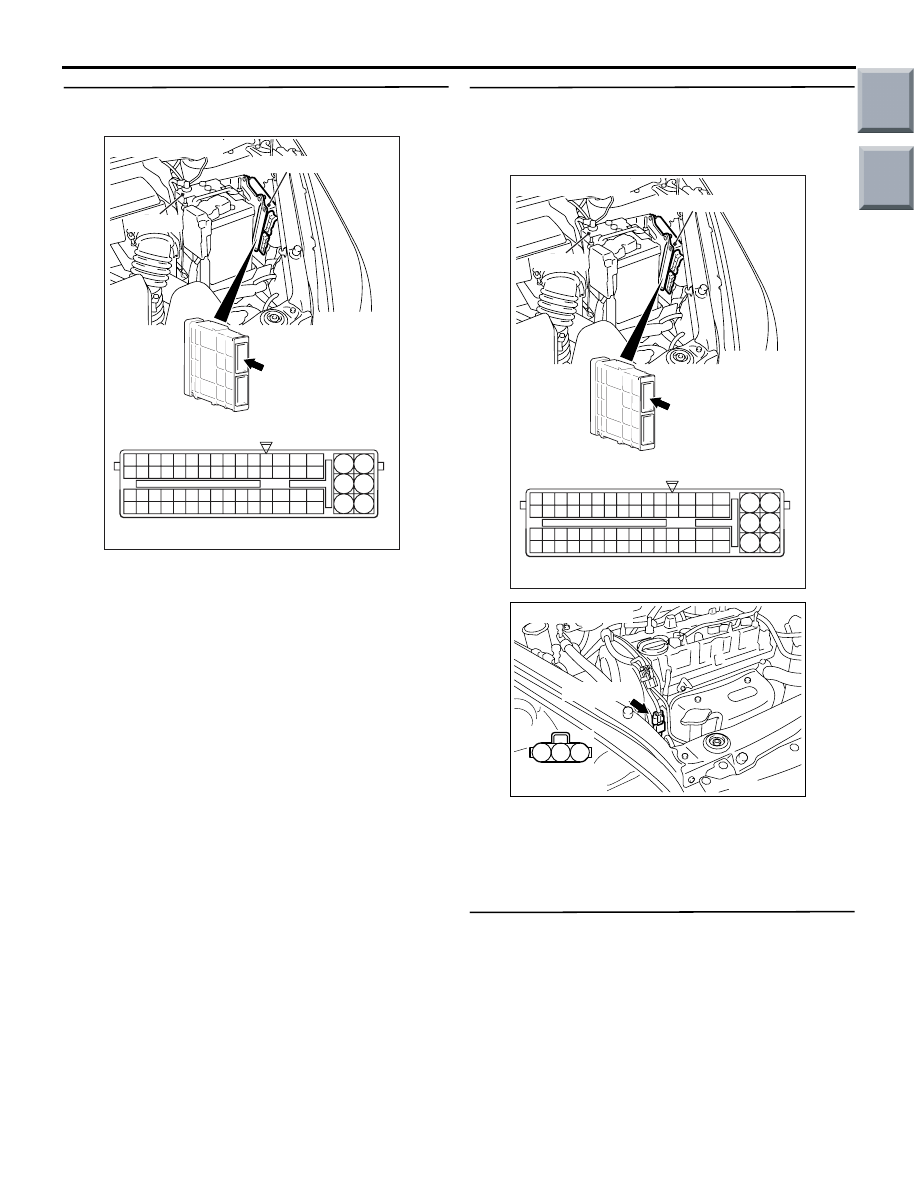

STEP 6. Connector check: A-114 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair or replace.

STEP 7. Check harness between crank angle
sensor intermediate connector A-133 (terminal
No. 2) and engine-ECU connector A-114 (terminal
No. 13).

•

Check the output line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair.

STEP 8. M.U.T.-III data list

• Refer to Data List Reference Table

P.13B-335

.

a. Item 22: Crank angle sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/Inspection

Service Points

− How to Cope with

Intermittent Malfunctions

P.00-13

).

NO :

Replace the engine-ECU.

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

AK402095

1

2

3

AC

A-133(DG)

Connector: A-133

Harness side
connector

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-146

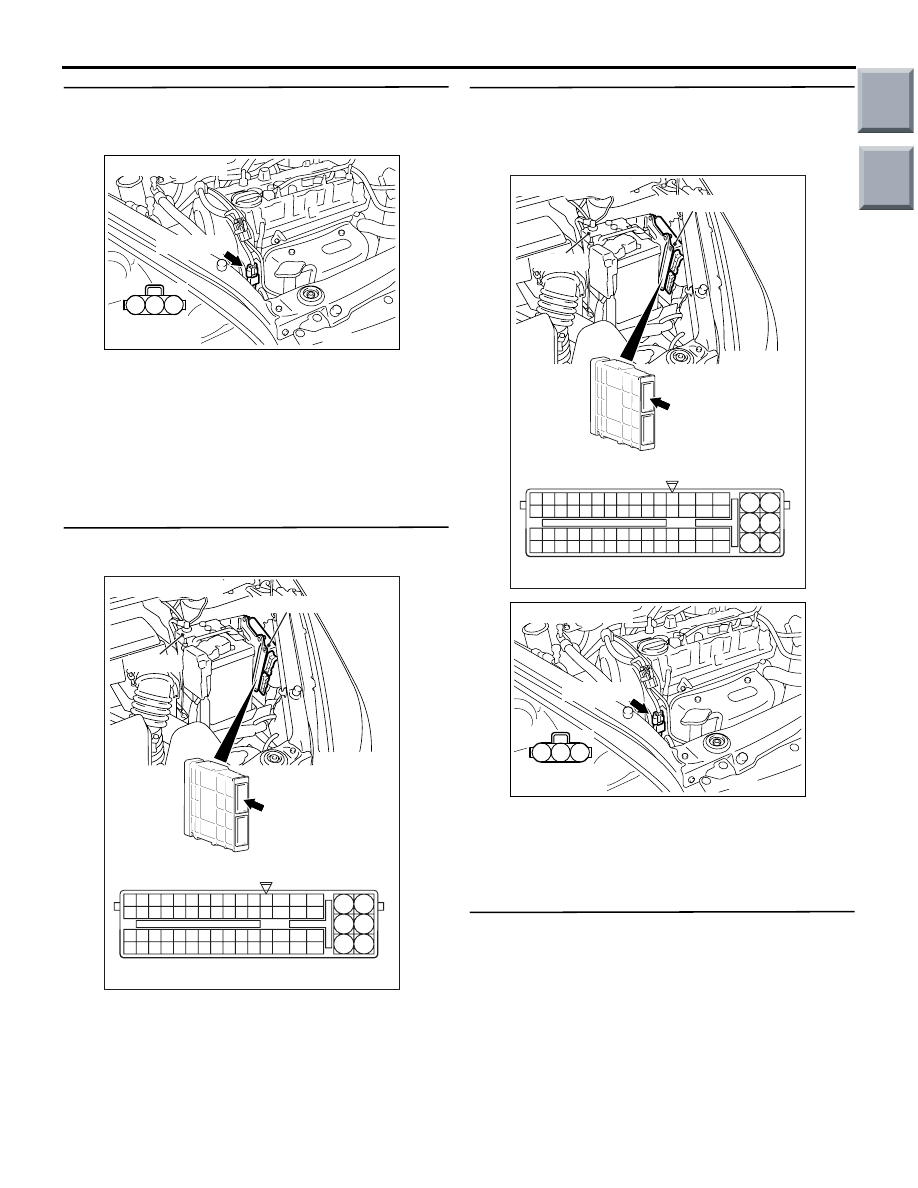

STEP 9. Perform voltage measurement at A-133
crank angle sensor intermediate connector.

•

Disconnect the connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 1 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Go to Step 10.

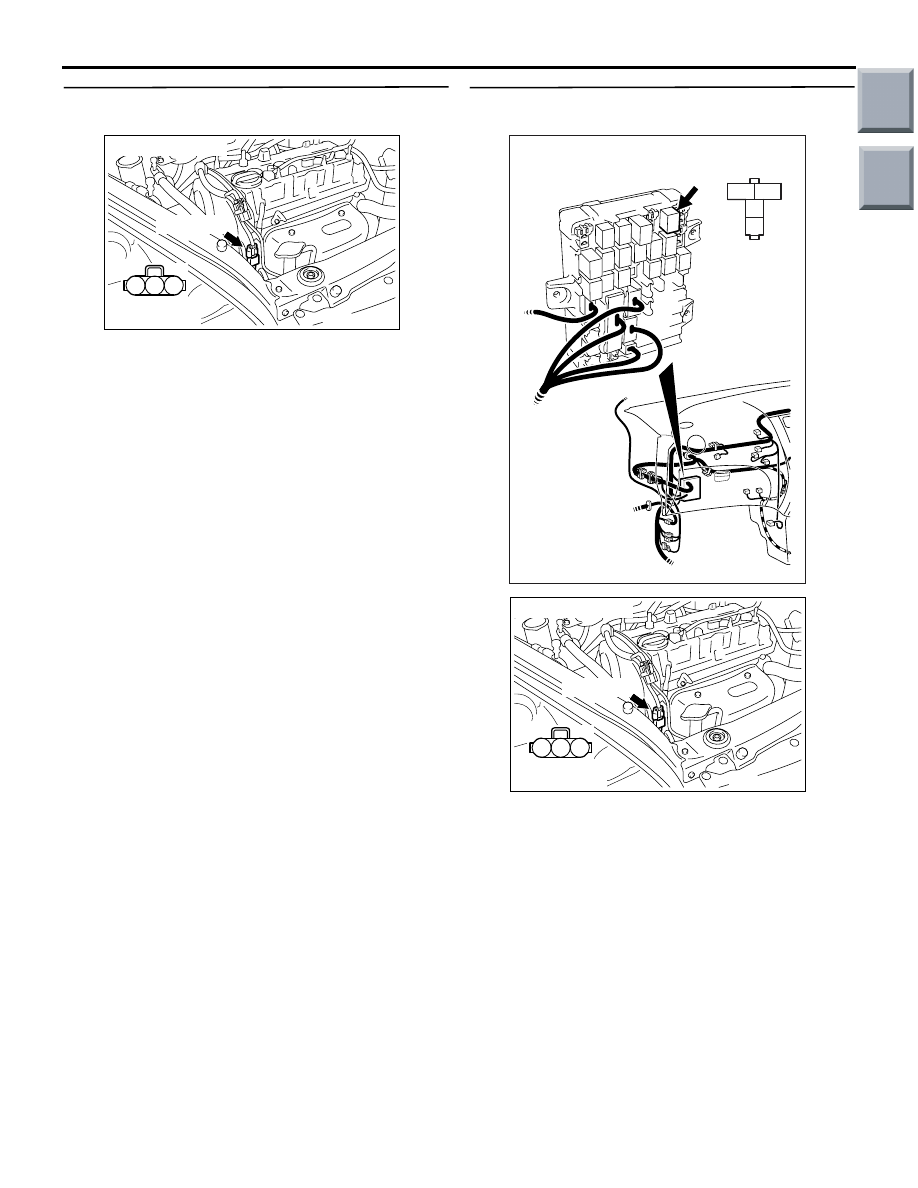

STEP 10. Connector check: B-106 engine control
relay connector

Q: Is the check result normal?

YES :

Check the intermediate connectors A-17

and B-112, and repair them if necessary. If
the intermediate connectors are normal,
check and repair the harness between
A-133 (terminal No. 1) crank angle sensor
intermediate connector and B-106 (terminal
No. 4) engine control relay connector.

• Check power supply line for

open/short circuit.

NO :

Repair or replace.

AK402095

1

2

3

AC

A-133(DG)

Connector: A-133

Harness side
connector

3

2

1

4

AK402084

J/B side
connector

B-106

Connector: B-106
J/B (front side)

AC

AK402095

1

2

3

AC

A-133(DG)

Connector: A-133

Harness side
connector

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-147

STEP 11. Perform resistance measurement at
A-133 crank angle sensor intermediate
connector.

•

Disconnect the connector, and measure at harness

side.

• Resistance between terminal No. 3 and earth.

OK: Continuity (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Go to Step 12.

STEP 12. Connector check: A-114 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair or replace.

STEP 13. Check harness between A-133 (terminal
No. 3) crank angle sensor intermediate connector
and A-114 (terminal No. 28) engine-ECU
connector.

•

Check earthing line for open circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Repair.

STEP 14. M.U.T.-III data list

• Refer to Data List Reference Table

P.13B-335

.

a. Item 22: Crank angle sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/Inspection

Service Points

−How to Cope with

Intermittent Malfunctions

P.00-13

).

NO :

Replace the engine-ECU.

AK402095

1

2

3

AC

A-133(DG)

Connector: A-133

Harness side
connector

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

AK402095

1

2

3

AC

A-133(DG)

Connector: A-133

Harness side
connector

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-148

STEP 15. Perform output waveform check at
A-133 crank angle sensor intermediate connector
(using an oscilloscope)

•

Use special tool test harness (MB991658) to connect

connector, and measure at pick-up harness.

• Engine: Idling

• Transmission: Neutral

• Voltage between terminal No. 2 and earth.

OK: Waveforms should be displayed on
inspection procedure using an oscilloscope
(Refer to

P.13B-352

), its maximum value

should be 4.8 V or more, and its minimum
value should be 0.6 V or less with no noise in
waveform.

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Go to Step 23.

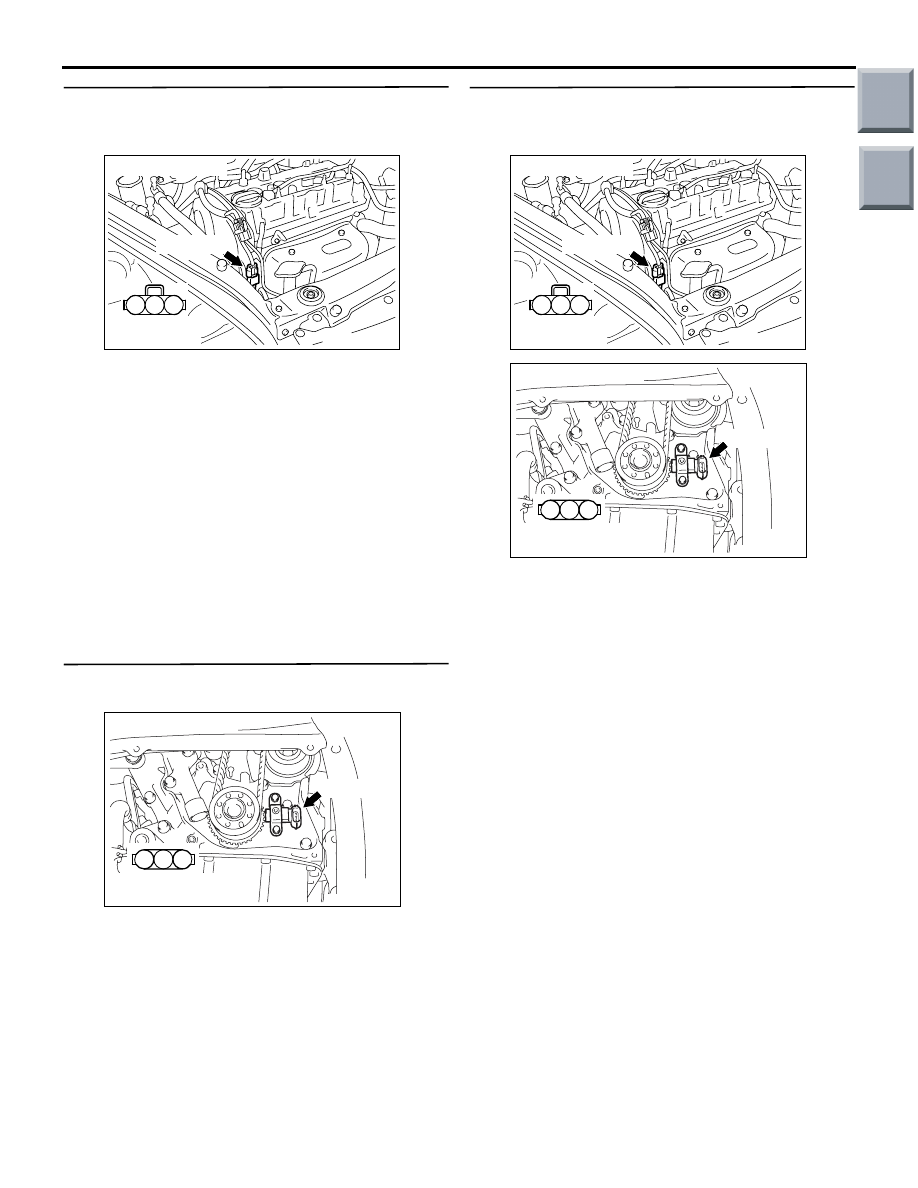

STEP 16. Connector check: A-133-1 crank angle
sensor connector

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair or replace.

STEP 17. Check harness between A-133-1 crank
angle sensor connector and A-133 crank angle
sensor intermediate connector.

•

Check the power supply line for open/short circuit

and damage.

• Check the output line for open/short circuit and

damage.

• Check earthing line for open circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 18.

NO :

Replace the timing belt cover.

AK402095

1

2

3

AC

A-133(DG)

Connector: A-133

Harness side
connector

AK402096

1

2

3

Connector: A-133-1

Harness side
connector

A-133-1

AC

AK402095

1

2

3

AC

A-133(DG)

Connector: A-133

Harness side
connector

AK402096

1

2

3

Connector: A-133-1

Harness side
connector

A-133-1

AC
