TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-73

TROUBLE JUDGEMENT

Check Condition

• After engine starts

• Engine coolant temperature is more than 20°C.

• Battery voltage is more than 11 V and is less than

16 V.

Judgement Criterion

• For 4 seconds, oxygen sensor (front) heater cur-

rent is less than 0.16 A or more than 5.0 A.

PROBABLE CAUSES

• Failed oxygen sensor (front) heater

• Open/short circuit or damage in oxygen sensor

heater circuit, or loose connector contact

• Failed engine-ECU

DIAGNOSIS PROCEDURE

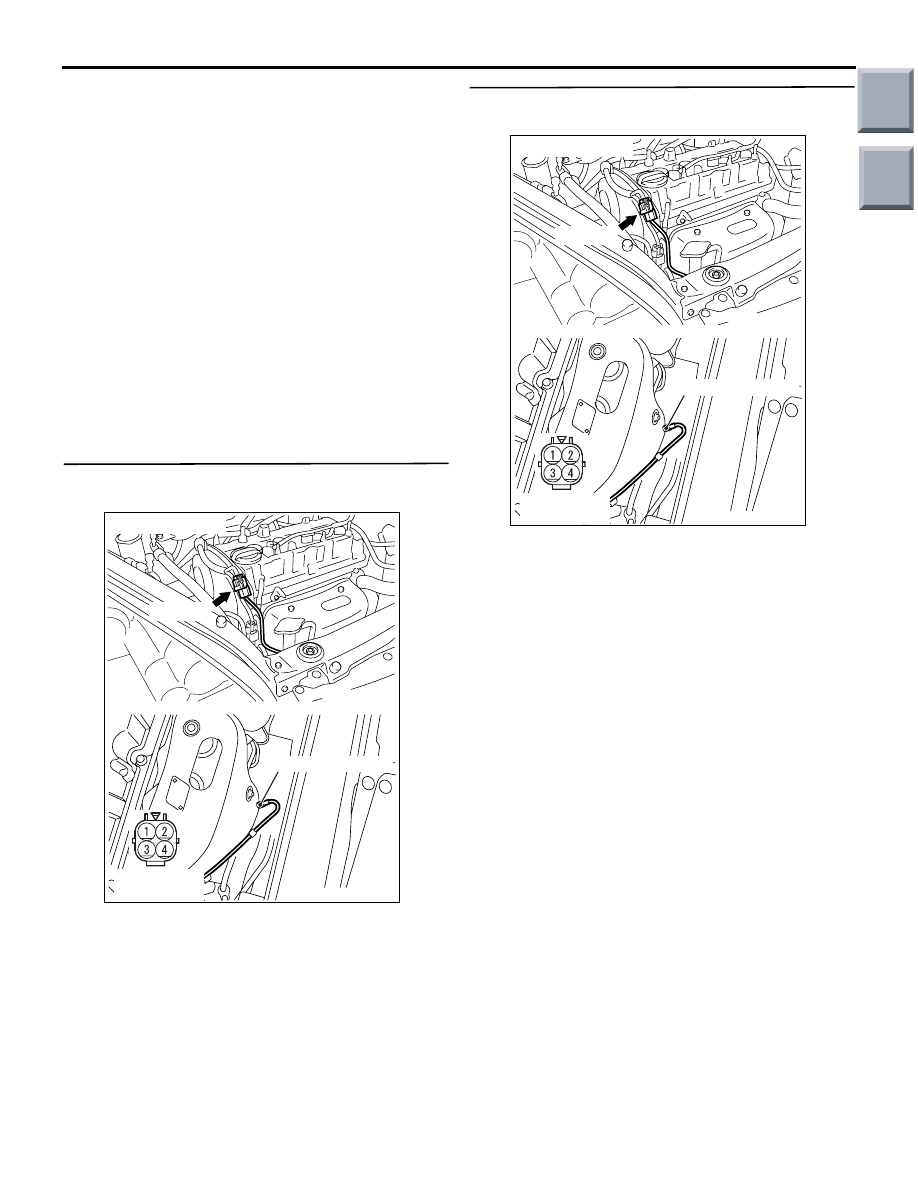

STEP 1. Connector check: A-122 oxygen sensor
(front) connector

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Repair or replace.

STEP 2. Perform resistance measurement at
A-122 oxygen sensor (front) connector.

• Disconnect connector and measure at sensor

side.

• Resistance between terminals No. 3 and No. 4.

OK: 5

− 30 Ω (at 20°C)

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Replace oxygen (front) sensor.

AK402087

Connector: A-122

Harness side

connector

A-122(G)

AD

Oxygen sensor (front)

AK402087

Connector: A-122

Harness side

connector

A-122(G)

AD

Oxygen sensor (front)

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-74

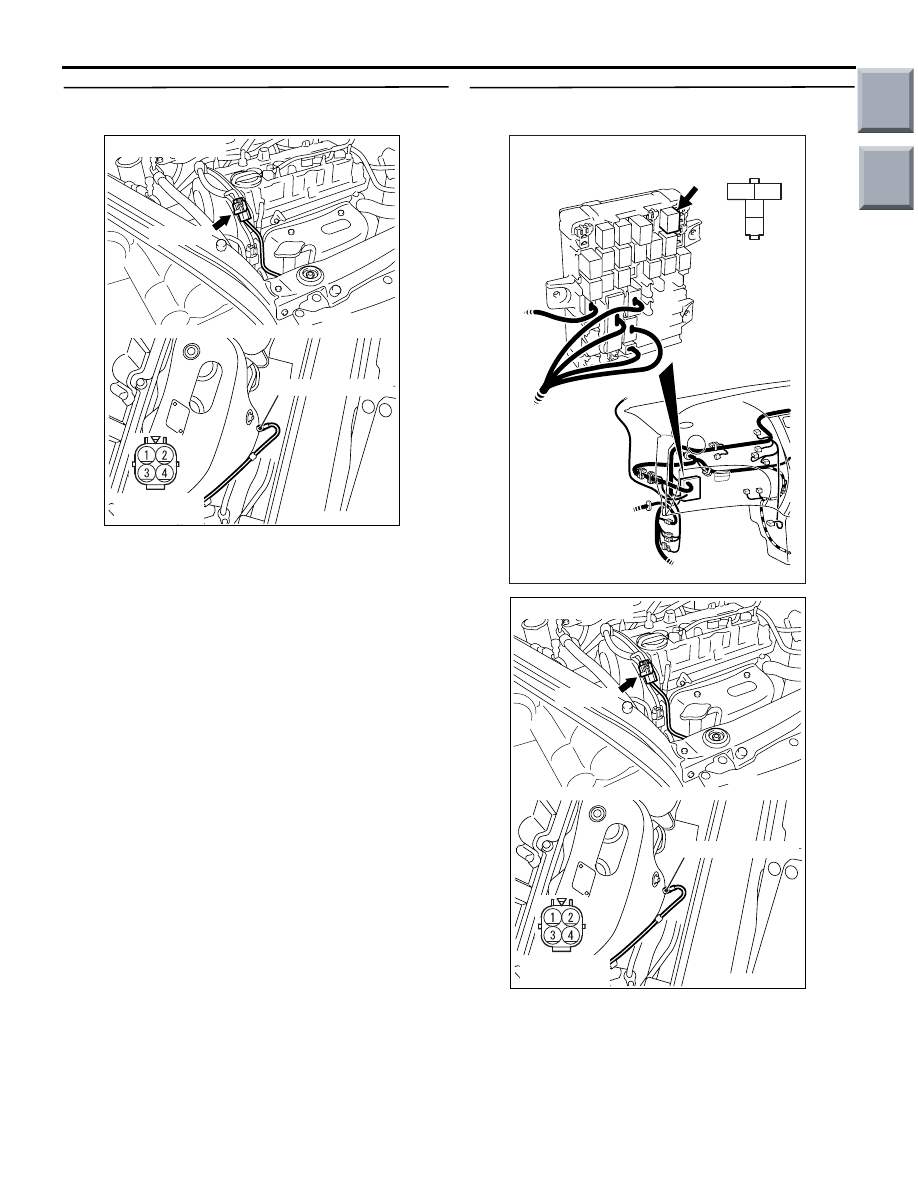

STEP 3. Perform voltage measurement at A-122
oxygen sensor (front) connector.

• Disconnect connector and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 3 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Go to Step 4 .

STEP 4. Connector check: B-106 engine control
relay connector

AK402087

Connector: A-122

Harness side

connector

A-122(G)

AD

Oxygen sensor (front)

3

2

1

4

AK402084

J/B side
connector

B-106

Connector: B-106
J/B (front side)

AC

AK402087

Connector: A-122

Harness side

connector

A-122(G)

AD

Oxygen sensor (front)

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-75

Q: Is the check result normal?

YES :

Check intermediate connector A-17 and

B-112, and repair if necessary. If
intermediate connectors are normal, check
and repair harness between A-122 (terminal
No. 3) oxygen sensor (front) connector and
B-106 (terminal No. 4) engine control relay
connector.

• Check power supply line for

open/short circuit.

NO :

Repair or replace.

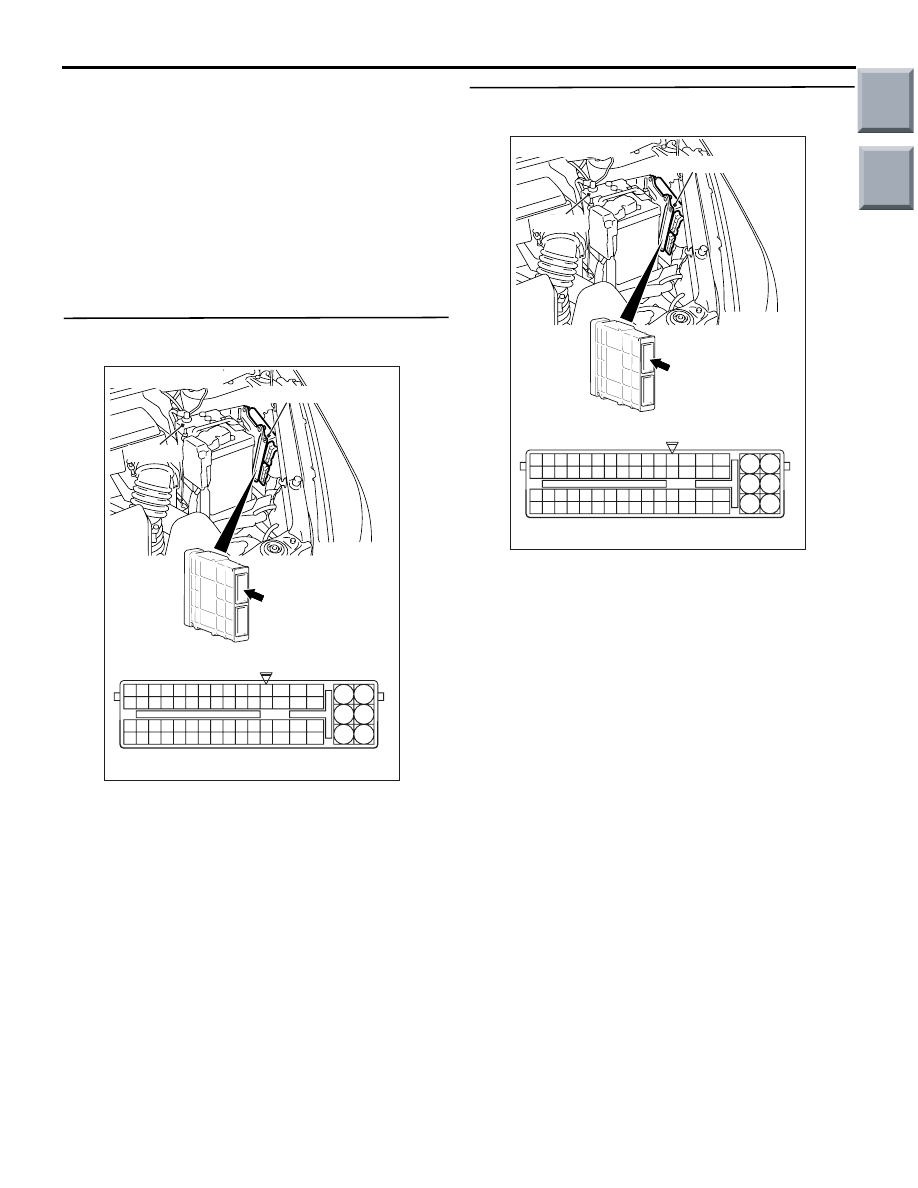

STEP 5. Perform voltage measurement at A-114
engine-ECU connector.

• Disconnect engine-ECU connector, and connect

special tool power plant ECU check harness
(MB991987) and measure the voltage on the
check connector.

• Ignition switch: ON

• Voltage between terminal No. 51 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Go to Step 6 .

STEP 6. Connector check: A-114 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair or replace.

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-76

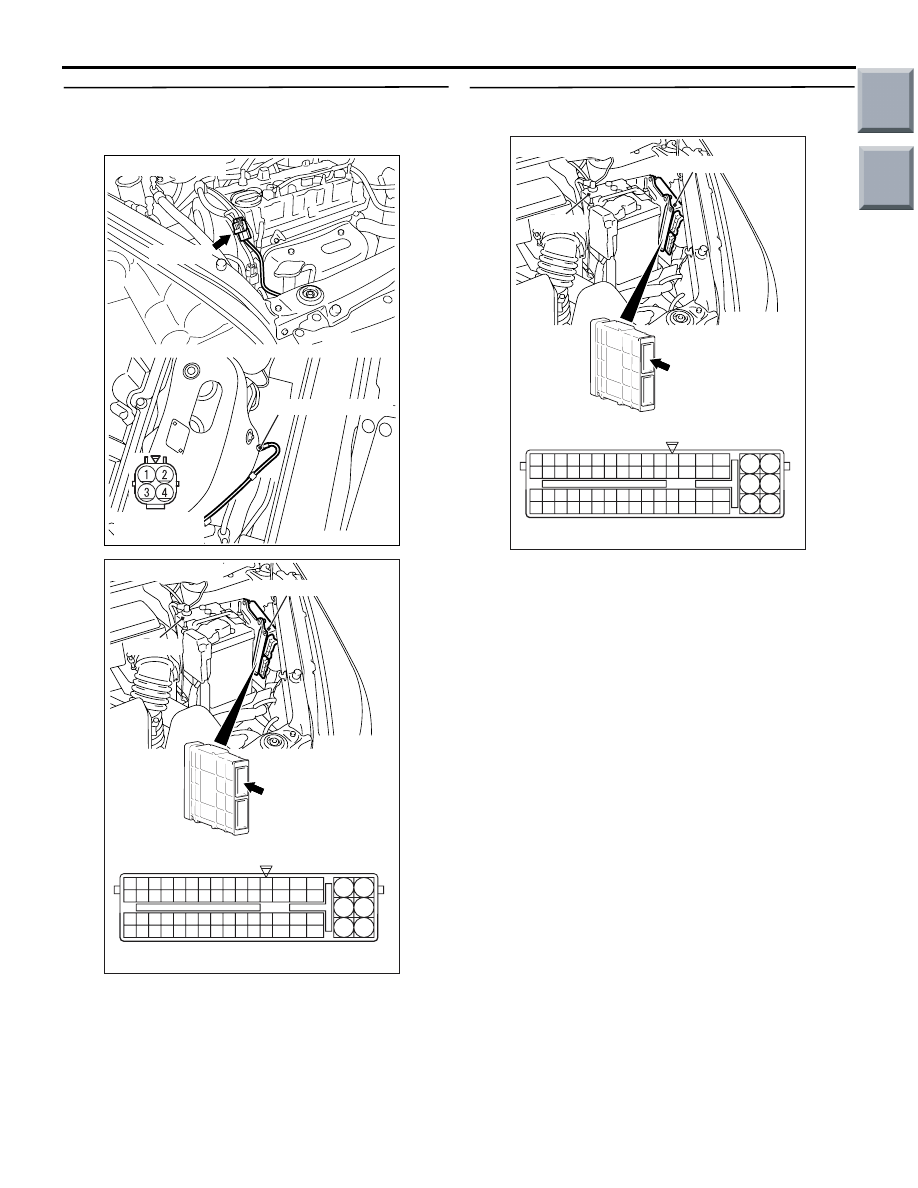

STEP 7. Check harness between A-122 (terminal
No. 4) oxygen sensor (front) connector and A-114
(terminal No. 51) engine-ECU connector.

• Check earthing line for open/short circuit.

Q: Is the check result normal?

YES :

Replace engine-ECU.

NO :

Repair.

STEP 8. Connector check: A-114 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Repair or replace.

AK402087

Connector: A-122

Harness side

connector

A-122(G)

AD

Oxygen sensor (front)

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery
