TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-45

Code No. P0115: Engine Coolant Temperature Sensor System

OPERATION

• A power voltage of 5 V is applied to the engine

coolant temperature sensor output terminal (ter-
minal No. 1) from the engine-ECU (terminal No.
14).

• The engine coolant temperature sensor (terminal

No. 2) is earthed to the engine-ECU (terminal No.
29).

FUNCTION

• The engine coolant temperature sensor converts

the engine coolant temperature into a voltage sig-
nal and inputs the signal to the engine-ECU.

• In response to the signal, the engine-ECU con-

trols the fuel injection amount and fast idle speed
when the engine is cold.

• The engine coolant temperature sensor is a kind

of resistor, which has the property of decreasing
in resistance with the increase of engine coolant
temperature. Therefore, the sensor output volt-
age varies with the engine coolant temperature,
lowering as the engine coolant temperature rises.

TROUBLE JUDGEMENT

Check Condition

• 2 seconds later from when ignition switch is in

ON position

or

• 2 seconds later from when engine starts

AK402678

1 2

19

21

20

18

17

16

15

14

1213

11

8 9

L

10

37
52 53 54 555657585960616263646566

38 39 404142434445464748495051

22 23 24 252627282930313233343536

7

5

3

1

6

4

2

29

14

A-114

Engine-ECU

Engine coolant
temperature sensor

Y-G

B

A-121

 (MU802406)

2

1

5 V

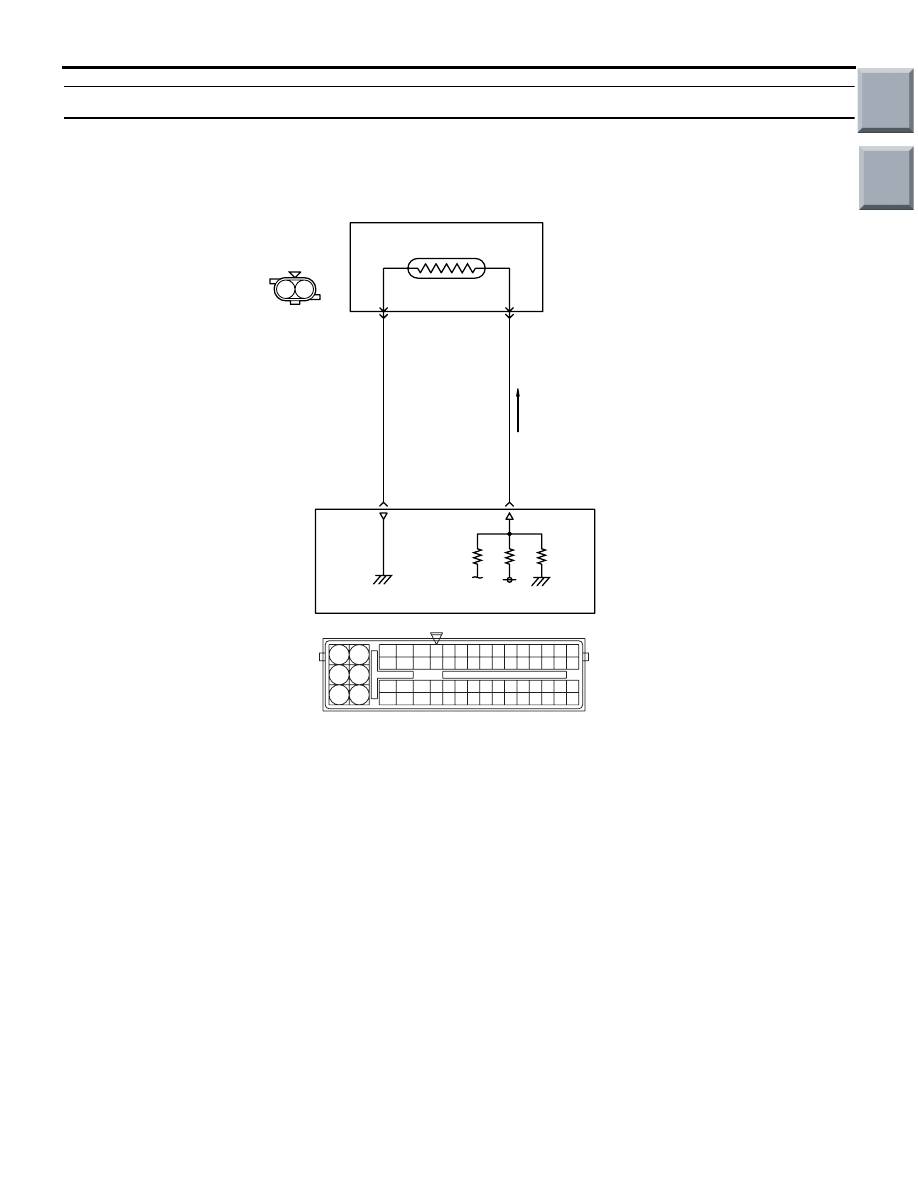

Engine Coolant Temperature Sensor Circuit

AF

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet  P: Purple

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-46

Judgement Criterion

• Sensor output voltage is more than 4.6 V for 4

seconds. (Intake air temperature is less than
-40

°C or equivalent.)

or

• Sensor output voltage is less than 0.1 V for 4 sec-

onds. (Intake air temperature is more than 120

°C

or equivalent.)

Check Condition

• While engine is running

Judgement Criterion

• Engine coolant sensor output voltage rises to

more than 1.6 V from less than 1.6 V. (Engine
coolant temperature decreases to less than 40

°C

or equivalent from more than 40

°C or equiva-

lent.)

• Then, for 5 minutes, engine coolant temperature

output voltage is more than 1.6 V. (Engine cool-
ant temperature is less than 40

°C or equivalent.)

PROBABLE CAUSES

• Failed engine coolant temperature sensor

• Open/short circuit or damage in engine coolant

temperature sensor circuit, or loose connector
contact

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

• Item 21: Engine coolant temperature sensor

OK:

When the engine is cold: Nearly equal to ambi-

ent temperature (atmospheric temperature)

When the engine is hot: 80

− 120°C

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/Inspection

Service Points

−How to Cope with

Intermittent Malfunctions

P.00-13

).

NO :

Go to Step 2 .

STEP 2. Connector check: A-121 engine coolant
temperature sensor connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace.

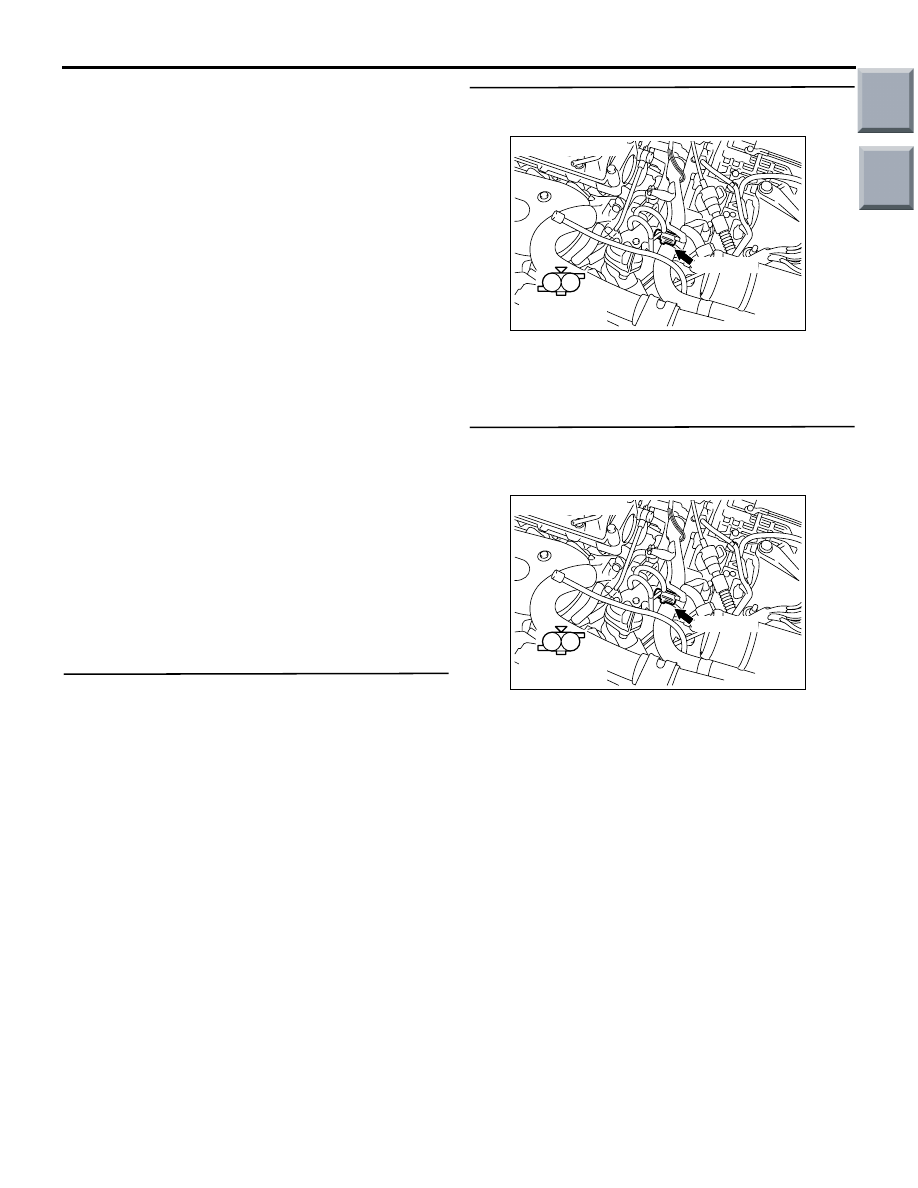

STEP 3. Perform resistance measurement at
A-121 engine coolant temperature sensor
connector.

• Disconnect connector and measure at sensor

side.

• Resistance between terminals No. 1 and No. 2

OK:

Engine coolant temperature at

−20°C: 14 − 17

k

Ω

Engine coolant temperature at 0

°C: 5.1 − 6.5 kΩ

Engine coolant temperature at 20

°C: 2.1 − 2.7

k

Ω

Engine coolant temperature at 40

°C: 0.9 − 1.3

k

Ω

Engine coolant temperature at 60

°C: 0.48 −

0.68 k

Ω

Engine coolant temperature at 80

°C: 0.26 −

0.36 k

Ω

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Replace engine coolant temperature
sensor.

AK402085

1

2

AC

A-121(B)

Connector: A-121

Harness side

connector

AK402085

1

2

AC

A-121(B)

Connector: A-121

Harness side

connector

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-47

STEP 4. Perform voltage measurement at A-121
engine coolant temperature sensor connector.

• Disconnect connector and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 1 and earth.

OK: 4.5

− 4.9 V

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Go to Step 5 .

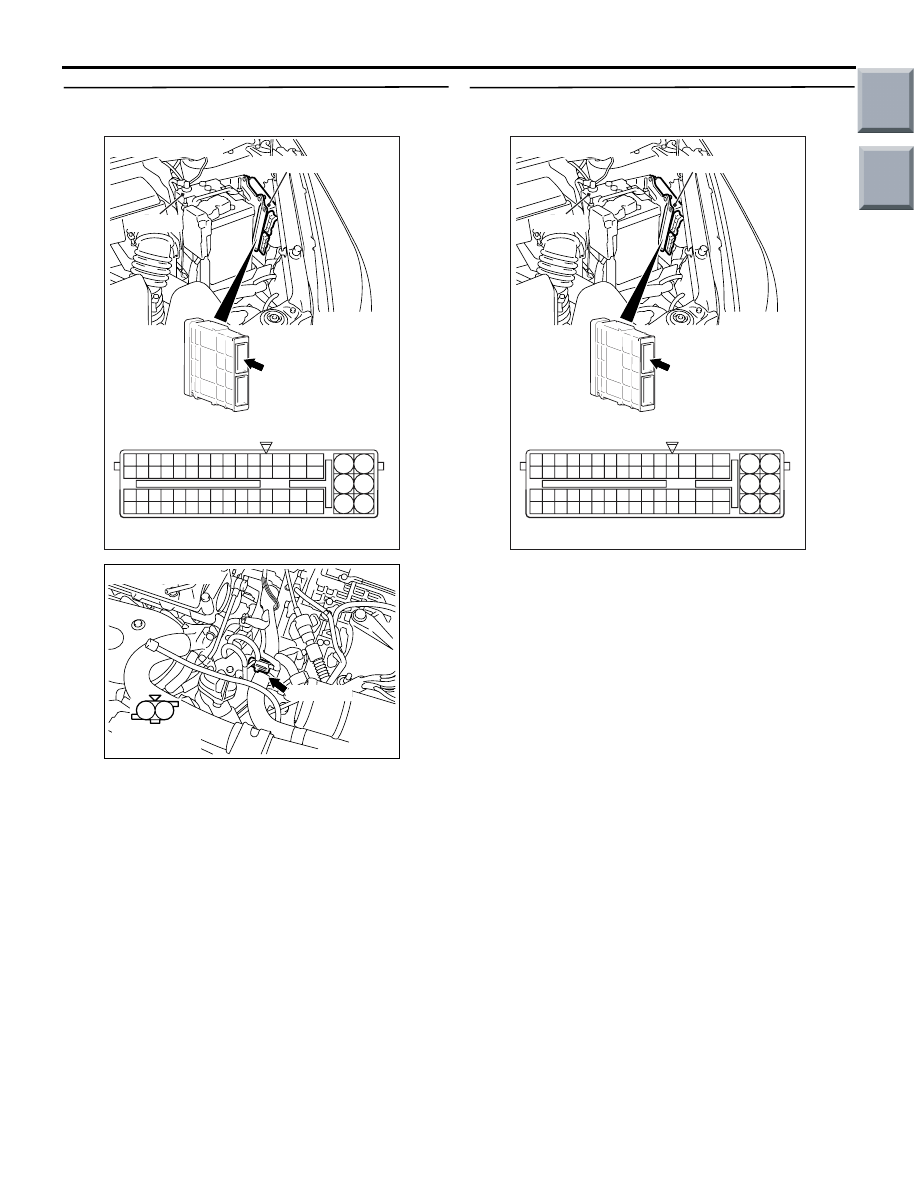

STEP 5. Perform voltage measurement at A-114
engine-ECU connector.

• Disconnect engine-ECU connector, and connect

special tool power plant ECU check harness
(MB991987) and measure the voltage on the
check connector.

• Disconnect A-121 engine coolant temperature

sensor connector.

• Ignition switch: ON

• Voltage between terminal No. 14 and earth.

OK: 4.5

− 4.9 V

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Go to Step 7 .

AK402085

1

2

AC

A-121(B)

Connector: A-121

Harness side

connector

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

AK402085

1

2

AC

A-121(B)

Connector: A-121

Harness side

connector

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-48

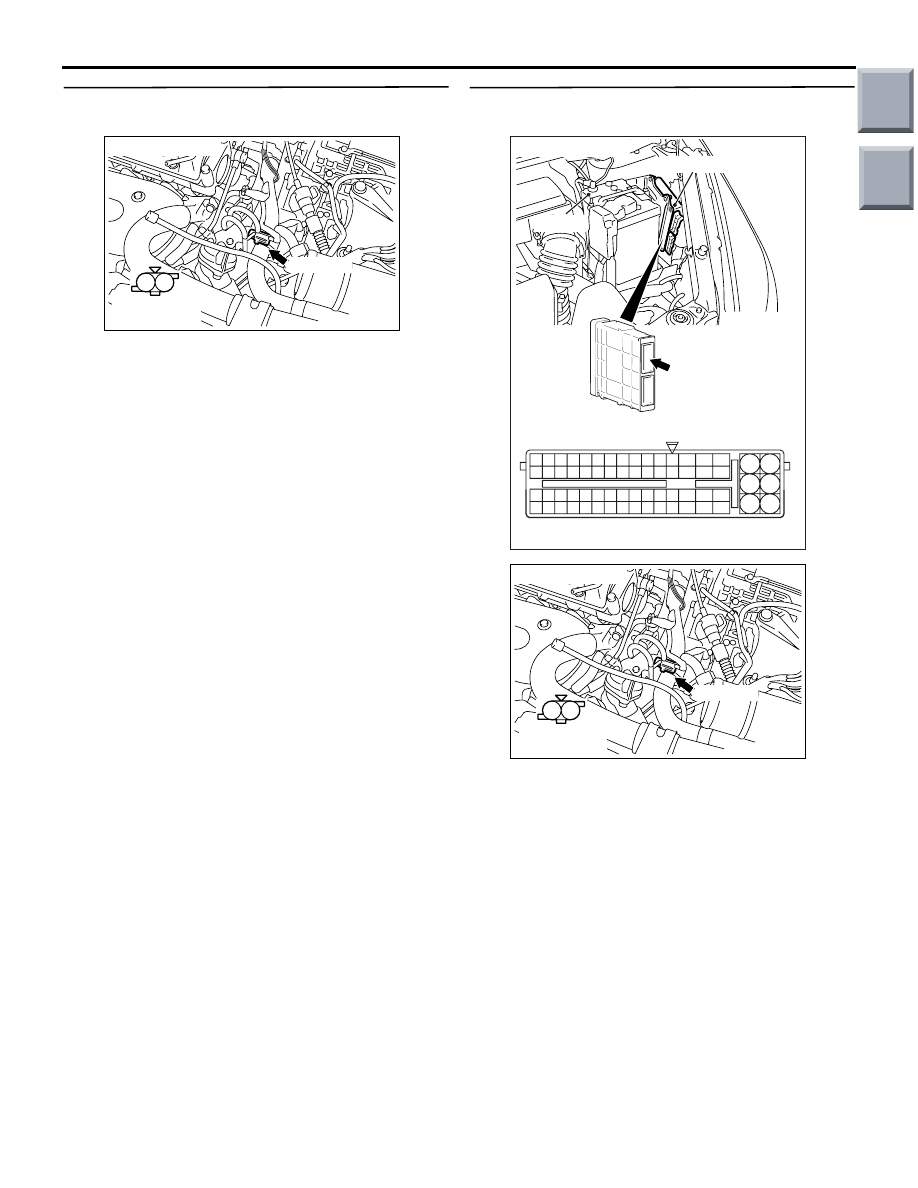

STEP 6. Connector check: A-114 engine-ECU
connector

Q: Is the check result normal?

YES :

Check and repair harness between A-121

(terminal No. 1) engine coolant temperature
sensor connector  and A-114 (terminal No.
14) engine-ECU connector .

• Check output line for open circuit.

NO :

Repair or replace.

STEP 7. Connector check: A-114 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair or replace.

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

AK402085

1

2

AC

A-121(B)

Connector: A-121

Harness side

connector

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery
