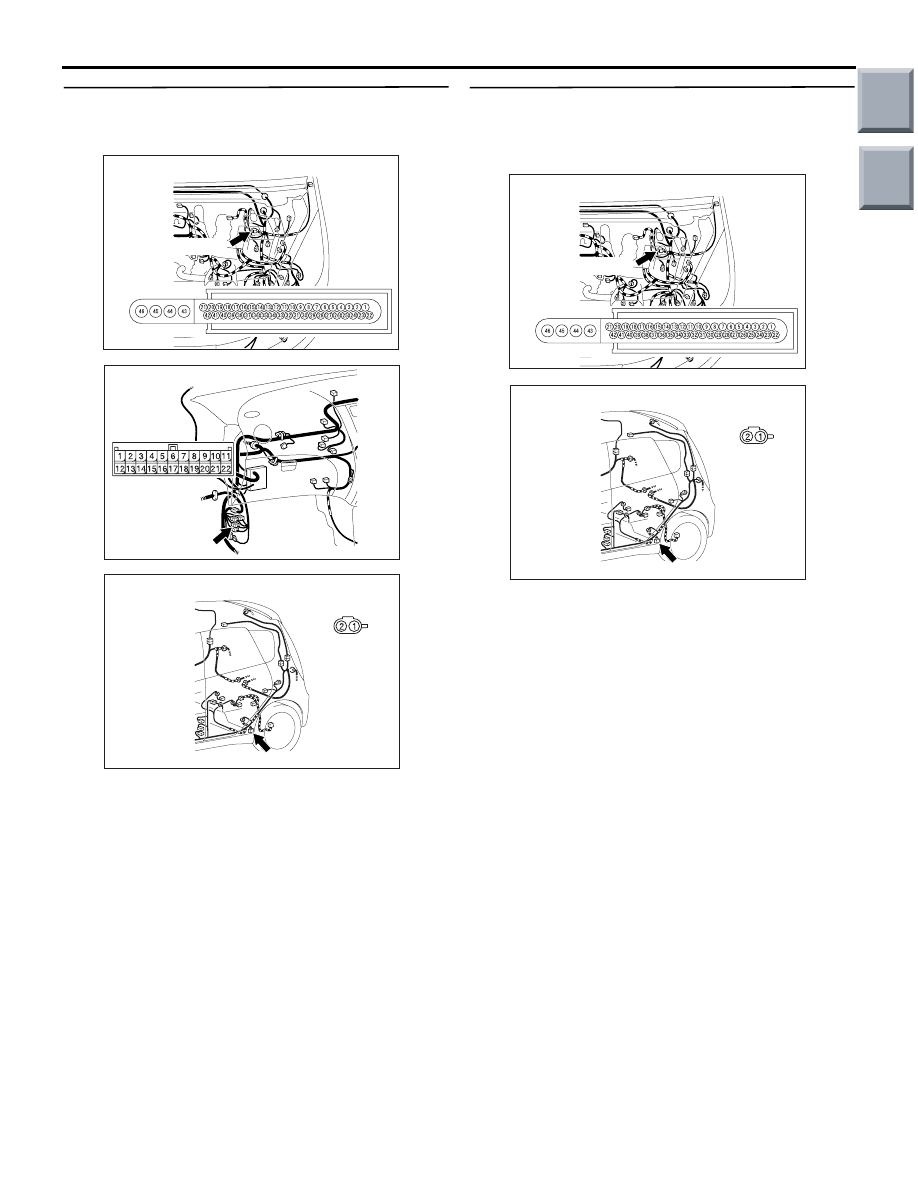

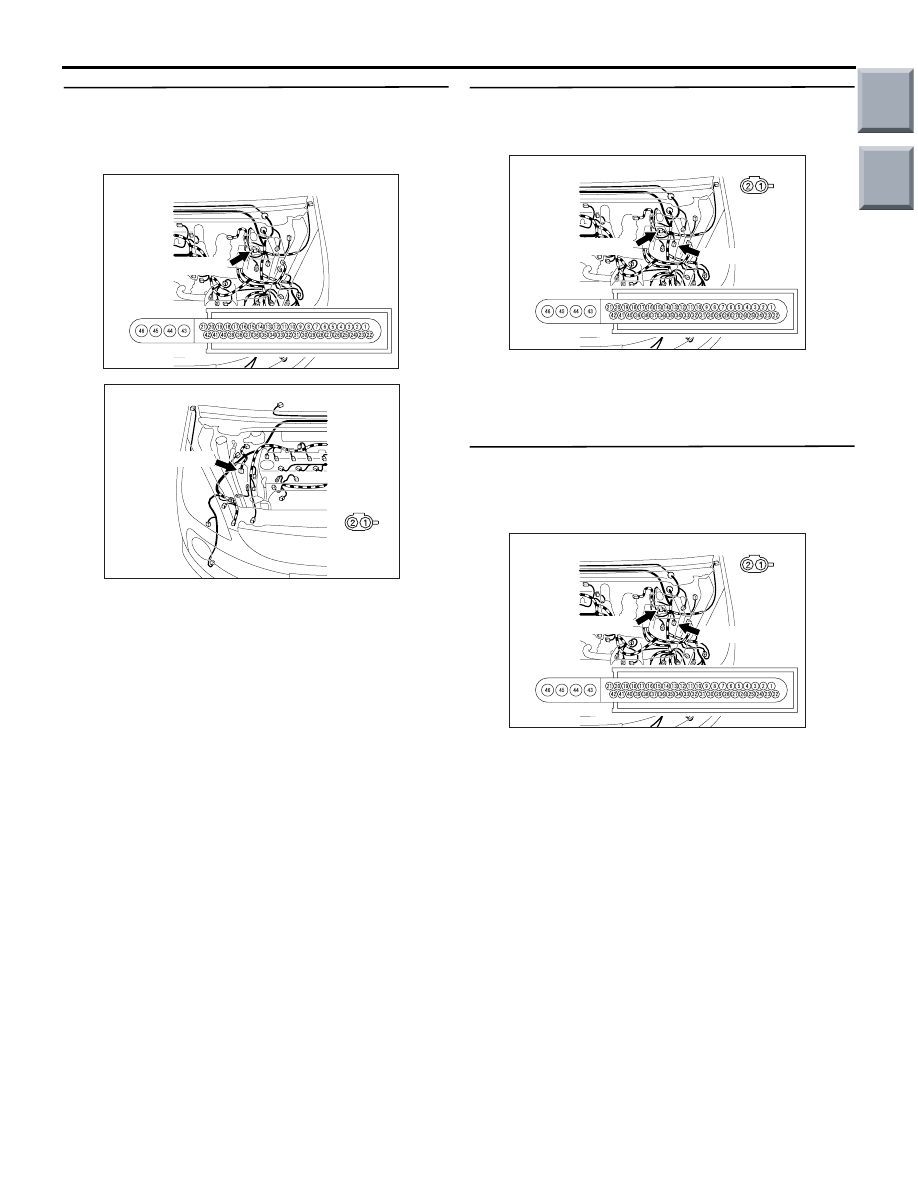

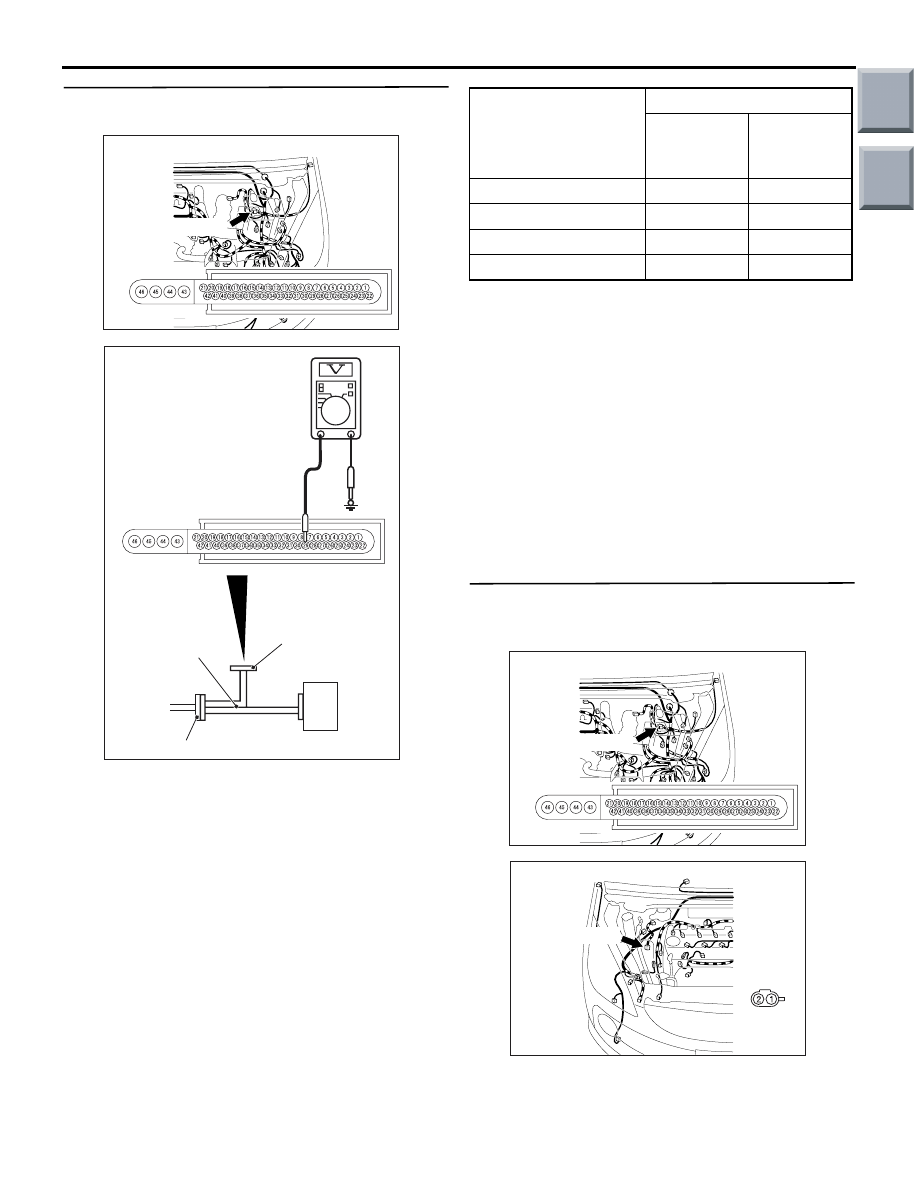

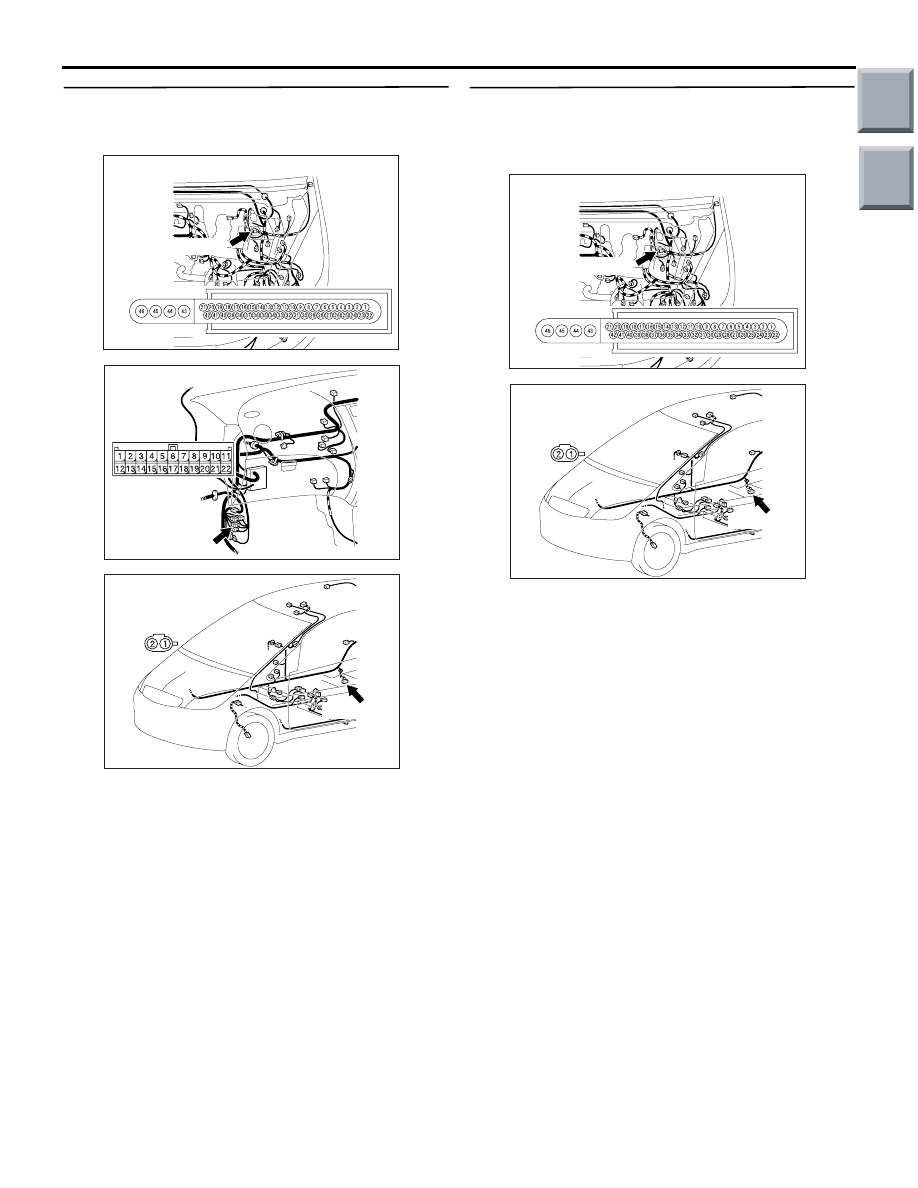

TROUBLESHOOTING

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-13

STEP 10. Connector check: A-05 ASC-ECU
connector, B-41 intermediate connector, C-06
wheel speed sensor <RR> connector

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the damaged connector.

STEP 11. Wiring harness inspection: between
A-05 ASC-ECU connector terminal No. 30, 8 and
C-06 wheel speed sensor <RR> connector
terminal No. 2, 1.

Check for short circuit in wheel speed sensor <RR>
circuit.

Q: Is the check result normal?

YES :

Replace the wheel speed sensor <RR>.

NO :

Repair the wiring harness.

AC601083

Connector: A-05

AB

A-05(Black)

Harness side

AC601092

Connector: B-41

AB

AC601093

Connector: C-06

AB

Harness side

C-06 (Black)

AC601083

Connector: A-05

AB

A-05(Black)

Harness side

AC601093

Connector: C-06

AB

Harness side

C-06 (Black)

Main

Index

Group

TOC

TROUBLESHOOTING

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-14

STEP 12. Connector check: A-05 ASC-ECU
connector, B-41 intermediate connector, C-17
wheel speed sensor <RL> connector

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the damaged connector.

STEP 13. Wiring harness check: between A-05
ASC-ECU connector terminal No. 11, 10 and C-17
wheel speed sensor <RL> connector terminal No.
2, 1.

Check for short circuit in wheel speed sensor <RL>
circuit.

Q: Is the check result normal?

YES :

Replace the wheel speed sensor <RL>.

NO :

Repair the wiring harness.

AC601083

Connector: A-05

AB

A-05(Black)

Harness side

AC601092

Connector: B-41

AB

AC601094

Connector: C-17

AB

C-17(Black)

Harness side

AC601083

Connector: A-05

AB

A-05(Black)

Harness side

AC601094

Connector: C-17

AB

C-17(Black)

Harness side

Main

Index

Group

TOC

TROUBLESHOOTING

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-15

STEP 14. Voltage measurement: A-05 ASC-ECU
connector

(1) Disconnect the connector, connect the ABS

check harness (Special tool: MB991984) to the
ASC-ECU side connector and harness-side
connector, and then measure the voltage at the
special tool connector side.

(2) Ignition switch: ON
(3) Measure the voltage between the power supply

and signal terminals in the wheel speed sensor
circuit and body earth.

OK:

<Power supply terminal> Approximately 12

V

<Signal terminal> 0.4 to 1.3 V

Q: Is the check result normal?

YES :

Go to Step 24.

NO (Not normal at the terminal No. 29 or 28) :

Go

to Step 15.

NO (Not normal at the terminal No. 34 or 13) :

Go

to Step 17.

NO (Not normal at the terminal No. 30 or 8) :

Go to

Step 19.

NO (Not normal at the terminal No. 11 or 10) :

Go

to Step 21.

STEP 15. Connector check: A-05 ASC-ECU
connector, A-29 wheel speed sensor <FR>
connector

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Repair the damaged connector.

AC601083

Connector: A-05

AB

A-05(Black)

Harness side

AC601086AE

MB991984

ASC-ECU

Check connector

ASC-ECU harness connector

Diagnosis code No.

Checking terminal
Power
supply
terminal

Signal
terminal

C1200

No. 29

No. 28

C1205

No. 34

No. 13

C1210

No. 30

No. 8

C1215

No. 11

No. 10

AC601083

Connector: A-05

AB

A-05(Black)

Harness side

AC601084

Connector: A-29

AB

Harness
side

A-29(black)

Main

Index

Group

TOC

TROUBLESHOOTING

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-16

STEP 16. Wiring harness inspection: between
A-05 ASC-ECU connector terminal No. 29, 28 and
A-29 wheel speed sensor <FR> connector
terminal No. 2, 1.

Check for open circuit in wheel speed sensor <FR>
circuit.

Q: Is the check result normal?

YES :

Go to Step 23.

NO :

Repair the wiring harness.

STEP 17. Connector check: A-05 ASC-ECU
connector, A-06 wheel speed sensor <FL>
connector

Q: Is the check result normal?

YES :

Go to Step 18.

NO :

Repair the damaged connector.

STEP 18. Check the harness wire between A-05
ASC-ECU connector terminal No. 34, 13 and A-06
wheel speed sensor <FL> connector terminal No.
2, 1.

Check for open circuit in wheel speed sensor <FL>
circuit.

Q: Is the check result normal?

YES :

Go to Step 23.

NO :

Repair the wiring harness.

AC601083

Connector: A-05

AB

A-05(Black)

Harness side

AC601084

Connector: A-29

AB

Harness
side

A-29(black)

AC601083

Connectors: A-05, A-06

AC

A-05(Black)

A-05:
Harness side

A-06: Harness side

A-06 (Black)

AC601083

Connectors: A-05, A-06

AC

A-05(Black)

A-05:
Harness side

A-06: Harness side

A-06 (Black)
