ON-VEHICLE SERVICE

HEATER, AIR CONDITIONER AND VENTILATION

55A-52

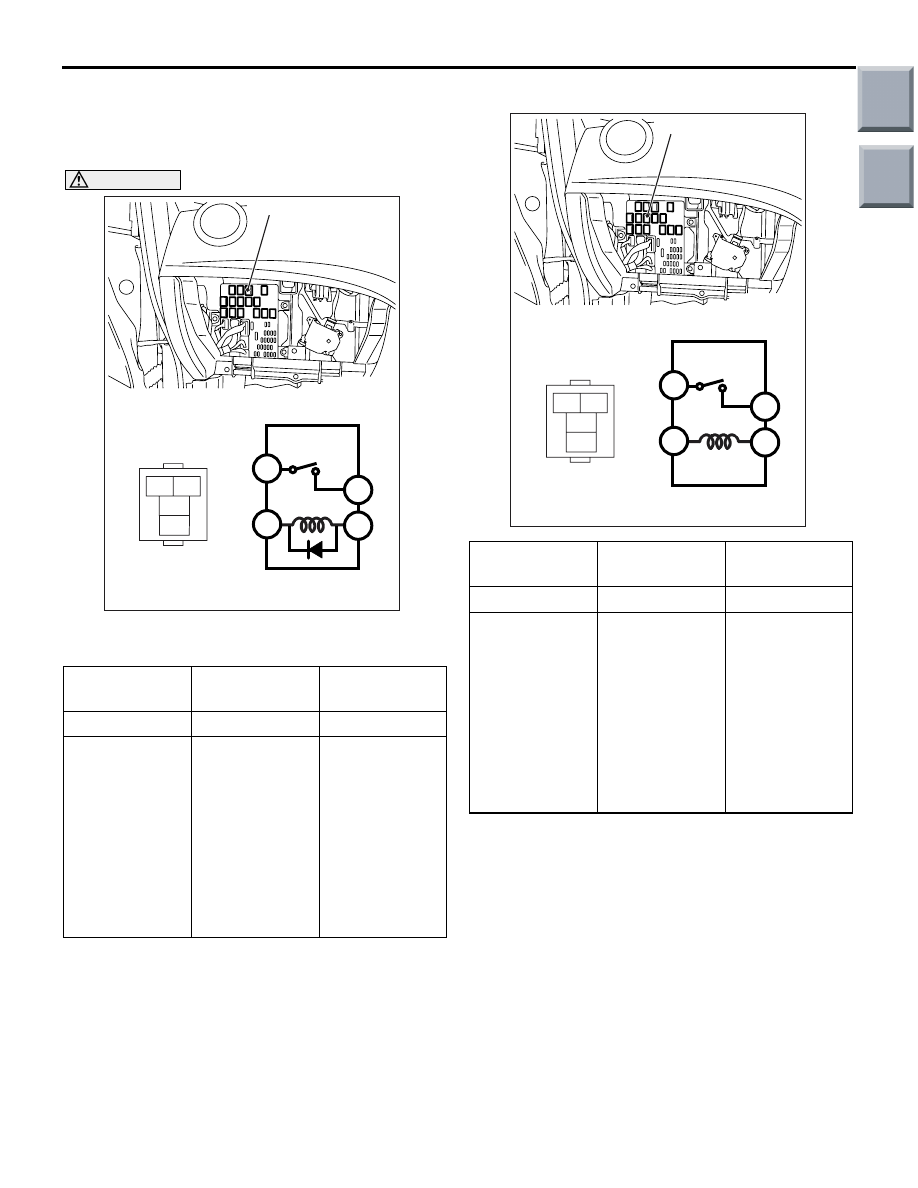

RELAY CONTINUITY CHECK

M1552008800503

A/C COMPRESSOR RELAY CONTINUITY
CHECK

AC208719

;

AJ

2

4

1

3

3

1

4

2

A/C compressor

CAUTION

Ensure the correct polarity to prevent the dam-
age to a diode.

Battery voltage Tester

connection

Specified
condition

Not applied

3

− 4

Open circuit

• Connect

terminal 1 to
the positive
battery
terminal

• Connect

terminal 2 to
the negative
battery
terminal

3

− 4

Continuity (Less
than 2

Ω)

BLOWER RELAY CONTINUITY CHECK

AC208719

;

AH

2

4

1

3

3

1

4

2

Blower relay

Battery voltage Tester

connection

Specified
condition

Not applied

3

− 4

Open circuit

• Connect

terminal 1 to
the positive
battery
terminal

• Connect

terminal 2 to
the negative
battery
terminal

3

− 4

Continuity (Less
than 2

Ω)

Main

Index

Group

TOC

ON-VEHICLE SERVICE

HEATER, AIR CONDITIONER AND VENTILATION

55A-53

IDLE-UP OPERATION CHECK

M1552001600553

1. Before inspection and adjustment, set vehicle in

the following condition:

• Engine coolant temperature: 80 − 90 °C

• Lamps, electric cooling fan and accessories: Set

to OFF

• Transmission: Neutral ("N" or "P" for vehicles with

A/T)

• Steering wheel: Straightforward

2. Check whether or not the idle speed is the

standard value.
Refer to GROUP 11A, On-vehicle Service

− Basic

Idle Speed Adjustment

P.11A-9

.

Standard value: 700

± 50 r/min

3. When the A/C is running after turning the A/C

switch to ON, and the blower switch to the 3(MH)
or 4(HI) position, check to be sure that the idle
speed is at the standard value.

Standard value: 850

± 100 r/min

NOTE: . It is not necessary to make an adjust-
ment, because the idling speed is automatically
adjusted by the ISC system. If, however, a devia-
tion from the standard value occurs for some rea-
son, check the ISC system.

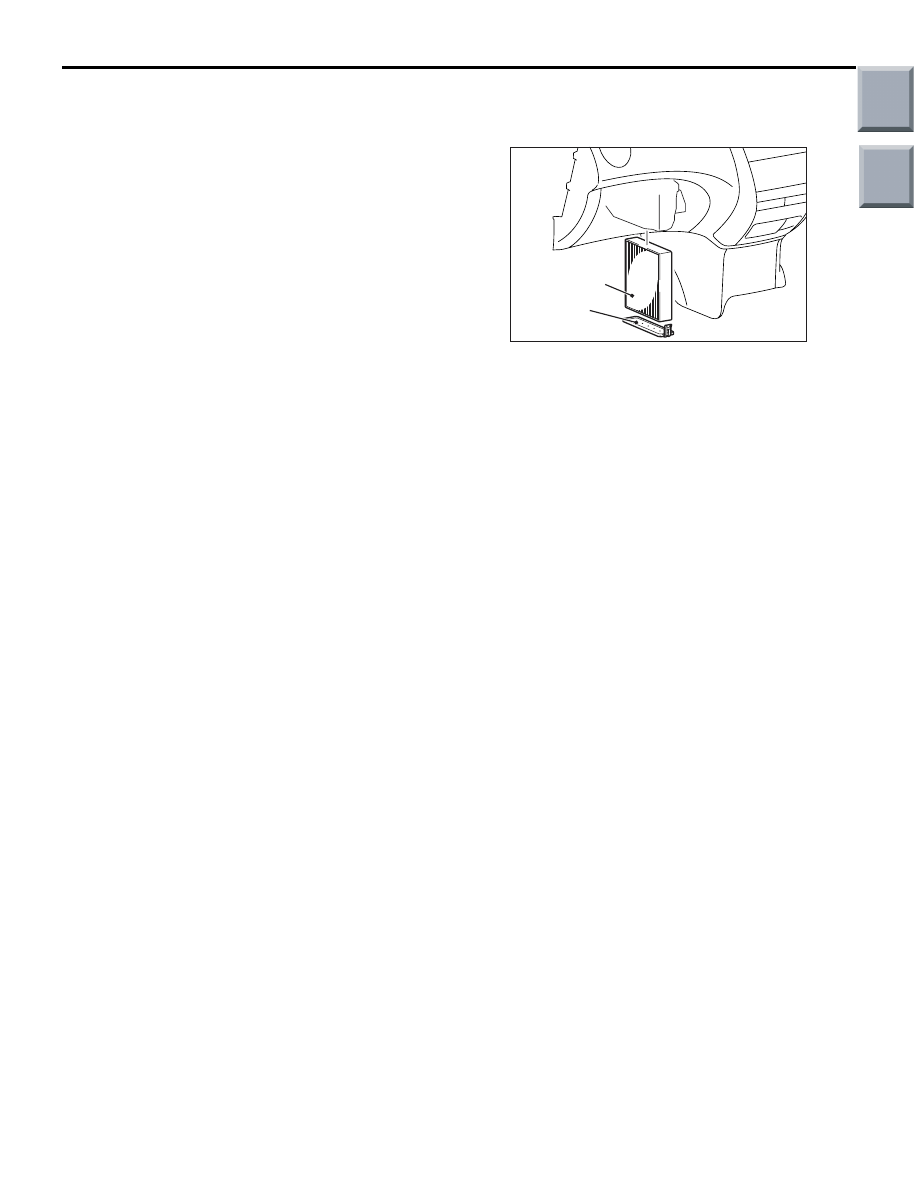

CLEAN AIR FILTER REPLACEMENT
PROCEDURE

M1552020100171

AC314230

Cover

Clean air filter

AB

Remove the cover from the lower side of the front
passenger to extract the clean air filter.

Main

Index

Group

TOC

HEATER CONTROL ASSEMBLY AND A/C SWITCH

HEATER, AIR CONDITIONER AND VENTILATION

55A-54

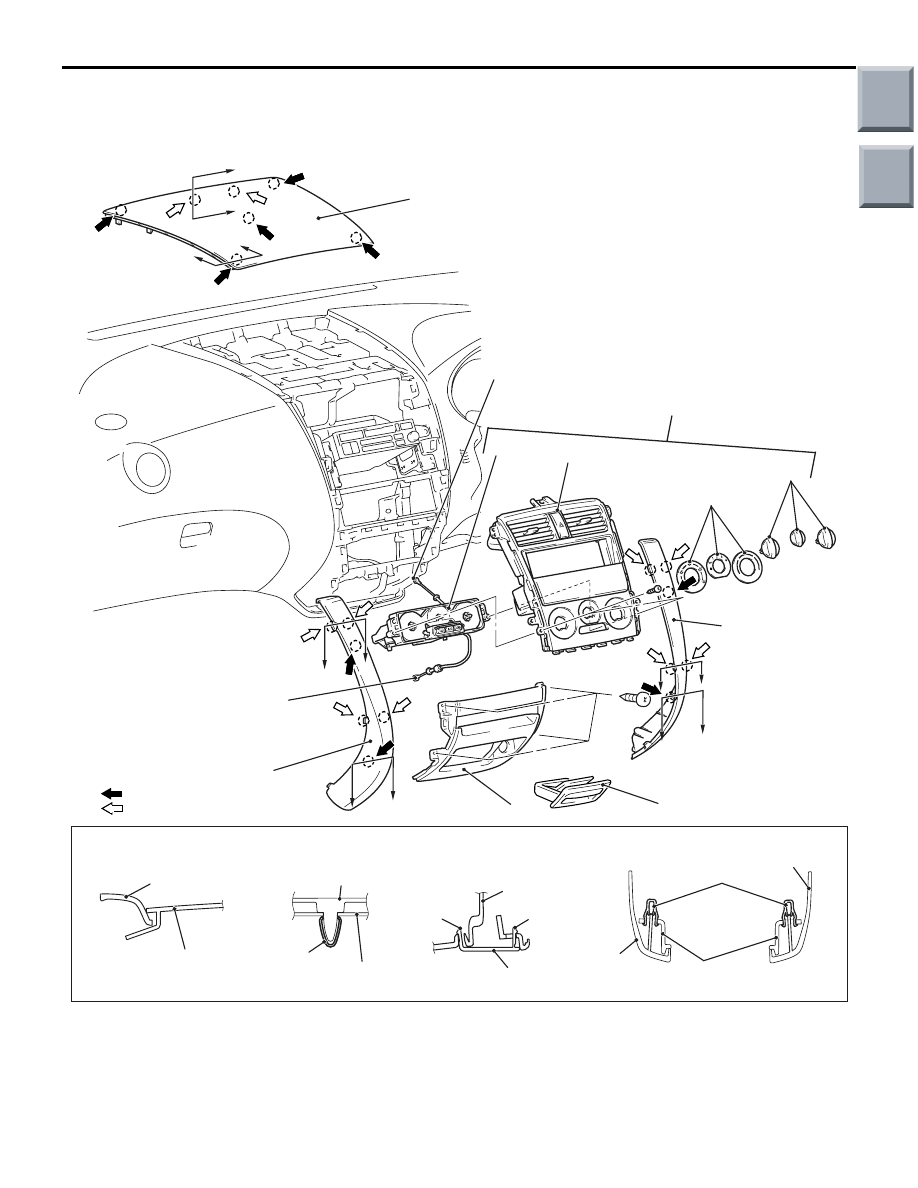

HEATER CONTROL ASSEMBLY AND A/C SWITCH

REMOVAL AND INSTALLATION

M1552002400477

AC206702AB

2

1

2

6

3

8

7

5

C

C

D

D

B

B

A

A

E

E

C

C

NOTE
(1)        : Clip position
(2)        : Claw position

4

9

11

10

AC208885

Section A – A

Section B – B

Section D – D

AB

Section C – C

Section E – E

Instrument panel

Upper centre
panel

Upper centre
panel

Clip

Instrument
panel

Claw

Claw

Instrument
panel

Console
panel

Console
panel

Clip

Console panel

Instrument
panel

Removal steps

1.

Upper centre panel

2.

Console panel

3.

Ashtray

4.

Lower centre panel

>>

B

<<

5.

Mode selection damper control
cable connection

>>

A

<<

6.

Air mixing damper control cable
connection

7.

Heater control panel assembly

8.

Knob

9.

Heater control assembly

Removal steps (Continued)

Main

Index

Group

TOC

HEATER CONTROL ASSEMBLY AND A/C SWITCH

HEATER, AIR CONDITIONER AND VENTILATION

55A-55

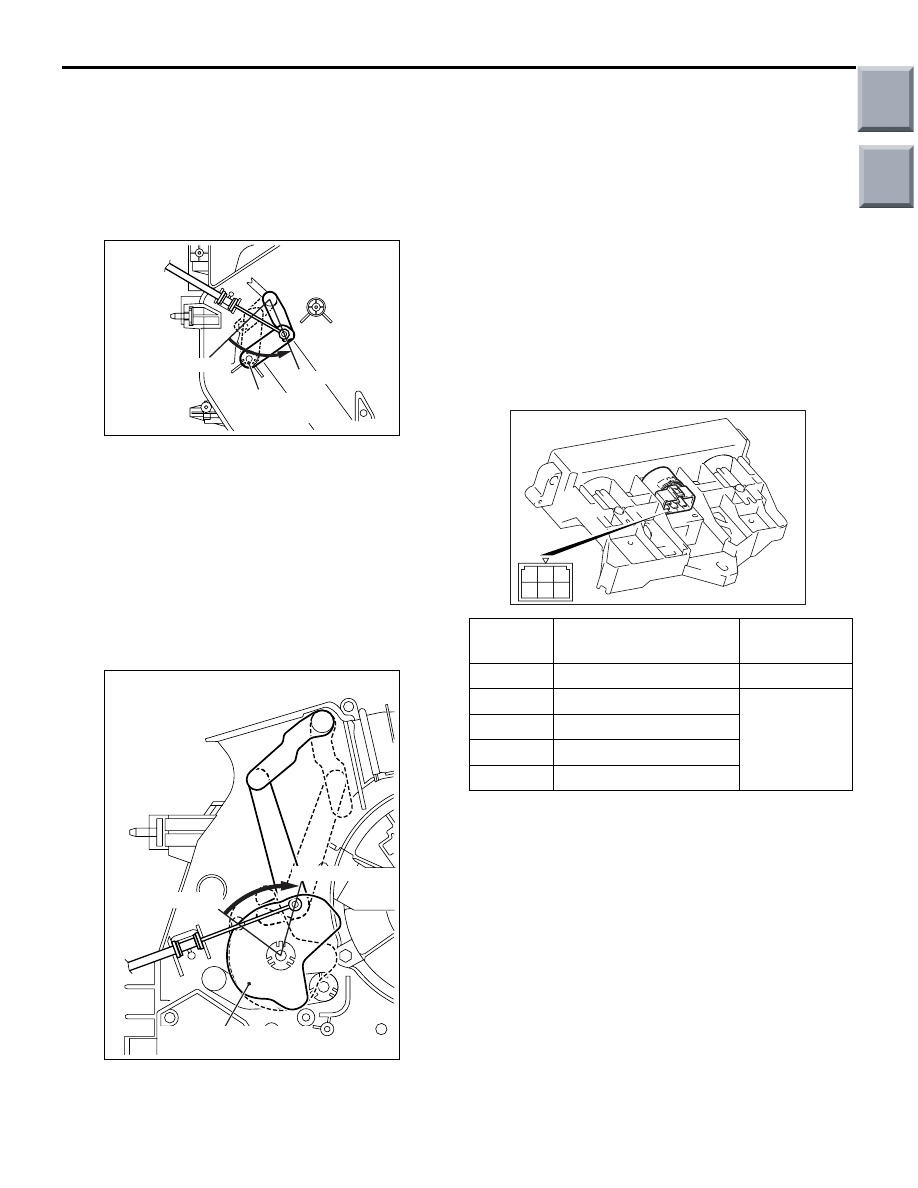

INSTALLATION SERVICE POINT
>>A<< AIR MIXING DAMPER CONTROL
CABLE CONNECTION

AC206694

MAX HOT

MAX COOL

AB

Air mixing
damper lever

1. Turn the temperature control knob of heater

control assembly to the HOT side fully.

2. Turn the air mix damper lever of heater unit to the

MAX HOT position (Turn the damper lever to the
right until it stops.) and then install the cable.

3. Install the cable to the clip and fix it while aligning

the case.

>>B<< MODE SELECTION DAMPER
CONTROL CABLE CONNECTION

AC206695

Mode selection damper
control cable connection

AB

FACE position

DEF position

1. Set the air outlet changeover knob of the heater

control assembly to DEF position.

2. Turn the air outlet changeover damper lever of

heater unit to the DEF position (Turn the damper
lever to the left until it stops.) and then install the
cable.

3. Install the cable to the clip and fix it while aligning

the case.

INSPECTION

M1552002500184

BLOWER SWITCH CONTINUITY CHECK

AC206701AB

5

2

4

1

6

3

Switch
position

Tester connection

Specified
condition

OFF

1

− 2, 2 − 4, 2 − 5, 2 - 6 Open circuit

1

1

− 2

Continuity
(Less than
2

Ω)

2

2

− 4

3

2

− 5

4

2

− 6

10. Mode label
11. Heater control panel

Removal steps (Continued)
