KEYLESS ENTRY SYSTEM

BODY

42-62

MULTI-MODE KEYLESS ENTRY
FUNCTION INSPECTION

M1428004100083

Operate the transmitter to check that the elec-
tric-folding door mirrors work. If they do not work,
carry out troubleshooting. Refer to GROUP 54B,
Troubleshooting

P.54B-35

 or GROUP 54C, Trouble-

shooting

P.54C-29

.

KEYLESS ENTRY SYSTEM TIMER LOCK
FUNCTION INSPECTION

M1428004000246

Attempt to unlock the doors and the tailgate by using
the transmitter. If the doors and the tailgate are not
locked within 30 seconds, carry out troubleshooting.
Note that the doors and the tailgate will not be locked
if the ignition key is inserted within the 30-second
period, or one of the doors or the tailgate is opened.
Refer to GROUP 54B, Troubleshooting

P.54B-35

 or

GROUP 54C, Troubleshooting

P.54C-29

.

NOTE: The customisation function allows you to
change the keyless entry system timer lock period
from 30 seconds (default setting) to 60, 120 or 180
seconds. Prior to the check, confirm which setting is
activated. Refer to GROUP 54C, Customise Func-
tion

P.54C-240

.

HOW TO REGISTER SECRET CODE

M1428001000560

Each individual secret code is registered inside the
transmitter, and so it is necessary to resister these
codes with the EEPROM inside the receiver in the
following cases.

• When the transmitter or ETACS-ECU is replaced

• If more transmitters are to be used

• If it appears that a problem is occurring because

of faulty registration of a code.

A maximum of four different codes can be stored in
the EEPROM memory (four different transmitters can
be used). When the code for the first transmitter is
registered, the previously registered codes for all
transmitters are cleared. Therefore, if you are using
four transmitters or are adding more transmitters, the
codes for all transmitters must be registered at the
same time.

WHEN THE SPECIAL TOOL V.C.I.
(MB991824) IS USED

1. Check that the doors lock normally when the key

is used.

2. Insert the ignition key.

CAUTION

Before connecting or disconnecting the V.C.I.,
turn the ignition switch to the "LOCK" (OFF)
position.

AC312716

AC206895

AB

MB991910

MB991824

16-Pin

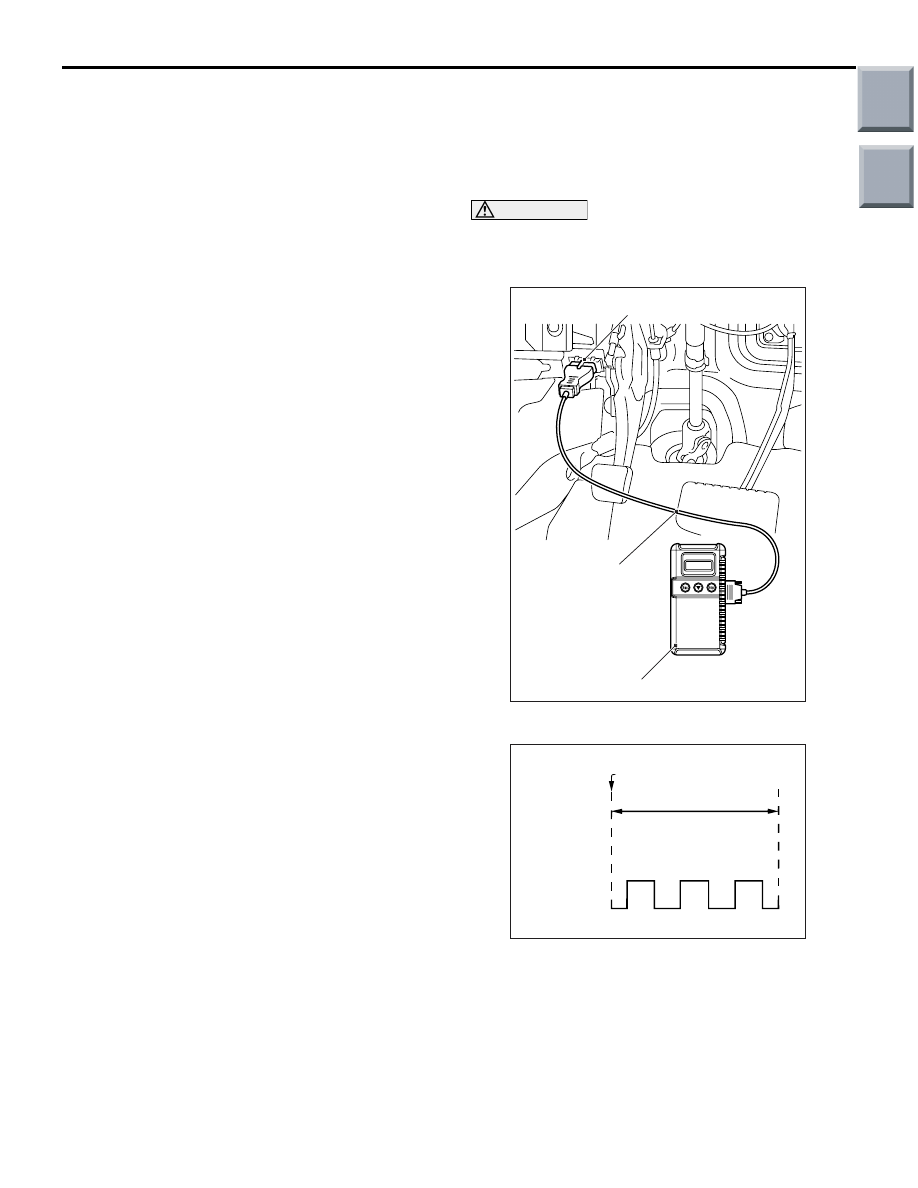

3. Connect the V.C.I. to the diagnosis connector.

ACX00571

Within 10 seconds

Hazard
warning
lamp
switch

ON

OFF

1

2

3

4

5

6

AQ

V.C.I. connected

4. Press the hazard warning lamp switch six times

within 10 seconds.
NOTE: Once the process is completed six times,
then it will operate with all doors and tailgate lock
and unlock operations once and then go to the
save mode.
NOTE: The hazard warning lamp switch is turned
on and off alternately whenever it is pushed.

Main

Index

Group

TOC

KEYLESS ENTRY SYSTEM

BODY

42-63

5. Press the transmitter switch, and then press it two

times within 10 seconds of the first press. This will
register the code.

6.  Once the program is saved, it will operate once

with the all doors and tailgate lock and unlock
operations.

7. If you are using two or more transmitters or have

added a second transmitter, the next transmitter
should be registered within one minute after
registering the code for the previous transmitter.
The registration procedure is common for all the
transmitter.

8. Registration mode will be cancelled under the

following conditions:

• When the secret code for four transmitters has

been registered;

• When passing one minute after finishing the reg-

istration of all transmitters;

• When the V.C.I. is disconnected from the diagno-

sis connector;

• When the key is removed from the key cylinder;

9. After the registration is completed, remove the

ignition key and close all the doors, and then
check that the keyless entry system operates
normally.

WHEN THE M.U.T.-III AND SWS MONITOR
IS USED

1. Check that the doors lock normally when the

ignition key is inserted into the door key cylinder
and turned.

2. Insert the ignition key in the ignition switch.

CAUTION

Before connecting or disconnecting the M.U.T.-III
and SWS monitor, turn the ignition switch to the
"LOCK" (OFF) position.

AC212114

MB991910

MB991806
(SWS monitor)

MB991827

AB

MB991824

MB991960

16-Pin

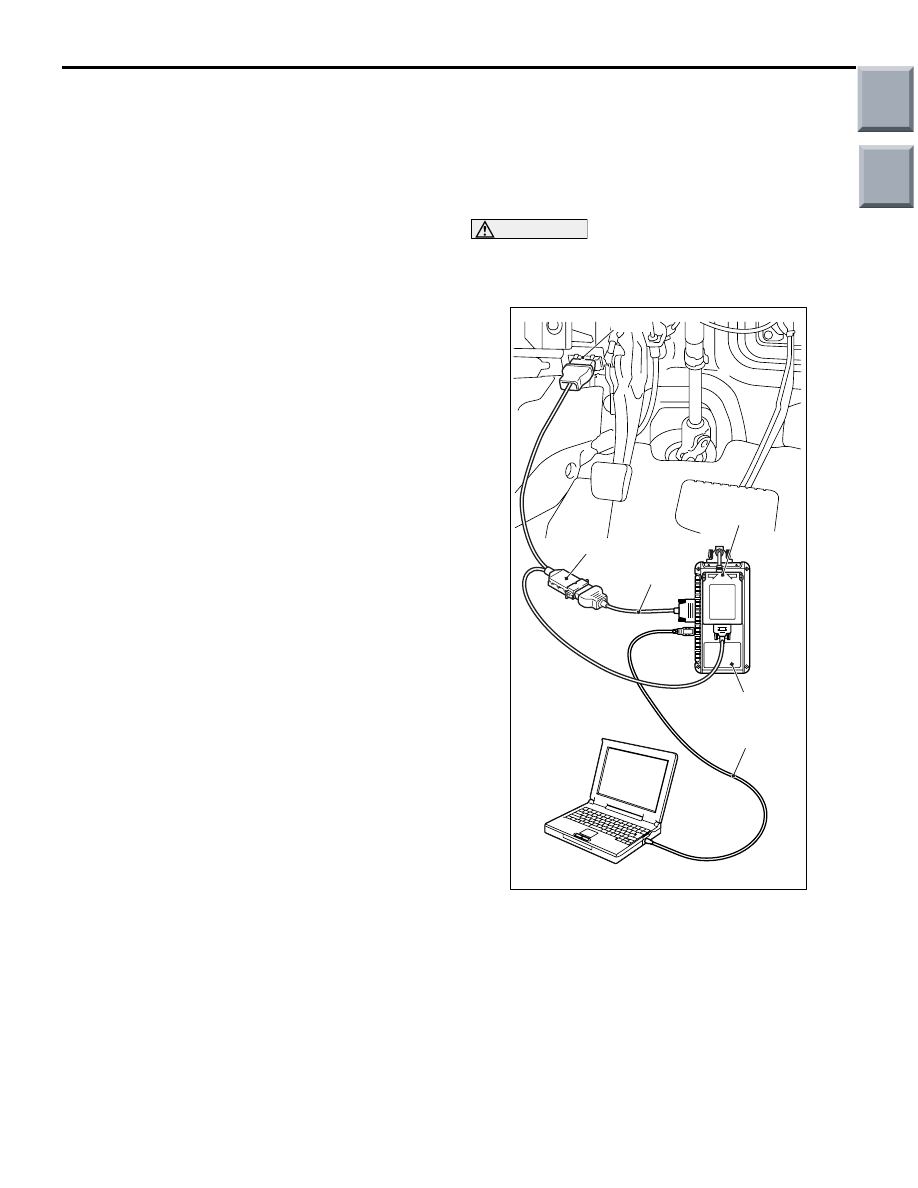

3. Connect the SWS monitor to the M.U.T.-III. Refer

to GROUP 54C, How to Connect The SWS
Monitor

P.54C-5

.

4. Connect the M.U.T.-III to the diagnosis connector.
5. Select "Interactive Diagnosis" from the main

menu.

6. Select "System Select" from "Interactive

Diagnosis".

7. Select "BODY" from the upper tab on "System

Select" window.

8. Select "SWS" from "BODY".

Main

Index

Group

TOC

KEYLESS ENTRY SYSTEM

BODY

42-64

9. Select "SWS Monitor" from "SWS".
10.If "New communication between doors" is

selected from "SWS monitor", the display screen
will be changed. Select "Keyless Entry" from that
screen.

11.Select "Keyless ID Regist" from "Keyless Entry"

items.

12.Press the YES key to clear encrypted codes for

all the current registered transmitters.

13.Push the hazard warning lamp switch to clear all

the encrypted codes completely.

14.Push the switch of the transmitter to be registered

consecutively three times. If another transmitter is
registered, push the switch of that transmitter
again consecutively three times.

15.Return to the previous step.
16.Select "Recept Inspect" from "Keyless Entry"

items.

17.Push the transmitter switch. If the transmitter can

receive signal normally, the screen will show
variation of the received signals and whether the
transmitter switch has been registered or not.
NOTE: For the keyless entry system, the signal
reception can be examined regardless of whether
the transmitter is registered or not.

18.Return to the main menu and complete.
19.Remove the M.U.T.-III.
20.Disconnect the SWS monitor.
21.Check that the keyless entry system works

normally.

Main

Index

Group

TOC

KEYLESS ENTRY SYSTEM

BODY

42-65

TRANSMITTER

DISASSEMBLY AND REASSEMBLY

M1428002800202

Post-installation operation
• Transmitter operation check

AC310838

AC303199
AC304118

1

2

AF

5

3

4

6

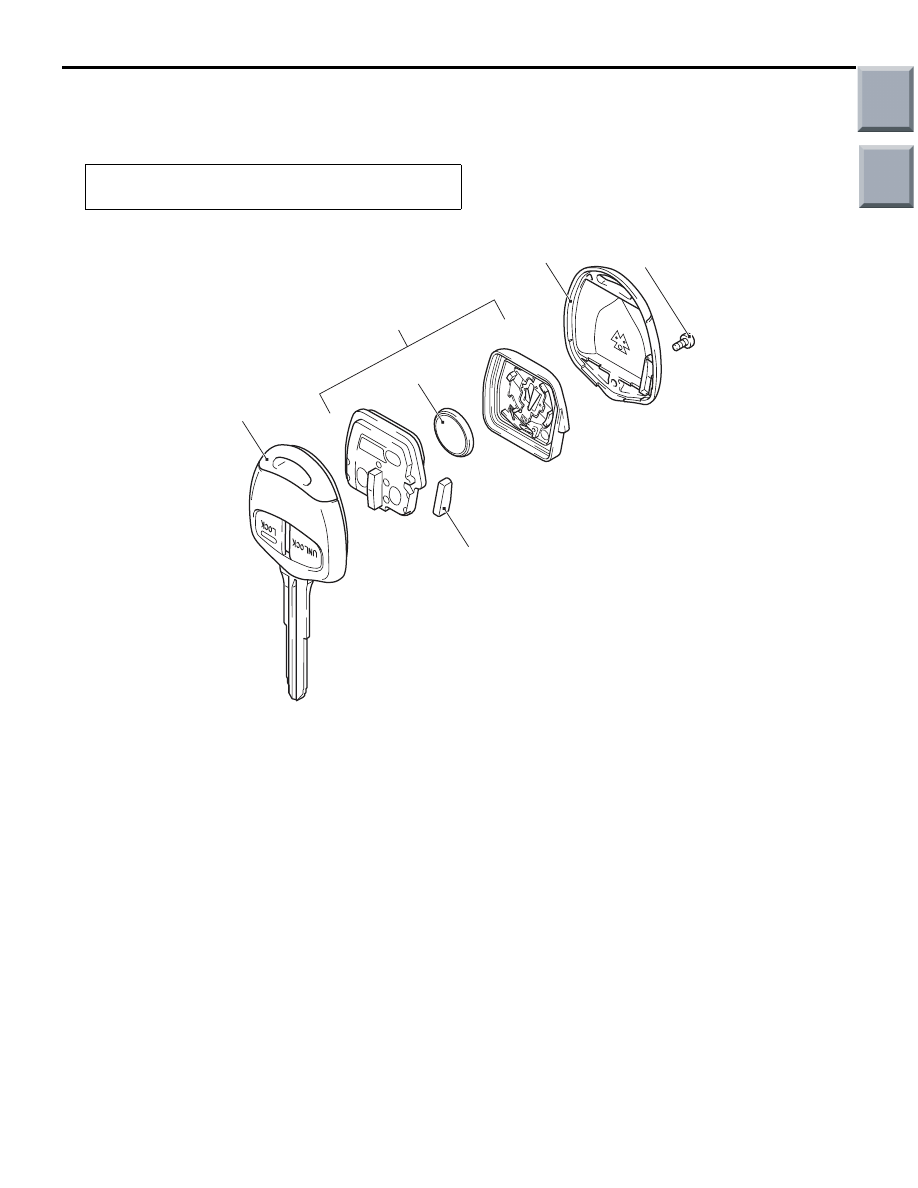

Disassembly steps

1.

Screw

2.

Upper cover

3.

Transponder

4.

Transmitter assembly

<<

A

>>

>>

A

<<

5.

Battery

6.

Master key

Disassembly steps (Continued)
