IGNITION SWITCH

CHASSIS ELECTRICAL

54A-13

SYMPTOM PROCEDURES

Inspection procedure: 1 MPI System-related Diagnostic Code No.P0513 is Set, and Communication
Between M.U.T.-III and Immobiliser cannot be Established.

AC601476 AB

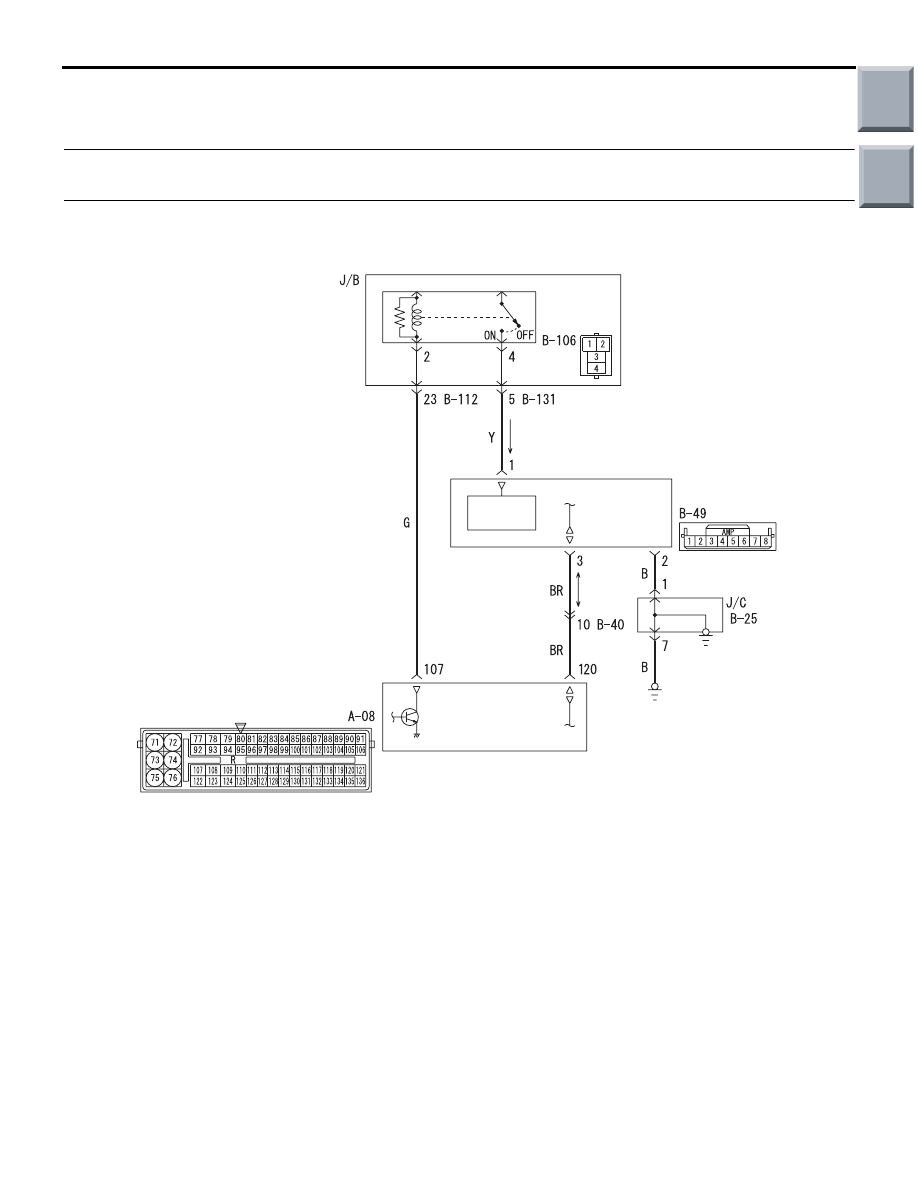

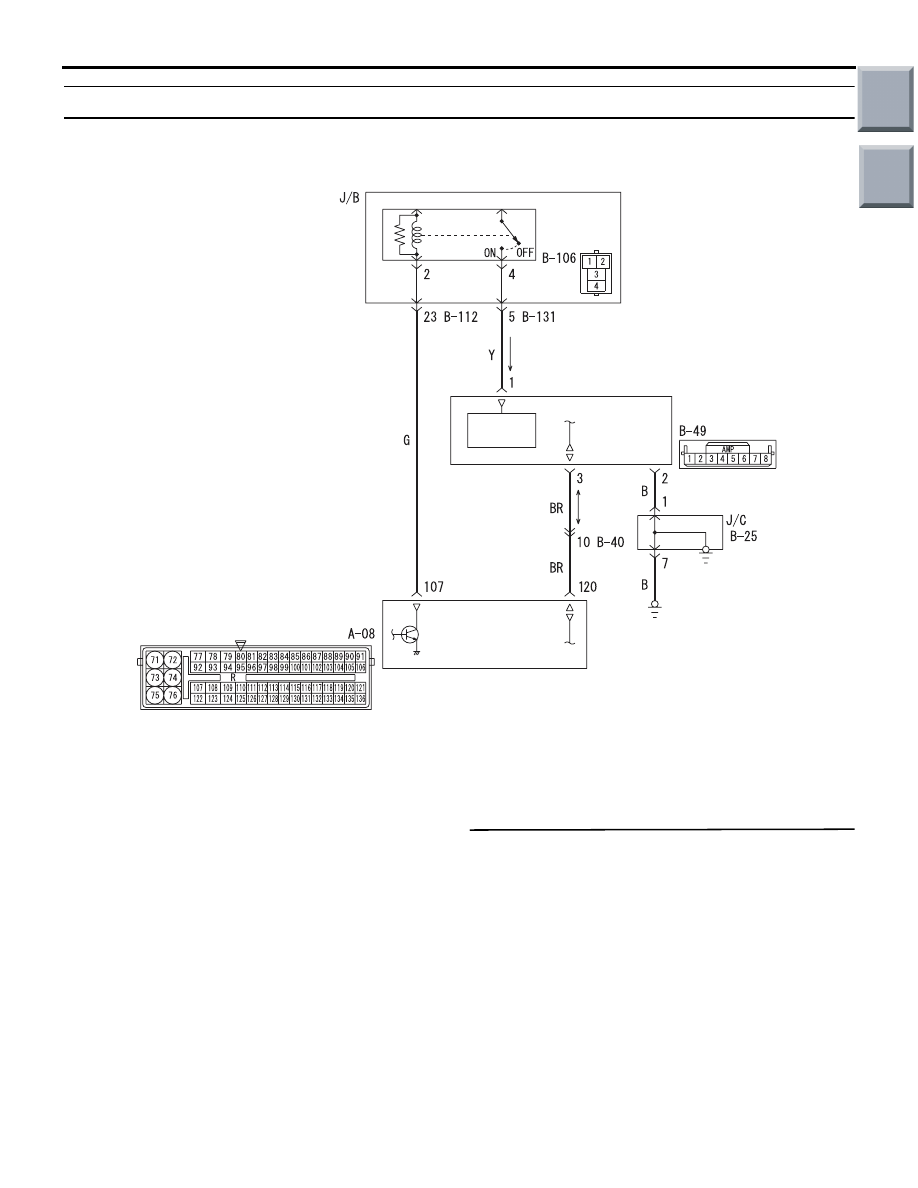

Immobilizer-ECU Power Source, Earth and Engine-ECU <M/T> or Engine-CVT-ECU <CVT>

Communication Line Circuit

IMMOBILIZER-
ECU

POWER
SOURCE

ENGINE
CONTROL
RELAY

ENGINE-ECU <M/T>
ENGINE-CVT-ECU <CVT>

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue    W : White
Y : Yellow     SB : Sky blue     BR : Brown    O : Orange
GR : Grey     R : Red     P : Pink     V : Violet    PU : Purple

COMMENTS ON TROUBLE SYMPTOM

The immobiliser-ECU communicates with the
M.U.T.-III via the engine-ECU <M/T> or
engine-CVT-ECU <CVT>. The communication error
between the immobiliser-ECU and the engine-ECU
<M/T> or engine-CVT-ECU <CVT> may be occurred.

POSSIBLE CAUSES

• Malfunction of immobiliser-ECU power supply

and earth

• Damaged harness wires between the

engine-ECU <M/T> or engine-CVT-ECU <CVT>
and the immobiliser-ECU

Main

Index

Group

TOC

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-14

DIAGNOSTIC PROCEDURE

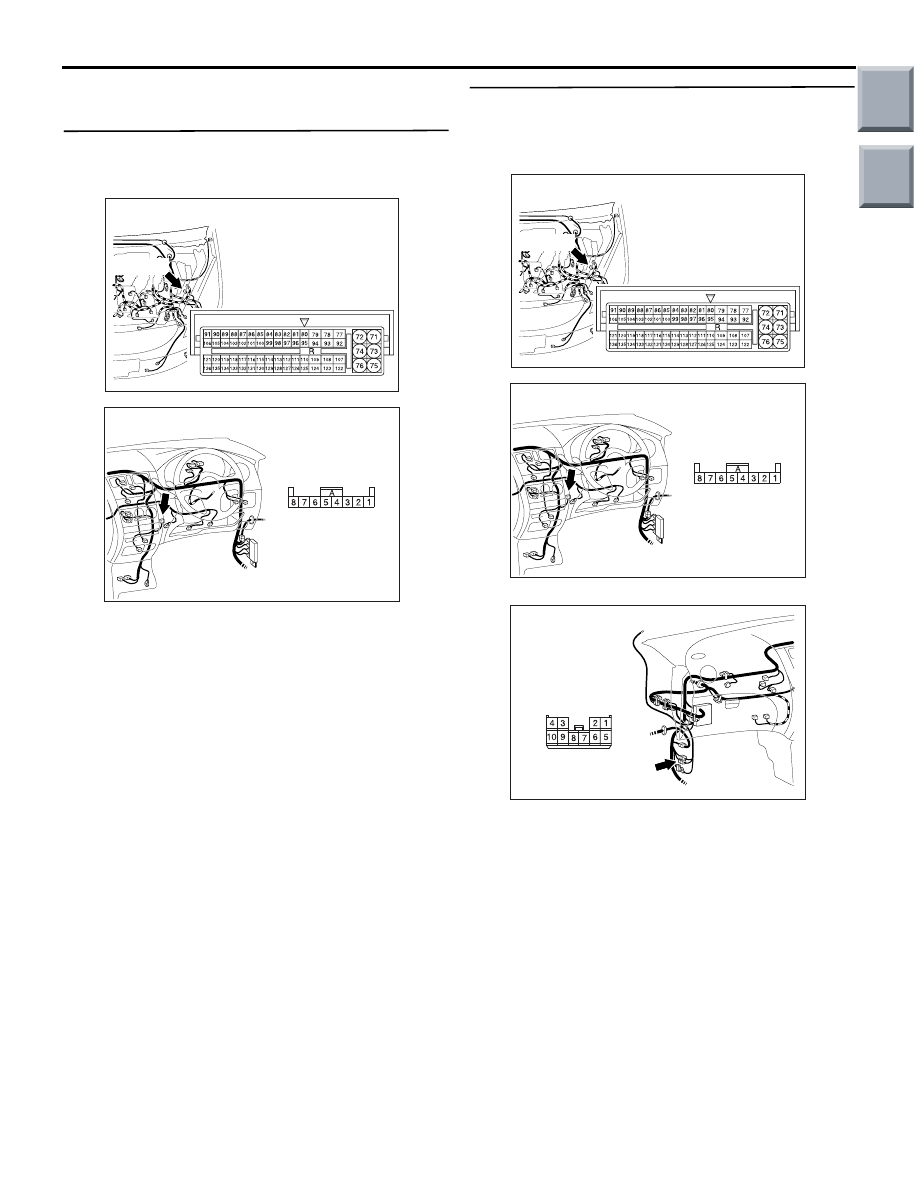

Step 1. Connector check: Immobiliser-ECU
connector B-49 and engine-ECU <M/T> or
engine-CVT-ECU <CVT> connector A-08

AC509191

Connector: A-08

Harness side

AD

A-08 (GR)

AC509573

Connector: B-49

Harness side

AB

Q: Are immobiliser-ECU connector B-49 and

engine-ECU <M/T> or engine-CVT-ECU <CVT>
connector A-08 in good condition?
YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the harness wires between
immobiliser-ECU connector B-49 (terminal 3) and
engine-ECU <M/T> or engine-CVT-ECU <CVT>
connector A-08 (terminal 120).

AC509191

Connector: A-08

Harness side

AD

A-08 (GR)

AC509573

Connector: B-49

Harness side

AB

NOTE:

AC401053

AH

Connector: B-40

Prior to the wiring harness inspection, check interme-
diate connector B-40, and repair if necessary.

Q: Are the harness wires between immobiliser-ECU

connector B-49 (terminal 3) and engine-ECU <M/T>
or engine-CVT-ECU<CVT> connector A-08
(terminal 120) in good condition?
YES :

Go to Step 3.

NO :

Repair the wiring harness.

Main

Index

Group

TOC

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-15

Step 3. Check the immoblizer-ECU power supply
circuit and earth circuit (Refer to Inspection
Procedure 4  "Check the immoblizer ECU power
supply circuit and earth circuit"

P.54A-19

.)

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the power supply and earth circuit to
the immobiliser-ECU.

Step 4. Retest the system.
Check that immobiliser-ECU communicates with the
M.U.T.-III.

Q: Is the check result normal?

YES :

Intermittent Malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

.)

NO :

Replace the immobiliser-ECU, and then go
to Step 5.

Step 5. Retest the system.
Check that immobiliser-ECU communicates with the
M.U.T.-III.

Q: Is the check result normal?

YES :

The procedure is complete.

NO :

Replace the engine-ECU <M/T> or
engine-CVT-ECU <CVT>.

Main

Index

Group

TOC

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-16

INSPECTION PROCEDURE 2: The Ignition Key cannot be Registered with the M.U.T.-III.

AC601476 AB

Immobilizer-ECU Power Source, Earth and Engine-ECU <M/T> or Engine-CVT-ECU <CVT>

Communication Line Circuit

IMMOBILIZER-
ECU

POWER
SOURCE

ENGINE
CONTROL
RELAY

ENGINE-ECU <M/T>
ENGINE-CVT-ECU <CVT>

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue    W : White
Y : Yellow     SB : Sky blue     BR : Brown    O : Orange
GR : Grey     R : Red     P : Pink     V : Violet    PU : Purple

CIRCUIT OPERATION

 Refer to

P.54A-13

.

COMMENTS ON TROUBLE SYMPTOM

If only some ignition keys cannot be registered, the
ignition key itself may be defective. If no ignition key
can be registered, the immobiliser-ECU may be
defective.

POSSIBLE CAUSES

• Malfunction of ignition key

• Damaged harness wires and connectors

• Malfunction of immobiliser-ECU

• Malfunction of engine-ECU <M/T> or

engine-CVT-ECU <CVT>

DIAGNOSTIC PROCEDURE

STEP 1. Check that no ignition key can be
registered.

Q: Can any of the ignition keys be registered?

YES :

Replace the ignition key that cannot be

registered with new registered ignition key.

NO :

Go to Step 2.
