Mitsubishi Colt Ralliart. Manual - part 464





GROUP 54A

CHASSIS

ELECTRICAL

CONTENTS

BATTERY. . . . . . . . . . . . . . . . .

54A-4

SERVICE SPECIFICATIONS. . . .

54A-4

ON-VEHICLE SERVICE. . . . . . . .

54A-4

FLUID LEVEL AND SPECIFIC



GRAVITY CHECK . . . . . . . . . . . . . . . . .

54A-4

CHARGING . . . . . . . . . . . . . . . . . . . . . .

54A-4

BATTERY TEST  . . . . . . . . . . . . . . . . . .

54A-5

IGNITION SWITCH* . . . . . . . . .

54A-6

SPECIAL TOOLS. . . . . . . . . . . . .

54A-6

TROUBLESHOOTING . . . . . . . . .

54A-7

IGNITION SWITCH . . . . . . . . . . . . . . . .

54A-7

DIAGNOSTIC FUNCTION . . . . . . . . . . .

54A-7

ENCRYPTED CODE REGISTRATION



CRITERIA TABLE . . . . . . . . . . . .

54A-8

CHART CLASSIFIED BY



DIAGNOSIS CODES  . . . . . . . . . .

54A-8

DIAGNOSTIC TROUBLE CODE



PROCEDURES . . . . . . . . . . . . . . .

54A-9

SYMPTOM PROCEDURES . . . . .

54A-13

DATA LIST REFERENCE TABLE

54A-22

CHECK IMMOBILISER-ECU . . . .

54A-22

ON-VEHICLE SERVICE . . . . . . . .

54A-23

HOW TO REGISTER ENCRYPTED



CODE . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-23

IGNITION SWITCH . . . . . . . . . . . .

54A-25

REMOVAL AND INSTALLATION. . . . . .

54A-25

INSPECTION . . . . . . . . . . . . . . . . . . . . .

54A-27

Continued on next page

WANINGS REGARDING SERVICING OF SUPPLEMENTAL RESTRAINT SYSTEM (SRS) EQUIPPED VEHICLES

WARNING

Improper service or maintenance of any component of the SRS, or any SRS-related component, can lead to

personal injury or death to service personnel (from inadvertent firing of the air bag) or to the driver and

paassenger (from rendering the SRS inoperative).

Service or maintenance of any SRS component or SRS-related component must be performed only at an

authorized MITSUBISHI dealer.

MITSUBISHI dealer personnel must thoroughly review this manual, and especially its GROUP 52B - Supplemental

Restraint System (SRS) before beginning any service or maintenance of any component of the SRS or any

SRS-related component.

NOTE

The SRS includes the following components: SRS air bag control unit, SRS warning light, front impact sensors, air bag module,

clock spring, and interconnecting wiring. Other SRS-related components (that may have to be removed/installed in connection

with SRS service or maintenance) are indicated in the table of contents by an asterisk (*).

Main

Index

Group

TOC

54A-2

COMBINATION METER  . . . . .

54A-28

SERVICE SPECIFICATIONS. . . .

54A-28

SPECIAL TOOLS. . . . . . . . . . . . .

54A-29

TROUBLESHOOTING . . . . . . . . .

54A-31

DIAGNOSIS FUNCTION . . . . . . . . . . . .

54A-31

DIAGNOSIS CODE CHART  . . . .

54A-31

DIAGNOSTIC TROUBLE CODE



PROCEDURES  . . . . . . . . . . . . . .

54A-32

TROUBLE SYMPTOM CHART . .

54A-42

SYMPTOM PROCEDURES . . . . .

54A-43

DATA LIST REFERENCE



TABLE . . . . . . . . . . . . . . . . . . . . .

54A-59

ACTUATOR TEST TABLE  . . . . .

54A-62

CHECK AT ECU TERMINALS  . .

54A-64

ON-VEHICLE SERVICE. . . . . . . .

54A-65

CHECK THE SPEEDOMETER.. . . . . . .

54A-65

TACHOMETER CHECK  . . . . . . . . . . . .

54A-65

FUEL TANK GAUGE UNIT CHECK  . . .

54A-65

REMOVAL AND



INSTALLATION . . . . . . . . . . . . . .

54A-67

DISASSEMBLY AND



REASSEMBLY. . . . . . . . . . . . . . .

54A-68

HEADLAMP . . . . . . . . . . . . . . .

54A-69

SERVICE SPECIFICATIONS. . . .

54A-69

ON-VEHICLE SERVICE. . . . . . . .

54A-69

HEADLAMP AIMING . . . . . . . . . . . . . . .

54A-69

HEADLAMP INTENSITY



MEASUREMENT . . . . . . . . . . . . . . . . . .

54A-71

BULB REPLACEMENT . . . . . . . . . . . . .

54A-71

REMOVAL AND



INSTALLATION  . . . . . . . . . . . . . .

54A-73

INSPECTION  . . . . . . . . . . . . . . . .

54A-74

FOG LAMP . . . . . . . . . . . . . . . .

54A-75

SERVICE SPECIFICATION . . . . .

54A-75

SPECIAL TOOL . . . . . . . . . . . . . .

54A-75

ON-VEHICLE SERVICE . . . . . . . .

54A-75

FOG LAMP AIMING . . . . . . . . . . . . . . . .

54A-75

BULB REPLACEMENT  . . . . . . . . . . . . .

54A-77

FOG LAMP . . . . . . . . . . . . . . . . . .

54A-78

REMOVAL AND INSTALLATION. . . . . .

54A-78

INSPECTION . . . . . . . . . . . . . . . . . . . . .

54A-79

SIDE TURN-SIGNAL LAMP. . .

54A-80

SPECIAL TOOL . . . . . . . . . . . . . .

54A-80

REMOVAL AND



INSTALLATION  . . . . . . . . . . . . . .

54A-80

ROOM LAMP . . . . . . . . . . . . . .

54A-80

ON-VEHICLE SERVICE . . . . . . . .

54A-80

REAR COMBINATION LAMP .

54A-81

SPECIAL TOOL . . . . . . . . . . . . . .

54A-81

REMOVAL AND



INSTALLATION  . . . . . . . . . . . . . .

54A-81

HIGH-MOUNTED STOP



LAMP . . . . . . . . . . . . . . . . . . . .

54A-83

SPECIAL TOOL . . . . . . . . . . . . . .

54A-83

REMOVAL AND



INSTALLATION  . . . . . . . . . . . . . .

54A-83

Continued on next page

Main

Index

Group

TOC

54A-3

LICENCE PLATE LAMP . . . . .

54A-85

REMOVAL AND



INSTALLATION . . . . . . . . . . . . . .

54A-85

HAZARD WARNING LAMP



SWITCH . . . . . . . . . . . . . . . . . .

54A-86

SPECIAL TOOL . . . . . . . . . . . . . .

54A-86

REMOVAL AND



INSTALLATION . . . . . . . . . . . . . .

54A-86

INSPECTION . . . . . . . . . . . . . . . .

54A-87

HORN . . . . . . . . . . . . . . . . . . . .

54A-87

INSPECTION . . . . . . . . . . . . . . . .

54A-87

CIGARETTE LIGHTER  . . . . . .

54A-88

INSPECTION . . . . . . . . . . . . . . . .

54A-88

COLUMN SWITCH. . . . . . . . . .

54A-89

SPECIAL TOOL . . . . . . . . . . . . . .

54A-89

REMOVAL AND



INSTALLATION . . . . . . . . . . . . . .

54A-89

INSPECTION . . . . . . . . . . . . . . . .

54A-90

RADIO AND CD PLAYER . . . .

54A-91

SPECIAL TOOLS. . . . . . . . . . . . .

54A-91

TROUBLESHOOTING . . . . . . . . .

54A-91

TROUBLESHOOTING . . . . . . . . . . . . . .

54A-91

TROUBLE SYMPTOM CHART  . . . . . . .

54A-92

SYMPTOM PROCEDURES . . . . .

54A-93

ON-VEHICLE SERVICE . . . . . . . .

54A-116

PROCEDURE FOR INPUT OF



SECURITY CODE FOR



ANTI-THEFT SYSTEM. . . . . . . . . . . . . .

54A-116

SPEAKER TEST  . . . . . . . . . . . . . . . . . .

54A-117

RADIO AND CD PLAYER  . . . . . .

54A-119

REMOVAL AND INSTALLATION. . . . . .

54A-119

SPEAKER. . . . . . . . . . . . . . . . .

54A-120

REMOVAL AND



INSTALLATION  . . . . . . . . . . . . . .

54A-120

ROOF ANTENNA . . . . . . . . . . .

54A-121

REMOVAL AND



INSTALLATION  . . . . . . . . . . . . . .

54A-121

DEFOGGER . . . . . . . . . . . . . . .

54A-122

TROUBLESHOOTING . . . . . . . . .

54A-122

ON-VEHICLE SERVICE . . . . . . . .

54A-122

PRINTED HEATER LINES CHECK . . . .

54A-122

DEFOGGER SWITCH  . . . . . . .

54A-123

REMOVAL AND



INSTALLATION  . . . . . . . . . . . . . .

54A-123

Main

Index

Group

TOC

BATTERY

CHASSIS ELECTRICAL

54A-4

BATTERY

SERVICE SPECIFICATIONS

M1541000300339

Item

Specification

Specific gravity of the battery fluid

1.220

− 1.290 (20°C)

ON-VEHICLE SERVICE

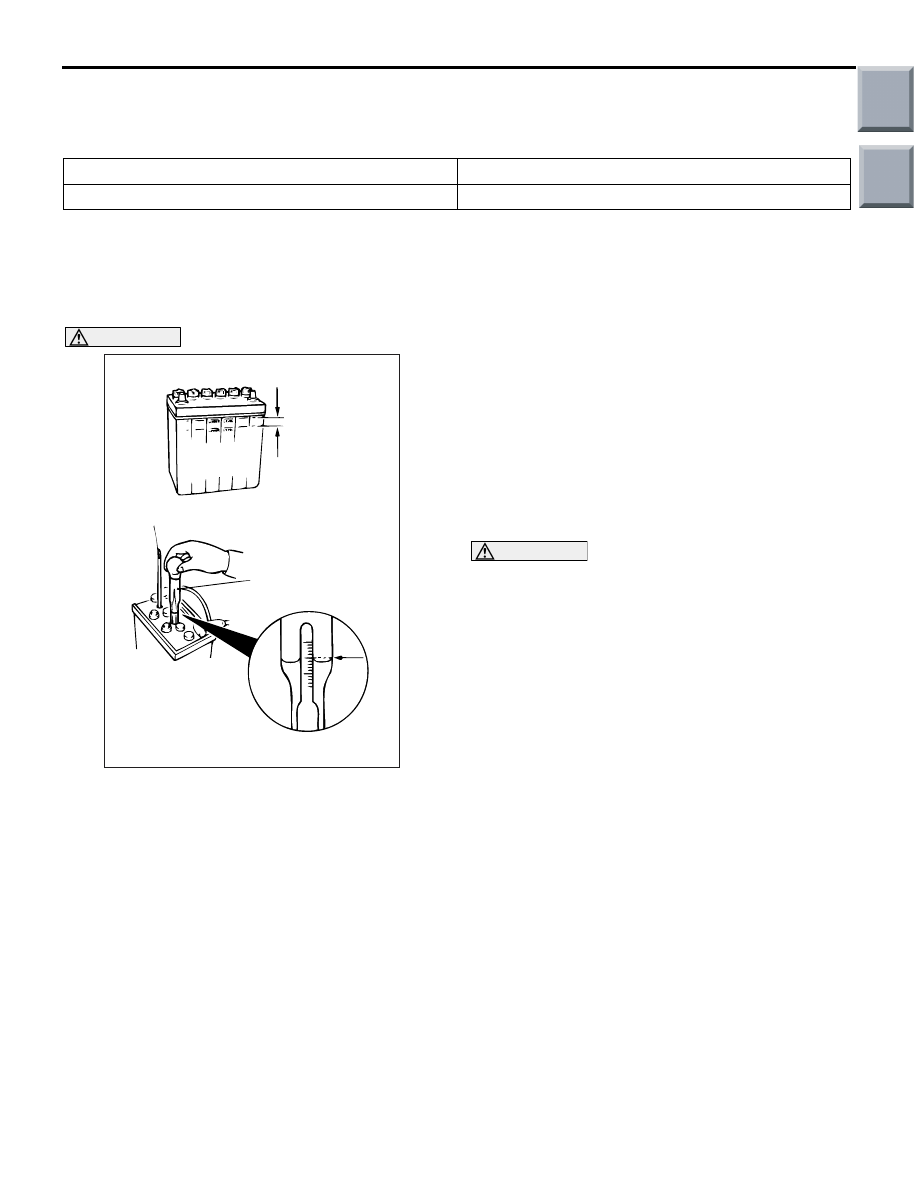

FLUID LEVEL AND SPECIFIC GRAVITY
CHECK

M1541000900159

AC102027AE

OK

Thermometer

Specific
gravity meter

CAUTION

• If the battery is used with the electrolyte level

below the LOWER LEVEL indicator, there is
the danger that explosions may occur, so add
water to the battery until the electrolyte level
is between the LOWER LEVEL and UPPER
LEVEL indications.

• If too much water is added to make the level

rise above the UPPER LEVEL indication, the
electrolyte may leak out, so adjust so that the
electrolyte level is between the LOWER
LEVEL and UPPER LEVEL indications.

1. Check that the battery electrolyte level is between

the UPPER LEVEL and LOWER LEVEL
indications.

2. Use a specific gravity meter and a thermometer to

measure the specific gravity.

Standard value: 1.220

 1.290 (electrolyte

temperature 20

°C)

3. The specific gravity of the battery electrolyte

changes according to the temperature, so the
specific gravity when the electrolyte is at a
temperature of 20

°C can be calculated using the

following formula. Use the converted value to
judge whether the electrolyte is okay or not.

D

20

 = (t

 20) X 0.0007 + Dt

D

20

: Specific gravity converted to a value for

electrolyte temperature of 20

°C

t: Electrolyte temperature at the time of
measurement
Dt: Actual specific gravity

CHARGING

M1541001100703

CAUTION

• The battery plugs should be removed during

charging.

• The battery electrolyte level may rise and

overflow from the battery during charging.

• Explosions may occur if the battery is

brought close to naked flames during charg-
ing.

• Be careful to avoid tasks that might produce

sparks or other danger while the battery is
charging.

• After charging is complete, replace the bat-

tery plugs, pour water over the battery to
rinse away any sulphuric acid, and let the bat-
tery stand to dry.

• Charge the battery in a well-ventilated loca-

tion.

• Do not let the battery electrolyte temperature

rise above approximately 45

°C (approximately

55

°C during rapid charging).

1. Remove the battery from the vehicle.
2. The normal charging current is a value in

amperes which is 1/10th of the battery capacity. If
the battery needs to be charged rapidly because
of reasons such as time limitations, the maximum
charging current for rapid charging is the battery
capacity expressed as an ampere value.
