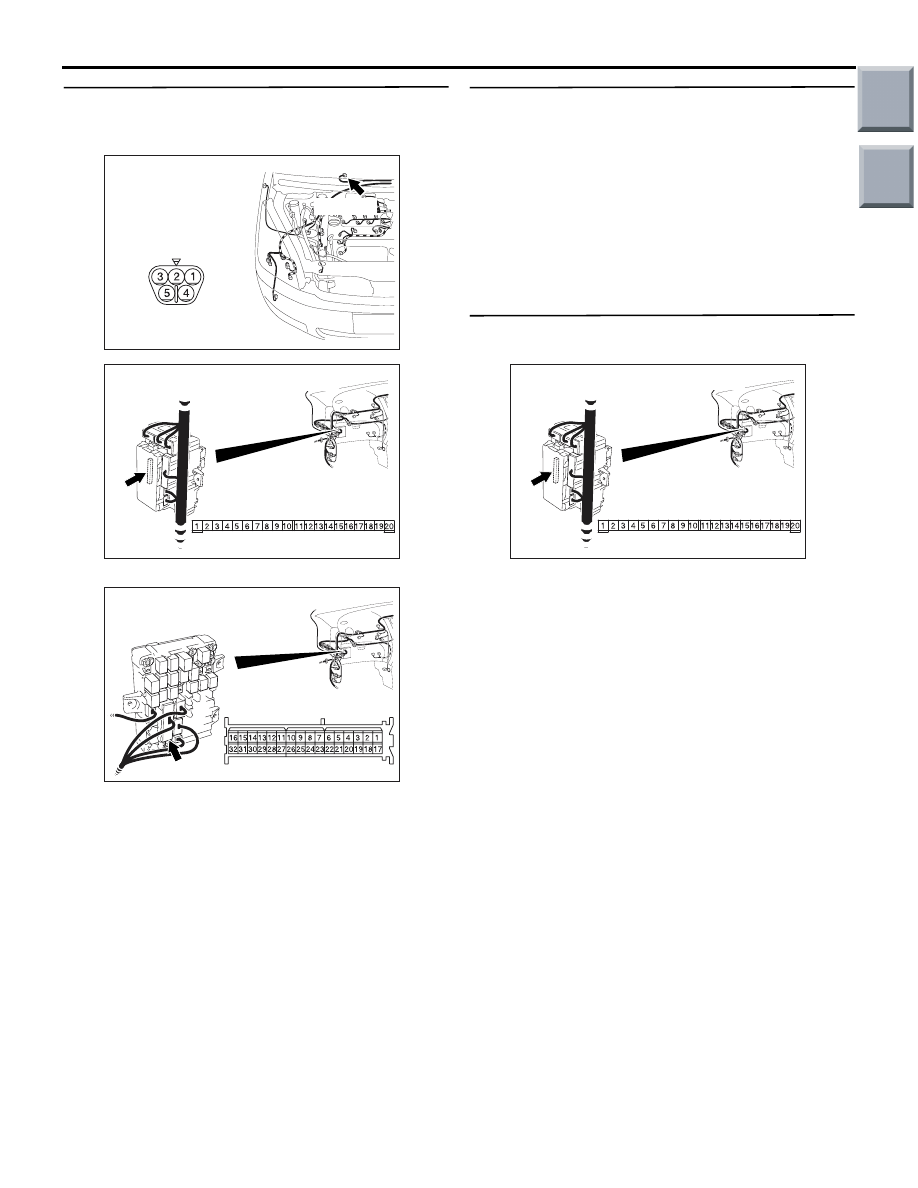

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-100

Step 7. Retest the system.
Check that the windshield wipers stop at the speci-
fied park position.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the ETACS-ECU.

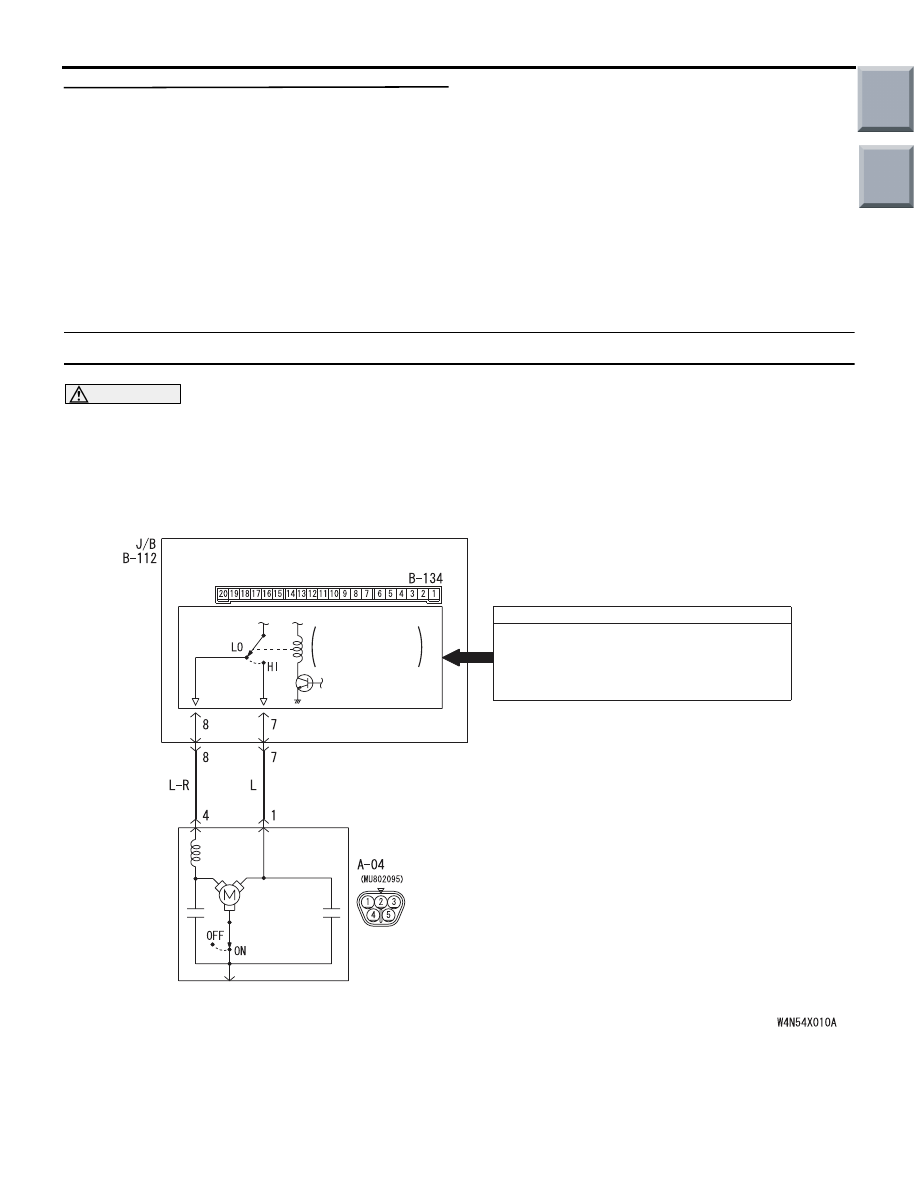

INSPECTION PROCEDURE F-4: The windshield wipers does not work normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

The windshield wiper motor, the column switch or the
ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the windshield wiper motor

• Malfunction of the column switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

Windshield Wiper Motor Drive Circuit

ETACS-ECU

J/B SIDE

CIRCUIT
BREAKER

WIPER SPEED
SWITCHING
RELAY

WINDSHIELD
WIPER MOTOR

INPUT SIGNAL

· WINDSHIELD WIPER HI SPEED SWITCH
· WINDSHIELD WIPER INTERMIT SWITCH

· WINDSHIELD WIPER LO SPEED SWITCH
· WINDSHIELD WIPER MIST SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue
W : White     Y : Yellow     SB : Sky blue     BR : Brown
O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

Main

Index

Group

TOC

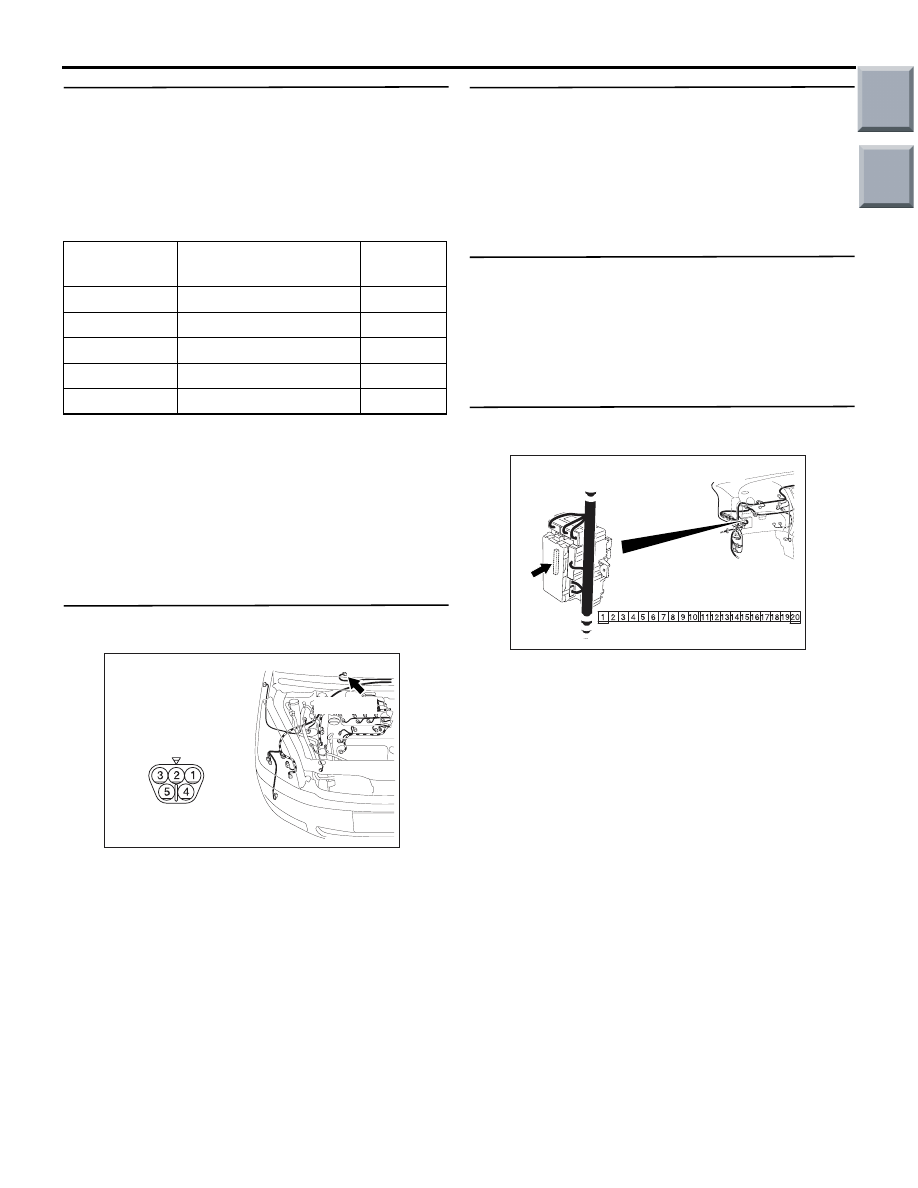

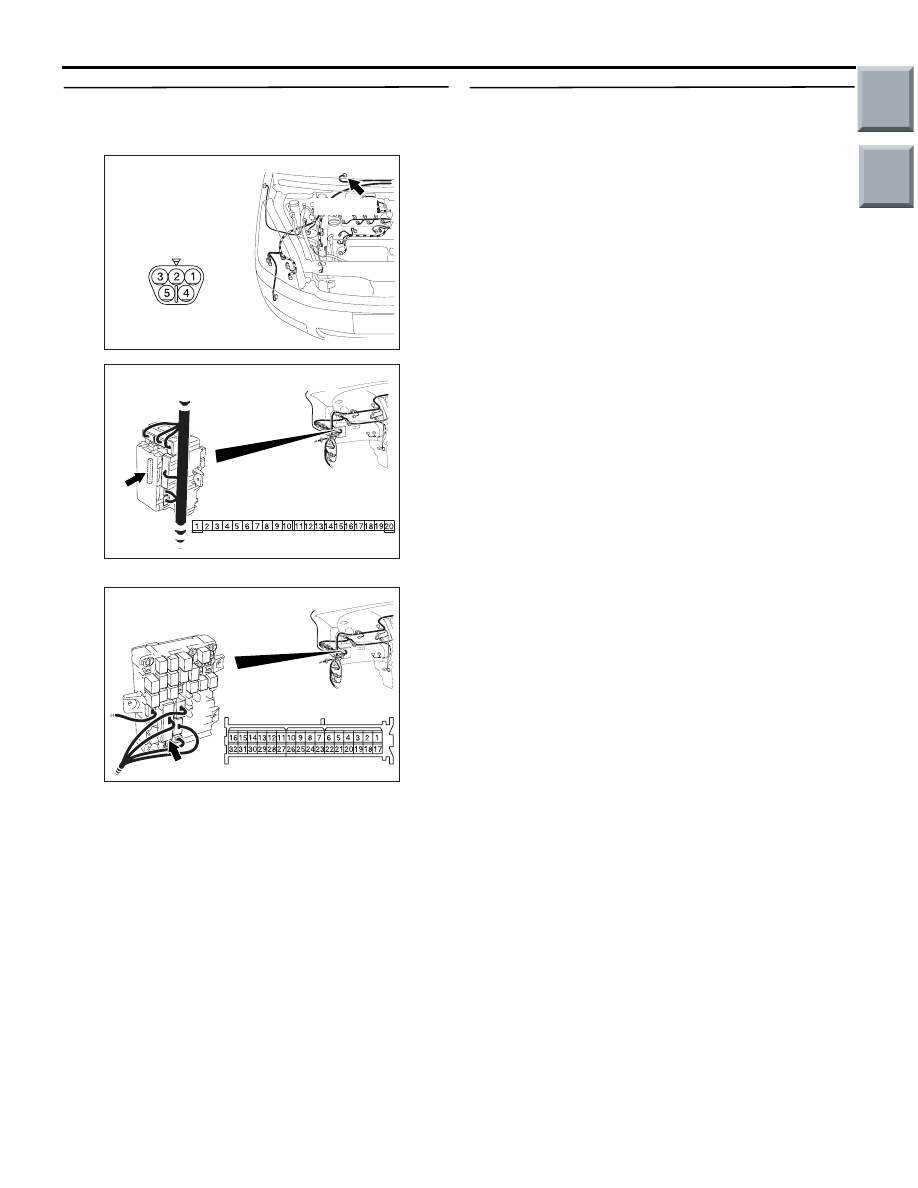

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-101

Step 1. SWS monitor data list
Check the SWS communication signal, which are
related to the windshield wipers.

<Selected item> Column switch (column-ECU)

• Ignition switch: ON

• Move the windshield wiper switch to each posi-

tion.

OK: Normal conditions are displayed for all
the functions of the switch.

Q: Are the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure N-5 "Column
switch (windshield wiper/washer and rear
wiper washer switch) signal is not received

P.54C-210

."

Step 2. Connector check: A-04 windshield wiper
motor connector.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

Step 3. Check the windshield wiper motor
assembly.
Refer to GROUP 51

− Windshield wiper

P.51-31

.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the windshield wiper motor
assembly.

Step 4. Retest the system.
Check that the windshield wipers work normally by
moving the switch to HI or MIST position.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 8.

Step 5. Connector check: B-134 ETACS-ECU
connector.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

Item No.

Item name

Normal
condition

Item 31

IG SW(ACC)

ON

Item 05

INT WIPER SW

ON

Item 06

LO WIPER SW

ON

Item 07

HI WIPER SW

ON

Item 08

MIST WIPER SW

ON

AC313860

Connector: A-04

Harness side

AB

A-04 (GR)

AC313872 AH

Connector: B-134

Harness side

Junction block (Rear view)

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-102

Step 6. Check the wiring harness between B-134
ETACS-ECU connector terminal No.8 to A-04
windshield wiper motor connector terminal No.4.

NOTE:

Prior to the wiring harness inspection, check junction
block connector B-112, and repair if necessary.

• Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.
Check that the windshield wipers work normally by
moving the switch to each position.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the ETACS-ECU.

Step 8. Connector check: B-134 ETACS-ECU
connector.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the defective connector.

AC313860

Connector: A-04

Harness side

AB

A-04 (GR)

AC313872 AH

Connector: B-134

Harness side

Junction block (Rear view)

AC313870

Connector: B-112

BE

Junction block (Front view)

Harness side

AC313872 AH

Connector: B-134

Harness side

Junction block (Rear view)

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-103

Step 9. Check the wiring harness between B-134
ETACS-ECU connector terminal No.7 to A-04
windshield wiper motor connector terminal No.1.

NOTE:

Prior to the wiring harness inspection, check junction
block connector B-112, and repair if necessary.

• Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the wiring harness.

Step 10. Retest the system.
Check that the windshield wipers work normally by
moving the switch to each position.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the ETACS-ECU.

AC313860

Connector: A-04

Harness side

AB

A-04 (GR)

AC313872 AH

Connector: B-134

Harness side

Junction block (Rear view)

AC313870

Connector: B-112

BE

Junction block (Front view)

Harness side
