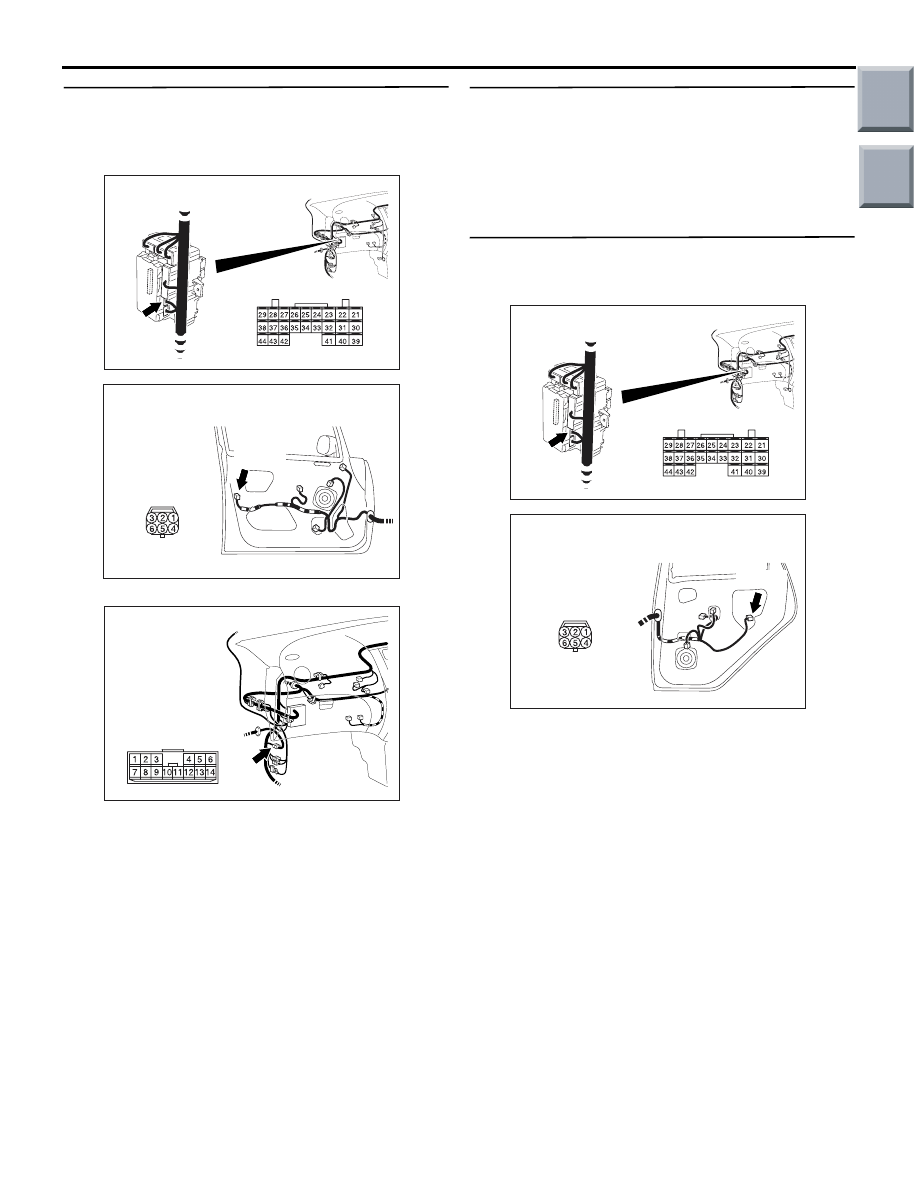

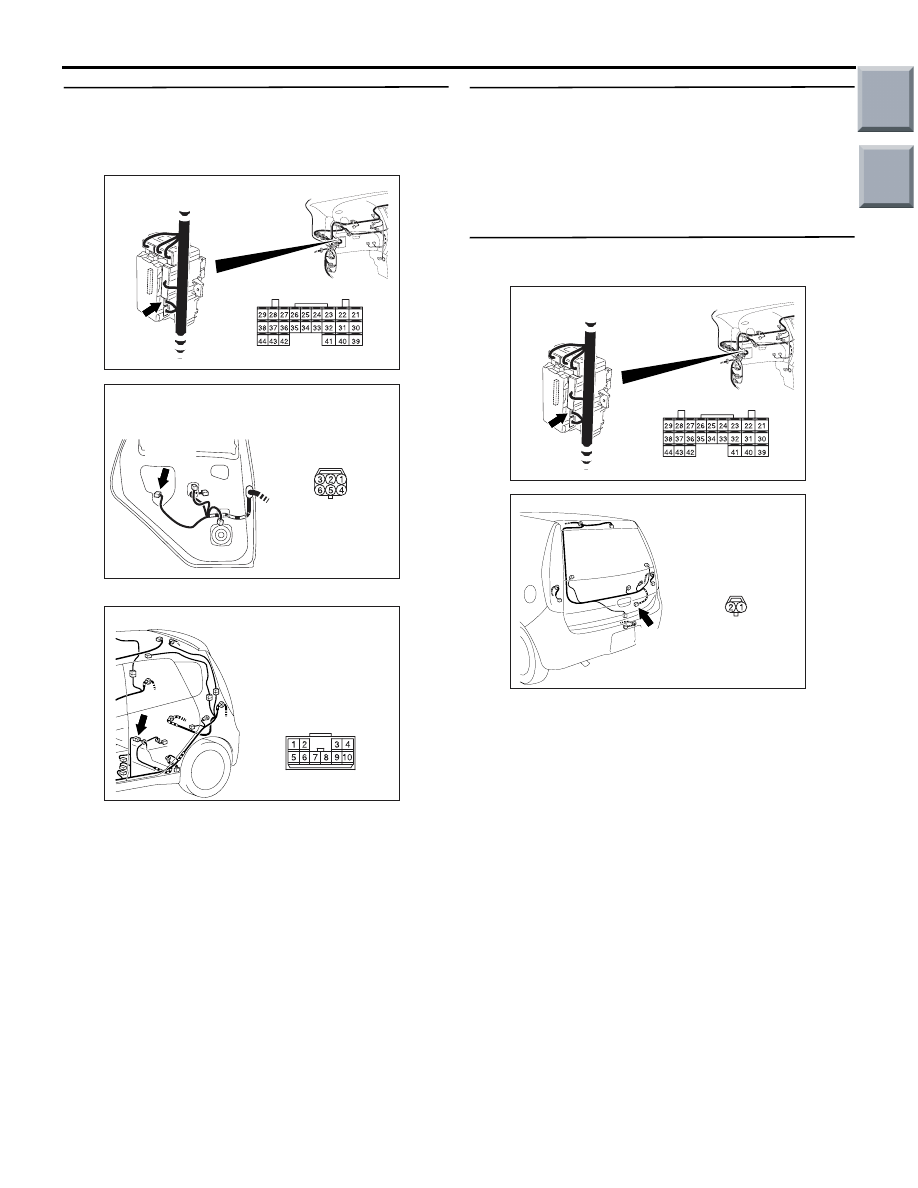

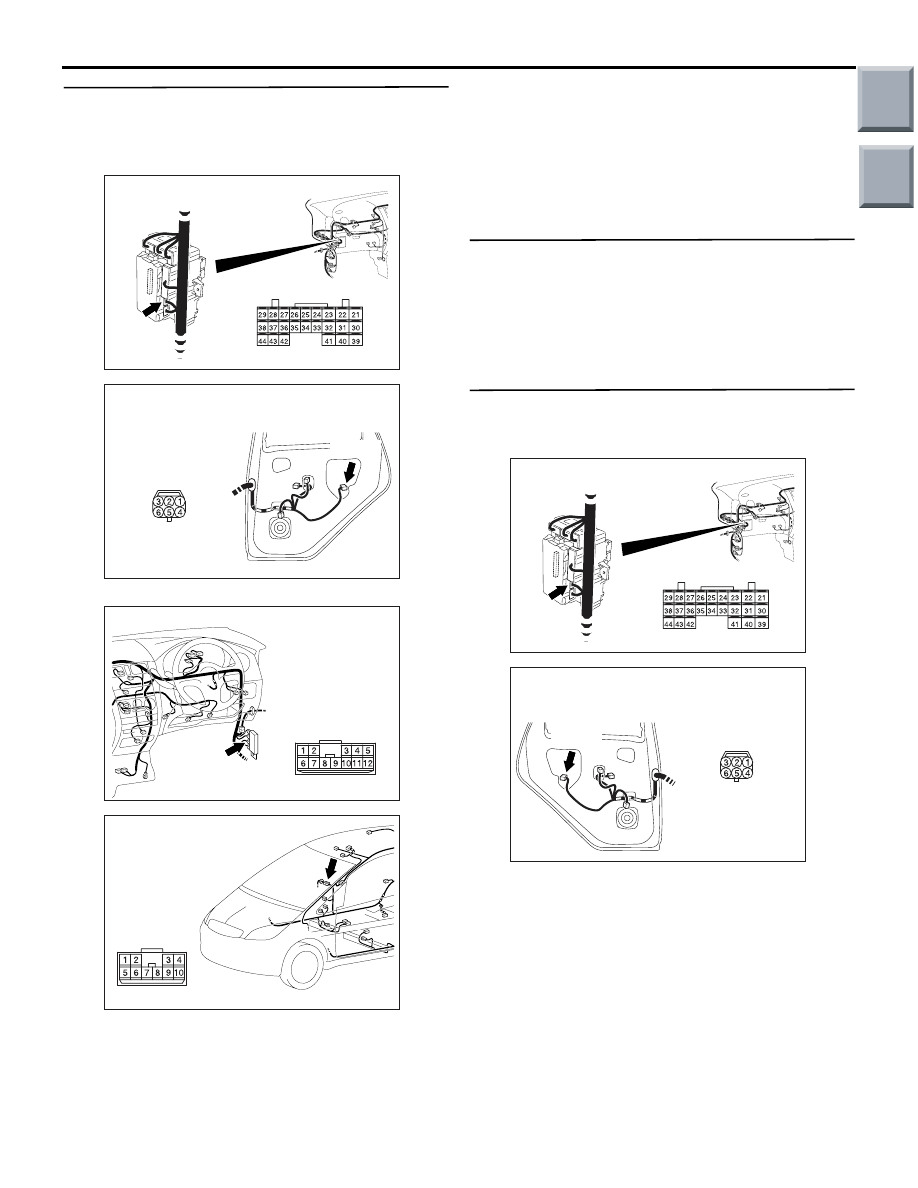

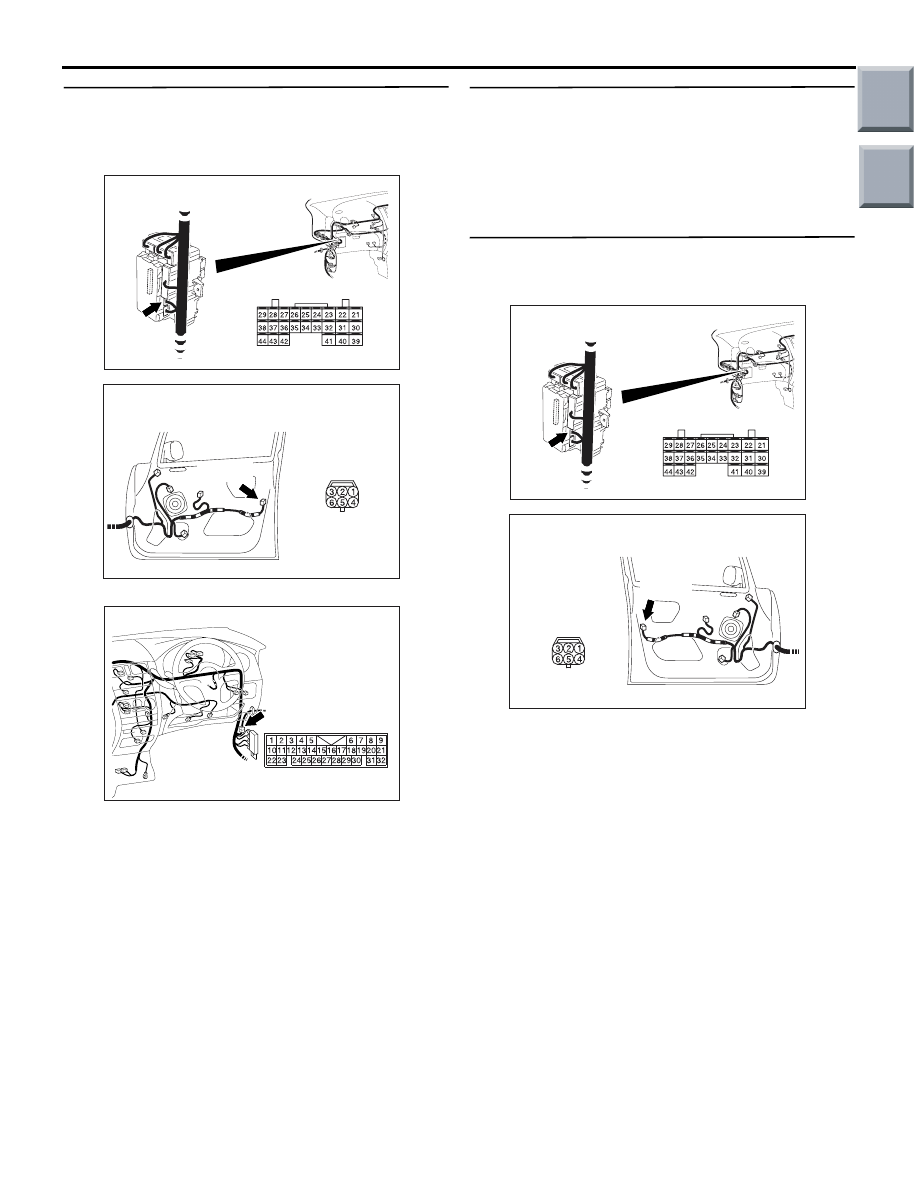

SYMPTOM PROCEDURES SMART WIRING SYSTEM (SWS) USING SWS MONITOR 54C-56 Step 4. Check the wiring harness from B-132 NOTE: Prior to the wiring harness inspection, check interme- • Check the input and output lines for open circuit. Q: Is the check result normal? YES : The trouble can be an intermittent malfunction (Refer to GROUP 00 − How to use Troubleshooting/inspection Service − How to Cope with Intermittent ). NO : Repair the wiring harness. Step 5. Check the front door lock actuator (LH) − Door Q: Is the check result normal? YES : Go to Step 6. NO : Replace the front door lock actuator (LH). Step 6. Connector check: B-132 ETACS-ECU Q: Is the check result normal? YES : Go to Step 7. NO : Repair the defective connector. AC313872 Connector: B-132 AI Harness side Junction block (Rear view) AC313880 Connector: D-08 AH Harness side D-08(B) AC401055 Connector: B-21 AB AC313872 Connector: B-132 AI Harness side Junction block (Rear view) AC313886 Connector: D-17 AH Harness side D-17(B) Main Index Group TOC |
