SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-144

INSPECTION PROCEDURE J-5: The headlamp(s) do not illuminate.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If any of the headlamps does not illuminate, the wir-
ing harness connector(s), the bulb or the fuse may
be defective or burned out.

POSSIBLE CAUSES

• Malfunction of the headlamp bulbs

• Damaged harness wires and connectors

HEADLAMP
RELAY (HI)

HEADLAMP
RELAY (LO)

FRONT
COMBINATION
LAMP
(HEAD: LH)

FRONT
COMBINATION
LAMP
(HEAD: RH)

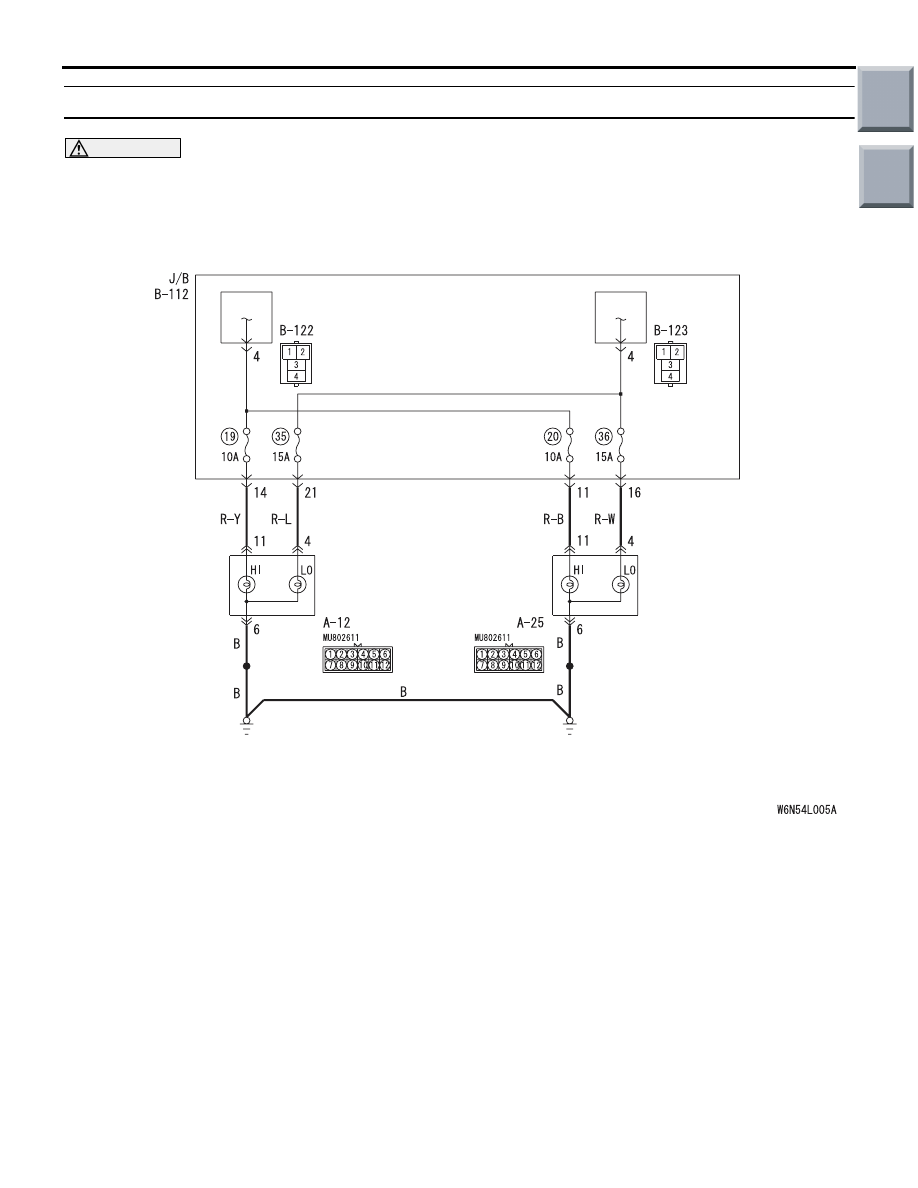

Headlamps Circuit

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-145

DIAGNOSTIC PROCEDURE

Step 1. Connector check: A-12 front combination
lamp (HEAD: LH) connector or A-25 front
combination lamp (HEAD: RH) connector

Q: Is the check result normal?

YES (Either of LH side and RH side does not
illuminate) :

Go to Step 2.

YES (Low-beam of LH side or RH side does not
illuminate) :

Go to Step 5.

YES (High-beam of LH side or RH side does not
illuminate) :

Go to Step 9.

NO (the connectors are not in good condition) :

Repair the defective connector.

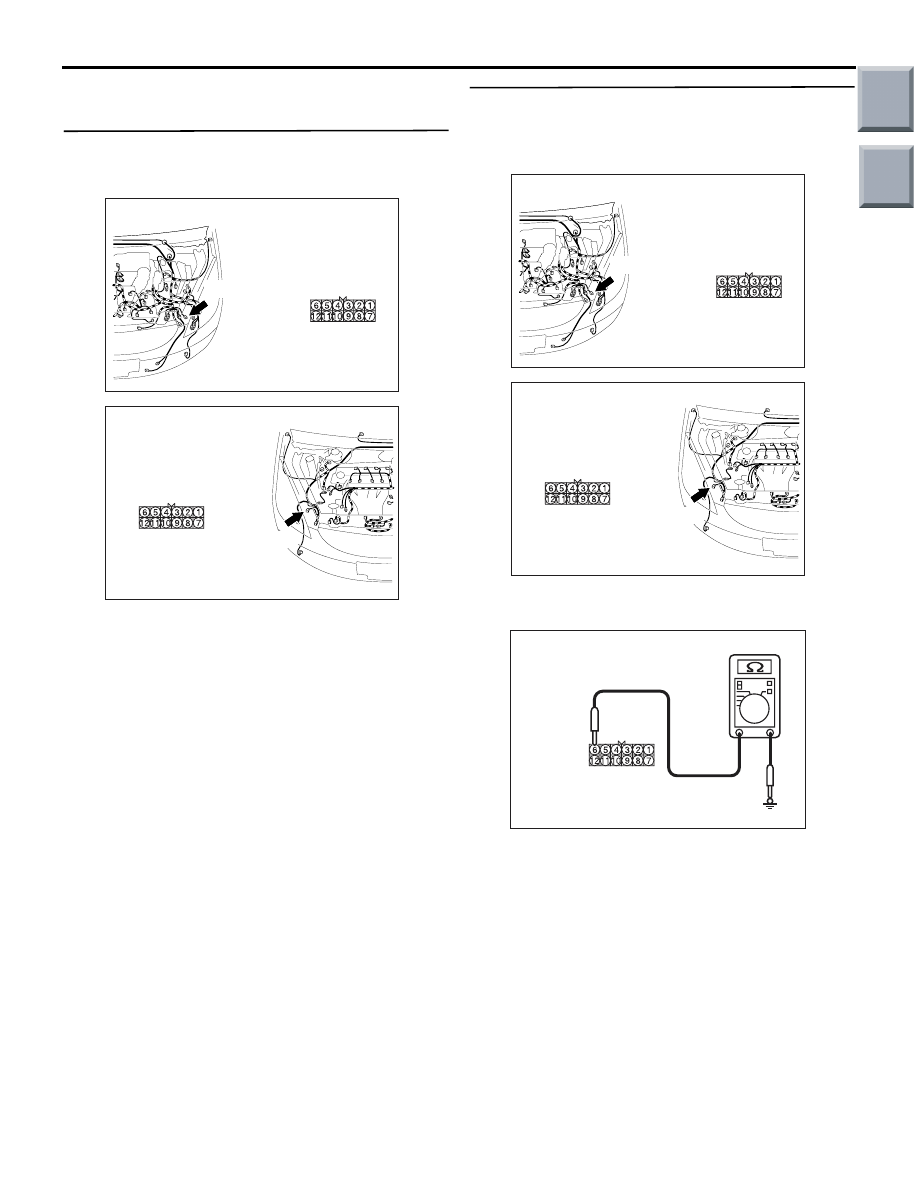

Step 2. Resistance measurement at the A-12 front
combination lamp (HEAD: LH) connector or the
A-25 front combination lamp (HEAD: RH)
connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Check the resistance between the lamp

connector and body earth.

• Resistance between A-12 front combination

lamp (HEAD: LH) connector terminal No.6
and body earth

• Resistance between A-25 front combination

lamp (HEAD: RH) connector terminal No.6
and body earth

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

AC509191

Connector: A-12

Harness side

AB

A-12 (B)

AC509176

Connector: A-25

Harness side

AC

A-25(B)

AC509191

Connector: A-12

Harness side

AB

A-12 (B)

AC509176

Connector: A-25

Harness side

AC

A-25(B)

AC313972 DJ

Connectors: A-12, A-25

(Harness side)

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-146

Step 3. Check the wiring harness from A-12 front
combination lamp (HEAD: LH) connector
terminal No.6 or A-25 front combination lamp
(HEAD: RH) connector terminal No.6 to body
earth.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

Step 4. Retest the system.
(1) Replace the socket of the defective headlamp.
(2) Check that the headlamps illuminate normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the front combination lamp.

Step 5. Check the bulb(s) of the headlamps.
Check the bulb(s) of the defective lamp.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Replace the bulb(s) of the defective lamp.

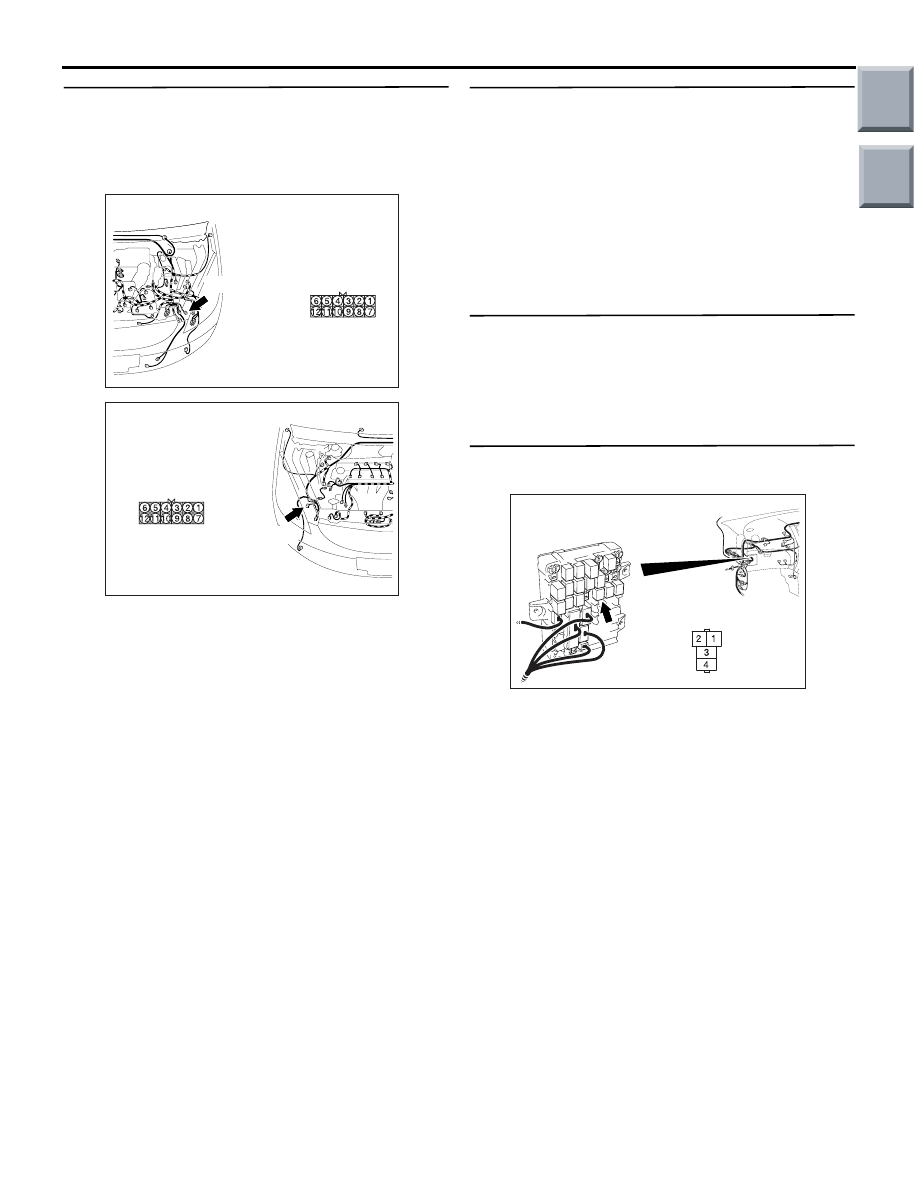

Step 6. Connector check: B-123 headlamp relay
(LO) connector

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the defective connector.

AC509191

Connector: A-12

Harness side

AB

A-12 (B)

AC509176

Connector: A-25

Harness side

AC

A-25(B)

AC313870 AD

Connector: B-123

Junction Block (Front view)

Harness side

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-147

Step 7. Check the wiring harness from A-12 front
combination lamp (HEAD: LH) connector
terminal No.4 or A-25 front combination lamp
(HEAD: RH) connector terminal No.4 to B-123
headlamp relay (LO) connector terminal No.4.

NOTE:

Prior to the wiring harness inspection, check junction
block connector B-112, and repair if necessary.

• Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the wiring harness.

Step 8. Retest the system.
(1) Replace the socket of the defective headlamp.
(2) Check that the headlamps illuminate normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the front combination lamp.

Step 9. Check the bulb(s) of the headlamps.
Check the bulb(s) of the defective lamp.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Replace the bulb(s) of the defective lamp.

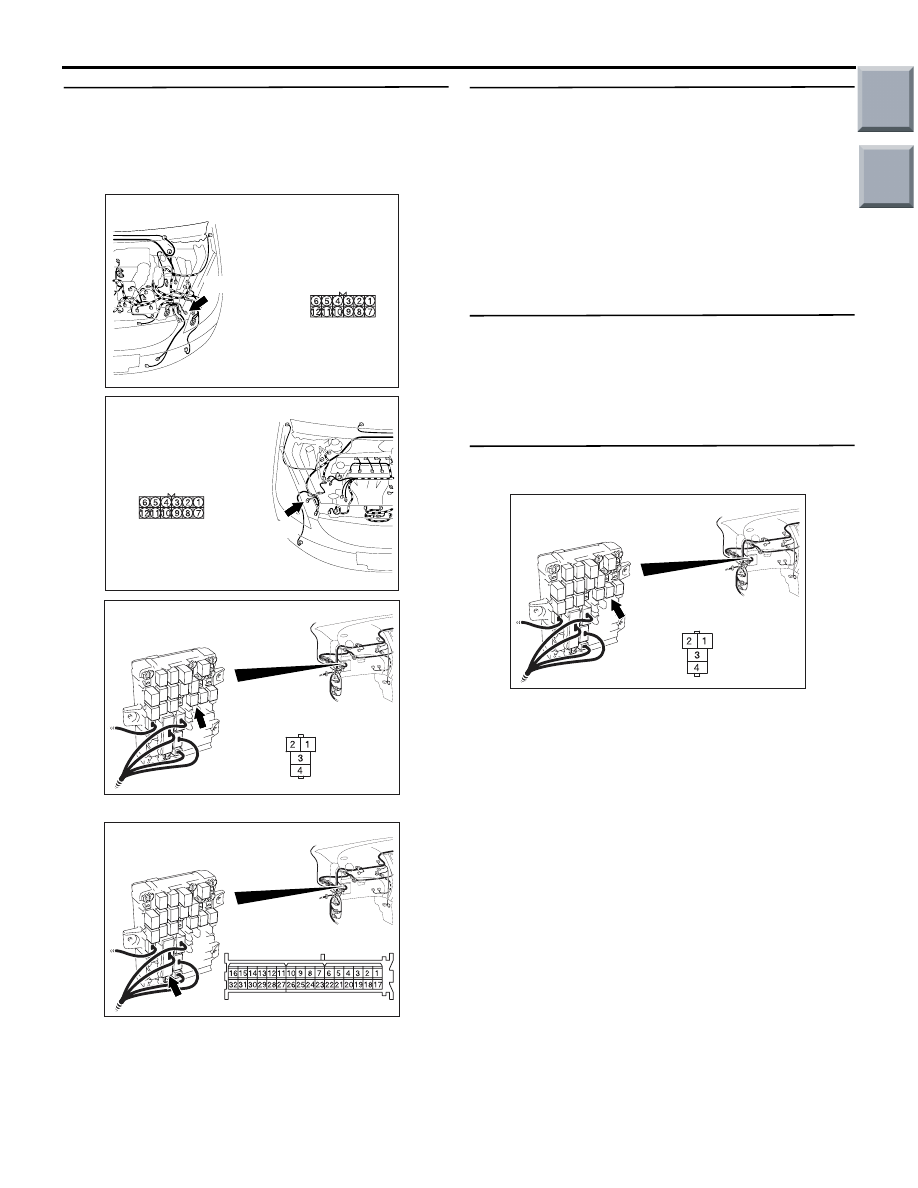

Step 10. Connector check: B-122 headlamp relay
(HI) connector

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the defective connector.

AC509191

Connector: A-12

Harness side

AB

A-12 (B)

AC509176

Connector: A-25

Harness side

AC

A-25(B)

AC313870 AD

Connector: B-123

Junction Block (Front view)

Harness side

AC313870

Connector: B-112

BE

Junction block (Front view)

Harness side

AC313870AE

Connector: B-122

Junction Block (Front view)

Harness side
