TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54D-69

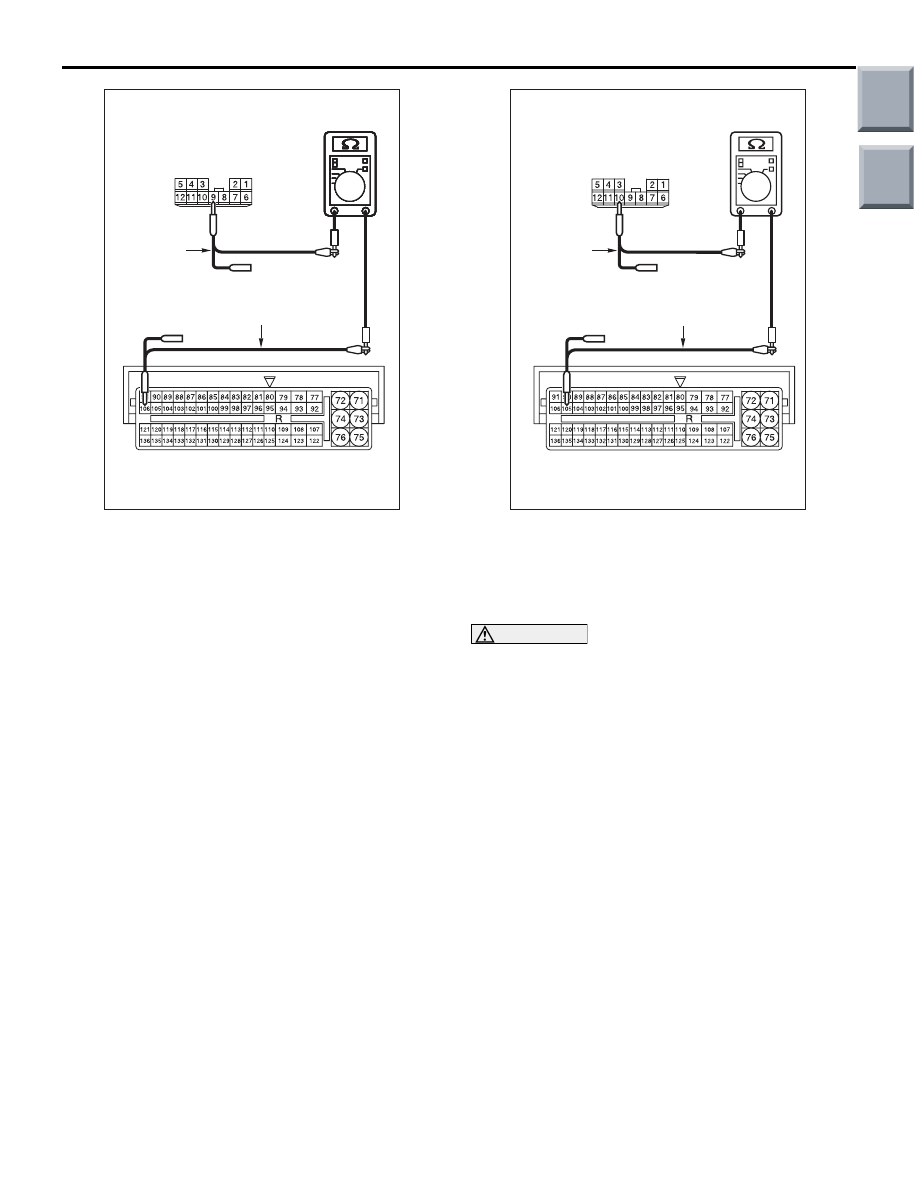

(4) Continuity between B-01 joint connector (CAN2)

terminal No.9 and A-08 engine-ECU <M/T> or
engine-CVT-ECU <CVT> connector terminal
No.106

OK: Continuity (2

 or less)

AC312553

Harness side: A-08

Harness side: B-01

DL

Test harness

Test
harness

(5) Continuity between B-01 joint connector (CAN2)

terminal No.10 and A-08 engine-ECU <M/T> or
engine-CVT-ECU <CVT> connector terminal
No.105

OK: Continuity (2

 or less)

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-5

.

Q: Is the check result normal?

YES :

<All the resistances measure 2

Ω or less>

Go to Step 3.

NO :

<Either or all of the resistances measure
more than 2

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
engine-ECU <M/T> or engine-CVT-ECU
<CVT> connector.

Main

Index

Group

TOC

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54D-70

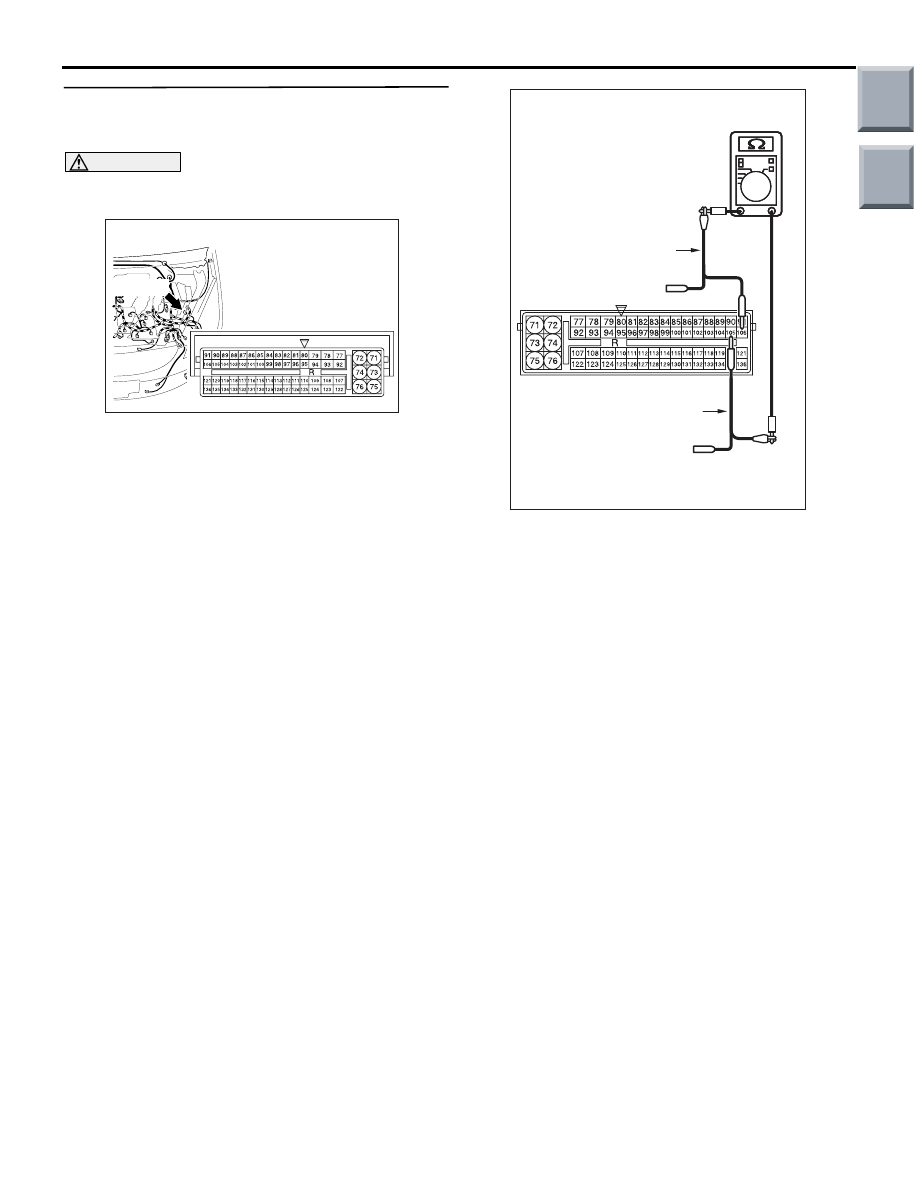

STEP 3. Resistance measurement at A-08
engine-ECU <M/T> or engine-CVT-ECU <CVT>
connector

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-5

.

AC509191

Connector: A-08

Harness side

AD

A-08 (GR)

(1) Remove the engine-ECU <M/T> or

engine-CVT-ECU <CVT>, and measure at the
equipment side.

AC312553

AC312553

AC312553

Equipment side: A-08

DJ

Test
harness

Test
harness

(2) Resistance at A-08 engine-ECU <M/T> or

engine-CVT-ECU <CVT> connector terminal
Nos.105 and 106

OK: 120

± 20

Q: Is the check result normal?

YES :

<Within 120

± 20 Ω> Power supply to the

engine-ECU <M/T> or engine-CVT-ECU
<CVT> may be suspected. Diagnose the
fuel system. Refer to GROUP 13A

−

Troubleshooting

P.13A-281

 <N/A> or

GROUP 13B

− Troubleshooting

P.13B-282



<T/C>.

NO :

<120

± 20 Ω not within> Replace the

engine-ECU <M/T> or engine-CVT-ECU
<CVT>.

Main

Index

Group

TOC

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54D-71

Diagnostic Item 9: Diagnose when the M.U.T.-III cannot receive the data sent by ABS-ECU <vehicles
without ASC> or ASC-ECU <vehicles with ASC>.

CAUTION

When servicing a CAN bus line, earth yourself by touching a metal object such as an unpainted water
pipe. If you fail to do, a component connected to the CAN bus line may be broken.

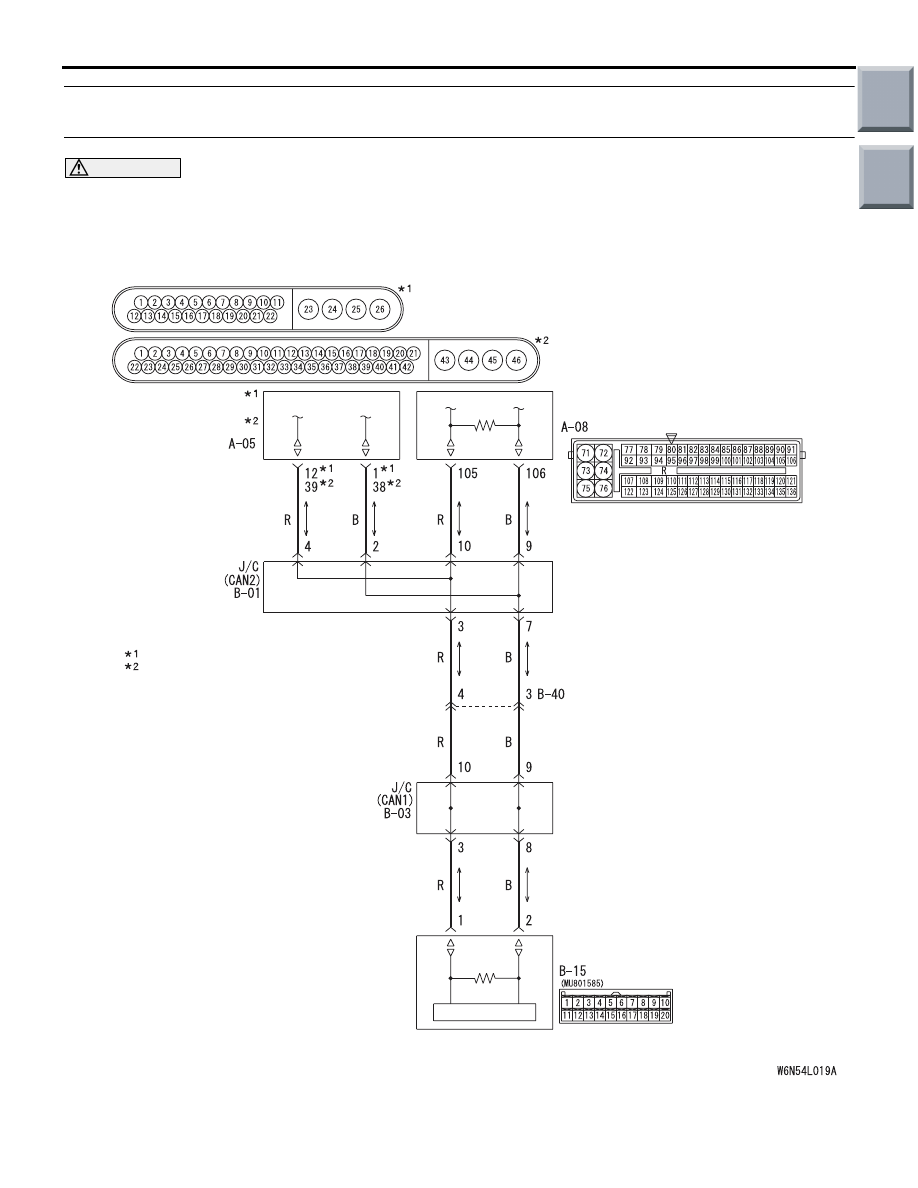

COMBINATION
METER

ENGINE-ECU <M/T> OR
ENGINE-CVT-ECU <CVT>

ABS-ECU

OR
ASC-ECU

NOTE

: VEHICLES WITHOUT ASC
: VEHICLES WITH ASC

Wire colour code
B : Black
LG : Light green
G : Green
L: Blue
W : White
Y: Yellow
SB : Sky blue
BR : Brown
O : Orange
GR : Grey
R : Red
P : Pink
V : Violet
PU: Purple

Main

Index

Group

TOC

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54D-72

FUNCTION

The diagnostic result demonstrates that "Diagnose
when the M.U.T.-III cannot receive the data sent by
ABS-ECU <vehicles without ASC> or ASC-ECU
<vehicles with ASC>" when the M.U.T.-III checks the
periodically sent data from each ECU and cannot
receive the ABS-ECU <vehicles without ASC> or
ASC-ECU <vehicles with ASC> data only.

TROUBLE JUDGEMENT CONDITIONS

M.U.T.-III judges the trouble when the periodically
sent data from ABS-ECU <vehicles without ASC> or
ASC-ECU <vehicles with ASC> cannot be received
and sent.

PROBABLE CAUSES

• Damaged harness wires and connectors

• Power supply circuit malfunction of the ABS-ECU

<vehicles without ASC> or ASC-ECU <vehicles
with ASC>

• Malfunction of the ABS-ECU <vehicles without

ASC> or ASC-ECU <vehicles with ASC>

DIAGNOSIS PROCEDURE

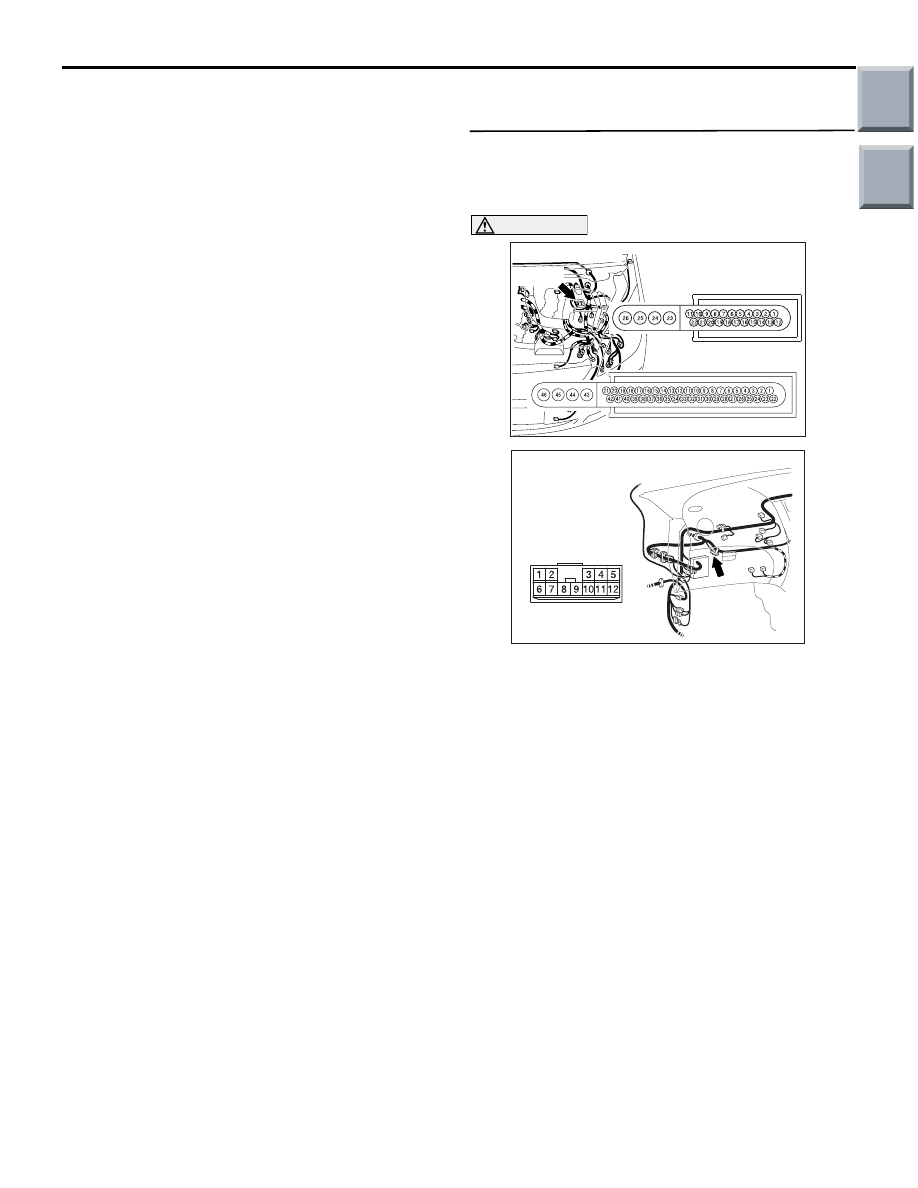

STEP 1. Connector check: B-01 joint connector
(CAN2) and A-05 ABS-ECU <vehicles without
ASC> or ASC-ECU <vehicles with ASC>
connector

AC601294

A-05 (B)

AB

Harness side

<ABS-ECU>

<ASC-ECU>

Connector: A-05

AC313820AF

Connector: B-01

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-5

.

When checking the joint connector, ensure that its
wiring harness side and its short pins are not dam-
aged.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector. Replace the
joint connector as necessary.
