GROUP 54D

CONTROLLER

AREA NETWORK

(CAN)

CONTENTS

GENERAL INFORMATION . . . . . . . .

54D-2

SPECIAL TOOL . . . . . . . . . . . . . . . . .

54D-3

TEST EQUIPMENT  . . . . . . . . . . . . . .

54D-4

SERVICE PRECAUTIONS. . . . . . . . .

54D-5

PRECAUTIONS ON HOW TO



REPAIR THE CAN BUS LINES . . . . .

54D-6

EXPLANATION ABOUT THE



M.U.T.-III CAN BUS DIAGNOSTICS  .

54D-7

TROUBLESHOOTING  . . . . . . . . . . . .

54D-13

CAN BUS DIAGNOSTICS TABLE  . . . . . . .

54D-13

CAN BUS DIAGNOSIS . . . . . . . . . . . . . . . .

54D-24

CAN COMMUNICATION-RELATED
DIAGNOSIS CODE (U CODE)



TABLE. . . . . . . . . . . . . . . . . . . . . . . . .

54D-84

Main

Index

Group

TOC

GENERAL INFORMATION

CONTROLLER AREA NETWORK (CAN)

54D-2

GENERAL INFORMATION

M1548310000267

CAN, an abbreviation for Controller Area Network, is
an ISO-certified international standard for a serial
multiplex communication protocol

*

. A communication

circuit employing the CAN protocol connects each
ECU, and sensor data can be shared among, which
enables more reduction in wiring.
NOTE:

*

: The regulations have been decided in

detail, from software matters such as the necessary
transmission rate for communication, the system,
data format, and communication timing control
method to hardware matters such as the harness
type and length and the resistance values.

CAN offers the following advantages.

• Transmission rates are much faster than those in

conventional communication (up to 1 Mbps),
allowing much more data to be sent.

• It is exceptionally immune to noise, and the data

obtained from each error detection device is more
reliable.

• Each ECU connected via the CAN communicates

independently, therefore if the ECU enters dam-
aged mode, communications can be continued in
some cases.

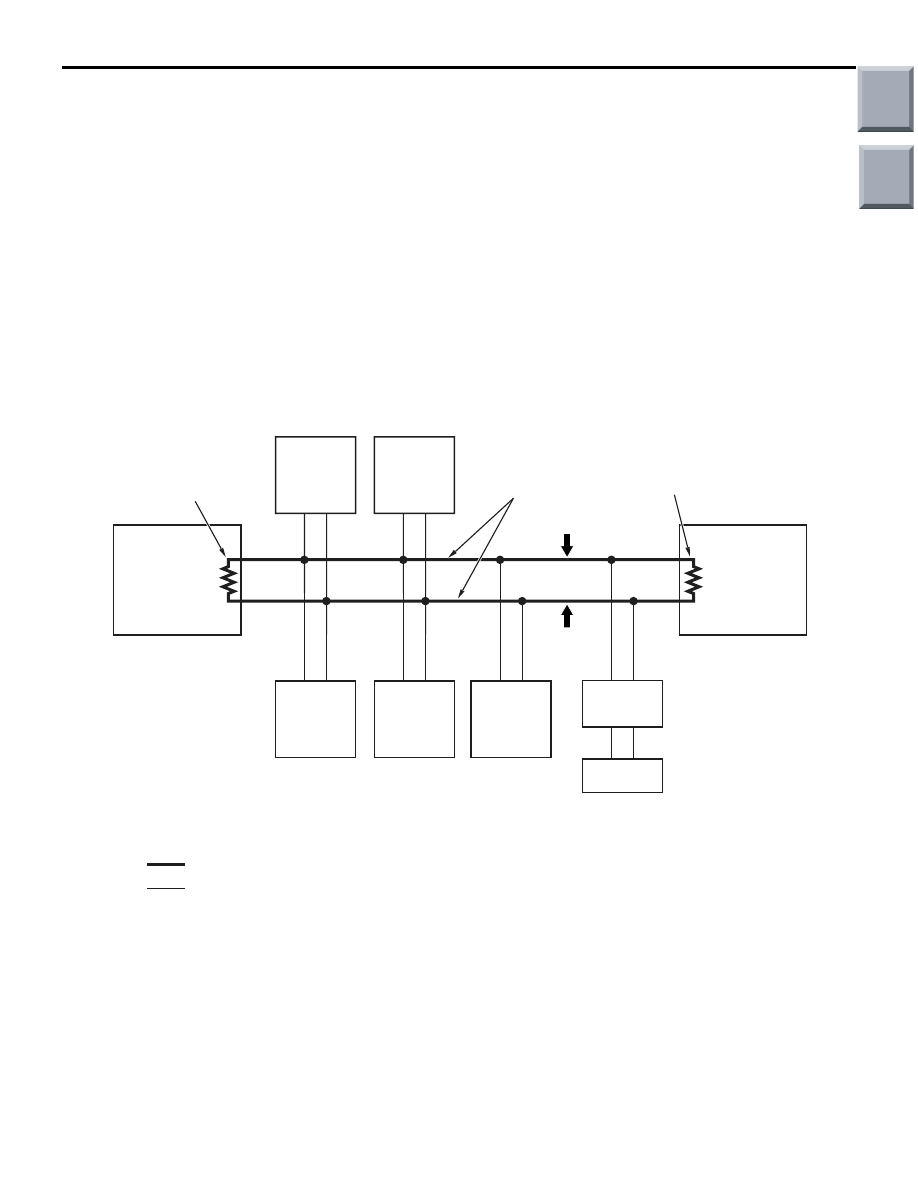

STRUCTURE

AC204755

AC204755AF

Engine-ECU
or
Engine-
CVT-ECU

EPS-ECU

M.U.T.-III

ETACS
-ECU

ABS-ECU
or
ASC-ECU

Steering
wheel
sensor

G and
yaw rate
sensor

CAN_H

CAN_L

Diagnosis
connector

Combination
meter
(incorporating
meter-A/C-ECU)

: Shows sub bus line.

: Shows main bus line.

Terminal resistor

Terminal resistor

Main bus lines

• The CAN bus line consists of two lines, CAN_L

and CAN_H (CAN Low and CAN High, respec-
tively), as well as two terminal resistors (A
twisted-pair cable, highly resistant to noise, is
used for the communications line).

• The CAN bus line connecting the two terminal

resistors is the main bus line, and the CAN bus
line connecting each ECU is the sub-bus line.

• The terminal resistors are installed in the

engine-ECU <M/T> or engine-CVT-ECU <CVT>
and combination meter (incorporating
meter-A/C-ECU) to stabilize communication sig-
nals (The terminal resistance is set at approxi-
mately 120

Ω).

• ECUs are connected in the CAN bus line as fol-

lows.

• Engine-ECU <M/T> or engine-CVT-ECU

<CVT>

Main

Index

Group

TOC

SPECIAL TOOL

CONTROLLER AREA NETWORK (CAN)

54D-3

• ABS-ECU <vehicles without ASC> or

ASC-ECU <vehicles with ASC>

• G and yaw rate sensor <vehicles with ASC>

• Steering wheel sensor <vehicles with ASC>

• EPS-ECU

• ETACS-ECU

• Combination meter (incorporating

meter-A/C-ECU)

SPECIAL TOOL

M1548304200369

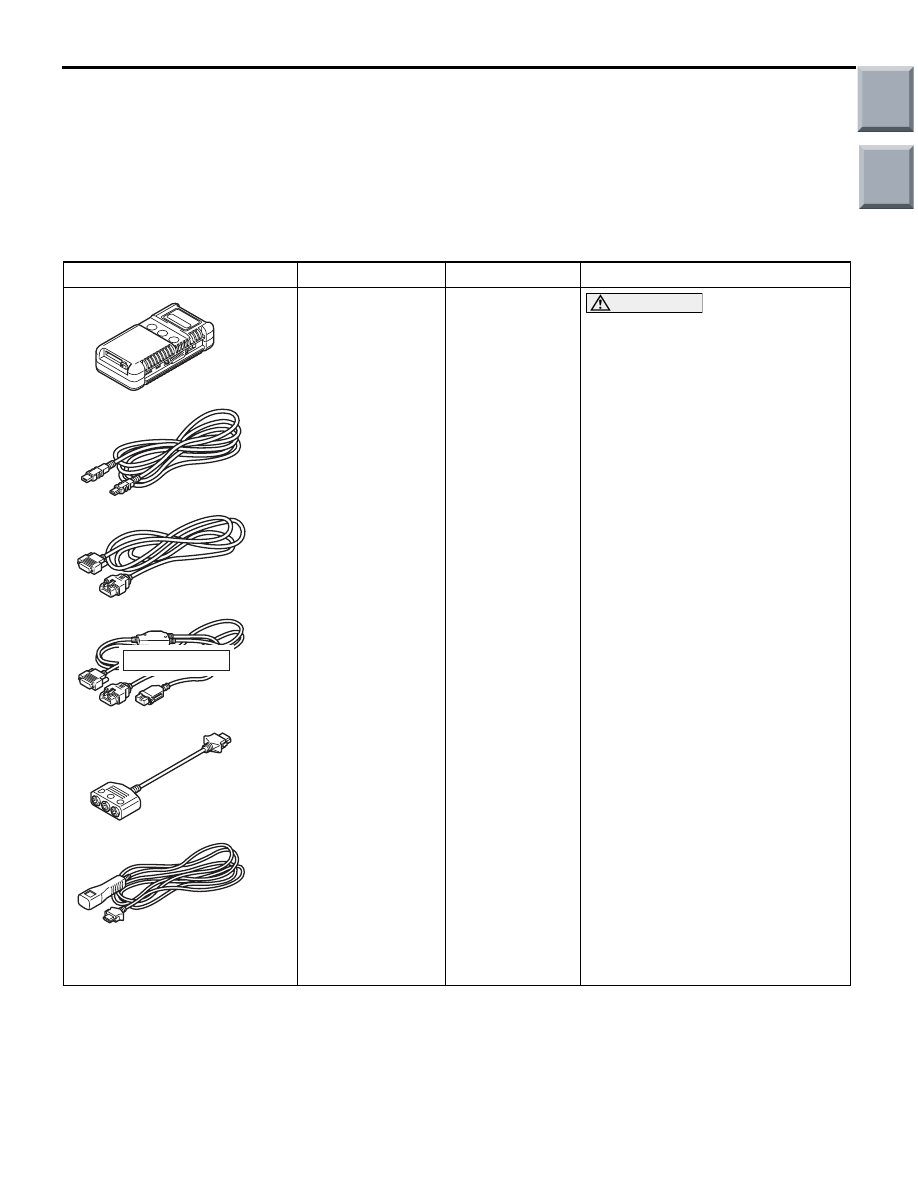

Tool

Number

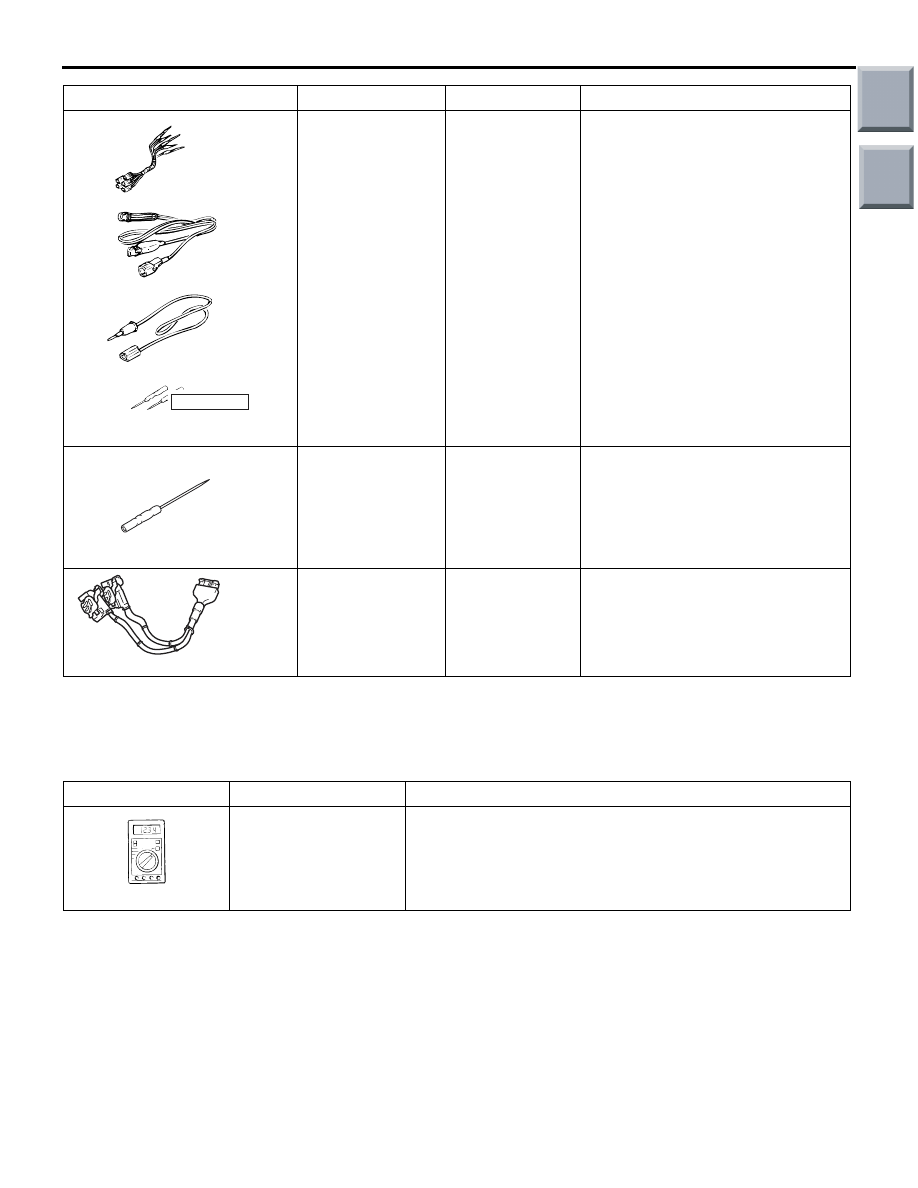

Name

Use

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

MB991955

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

Communicati
on Interface
(V.C.I.)

b. M.U.T.-III

USB cable

c. M.U.T.-III

main harness
A (Vehicles
with CAN
communicatio
n system)

d. M.U.T.-III

main harness
B (Vehicles
without CAN
communicatio
n system)

e. M.U.T.-III

measure
adapter

f. M.U.T.-III

trigger
harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness B
instead, the CAN communication
does not function correctly.
CAN bus diagnostics

Main

Index

Group

TOC

MB991223

a

d

c

b

DO NOT USE

BA

TEST EQUIPMENT

CONTROLLER AREA NETWORK (CAN)

54D-4

TEST EQUIPMENT

M1548304300128

Test equipment

Name

Use

AC000019

Digital multimeter

Checking CAN bus circuit (for resistance and voltage
measurements)

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check

harness

b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally sourced

tester

MB992006

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

MB991970

MB991974

ABS check
harness

Checking continuity and measuring
voltage at ABS-ECU <vehicles
without ASC> or ASC-ECU
<vehicles with ASC> harness-side
connector

Tool

Number

Name

Use

Main

Index

Group
