The lubrication method is a fully force-fed, full-flow fil-
tration type. The oil pump is a gear type which is
driven by the crankshaft via the timing belt.

ENGINE OILS
HEALTH WARNING

Prolonged and repeated contact with mineral oil will
result in the removal of natural fats from the skin,
leading to dryness, irritation and dermatitis. In addi-
tion, used engine oil contains potentially harmful con-
taminants which may cause skin cancer. Adequate
means of skin protection and washing facilities must
be provided.

RECOMMENDED PRECAUTIONS

The most effective precaution is to adapt working
practices which prevent, as far as practicable, the
risk of skin contact with mineral oils, for example by
using enclosed systems for handling used engine oil
and by degreasing components, where practicable,
before handling them. Other precautions:

• Avoid prolonged and repeated contact with oils,

particularly used engine oils.

• Wear protective clothing, including impervious

gloves where practicable.

• Avoid contaminating clothes, particularly under-

pants, with oil.

• Do not put oily rags in pockets, the use of overalls

without pockets will avoid this.

• Do not wear heavily soiled clothing and

oil-impregnated foot-wear. Overalls must be
cleaned regularly and kept separate from per-
sonal clothing.

• Where there is a risk of eye contact, eye protec-

tion should be worn, for example, chemical gog-
gles or face shields; in addition an eye wash
facility should be provided.

• Obtain first aid treatment immediately for open

cuts and wounds.

• Wash regularly with soap and water to ensure all

oil is removed, especially before meals (skin
cleansers and nail brushes will help). After clean-
ing, the application of preparations containing
lanolin to replace the natural skin oils is advised.

• Do not use petrol, kerosine, diesel fuel, gas oil,

thinners or solvents for cleaning skin.

• Use barrier creams, applying them before each

work period, to help the removal of oil from the
skin after work.

• If skin disorders develop, obtain medical advice

without delay.

SERVICE SPECIFICATION

M1121000300425

Item

Standard value

Oil pressure kPa

at idle

29 or more

at 3,500 r/min

294

− 686

LUBRICANTS

M1121000401094

Item

Specification

Engine oil ACEA classification

A1/B1, A3/B3, A3/B4 or A5/B5

Engine oil API classification

SG or higher

Engine oil quantity L

4A9

Oil filter

0.2

Total

4.2

4G1

Oil filter

0.3

Oil cooler

0.1

Total

3.7

Main

Index

Group

TOC

SEALANTS

ENGINE LUBRICATION

12-3

SEALANTS

M1121000500463

Item

Specified sealant

Remark

Oil pressure switch

4A9

LOCTITE 565 or equivalent

Semi-drying sealant

4G1

3M ATD Part No. 8660 or equivalent

ON-VEHICLE SERVICE

ENGINE OIL CHECK

M1121000900546

1. Pull out the level gauge slowly and check that the

oil level is in the illustrated range.

2. Check that the oil is not excessively dirty, that

there is no coolant or petrol mixed in, and that it
has sufficient viscosity.

ENGINE OIL REPLACEMENT <4A9>

M1121001001163

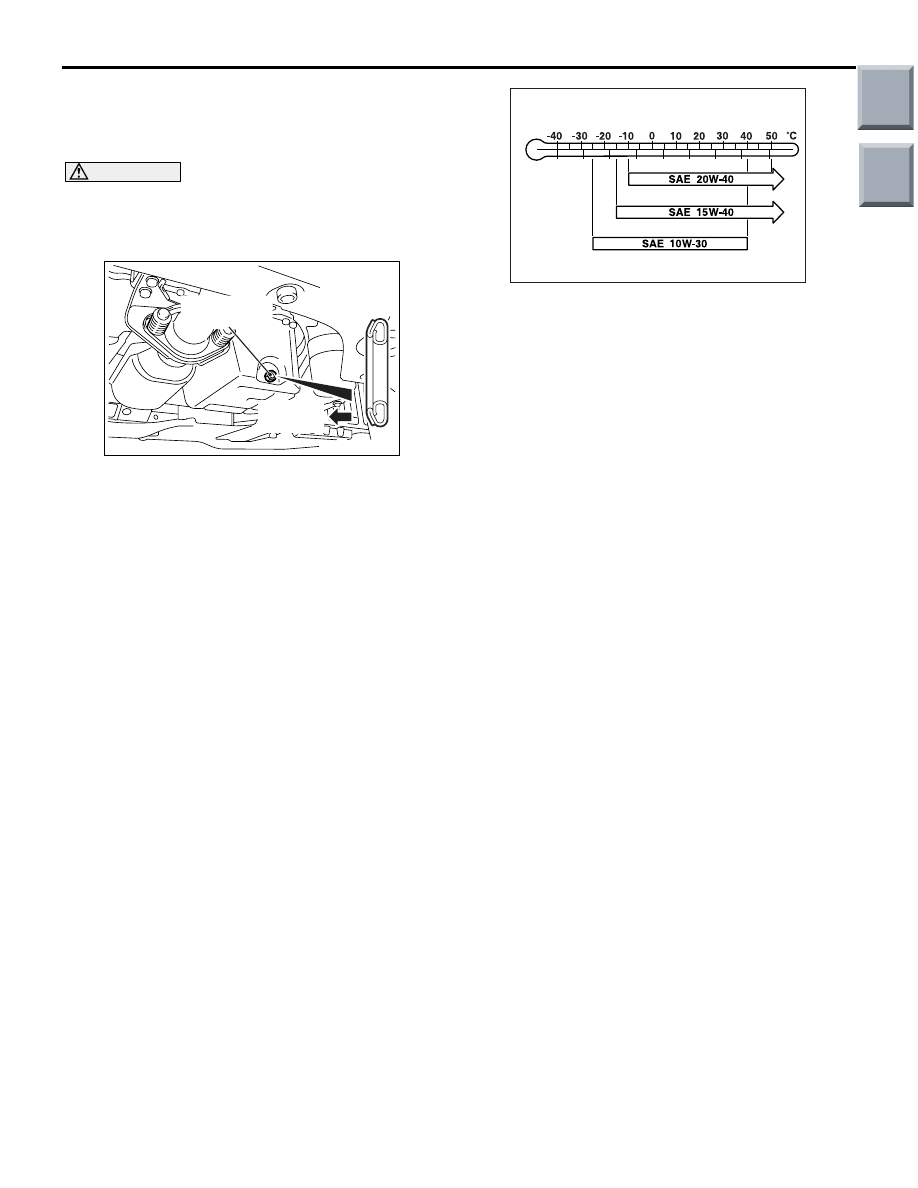

1. Start the engine and allow it to warm up until the

temperature of the coolant reaches 80

°C to 90

°C.

WARNING

Use care as engine oil could be hot.

2. Remove the engine oil filler cap.
3. Remove the engine oil pan drain plug to drain

engine oil.

4. Install a new engine oil pan drain plug gasket and

then tighten the engine oil pan drain plug to the
specified torque.

Tightening torque: 39

± 5 N⋅m

AC311073 AB

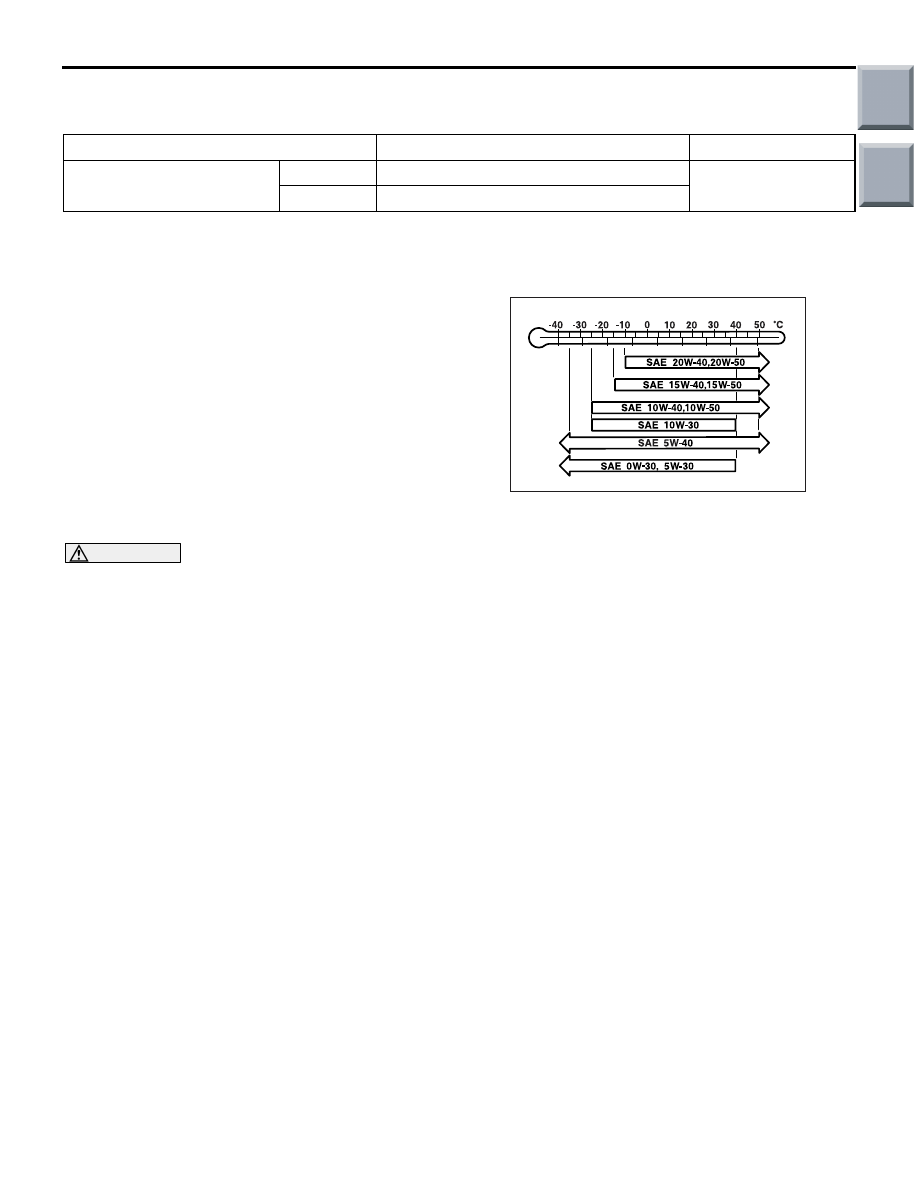

5. Refill with specified quantity of engine oil.

Specified engine oil (ACEA classification):

A1/B1, A3/B3, A3/B4 or A5/B5

Specified engine oil (API classification): SG or

higher

Total quantity (Includes volume inside engine

oil filter): 4.2 L

NOTE: SAE 0W-30, 5W-30, and 5W-40 engine
oils can only be used if they meet ACEA A3/B3,
A3/B4 or A5/B5 and API SG (or higher) specifica-
tion.

6. Install the engine oil filler cap.
7. Check engine oil level.

Main

Index

Group

TOC

ON-VEHICLE SERVICE

ENGINE LUBRICATION

12-4

ENGINE OIL REPLACEMENT <4G1>

M1121001001174

1. Start the engine and allow it to warm up until the

temperature of the coolant reaches 80

°C to 90°C.

WARNING

Use care as oil could be hot.

2. Remove the engine oil filler cap.
3. Remove the drain plug to drain oil.

AC402262

Engine oil
pan drain
plug gasket

Engine oil
pan side

Engine oil pan
drain plug

4. Install a new drain plug gasket so that it faces in

the direction shown in the illustration, and then
tighten the drain plug to the specified torque.

Tightening torque: 39

± 5 N⋅m

AC405038

5. Refill with specified quantity of engine oil.

Specified engine oil (ACEA classification):

A1/B1, A3/B3, A3/B4 or A5/B5

Specified engine oil (API classification): SG or

higher

Total quantity (Includes volume inside oil filter

and oil cooler): 3.7 L

NOTE: Use of additives is not recommended
since they may reduce the effectiveness of addi-
tives already included in the engine oil. It may
result in failure of the mechanical assembly.
NOTE: SAE 5W-30 engine oil can be used to
improve engine startability in very cold weather
areas where the lowest atmospheric temperature
is below the range shown above. In this case, use
engine oil conforming to the following classifica-
tion: ACEA A3/B3, A3/B4 or A5/B5 and API SG or
higher.

6. Install the engine oil filler cap.
7. Check oil level.

Main

Index

Group

TOC
