VEHICLE IDENTIFICATION

GENERAL

00-17

ENGINE MODEL STAMPING

AC405027AC

<4A91>

AC313891

AC

Exhaust
manifold
cover

<4G15>

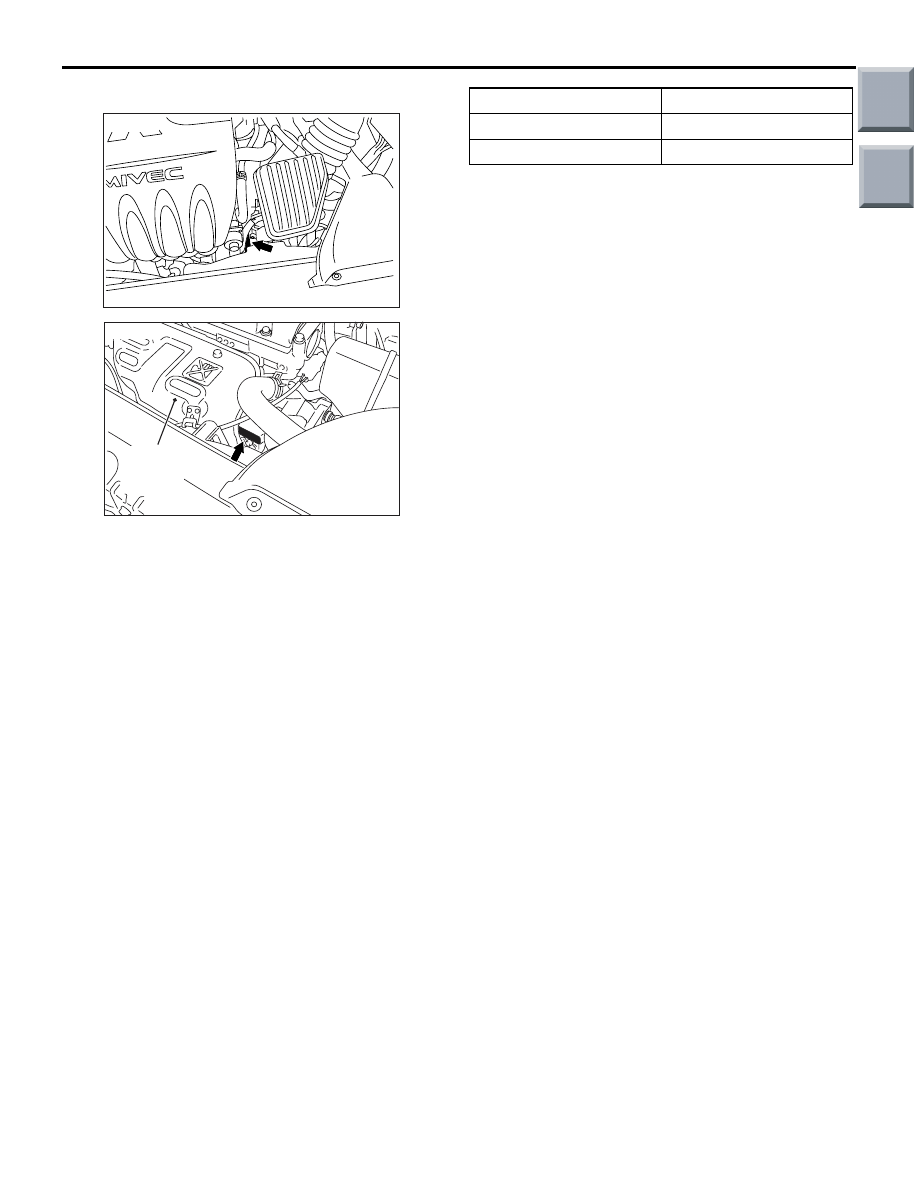

The engine model is stamped on the cylinder block.
This engine model numbers are shown as follows.

Engine model

Engine displacement

4A91

1,499 mL

4G15

1,468 mL

The engine serial number is stamped near the
engine model number.

Main

Index

Group

TOC

GENERAL DATA AND SPECIFICATIONS

GENERAL

00-18

GENERAL DATA AND SPECIFICATIONS

M1001000901487

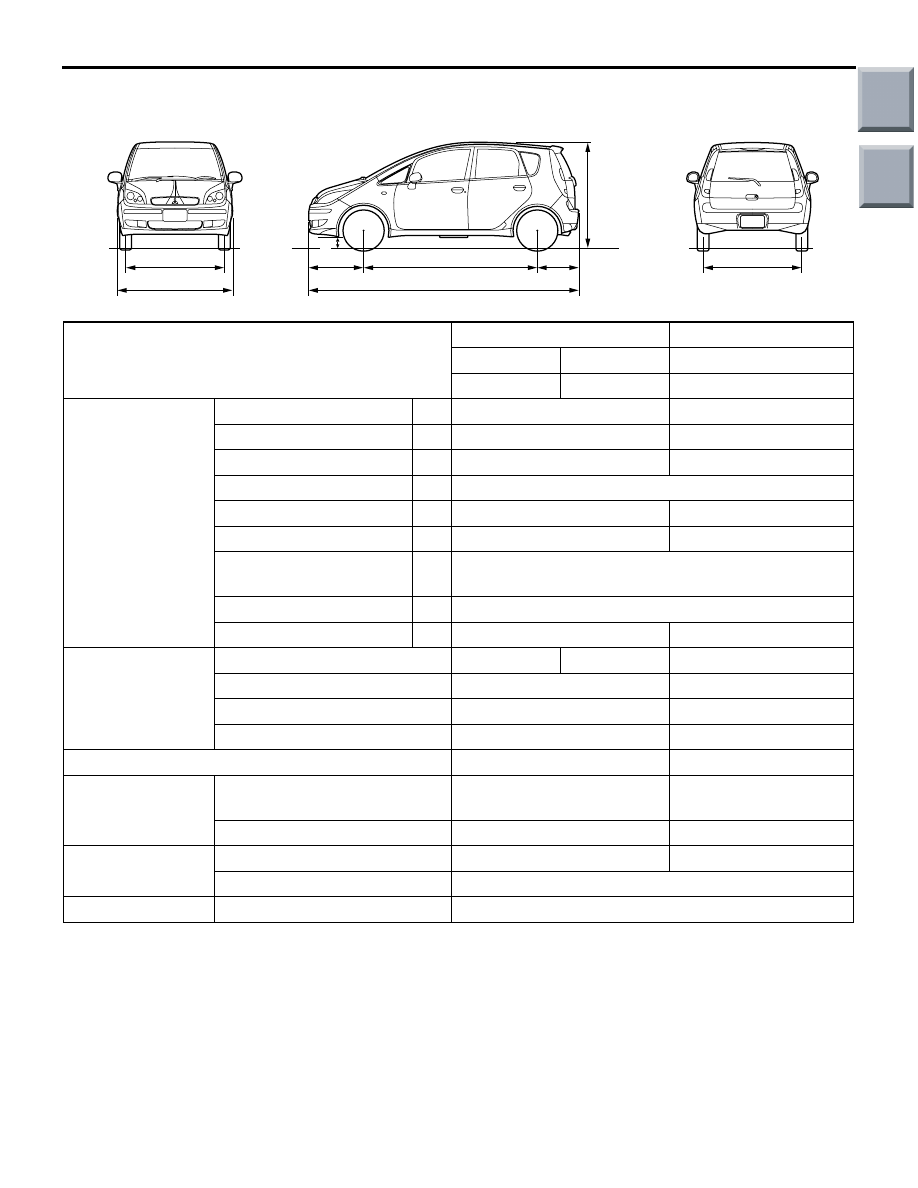

<CVT>

AC401657

AB

1

2

3

4

6

5

8

9

7

Item

Z23A
XSMHR8

XSXHR8

LS

VR-X

Vehicle dimensions mm

Front track

1

1,460

Overall width

2

1,680

Front overhang

3

790

Wheel base

4

2,500

Rear overhang

5

590

Overall length

6

3,885

Ground clearance
(unladen)

7

150

Overall height (unladen)

8

1,550

Rear track

9

1,445

Vehicle weight kg

Kerb weight

1,050

1,065

Max. gross vehicle weight

1,490

Max. axle weight rating-front

810

Max. axle weight rating-rear

700

Seating capacity

5

Engine

Model code

4A91

Total displacement mL

1,499

Transmission

Model code

F1C1A

Type

Smart shift CVT

Fuel system

Fuel supply system

MPI

Main

Index

Group

TOC

GENERAL DATA AND SPECIFICATIONS

GENERAL

00-19

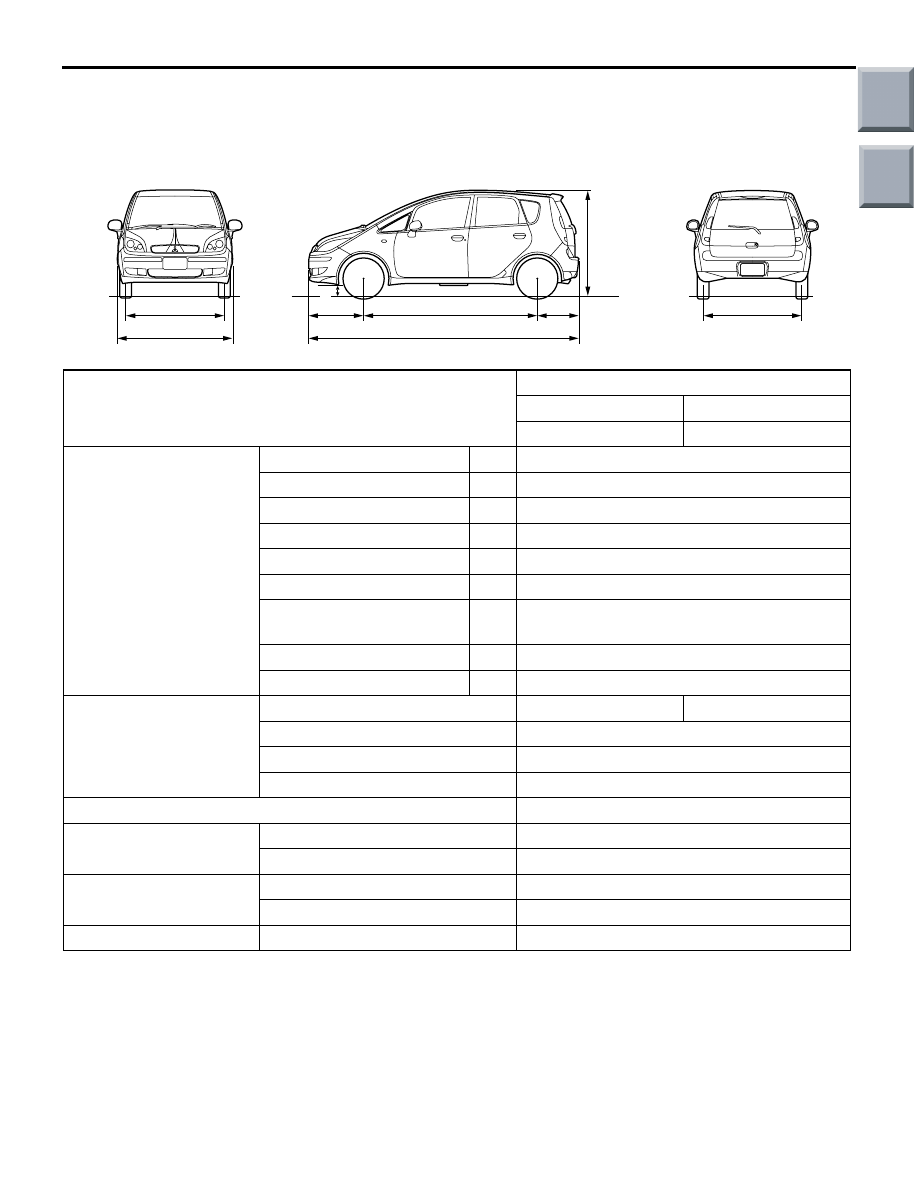

<M/T>

AC401657

AB

1

2

3

4

6

5

8

9

7

Item

Z23A

Z27A

XNMHR8

XNXHR8

XNGFR8

ES,

LS

VR-X

RALLIART Version-R

Vehicle dimensions
mm

Front track

1

1,460

1,465

Overall width

2

1,680

1,695

Front overhang

3

790

810

Wheel base

4

2,500

Rear overhang

5

590

615

Overall length

6

3,885

3,925

Ground clearance
(unladen)

7

150

Overall height (unladen)

8

1,550

Rear track

9

1,445

1,450

Vehicle weight kg

Kerb weight

1,020

1,035

1,130

Max. gross vehicle weight

1,460

1,470

Max. axle weight rating-front

780

850

Max. axle weight rating-rear

700

640

Seating capacity

5

4

Engine

Model code

4A91

4G15 (with intercooler,
turbocharger)

Total displacement mL

1,499

1,468

Transmission

Model code

F5MGA

F5MGB

Type

Floor shift M/T

Fuel system

Fuel supply system

MPI

Main

Index

Group

TOC

PRECAUTIONS BEFORE SERVICE

GENERAL

00-20

PRECAUTIONS BEFORE SERVICE

SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) AND SEAT BELT WITH
PRE-TENSIONER

M1001011600379

CAUTION

Items to review when servicing SRS:

1. Be sure to read GROUP 52B

− Supplemental

Restraint System (SRS). For safe operation,
please follow the directions and heed all
warnings.

2. Wait at least 60 seconds after disconnecting

the battery cable before doing any further
work. The SRS system is designed to retain
enough voltage to deploy the air bag even
after the battery has been disconnected. Seri-
ous injury may result from unintended air bag
deployment if work is done on the SRS sys-
tem immediately after the battery cable is dis-
connected.

3. Warning labels must be heeded when servic-

ing or handling SRS components. Warning
labels can be found in the following locations.

• Steering wheel
• Driver's air bag module
• Clock spring
• Passenger's (front) air bag module
• SRS-ECU
• Sun visor
• Seat belt with pre-tensioner [Driver's and

passenger's (front) seat]

• Hood
• Front impact sensor
• Instrument panel
• Side air bag module
• Curtain air bag module

4. Always use the designated special tools and

test equipment.

5. Store components removed from the SRS in a

clean and dry place. The air bag module
should be stored on a flat surface and placed
so that the pad surface is facing upward. Do
not place anything on top of it.

6. Never attempt to disassemble or repair the

SRS components (SRS-ECU, air bag modules
and clock spring).

7. Whenever you finish servicing the SRS, check

the SRS warning lamp operation to make sure
that the system functions properly.

8. Be sure to deploy the air bag before dispos-

ing of the air bag module or disposing of a

vehicle equipped with an air bag (Refer to
GROUP 52B

− Air Bag Module Disposal Pro-

cedures).

Observe the following when carrying out opera-
tions on places where SRS components are
installed, including operations not directly
related to the SRS air bag.

1. When removing or installing parts, do not

allow any impact or shock to the SRS compo-
nents.

2. If heat damage may occur during paint work,

remove the SRS-ECU, the air bag modules,
clock spring, the impact sensors and the seat
belt with pre-tensioner.

• SRS-ECU, air bag modules, clock spring

and impact sensors: 93

°C or more

• Seat belt with pre-tensioner: 90 °C or more

INITIALIZATION PROCEDURE FOR
LEARNING VALUE IN MPI ENGINE

M1001011700031

INITIALIZATION PROCEDURE

1. After the ignition switch is in "LOCK" (OFF)

position, connect M.U.T.-III with the diagnosis
connector.

2. Select the item on the screen of the initialisation

for learning, and perform the initialisation.

Service

Item

At replacing engine
assembly *

1,

*

2



All ranges

− *

3

Misfire-related

At replacing injector and
at cleaning *

2

Learning value for
air/fuel ratio

At replacing throttle body
and at cleaning *

2

Idle speed
control-related

At replacing detonation
sensor

Learning value for
knocking

NOTE: *

1

: Initialise CVT-related learning value.

NOTE: *

2

: After initialising the learning value, the

idling learning in MPI engine is required (Refer to
LEARNING PROCEDURE FOR IDLING IN MPI
ENGINE

P.00-21

).

NOTE: *

3

: The datum items on M.U.T.-III display are

shown, but do not use them.
