TROUBLESHOOTING <CVT>

CVT

23A-83

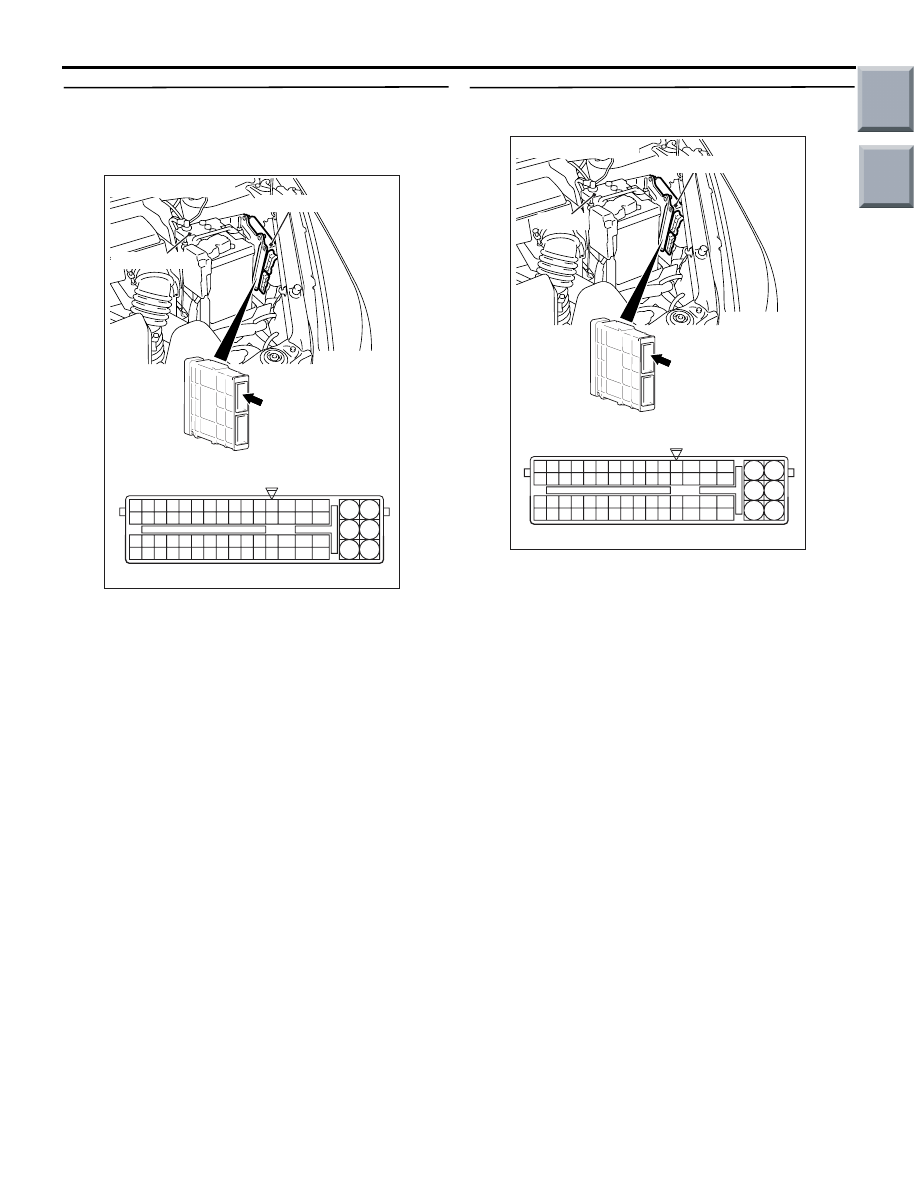

STEP 5. Measure the voltage at engine-CVT-ECU
connector A-114.
(1) Connect CVT control solenoid valve assembly

connector A-117.

AC403088AF

A-114

Connector: A-114

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

A-114 Check connector (special tool)

Engine-CVT-ECU

Battery

(GR)

(2) Disconnect the engine-CVT-ECU connector, and

connect the special tool Power plant ECU check
harness (MB991987).

(3) Let the engine run at idle.
(4) Shift the selector lever to the P range.
(5) Use the special tool Check connector to measure

the voltage between engine-CVT-ECU connector
A-114 terminal No.2 and earth.

OK: Approximately 11 V

Q: Is the check result normal?

YES : .

Go to Step 8.

NO :

Go to Step 6.

STEP 6. Connector check: A-114
engine-CVT-ECU connector.

AC403088AG

A-114

Connector: A-114

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

A-114 Harness side connector

Engine-CVT-ECU

Battery

(GR)

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the defective connector.

Main

Index

Group

TOC

TROUBLESHOOTING <CVT>

CVT

23A-84

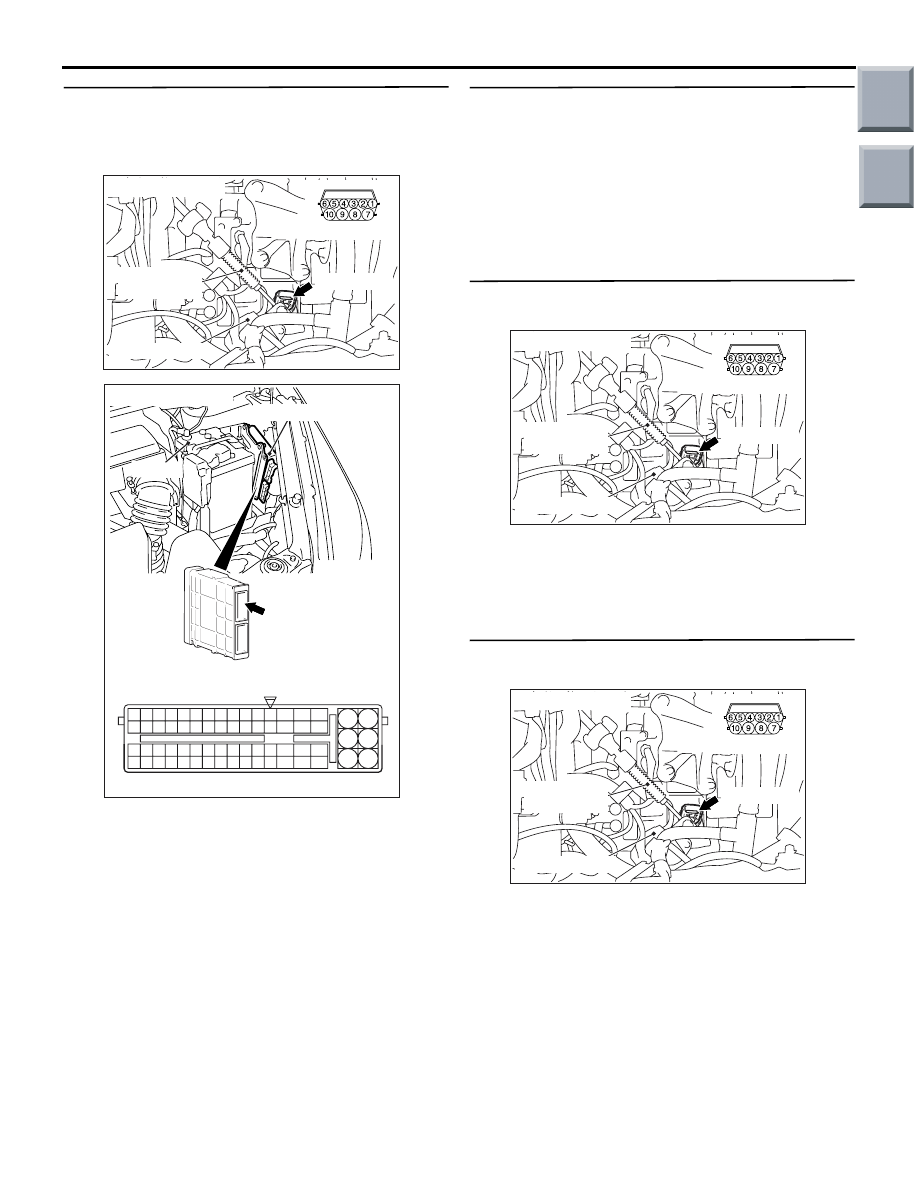

STEP 7. Check the harness between CVT control
solenoid valve assembly connector A-117
terminal No.5 and engine-CVT-ECU connector
A-114 terminal No.2.

AC314190

AC

Inhibitor switch

Transmission
control cable

A-117 (GR)

Connector: A-117

Harness side

AC403088AG

A-114

Connector: A-114

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

A-114 Harness side connector

Engine-CVT-ECU

Battery

(GR)

Check the output line for short-circuited or open cir-
cuit.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the wiring harness.

STEP 8. M.U.T.-III actuator test
Item 02: Shift control solenoid valve

OK: Operating sound can be heard.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the engine-CVT-ECU.

STEP 9. Connector check: A-117 CVT control
solenoid valve assembly connector.

AC314190

AC

Inhibitor switch

Transmission
control cable

A-117 (GR)

Connector: A-117

Harness side

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the defective connector.

STEP 10. Measure the resistance at CVT control
solenoid valve assembly connector A-117.

AC314190

AC

Inhibitor switch

Transmission
control cable

A-117 (GR)

Connector: A-117

Harness side

Disconnect the connector, and measure the resist-
ance between terminal 5 and 9 at the solenoid valve
side.

OK: 2.9

− 3.5 Ω (CVT fluid temperature at

20

°C)

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Check the solenoid valve harness.

Main

Index

Group

TOC

TROUBLESHOOTING <CVT>

CVT

23A-85

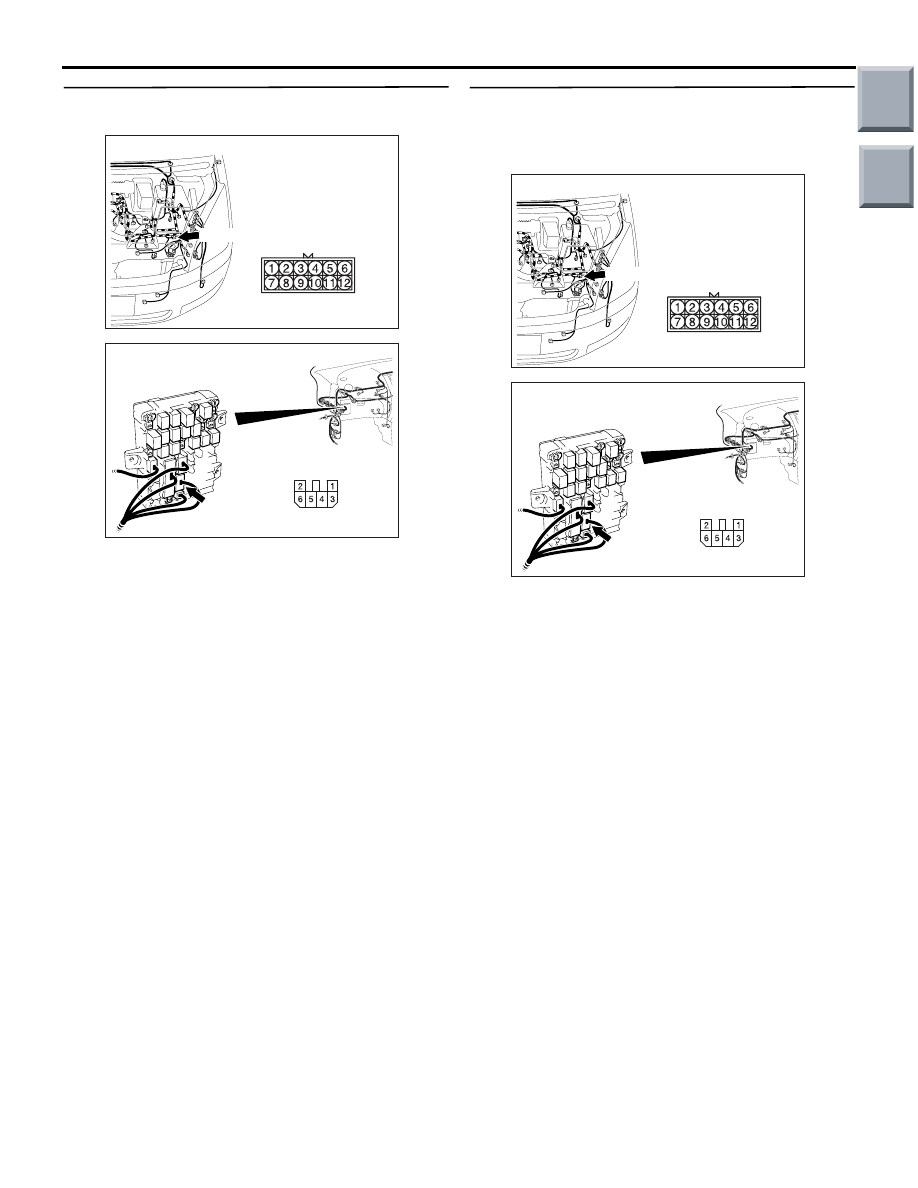

STEP 11. Connectors check: A-17 intermediate
connector, B-109 J/B connector.

AC313811 AG

Connector: A-17

A-17 (B)

AC313824AP

Connector: B-109

Harness side

Junction block (Front view)

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Repair the defective connector.

STEP 12. Check the harness between CVT
control solenoid valve assembly connector A-117
terminal No.9 and J/B connector B-109 terminal
No.5.

AC313811 AG

Connector: A-17

A-17 (B)

AC313824AP

Connector: B-109

Harness side

Junction block (Front view)

Check the power supply line for short-circuited or
open circuit.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the wiring harness.

Main

Index

Group

TOC

TROUBLESHOOTING <CVT>

CVT

23A-86

Code No.33, 37 Damper Clutch Control Solenoid Valve System

SOLENOID VALVE SYSTEM CIRCUIT

 Refer to

P.23A-77

.

OPERATION

The damper clutch control solenoid valve engages or
disengages the torque converter by using the signal
from the engine-CVT-ECU.

DIAGNOSIS CODE SET CONDITIONS

• If the damper clutch control solenoid valve driving

voltage is 3 V or less, code No.33 will be set.

• If the difference between the engine speed and

the turbine speed sensor output is 100 r/min or
less when code No.33 is set, code No.37 will be
set.

PROBABLE CAUSES

• Malfunction of damper clutch control solenoid

valve

• Damaged harness wires and connectors

• Malfunction of the engine-CVT-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III diagnosis code

Q: Is diagnosis code 31 set?

YES :

Go to Step 9.

NO :

Go to Step 2.

STEP 2. M.U.T.-III actuator test
Item 03: Damper clutch control solenoid valve

OK: Operating sound can be heard.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Go to Step 3.

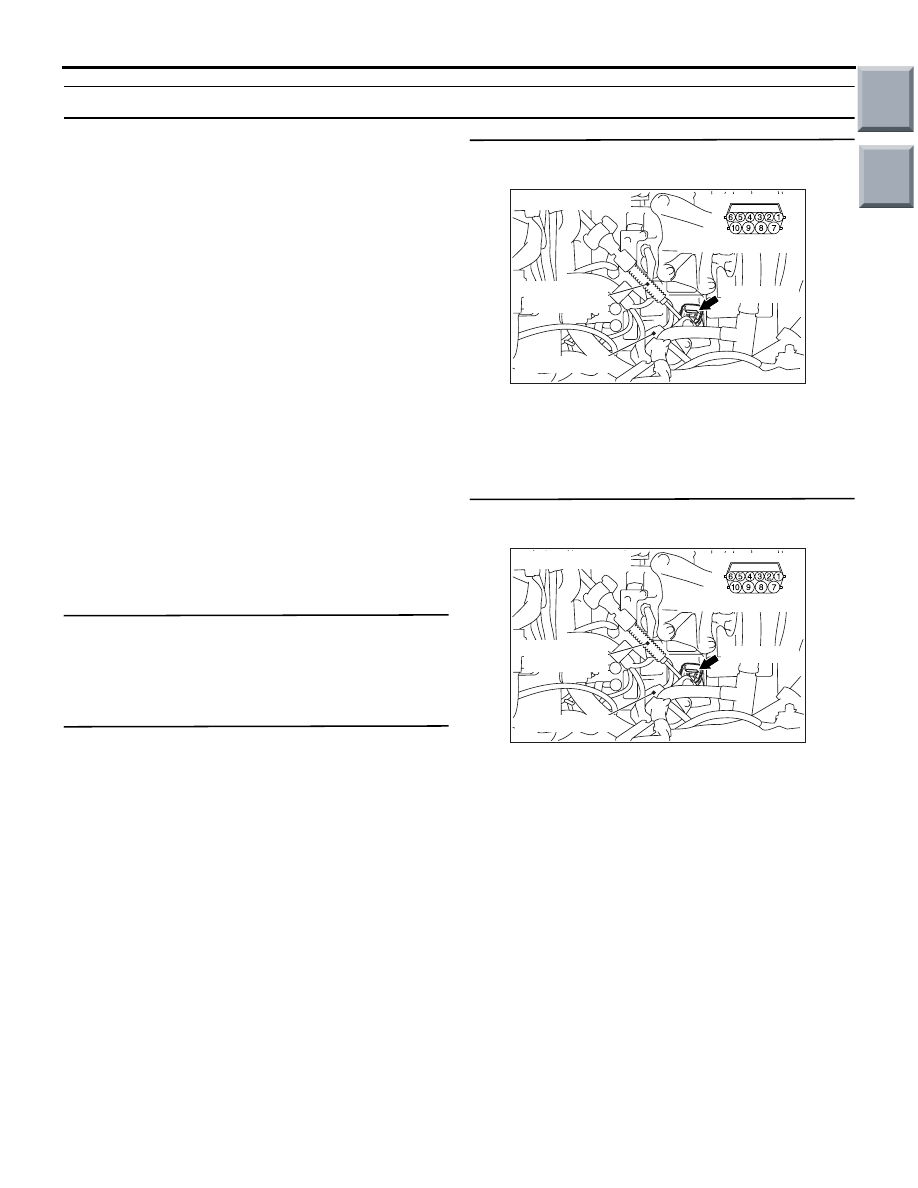

STEP 3. Connector check: A-117 CVT control
solenoid valve assembly connector.

AC314190

AC

Inhibitor switch

Transmission
control cable

A-117 (GR)

Connector: A-117

Harness side

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

STEP 4. Measure the resistance at CVT control
solenoid valve assembly connector A-117.

AC314190

AC

Inhibitor switch

Transmission
control cable

A-117 (GR)

Connector: A-117

Harness side

Disconnect the connector, and measure the resist-
ance between terminal 3 and 10 at the solenoid
valve side.

OK: 2.9

− 3.5 Ω (CVT fluid temperature at

20

°C)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the damper clutch control solenoid
valve. (Refer to

P.23A-155

).
