REAR WINDOW DEFOGGER

CIRCUIT DIAGRAMS

90-61

REAR WINDOW DEFOGGER

REAR WINDOW DEFOGGER <VEHICLES
WITH MANUAL AIR CONDITIONER>

M1901006401513

IGNITION
SWITCH (IG2)

FUSIBLE
LINK

6

ETACS-ECU

TAIL LAMP
RELAY

REAR WINDOW
DEFOGGER
RELAY

COMBINATION METER

DEFOGGER DRIVE CIRCUIT

METER AND A/C-ECU

A/C CONTROL CIRCUIT

POWER
SOURCE

DEFOGGER SWITCH

REAR WINDOW
DEFOGGER

HEATER
CONTROL
ASSEMBLY

Main

Index

Group

TOC

REAR WINDOW DEFOGGER

CIRCUIT DIAGRAMS

90-62

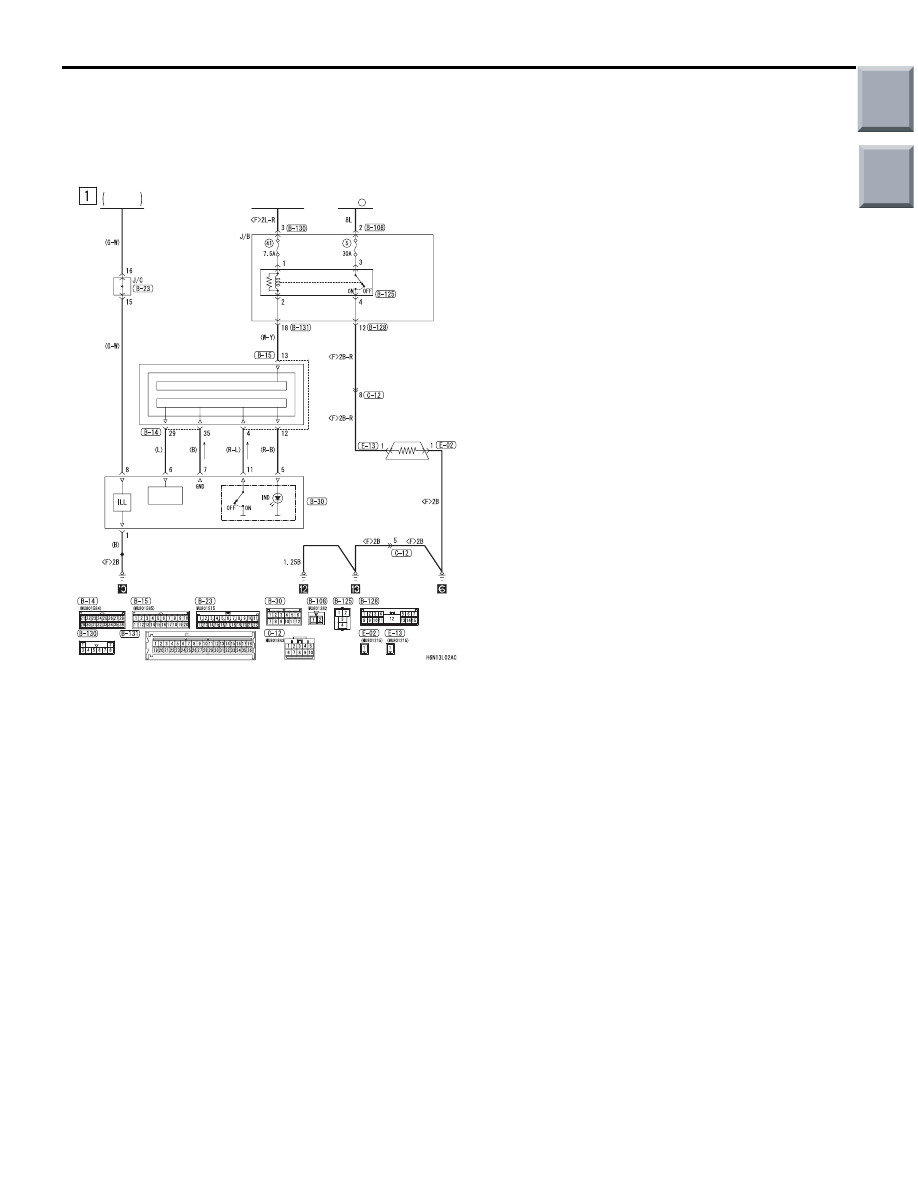

REAR WINDOW DEFOGGER <VEHICLES
WITH AUTOMATIC AIR CONDITIONER>

M1901006401535

IGNITION
SWITCH (IG2)

ETACS-ECU

TAIL LAMP
RELAY

REAR WINDOW
DEFOGGER
RELAY

COMBINATION METER

DEFOGGER DRIVE CIRCUIT

METER AND A/C-ECU

A/C CONTROL CIRCUIT

POWER
SOURCE

DEFOGGER
SWITCH

REAR WINDOW
DEFOGGER

HEATER
CONTROL
ASSEMBLY

FUSIBLE
LINK

6

Main

Index

Group

TOC

ELECTRIC RETRACTABLE REMOTE CONTROLLED MIRROR

CIRCUIT DIAGRAMS

90-63

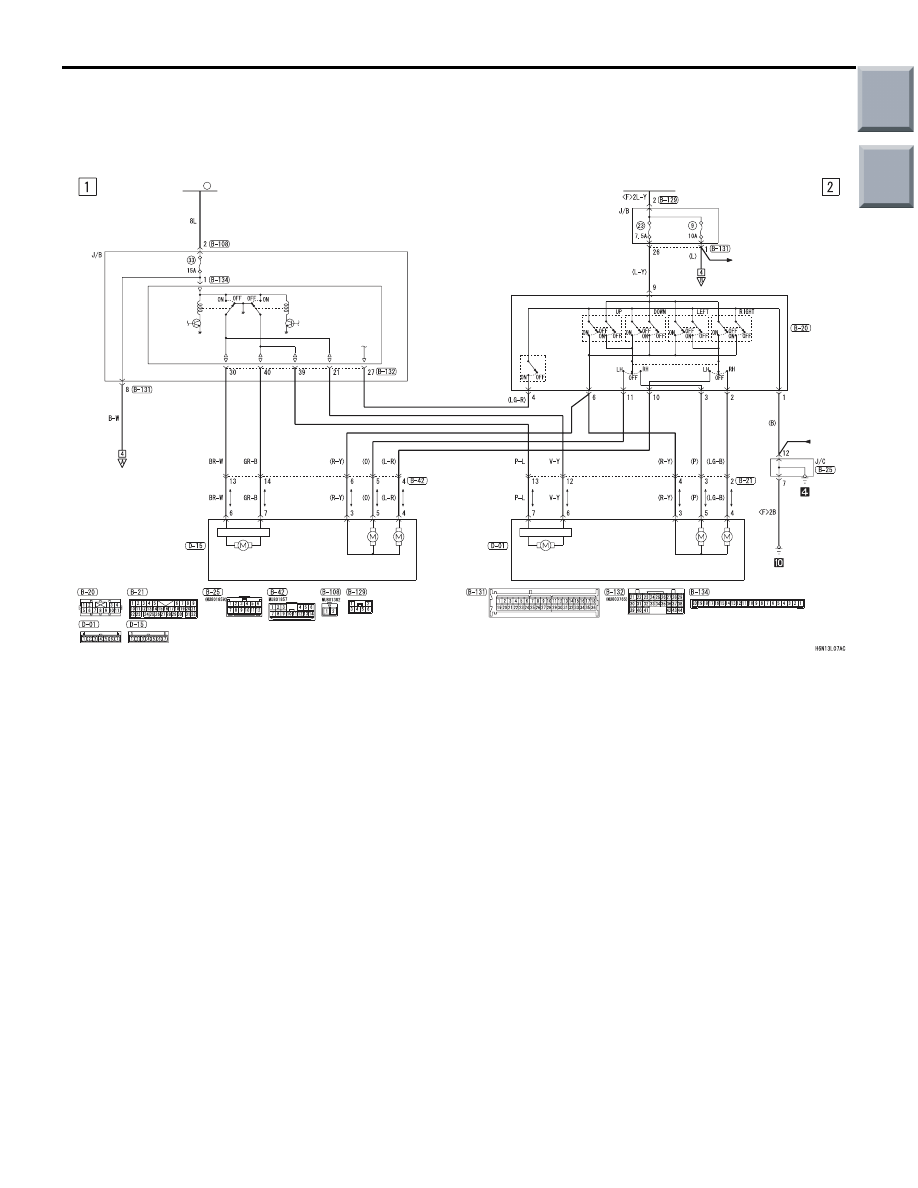

ELECTRIC RETRACTABLE REMOTE CONTROLLED

MIRROR

M1901006600343

FUSIBLE
LINK

IGNITION
SWITCH (ACC)

6

ETACS-ECU

DOOR
MIRROR
FOLD RELAY

DOOR
MIRROR
UNFOLD
RELAY

DOOR
MIRROR
ASSEMBLY
(LH)

UNFOLD/FOLD
MOTOR

VERTICAL
MOVEMENT
MOTOR

HORIZONTAL
MOVEMENT
MOTOR

DOOR
MIRROR
ASSEMBLY
(RH)

UNFOLD/FOLD
MOTOR

VERTICAL
MOVEMENT
MOTOR

HORIZONTAL
MOVEMENT
MOTOR

FOLD
SWITCH

OPERATION
SWITCH

RIGHT/LEFT
CHANGE-
OVER
SWITCH

REMOTE
CONTROLLED
MIRROR
SWITCH

J/B SIDE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

AUDIO
SYSTEM

CIGARETTE
LIGHTER

Main

Index

Group

TOC

ELECTRIC RETRACTABLE REMOTE CONTROLLED MIRROR

CIRCUIT DIAGRAMS

90-64

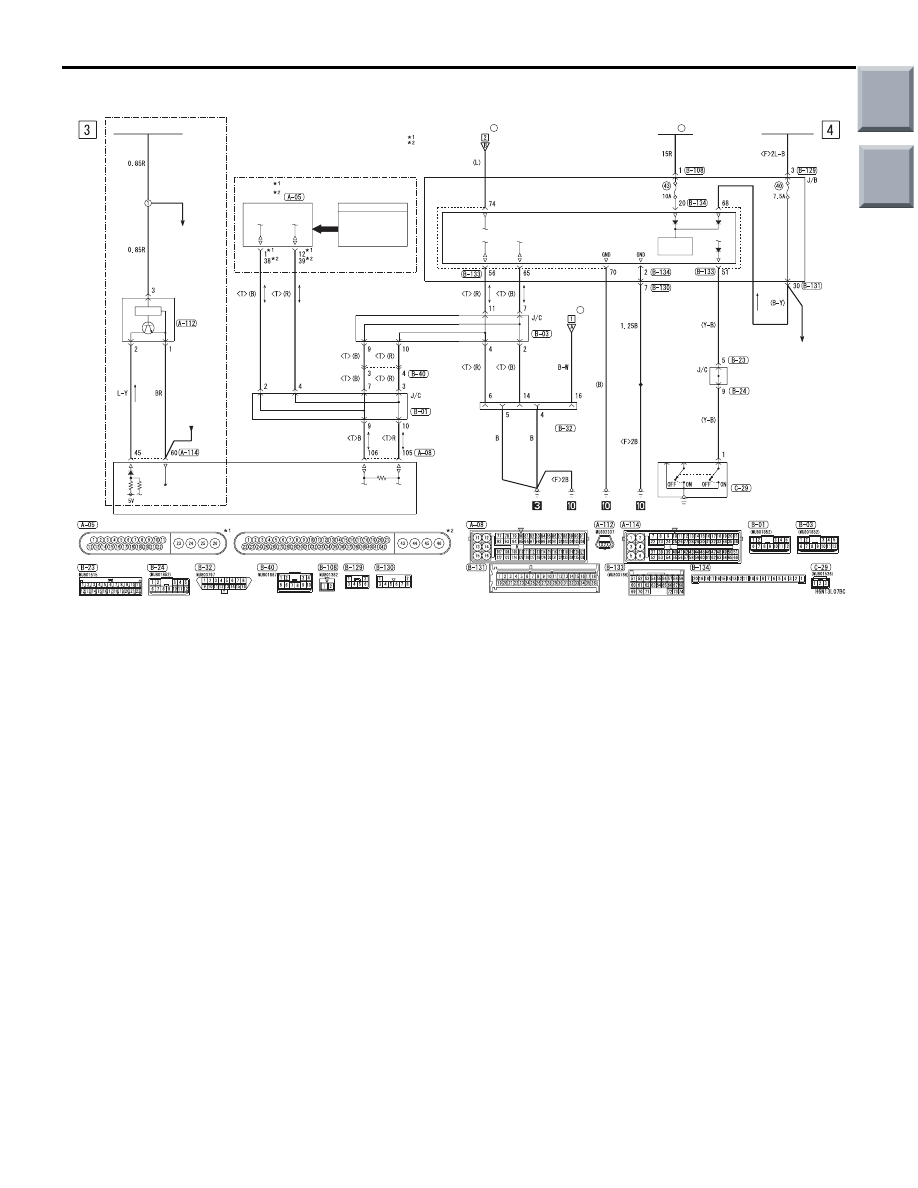

ELECTRIC RETRACTABLE REMOTE CONTROLLED MIRROR (CONTINUED)

ETACS-ECU

POWER
SOURCE

FUSIBLE
LINK

1

IGNITION
SWITCH (IG1)

DOOR
SWITCH
(FRONT: RH)

DIAGNOSIS
CONNECTOR

FRONT
SIDE

J/B SIDE

ENGINE
CONTROL RELAY

SECONDARY
SPEED
SENSOR

INVECS-III CVT

·ENGINE CONTROL
 SYSTEM
·INVECS-III CVT

(CAN2)

(CAN1)

(FUSE     )

33

J/B

·FOG LAMP
·HEADLAMP
·METER AND GAUGE
·REAR WIPER AND WASHER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER AND
 WASHER

(FUSE     )

9

J/B

ENGINE-
CVT-ECU
<CVT>
ENGINE-
ECU
<M/T>

ABS-ECU

<CVT>

ASC-ECU

INPUT SIGNAL

·FRONT WHEEL
 SPEED SENSOR
·REAR WHEEL
 SPEED SENSOR

<M/T>

NOTE

: 4A91
: 4G15
