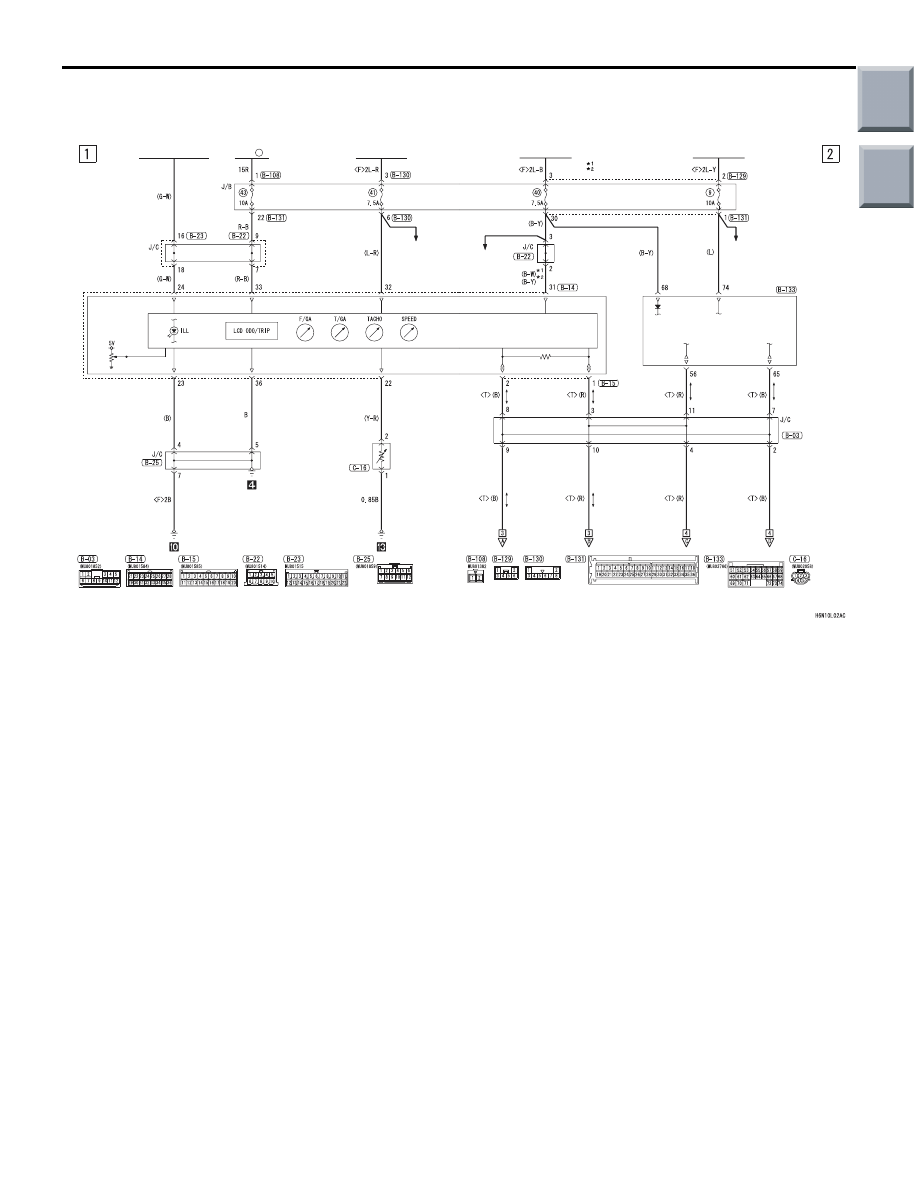

METER AND GAUGE

CIRCUIT DIAGRAMS

90-45

METER AND GAUGE

M1901003502837

FUSIBLE
LINK

1

IGNITION
SWITCH (IG2)

IGNITION
SWITCH (IG1)

ETACS-ECU

(TAIL LAMP RELAY)

COMBINATION
METER

METER AND A/C-ECU

FUEL PUMP
AND GAUGE
UNIT

·AUTOMATIC AIR
 CONDITIONER
·MANUAL AIR
 CONDITIONER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

IGNITION
SWITCH (ACC)

ILLUMINATION
CONTROL
KNOB

AUDIO
SYSTEM

(CAN1)

ETACS-ECU

ABS AND ASC
<4G15>

NOTE

: VEHICLES WITH MANUAL A/C
: VEHICLES WITH AUTOMATIC A/C

Main

Index

Group

TOC

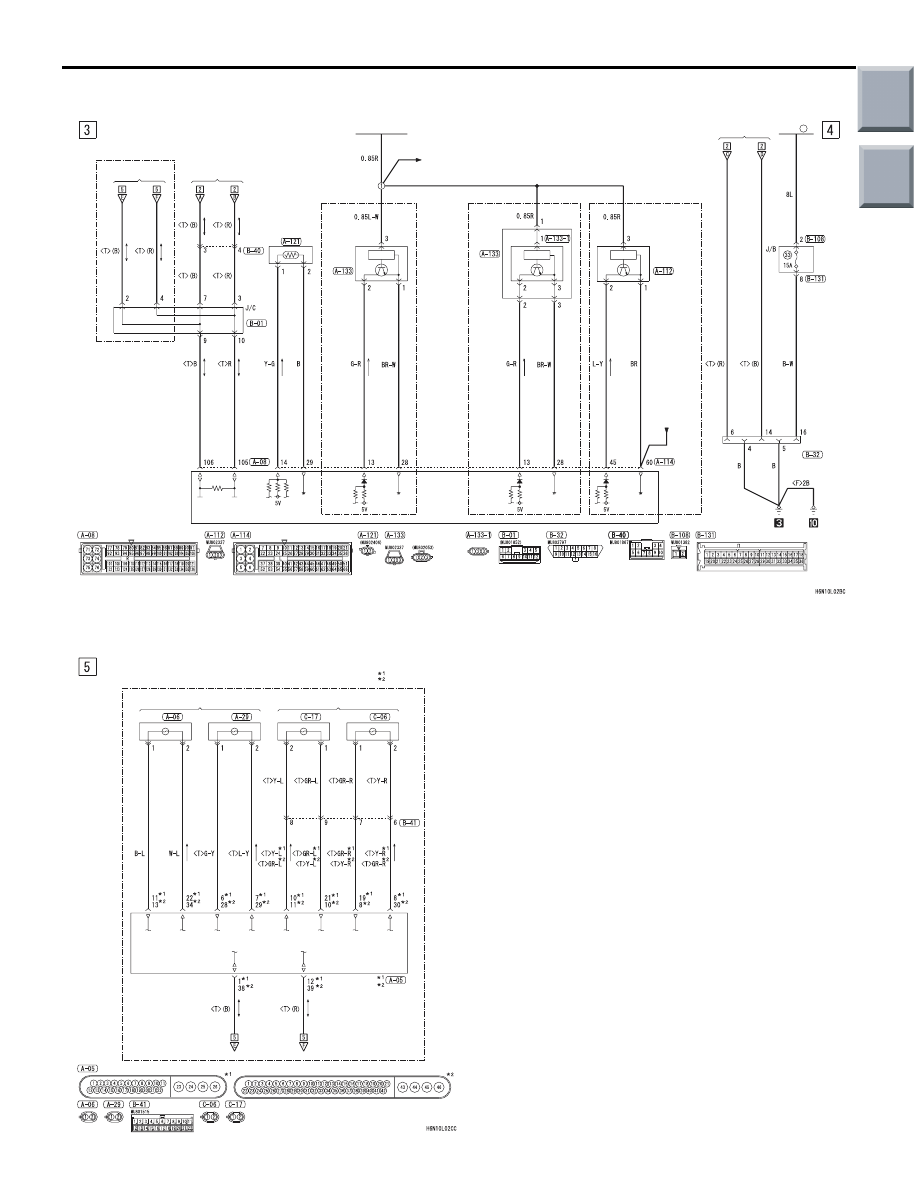

METER AND GAUGE

CIRCUIT DIAGRAMS

90-46

METER AND GAUGE (CONTINUED)

ENGINE
COOLANT
TEMPERATURE
SENSOR

DIAGNOSIS
CONNECTOR

ENGINE
CONTROL
RELAY

CRANK
ANGLE
SENSOR

·ENGINE
 CONTROL
 SYSTEM
·INVECS-III
 CVT

CRANK
ANGLE
SENSOR

SECONDARY
SPEED
SENSOR

INVECS-III
CVT

ENGINE-
CVT-ECU
<CVT>
ENGINE-
ECU
<M/T>

FUSIBLE
LINK

6

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

FRONT
SIDE

<4A91>

<4G15>

<CVT>

<M/T>

<4A91>

<4G15>

<4G15>

(CAN2)

J/C (CAN1)

J/C (CAN1)

ABS-ECU OR
ASC-ECU

METER AND GAUGE (CONTINUED)

FRONT WHEEL SPEED SENSOR

<M/T>

REAR WHEEL SPEED SENSOR

(LH)

(LH)

(RH)

(RH)

ABS-ECU
ASC-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue    W : White
Y : Yellow     SB : Sky blue     BR : Brown    O : Orange
GR : Grey     R : Red     P : Pink     V : Violet    PU : Purple

NOTE

: 4A91
: 4G15

Main

Index

Group

TOC

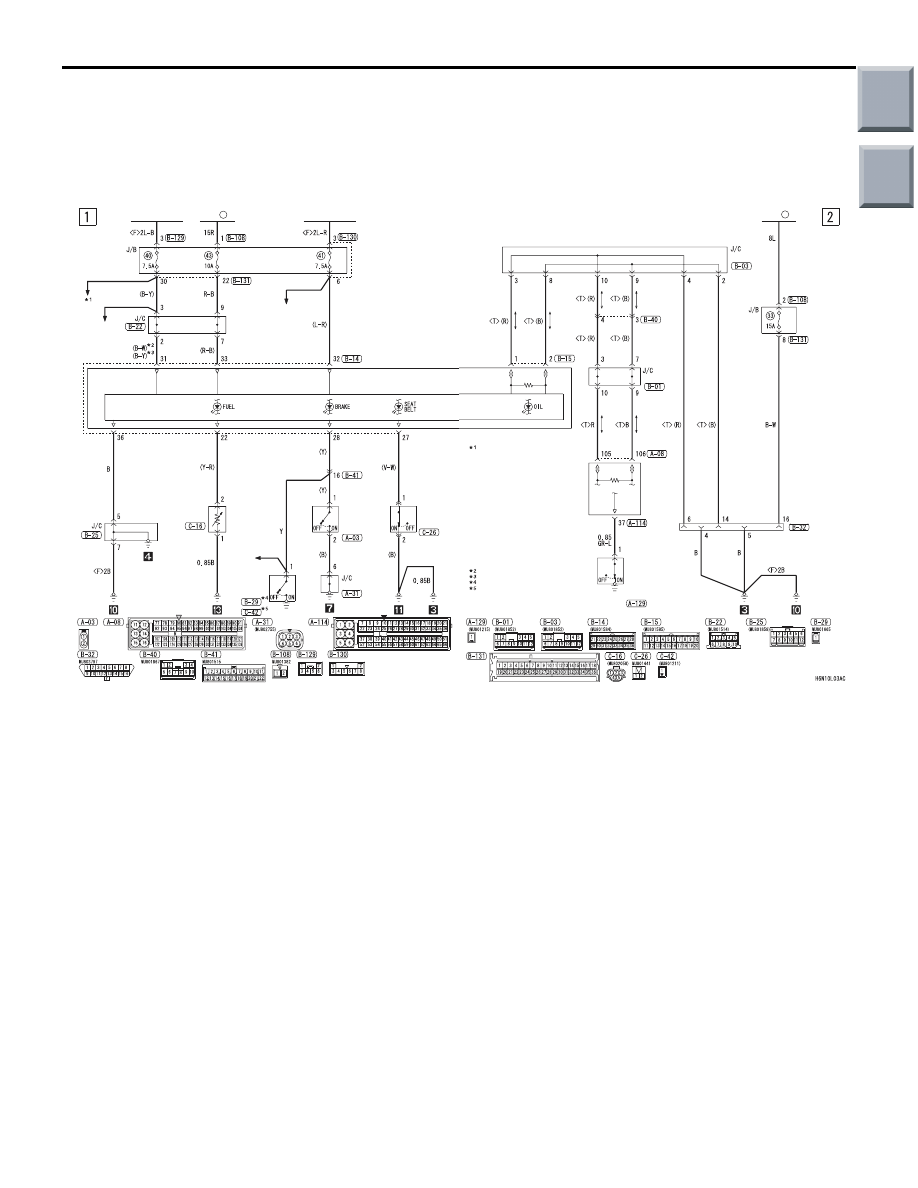

FUEL WARNING LAMP, OIL PRESSURE WARNING LAMP SEAT BELT WARNING LAMP AND BRAKE WARNING LAMP

CIRCUIT DIAGRAMS

90-47

FUEL WARNING LAMP, OIL PRESSURE WARNING LAMP

SEAT BELT WARNING LAMP AND BRAKE WARNING

LAMP

M1901011801777

FUSIBLE
LINK

1

IGNITION
SWITCH (IG2)

IGNITION
SWITCH (IG1)

·AUTOMATIC AIR
 CONDITIONER
·MANUAL AIR
 CONDITIONER

FUSIBLE
LINK

ENGINE-
CVT-ECU
<CVT>
ENGINE-
ECU
<M/T>

DIAGNOSIS
CONNECTOR

FRONT
SIDE

6

FUEL PUMP
AND GAUGE
UNIT

COMBINATION METER

METER AND A/C-ECU

BRAKE
FLUID
LEVEL
SWITCH

SEAT
BELT
SWITCH

PARKING
BRAKE
SWITCH

(EARTH 7)

 (CAN2)

·BACK-UP LAMP
·CAN
·CENTRAL DOOR
 LOCKING SYSTEM
·DOOR AJAR WARNING BUZZER
·ELECTRIC RETRACTABLE
 REMOTE CONTROLLED MIRROR
·FOG LAMP
·HEADLAMP
·METER AND GAUGE
·POWER WINDOWS
·REAR WIPER AND WASHER
·ROOM LAMP, LUGGAGE
 COMPARTMENT LAMP AND
 IGNITION KEY CYLINDER
 ILLUMINATION LAMP
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP AND
 LIGHTING MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER AND
 WASHER

:

 (CAN1)

ABS AND ASC
<4G15>

ABS AND
ASC
<4G15>

:
:

NOTE

VEHICLES WITH AUTOMATIC A/C

VEHICLES WITH MANUAL A/C

:
:  4G15

4A91

OIL PRESSURE
SWITCH
(WHEN THE
 HYDRAULIC
 PRESSURE IS
 LOW : ON)

Main

Index

Group

TOC

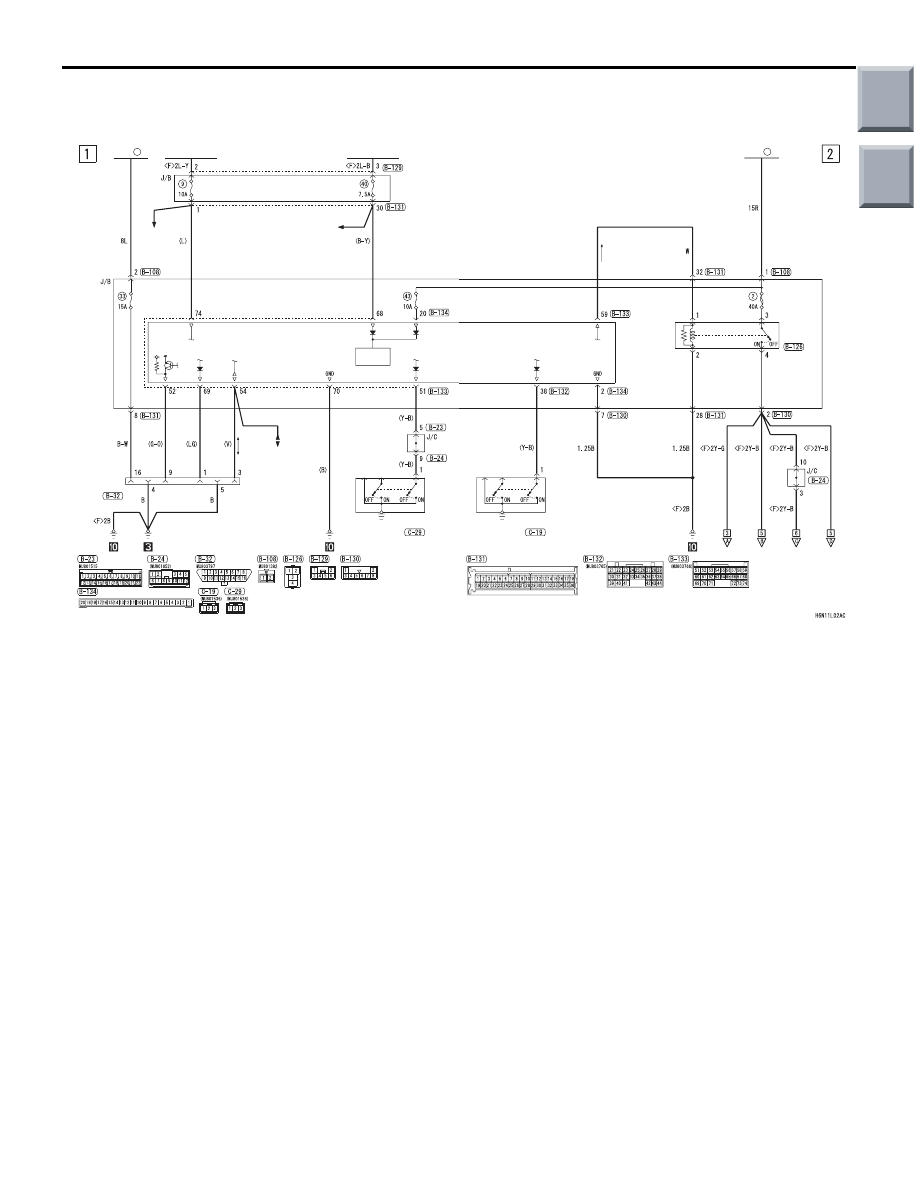

POWER WINDOWS

CIRCUIT DIAGRAMS

90-48

POWER WINDOWS

M1901004602688

FUSIBLE
LINK

FUSIBLE
LINK

1

IGNITION
SWITCH (ACC)

IGNITION
SWITCH (IG1)

POWER
SOURCE

DOOR SWITCH
(FRONT: RH)

DIAGNOSIS
CONNECTOR

·FOG LAMP
·HEADLAMP
·REAR WIPER
 AND WASHER
·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE LAMP
 AND LIGHTING MONITOR
 BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER AND
 WASHER

FRONT
SIDE

POWER
WINDOW
RELAY

J/B SIDE

ETACS-ECU

6

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

AUDIO
SYSTEM

·FOG LAMP
·HEADLAMP
·METER AND GAUGE
·REAR WIPER AND WASHER
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP AND
 LIGHTING MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER AND WASHER

DOOR SWITCH
(FRONT: LH)
