HEADLAMP

CIRCUIT DIAGRAMS

90-29

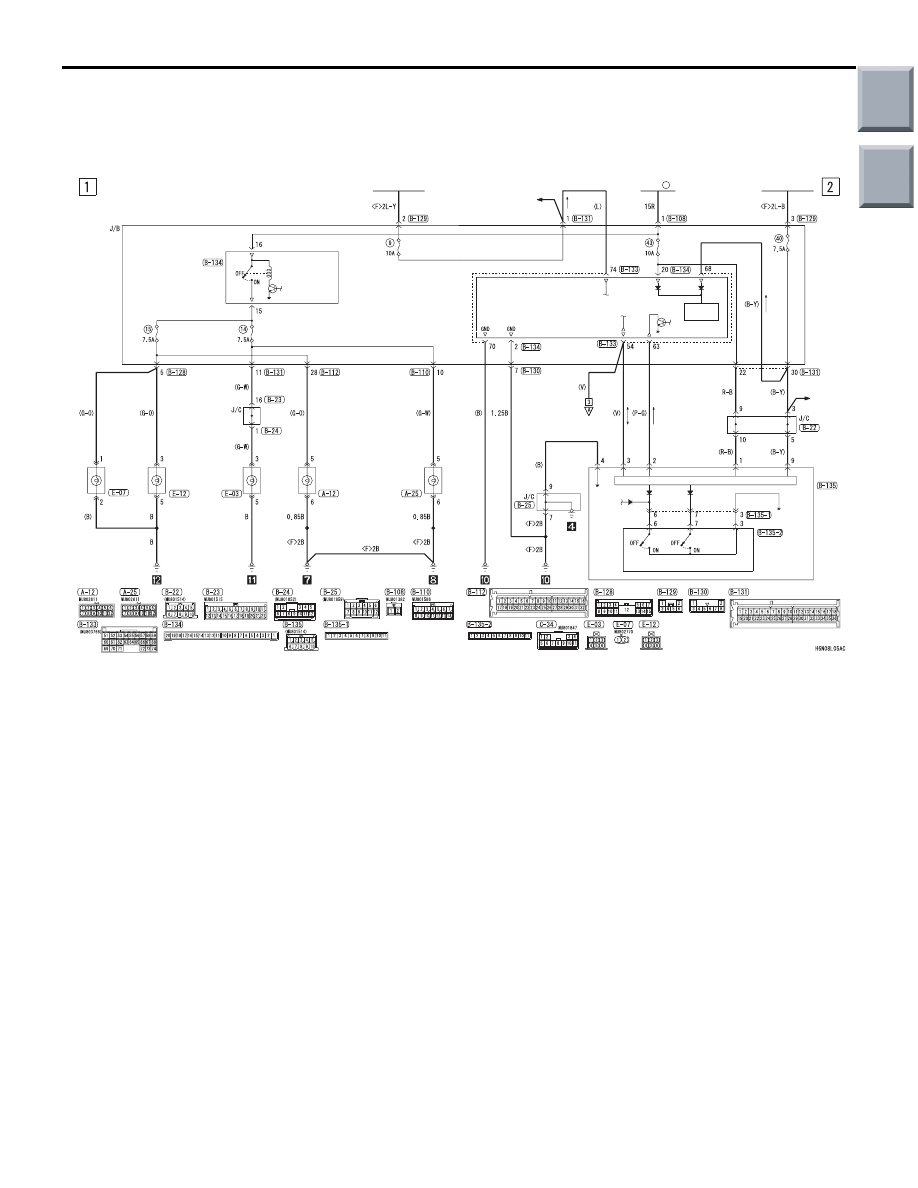

HEADLAMP

M1901001502886

HEADLAMP
RELAY (HI)

HEADLAMP
RELAY (LO)

FRONT
COMBINATION
LAMP
(HEAD : LH)

FRONT
COMBINATION
LAMP
(HEAD : RH)

COLUMN SWITCH

COLUMN-ECU

DIMMER·PASSING SWITCH

LIGHTING SWITCH

POWER
SOURCE

ETACS-ECU

IGNITION
SWITCH (ACC)

FUSIBLE
LINK

1

IGNITION
SWITCH (IG1)

J/B SIDE

(DIMMER)

(PASSING)

UPPER SIDE

UPPER SIDE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

AUDIO
SYSTEM

(TAIL)

(HEAD)

ABS AND
ASC
<4G15>

Main

Index

Group

TOC

HEADLAMP

CIRCUIT DIAGRAMS

90-30

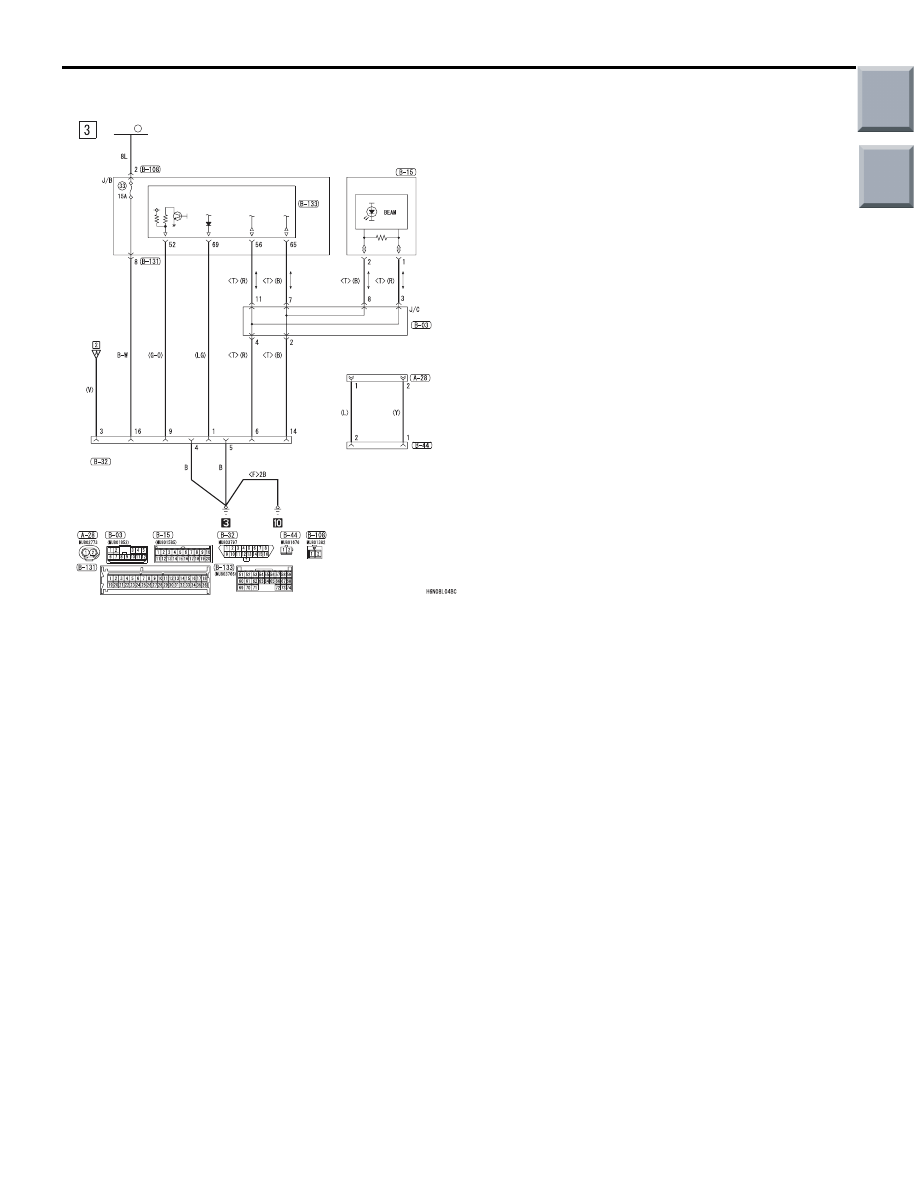

HEADLAMP (CONTINUED)

6

FUSIBLE
LINK

COMBINATION
METER

DIAGNOSIS
CONNECTOR

ETACS-
ECU

ETACS-
ECU

METER AND
A/C-ECU

(CAN1)

SPARE CONNECTOR
(FOR HEADLAMP CONTROL)

SPARE CONNECTOR
(FOR HEADLAMP CONTROL)

FRONT
SIDE

Main

Index

Group

TOC

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND LIGHTING MONITOR BUZZER

CIRCUIT DIAGRAMS

90-31

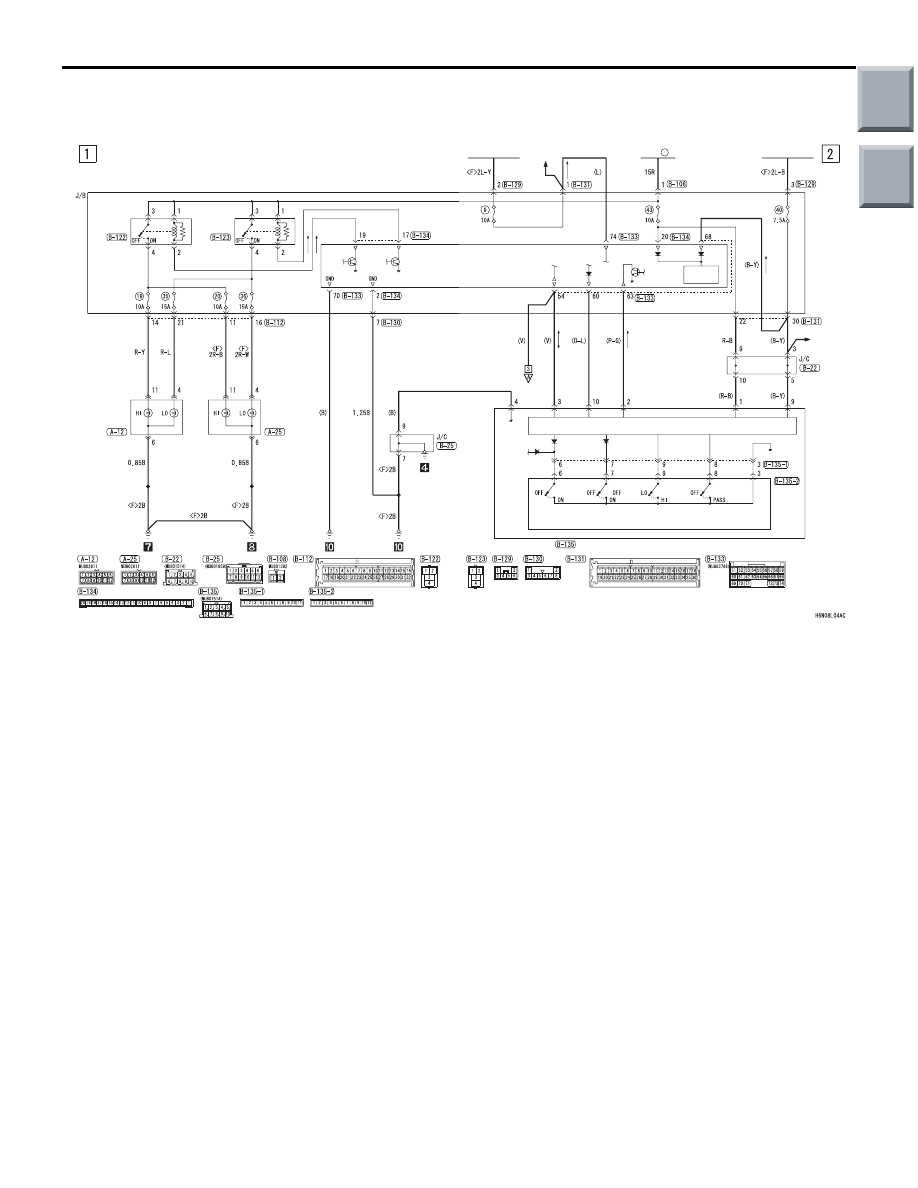

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND

LIGHTING MONITOR BUZZER

M1901001701445

TAILLAMP
RELAY

REAR
COMBINATION LAMP
(TAIL : LH)

FRONT
COMBINATION LAMP
(POSITION : LH)

COLUMN-ECU

LIGHTING SWITCH

POWER
SOURCE

ETACS-ECU

IGNITION
SWITCH (ACC)

FUSIBLE
LINK

1

IGNITION
SWITCH (IG1)

J/B SIDE

UPPER SIDE

UPPER SIDE

AUDIO
SYSTEM

(HEAD)

(TAIL :RH)

LICENCE
PLATE
LAMP

(POSITION : RH)

(TAIL)

ABS AND
ASC
<4G15>

ETACS-ECU

Main

Index

Group

TOC

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND LIGHTING MONITOR BUZZER

CIRCUIT DIAGRAMS

90-32

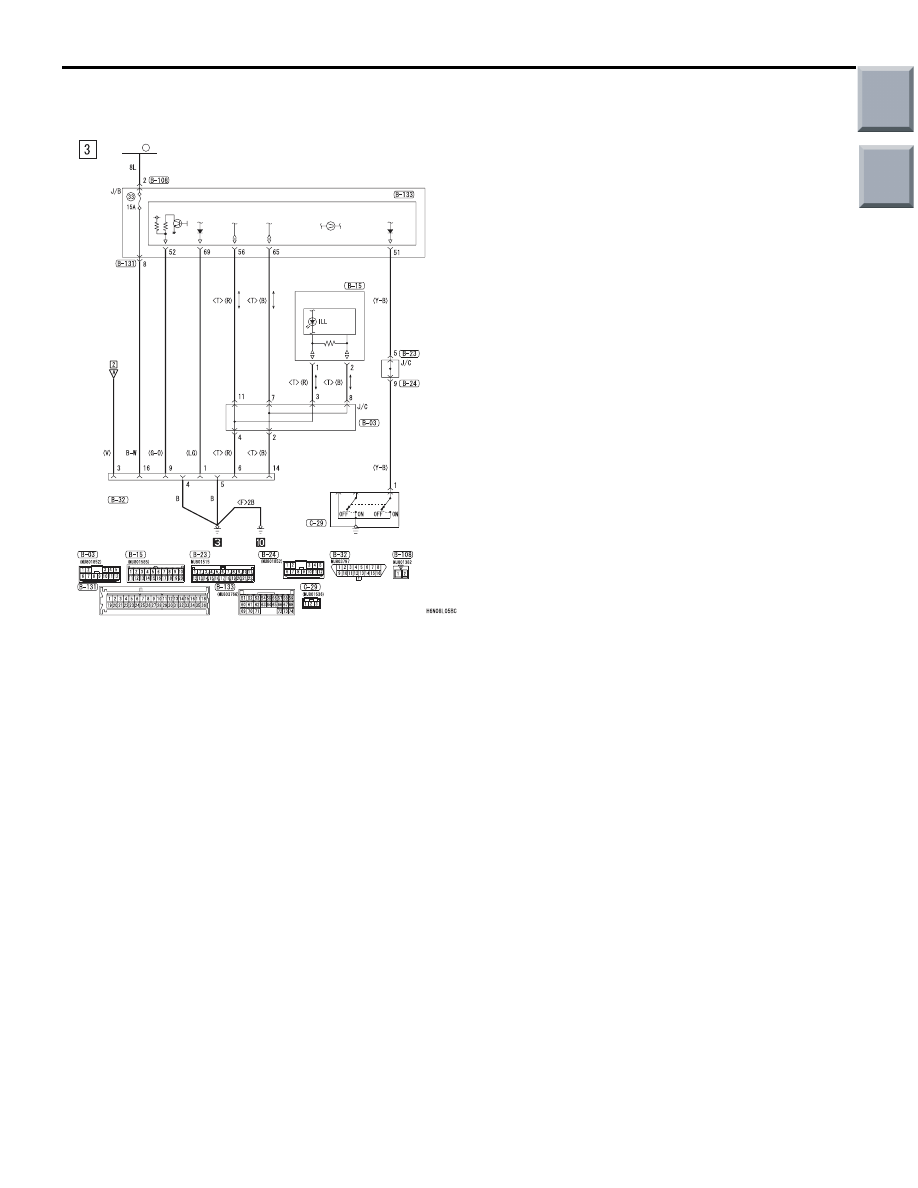

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND LIGHTING MONITOR BUZZER (CONTIN-
UED)

6

FUSIBLE
LINK

COMBINATION
METER

DIAGNOSIS
CONNECTOR

ETACS-ECU

ETACS-
ECU

METER AND
A/C-ECU

BUZZER

(CAN1)

FRONT
SIDE

DOOR
SWITCH
(FRONT:
 RH)
