RELAY

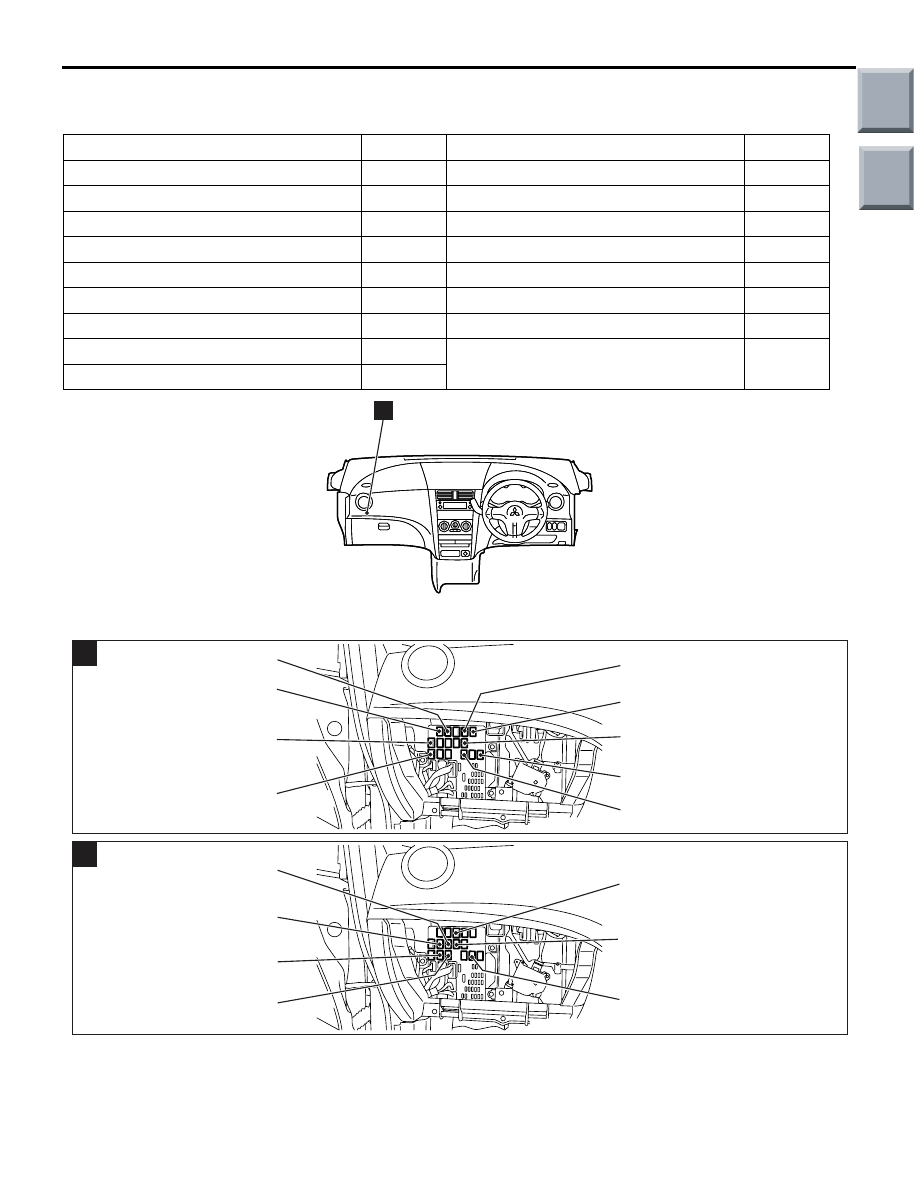

COMPONENT LOCATIONS

70-12

RELAY

M1701000400994

Name

Symbol

Name

Symbol

A/C compressor relay

A

Fuel pump relay 2

A

Blower relay

A

Headlamp relay (HI)

A

Cooling fan control relay <4A91>

A

Headlamp relay (LO)

A

Cooling fan control relay (HI) <4G15>

A

Horn relay

A

Cooling fan control relay (LO) <4G15> A

Power window relay

A

CVT control relay

A

Rear window defogger relay

A

Engine control relay

A

Starter relay <M/T>

A

Fog lamp relay

A

Throttle valve control servo relay

A

Fuel pump relay 1

A

AC208575

AC208575

AC

A

AC600963

AB

A

Horn relay

Fuel pump relay 2

Engine control relay

Cooling fan control
relay <4A91> or
cooling fan control
relay (LO) <4G15>

CVT control relay

Throttle valve
control servo relay

Headlamp relay (LO)

Cooling fan
control relay
(HI) <4G15>

Starter relay <M/T>

AC600963

AC

A

A/C compressor relay

Fuel pump relay 1

Blower relay

Fog lamp relay

Headlamp relay (HI)

Rear window
defogger relay

Power window relay

Main

Index

Group

TOC

INSPECTION CONNECTOR AND SPARE CONNECTOR

COMPONENT LOCATIONS

70-13

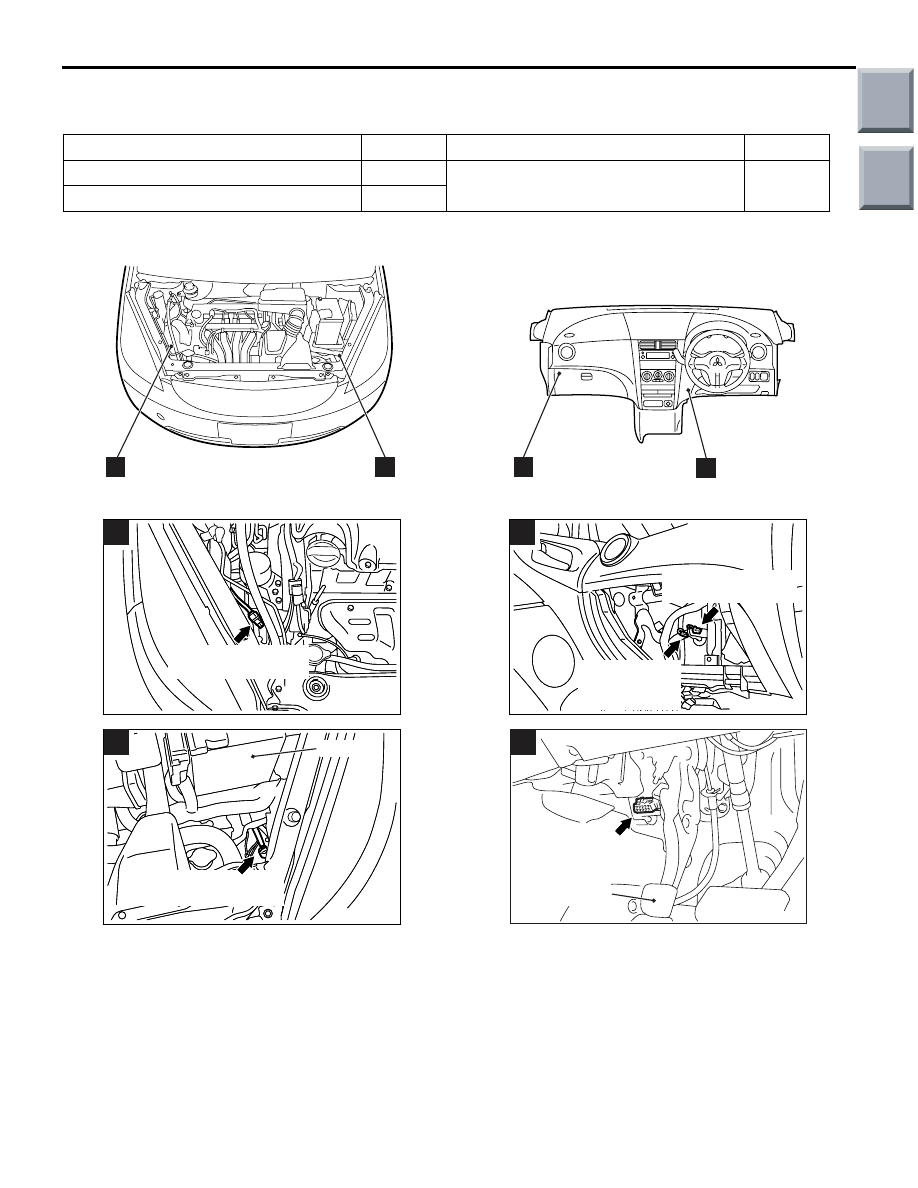

INSPECTION CONNECTOR AND SPARE CONNECTOR

M1701000200699

Name

Symbol

Name

Symbol

Diagnosis connector

D

Spare connector (for remote control
pole)

B, C

Spare connector (for headlamp control) A, C

AC402864AH

B

A

C

D

AC207480

AC207480

AC

Spare connector
(for headlamp control)

A

AC206893

AC206893

AC

Spare connector
(for remote control pole)

B

Battery

AC206966

AC206966

AC

Spare connector
(for remote
control pole)

Spare connector
(for headlamp control)

C

AC206506AG

Diagnosis
connector

Parking brake
pedal

D

Main

Index

Group

TOC

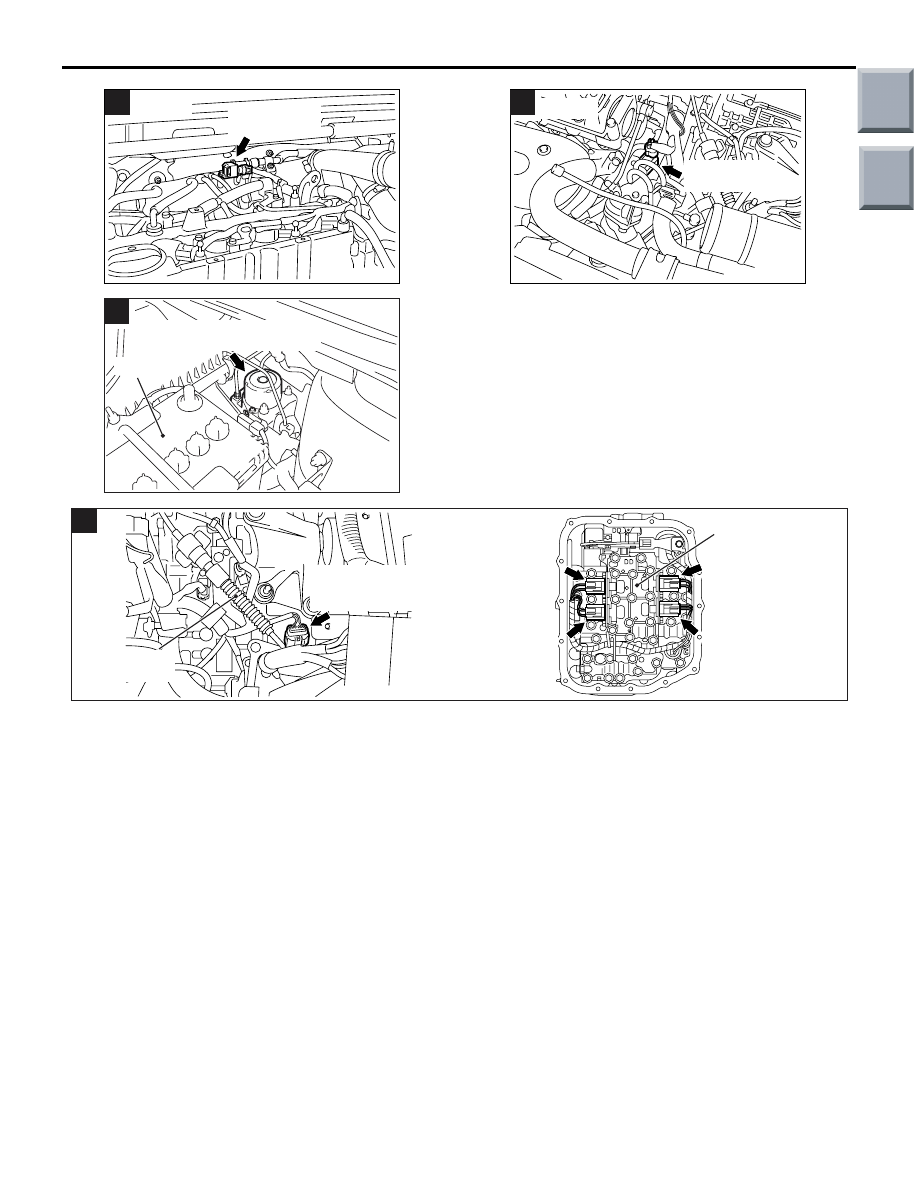

SOLENOID VALVE

COMPONENT LOCATIONS

70-14

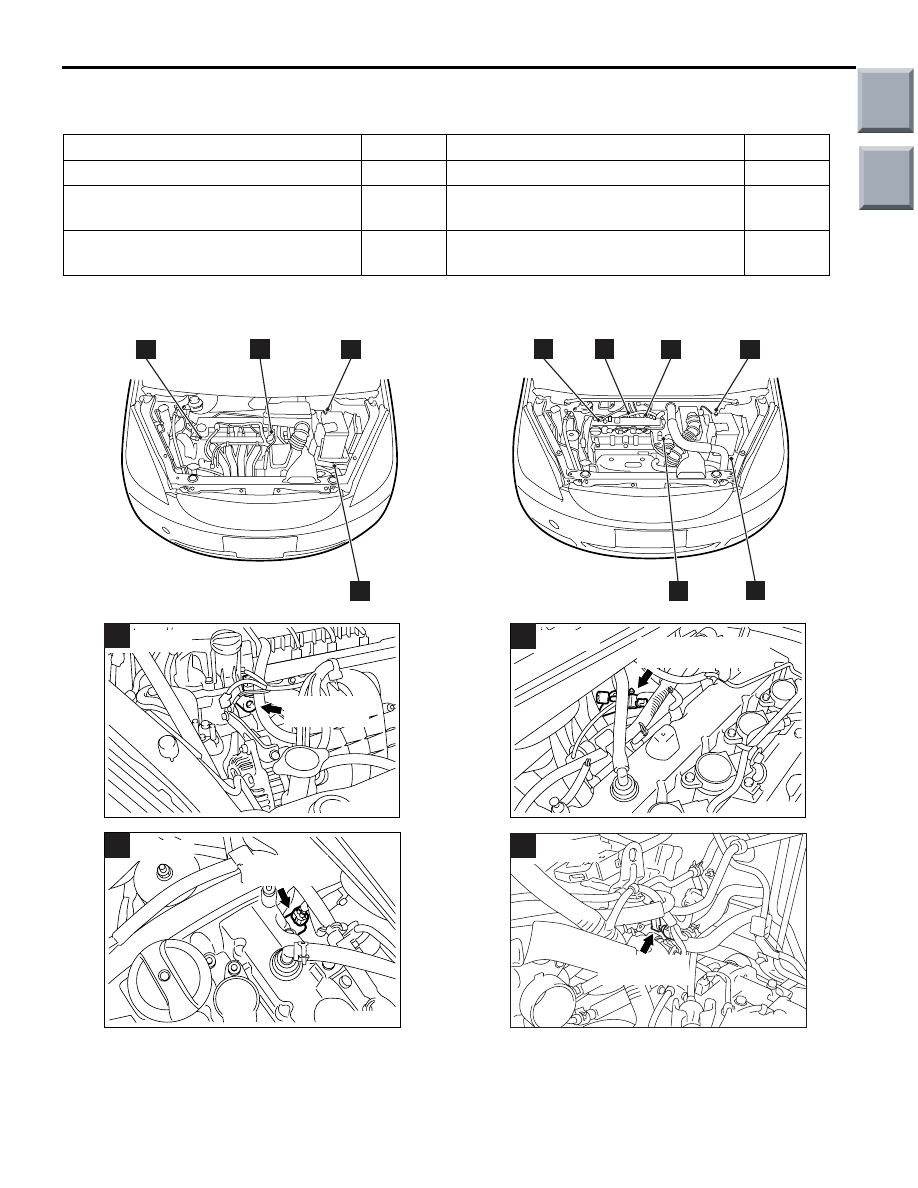

SOLENOID VALVE

M1701000800828

Name

Symbol

Name

Symbol

CVT control solenoid valve assembly

F

Oil feeder control valve

A

Fuel pressure control solenoid valve
<4G15>

B

Purge control solenoid valve

C

Hydraulic unit (incorporating solenoid
valve)

D

Wastegate solenoid valve <4G15>

E

AC402858

AJ

<4A91>

<4G15>

A

A

B

D

F

C

E

F

D

C

AC402651

AC

Oil feeder
control valve

A

<4A91>

AC402713

AE

Oil feeder
control valve

A

<4G15>

AC402576

AC

Fuel pressure control
solenoid valve

<4G15>

B

AC402815AD

Purge control
solenoid valve

<4A91>

C

Main

Index

Group

TOC

AC402583

AC

Purge control
solenoid valve

<4G15>

C

AC207290AE

Hydraulic unit
(incorporating solenoid valve)

D

Battery

AC402574

AD

Wastegate
solenoid valve

<4G15>

E

AC403003

AD

CVT control solenoid
valve assembly

CVT control solenoid
valve assembly
connector

Transmission
control cable

F

Damper clutch
control solenoid
valve

Shift control
solenoid vale

Clutch pressure control
solenoid vale

Line pressure control
solenoid vale
