INLET MANIFOLD

INTAKE AND EXHAUST

15-12

INSTALLATION SERVICE POINT
>>A<< SCREW INSTALLATION

CAUTION

Do not over-tighten. As the self-forming-type
screw is used, the excessive torque can damage
the inlet manifold threads.

REMOVAL AND INSTALLTION <4G1>

M1151003001838

Pre-removal Operation
• Cowl Top Panel Removal (Refer to GROUP42, Loose

Panel

P.42-81

).

• Engine Coolant Draining (Refer to GROUP14, On-vehicle

Service

− Engine Coolant Replacement

P.14-6

).

• Air Cleaner Assembly, Air Intake Duct Removal (Refer to

P.15-6

).

• Air Hose C, Air Pipe B, Air Hose D Removal (Refer to

P.15-8

).

• Throttle Body Removal (Refer to GROUP 13B, Throttle

Body Assembly

P.13B-373

).

• Fuel Injector Removal (Refer to GROUP 13B, Injector

P.13B-370

).

Post-installation Operation
• Fuel Injector Installation (Refer to GROUP 13B, Injector

P.13B-370

).

• Throttle Body Installation (Refer to GROUP 13B, Throttle

Body Assembly

P.13B-373

).

• Air Hose C, Air Pipe B, Air Hose D Installation (Refer to

P.15-8

).

• Air Cleaner Assembly, Air Intake Duct Installation (Refer

to

P.15-6

).

• Engine Coolant Refilling (Refer to GROUP14, On-vehicle

Service

− Engine Coolant Replacement

P.14-6

).

• Cowl Top Panel Installation (Refer to GROUP42, Loose

Panel

P.42-81

).

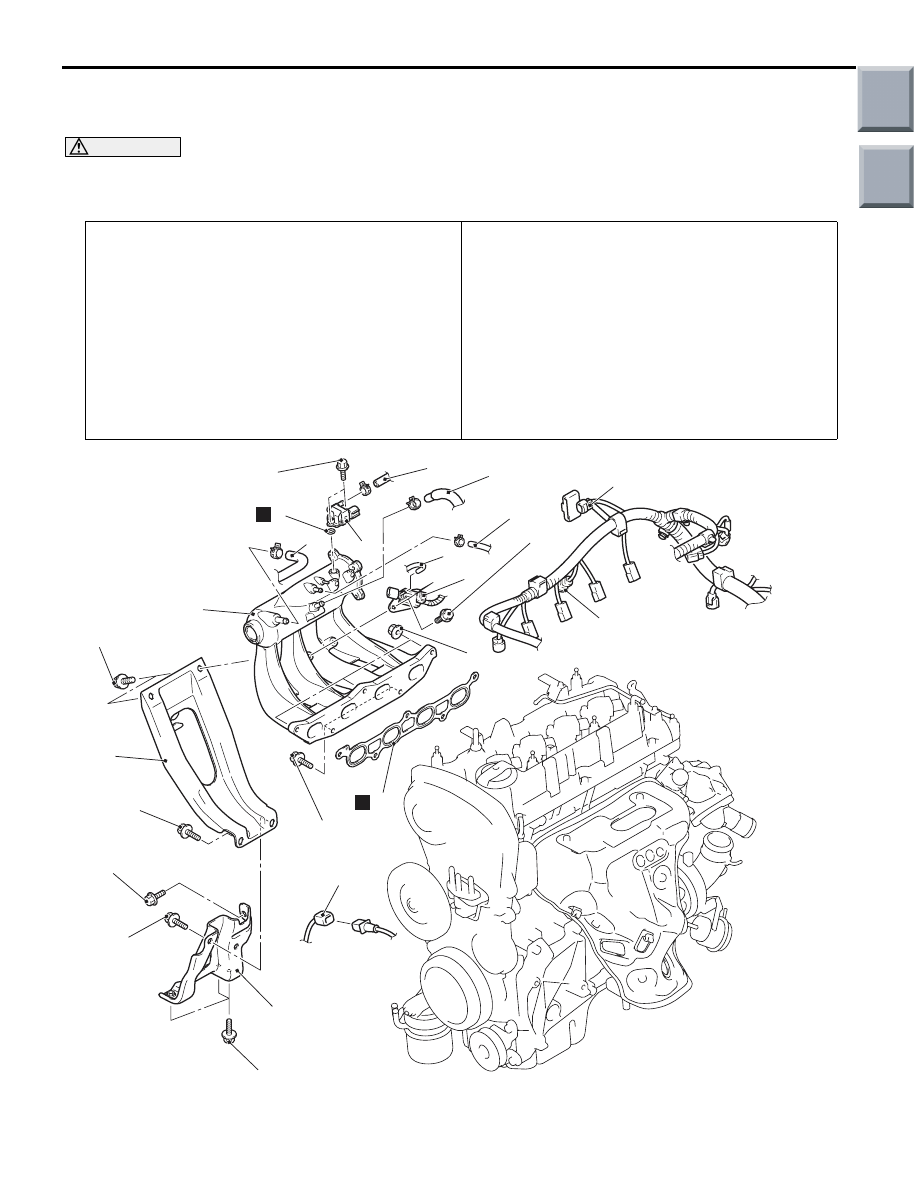

AC405187

N

1

5.0 ± 1.0 N·m

2

3

4

5

6

7

9

8

10

11

13

14

15

N

9.0 ± 1.0 N·m

18 ± 2 N·m

18 ± 2 N·m

18 ± 2 N·m

31 ± 3 N·m

12

AB

48 ± 2 N·m

24 ± 4 N·m

48 ± 6 N·m

Main

Index

Group

TOC

Removal steps

1.

Purge control solenoid valve
connector

2.

Fuel pressure solenoid valve
connector

3.

Fuel vapour control hose
connection

4.

Purge control solenoid valve

5.

O-ring

6.

Vacuum hose connection

7.

PCV hose connection

8.

Fuel pressure solenoid valve

9.

Vacuum hose connection

10. Brake booster vacuum hose

connection

11. Detonation sensor connector
12. Bracket
13. Inlet manifold stay
14. Inlet manifold
15. Inlet manifold gasket

INLET MANIFOLD

INTAKE AND EXHAUST

15-13

INSPECTION

M1151003100832

Check the following points; replace the part if a prob-
lem is found.

INLET MANIFOLD CHECK

1. Check for damage or cracking of any part.
2. Clogging of the negative pressure (vacuum) outlet

port, or clogging of the exhaust gas recirculation
passages.

3. Using a straight edge and feeler gauge, check for

distortion of the cylinder head installation surface.
Standard value: 0.15 mm or less
Limit: 0.20 mm

Removal steps (Continued)

Main

Index

Group

TOC

EXHAUST MANIFOLD

INTAKE AND EXHAUST

15-14

EXHAUST MANIFOLD

REMOVAL AND INSTALLATION <4A9>

M1151003301464

Pre-removal Operation
• Cowl Top Panel Removal (Refer to GROUP42, Loose

Panel

P.42-81

).

• Front Exhaust Pipe Removal (Refer to GROUP 15

P.15-19

).

Post-installation Operation
• Front Exhaust Pipe Installation (Refer to GROUP15

P.15-19

).

• Cowl Top Panel Installation (Refer to GROUP42, Loose

Panel

P.42-81

).

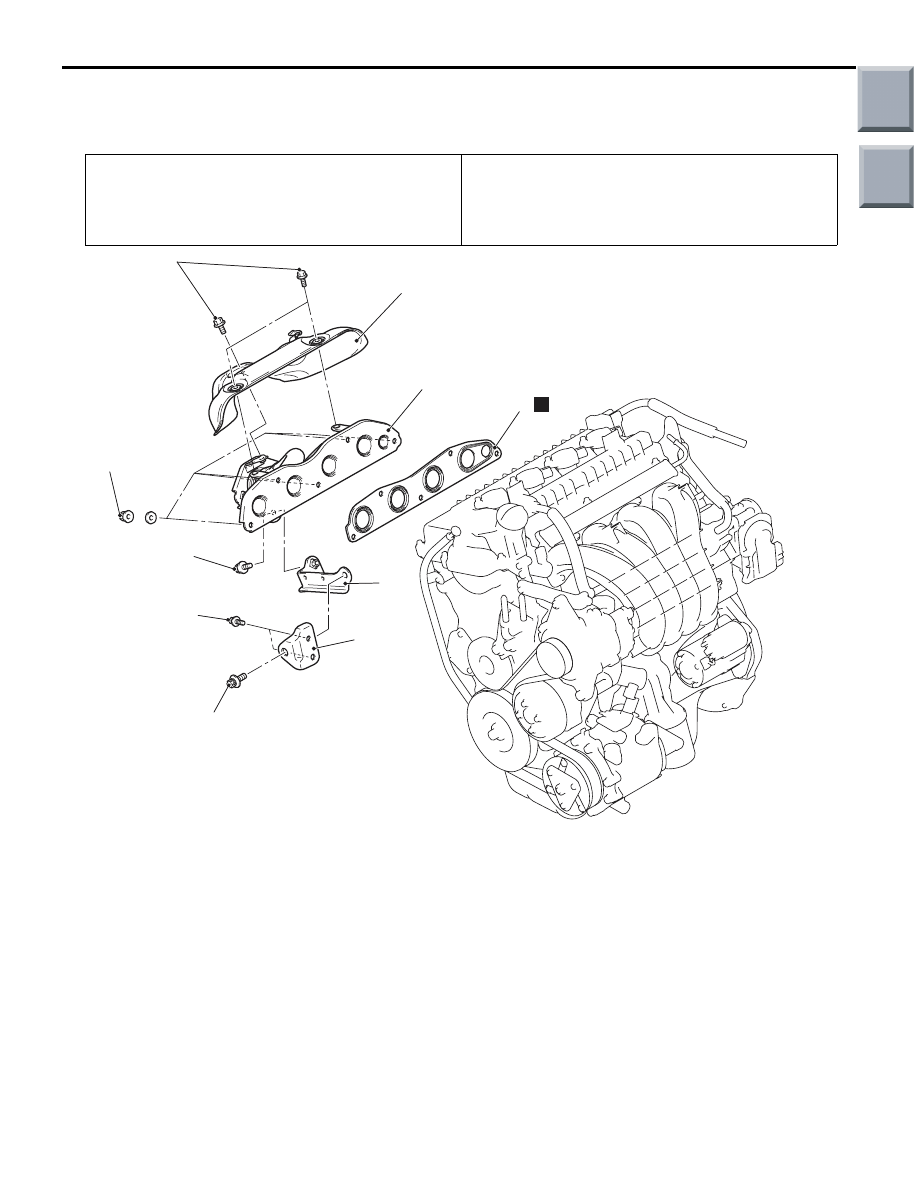

AC405244AB

5

2

1

3

4

35 ± 2 N·m

30 ± 3 N·m

9.0 ± 1.0 N·m

30 ± 3 N·m

N

20 ± 1 N·m

Removal steps

1.

Exhaust manifold cover

2.

Exhaust manifold bracket B

3.

Exhaust manifold

4.

Exhaust manifold gasket

5.

Exhaust manifold bracket A

INSPECTION <4A9>

M1151003400651

Check the following points; replace the part if a prob-
lem is found.

EXHAUST MANIFOLD CHECK

1. Check for damage or cracking of any part.
2. Using a straight edge and a feeler gauge, check

for distortion of the cylinder head installation
surface.
Standard value: 0.15 mm or less
Limit: 0.20 mm

Removal steps (Continued)

Main

Index

Group

TOC

EXHAUST MANIFOLD AND TURBOCHARGER

INTAKE AND EXHAUST

15-15

EXHAUST MANIFOLD AND TURBOCHARGER

REMOVAL AND INSTALLATION <4G1>

M1151008900350

Pre-removal Operation
• Engine air Intake Hose Removal (Refer to

P.15-6

).

• Engine Coolant Draining (Refer to GROUP 14, On-vehicle

Service

− Engine Coolant Replacement

P.14-6

).

• Engine Oil Draining (Refer to GROUP 12, On-vehicle

Service

− Engine Oil Replacement

P.12-4

).

• Front Catalytic Converter Removal (Refer to GROUP 17,

Catalytic Converter

P.17-24

).

Post-installation Operation
• Front Catalytic Converter Installation (Refer to GROUP

17, Catalytic converter

P.17-24

).

• Engine Oil Refilling (Refer to GROUP 12, On-vehicle

Service

− Engine Oil Replacement

P.12-4

).

• Engine Coolant Refilling (Refer to GROUP 14, On-vehicle

Service

− Engine Coolant Replacement

P.14-6

).

• Engine air Intake Hose Installation (Refer to

P.15-6

).

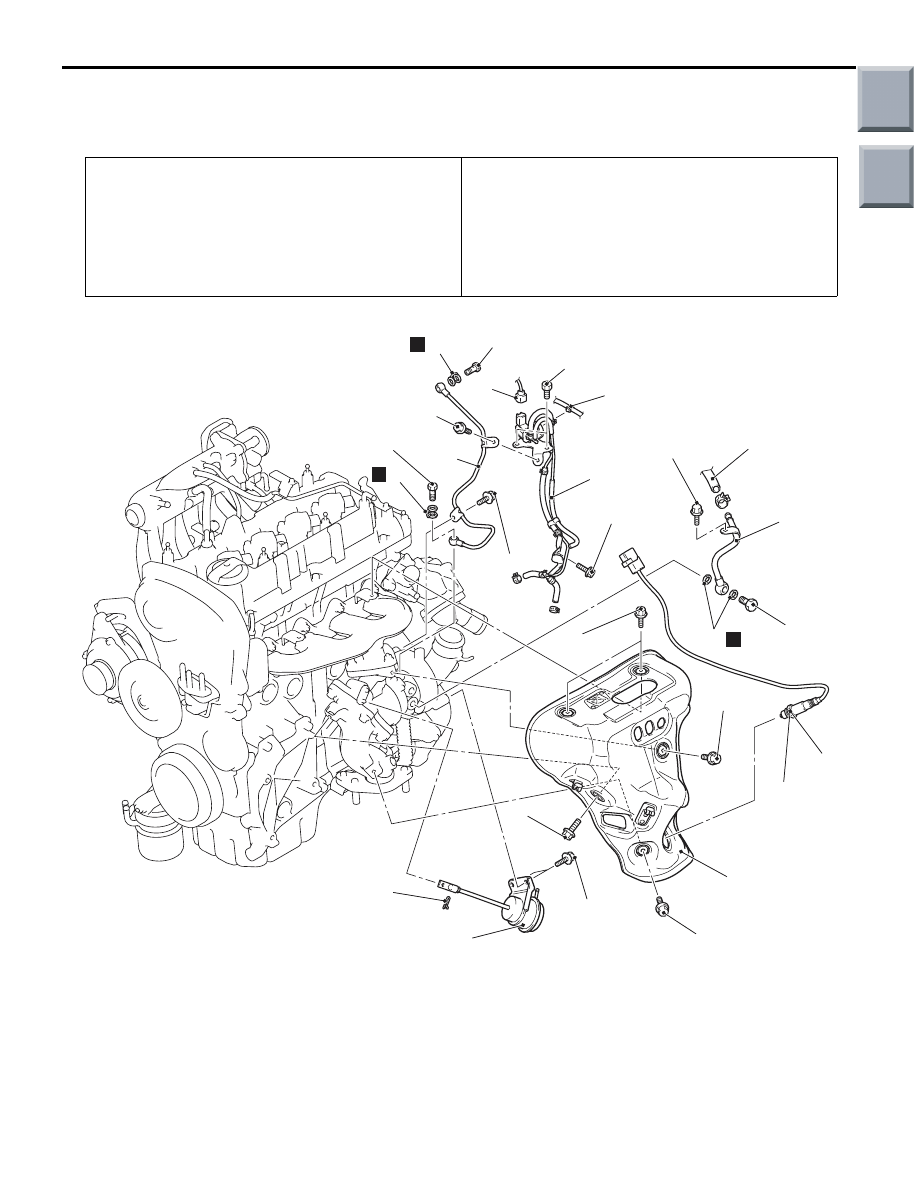

AC405018

1

2

50 ± 10 N·m

N

AB

10 ± 2 N·m

10 ± 2 N·m

10 ± 2 N·m

3

4

N

12

17 ± 2 N·m

10 ± 2 N·m

31 ± 2 N·m

6

5

7

17 ± 2 N·m

10 ± 2 N·m

9.0 ± 1.0 N·m

9.0 ± 1.0 N·m

8

9

10

11

10 ± 2 N·m

10 ± 2 N·m

N

12

11 ± 1 N·m

Removal steps

<<

A

>>

>>

D

<<

1.

Oxygen sensor

2.

Turbocharger cover

3.

Pin

4.

Turbocharger waste gate actuator

5.

Turbocharger waste gate solenoid
valve connector

6.

Harness clamp connection

7.

Turbocharger waste gate solenoid
valve, vacuum hose and vacuum
pipe assembly

8.

Turbocharger water return hose
connection

9.

Turbocharger water return pipe

10. Gasket

<<

B

>>

11. Turbocharger oil feed tube
12. Gasket

Removal steps (Continued)
