WATER PUMP

ENGINE COOLING

14-14

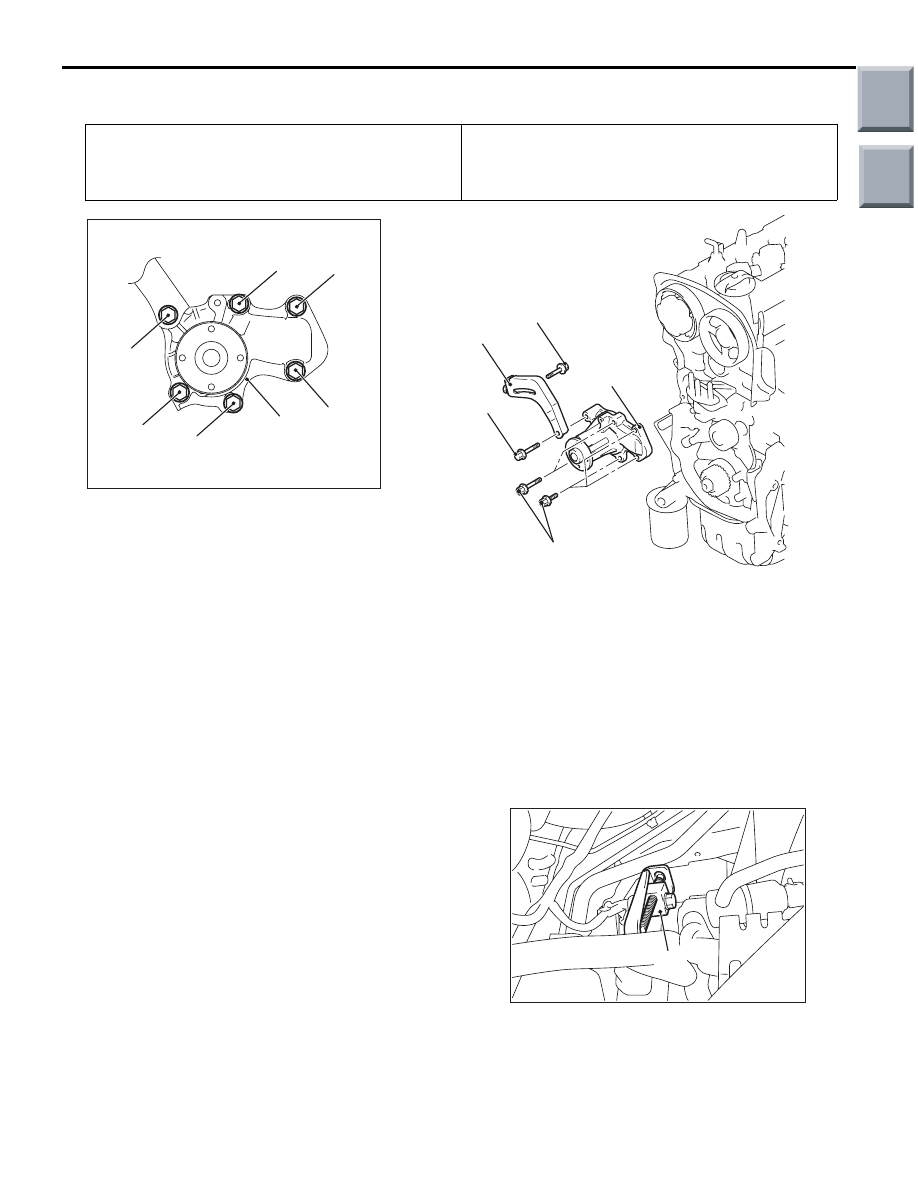

REMOVAL AND INSTALLATION <4G1>

M1141002700841

Pre-removal Operation
• Engine Coolant Draining (Refer to

P.14-6

).

• Valve Timing Belt Removal (Refer to GROUP 11C, Timing

Belt

P.11C-37

).

Post-installation Operation
• Valve Timing Belt Installation (Refer to GROUP 11C, Tim-

ing Belt

P.11C-37

).

• Engine Coolant Refilling (Refer to

P.14-6

).

AC402117

AC402116

AC402524AB

1

24 ± 3 N·m

14 ± 1 N·m

2

23 ± 2 N·m

8 × 30

8 × 50

8 × 20

2

8 × 30

8 × 20

8 × 20

Bolt specifications

Screw diameter × length mm

Removal steps

>>

B

<<

1.

Alternator brace

>>

A

<<

2.

Water pump

INSTALLATION SERVICE POINTS
>>A<< WATER PUMP INSTALLATION

Check that the O-ring on the reverse side of water
pump has not fallen out, and then install the water
pump on the cylinder block.

>>B<< ALTERNATOR BRACE
INSTALLATION

AC403625AB

Nut

Install the alternator brace nut so that it is in the
direction shown.

Main

Index

Group

TOC

WATER HOSE AND WATER PIPE

ENGINE COOLING

14-15

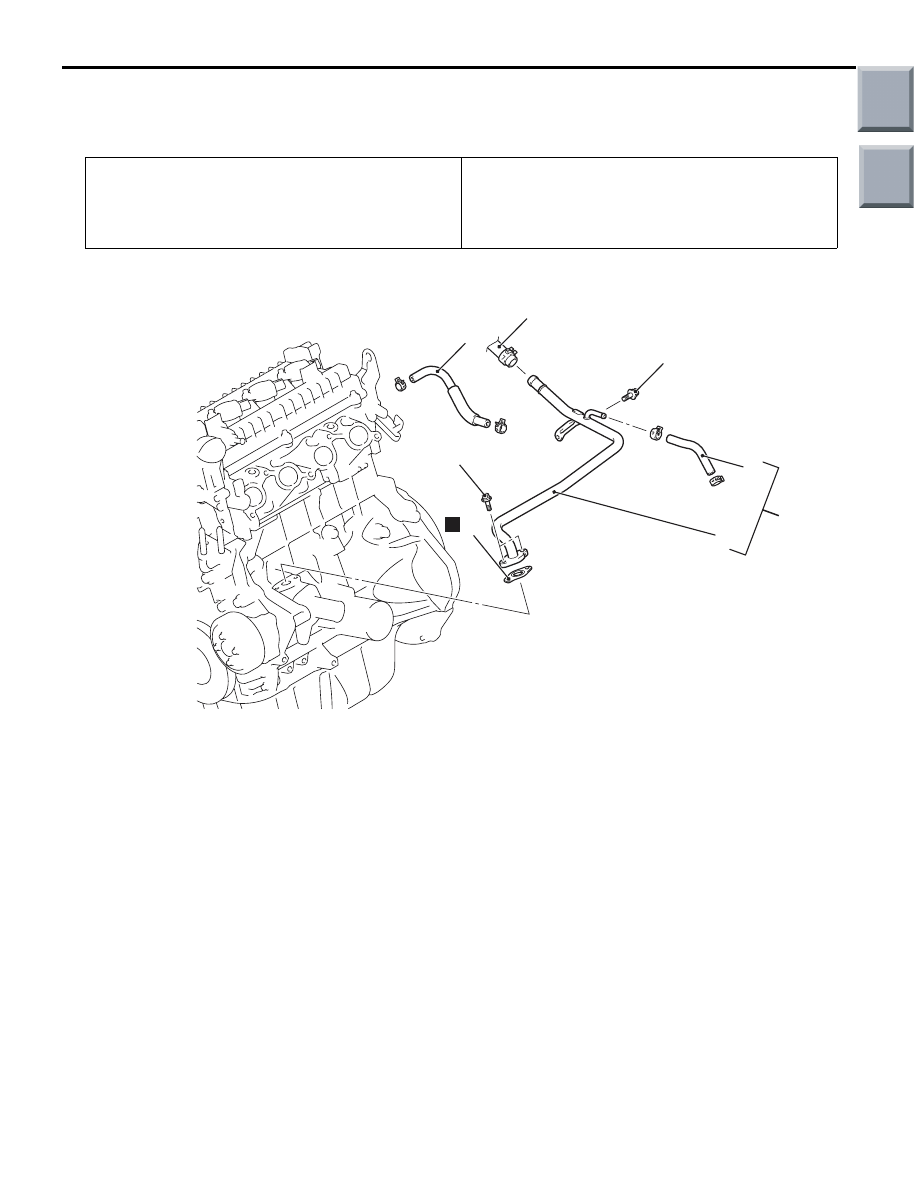

WATER HOSE AND WATER PIPE

REMOVAL AND INSTALLATION <4A9>

M1141003301322

Pre-removal Operation
• Inlet Manifold Removal (Refer to GROUP 15, Inlet Mani-

fold

P.15-11

).

Post-installation Operation
• Inlet Manifold Installation (Refer to GROUP 15, Inlet Man-

ifold

P.15-11

).

• Engine Oil Check <CVT> (Refer to GROUP 12, On-vehi-

cle Service

− Engine Oil Check

P.12-3

).

<M/T>

AC601297AB

4

N

5

6

3

7.6 ± 0.6 N·m

7.6 ± 0.6 N·m

1

2

Removal steps

>>

A

<<

1.

Throttle body water feed hose

2.

Heater piping hose connection

3.

Throttle body water return hose and
water pump inlet pipe assembly

>>

B

<<

4.

Gasket

>>

A

<<

5.

Throttle body water return hose

6.

Water pump inlet pipe

Removal steps (Continued)

Main

Index

Group

TOC

WATER HOSE AND WATER PIPE

ENGINE COOLING

14-16

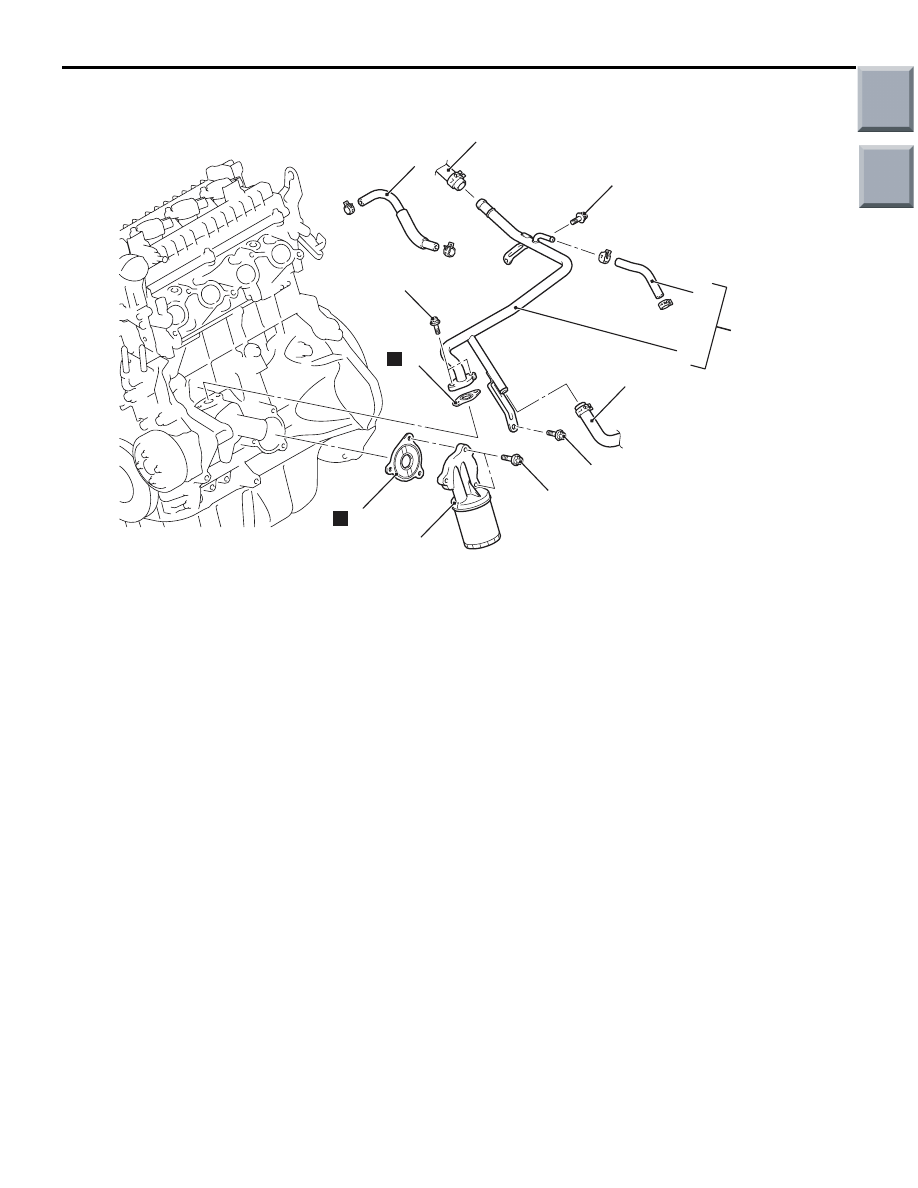

<CVT>

AC402407AB

5

N

4

20 ± 1 N·m

7

N

3

8

9

6

7.6 ± 0.6 N·m

7.6 ± 0.6 N·m

1

2

20 ± 1 N·m

Removal steps

>>

A

<<

1.

Throttle body water feed hose

2.

Heater piping hose connection

3.

Water hose connection

4.

Oil filter and bracket assembly

>>

C

<<

5.

Gasket

6.

Throttle body water return hose and
water pump inlet pipe assembly

>>

B

<<

7.

Gasket

>>

A

<<

8.

Throttle body water return hose

9.

Water pump inlet pipe

Removal steps (Continued)

Main

Index

Group

TOC

WATER HOSE AND WATER PIPE

ENGINE COOLING

14-17

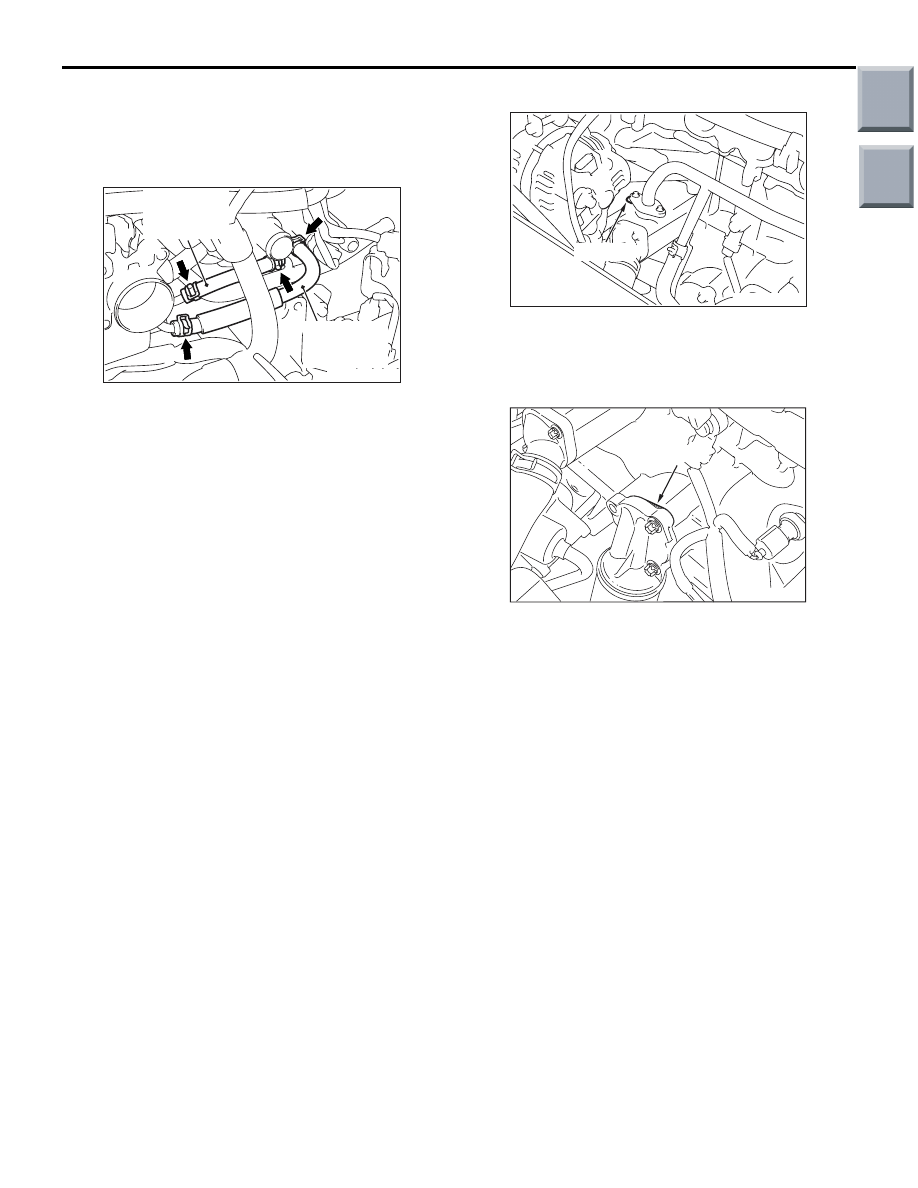

INSTALLATION SERVICE POINTS
>>A<< THROTTLE BODY WATER
RETURN HOSE/THROTTOLE BODY
WATER FEED HOSE INSTALLATION

AC403642AB

Throttle body
water return
hose

Throttle body
water feed
hose

Install the hose clips as shown.

>>B<< GASKET INSTALLATION

AC403643AB

Projection

Install the gasket as its protrusion is in the direction
shown.

>>C<< GASKET INSTALLATION

AC402978AB

Projection

Install the gasket as its protrusion is in the direction
shown.
