TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-254

STEP 8. Check injector for operating sound.

• Check injector for operating sound at engine

cranking (Refer to

P.13A-364

).

Q: Can operating sound be heard?

YES :

Go to Step 9 .

NO :

Check the injector system of the defective

cylinder.

(Refer to Code No. P0201: No.1 Injector

System

P.13A-89

).

(Refer to Code No. P0202: No.2 Injector

System

P.13A-94

).

(Refer to Code No. P0203: No.3 Injector

System

P.13A-99

).

(Refer to Code No. P0204: No.4 Injector

System

P.13A-104

).

STEP 9. Check timing marks of timing chain.

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Align timing marks.

STEP 10. Visual check of ignition spark.

• Remove the spark plug and install it to the ignition

coil.

• Connect the ignition coil connector.

• Remove all injector connector.

• At the engine start, check each spark plug pro-

duces a spark.

Q: Is the check result normal?

YES :

Go to Step 12 .

NO :

Go to Step 11 .

STEP 11. Check spark plug.

• Check spark plug (Refer to GROUP 16 − Ignition

System

− On-vehicle Service − Spark Plug Check

and Cleaning

P.16-35

).

Q: Is the check result normal?

YES :

Check ignition circuit system (Refer to

Inspection Procedure 28

P.13A-320

)

NO :

Replace spark plug.

STEP 12. Check spray condition of injector.

• Check each injector for spray condition (Refer to

P.13A-364

).

Q: Is the check result normal?

YES :

Go to Step 13 .

NO :

Replace injector.

STEP 13. Fuel pressure measurement.

• Fuel pressure measurement (Refer to Fuel Pres-

sure Test

P.13A-355

).

Q: Is the check result normal?

YES :

Go to Step 14 .

NO :

Repair.

STEP 14. Check compression pressure.

• Check compression pressure (Refer to GROUP

11A

− On-vehicle Service − Compression Pres-

sure Check

P.11A-12

).

Q: Is the check result normal?

YES :

Go to Step 15 <CVT> , go to Step 16 <M/T>

.

NO :

Repair.

STEP 15. Check EGR valve (stepper motor) itself.

• Check EGR valve (stepper motor) itself [Refer to

GROUP 17

− Emission Control System −

Exhaust Gas Recirculation (EGR) System

− EGR

Valve (stepper motor) Check

P.17-20

].

Q: Is the check result normal?

YES :

Go to Step 16 .

NO :

Replace EGR valve (stepper motor).

STEP 16. Replace engine-ECU <M/T> or
engine-CVT-ECU <CVT>.

• After replacing the engine-ECU <M/T> or

engine-CVT-ECU <CVT>, re-check the trouble
symptoms.

Q: Does trouble symptom persist?

YES :

Check for foreign matters (water, kerosene,

etc.) in fuel and replace if necessary.

NO :

Check end.

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-255

Inspection Procedure 8: Unstable idling (Rough idling, Hunting), improper idling speed (Too high or
too low), engine stalls during idling (Die out)

COMMENT ON TROUBLE SYMPTOM

• Probable causes can be widely found in ignition

system, air-fuel ratio control system, idle air con-
trol fuel system, etc. A sudden engine stall is pos-
sibly caused by poor connector contact.

PROBABLE CAUSES

• Failed ignition system

• Failed fuel system

• Failed air-fuel ratio control system

• Failed intake/exhaust system

• Failed exhaust gas cleaning system

• Throttle valve fouled around

• Timing chain out of place

• Compression pressure improper

• Failed engine-ECU <M/T> or engine-CVT-ECU

<CVT>

DIAGNOSIS PROCEDURE

STEP 1. Check battery condition.

Q: Has the battery terminal been disconnected?

YES :

Carry out the learning procedure for the

idling (Refer to GROUP 00

− How to Use

Troubleshooting/Inspection Service Points

−

Learning Procedure for Idling in MPI Engine

P.00-21

).

NO :

Go to Step 2 .

STEP 2. M.U.T.-III diagnosis code

Q: Is the diagnosis code set?

YES :

Inspection chart for diagnosis code (Refer

to

P.13A-20

).

NO :

Go to Step 3 .

STEP 3. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-331

.

a. Item 13: Intake air temperature sensor
b. Item 14: Throttle position sensor (sub)

c. Item 21: Engine coolant temperature sensor

d. Item 25: Barometric pressure sensor
e. Item 32: Manifold absolute pressure sensor

f. Item 77: Accelerator pedal position sensor

(sub)

g. Item 78: Accelerator pedal position sensor

(main)

h. Item 79: Throttle position sensor (main)

Q: Are the check results normal?

YES :

Go to Step 4 .

NO :

Perform the diagnosis code classified check
procedure for the sensor that has shown an
abnormal data value (Refer to Inspection
Chart for Diagnosis Code

P.13A-20

).

STEP 4. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-331

.

a. Item 29: Inhibitor switch
b. Item 67: Stop lamp switch

Q: Are the check results normal?

YES :

Go to Step 5 .

NO :

Perform the diagnosis code classified check
procedure for the sensor that has shown an
abnormal data value (Refer to Inspection
Chart for Diagnosis Code

P.13A-20

).

STEP 5. Check air intake from intake hose and
inlet manifold.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair.

STEP 6. Check timing marks of timing chain.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Align timing marks.

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-256

STEP 7. Check throttle body (throttle valve)
contamination.

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Clean throttle body (throttle valve portion)
(Refer to

P.13A-355

).

STEP 8. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-331

.

a. Item 11: Oxygen sensor (front)
b. Item 59: Oxygen sensor (rear)

Q: Are the check results normal?

YES :

Go to Step 9 .

NO :

Perform the diagnosis code classified check
procedure for the sensor that has shown an
abnormal data value (Refer to Inspection
Chart for Diagnosis Code

P.13A-20

).

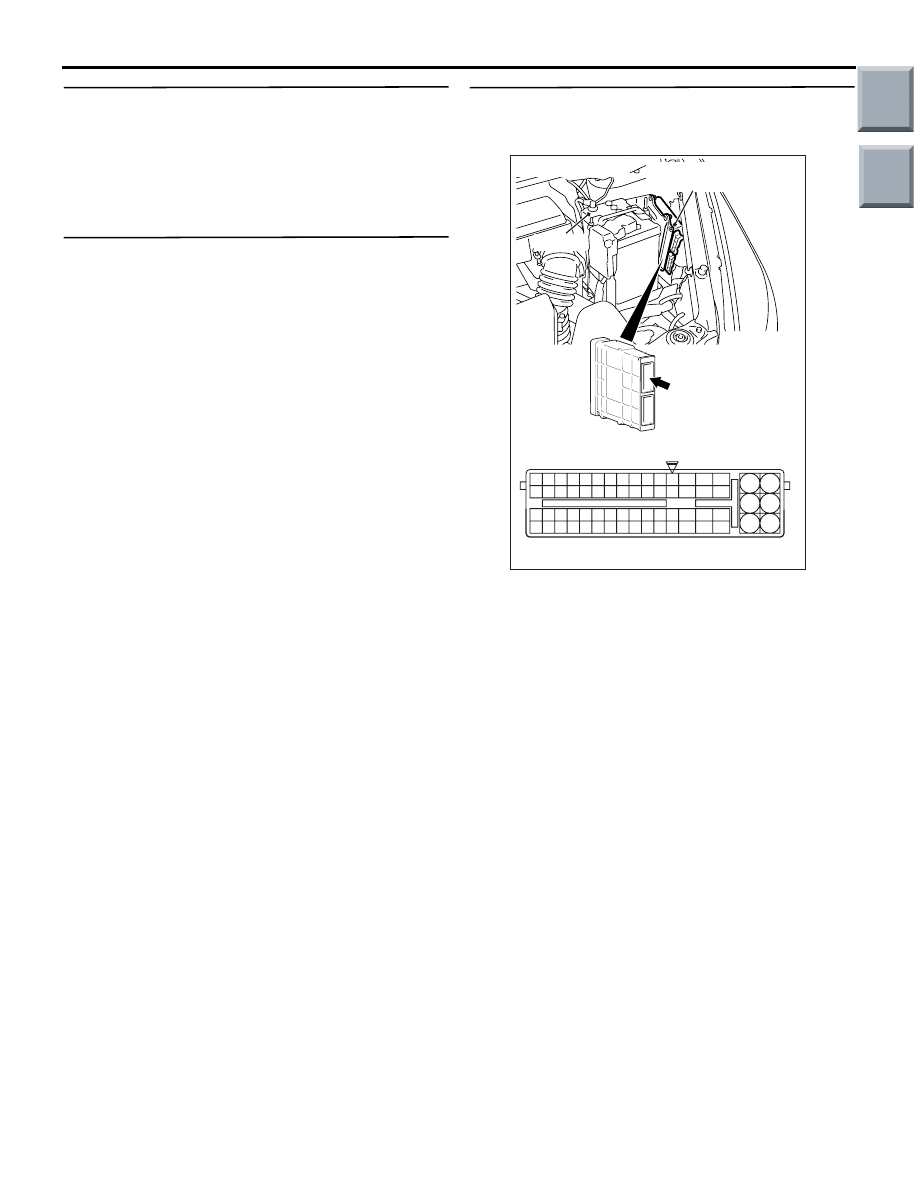

STEP 9. Perform voltage measurement at A-114
engine-ECU connector or engine-CVT-ECU
connector.

• Disconnect engine-ECU connector or

engine-CVT-ECU connector, and connect Special
Tool Power Plant ECU Check Harness
(MB991987), and then measure the voltage on
the check connector.

• Engine: Idling after warm-up

• Transmission: P range

• Radiator fan: Not operating

• Voltage between terminal No. 64 and earth.

OK: Switching the headlamps to ON from
OFF causes the voltage to increase 0.2

 3.5

V.

Q: Is the check result normal?

YES :

Go to Step 13 .

NO :

Go to Step 10 .

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AE

A-114

Connector:

A-114

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Battery

A-114 Special tool power plant ECU check
harness

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-257

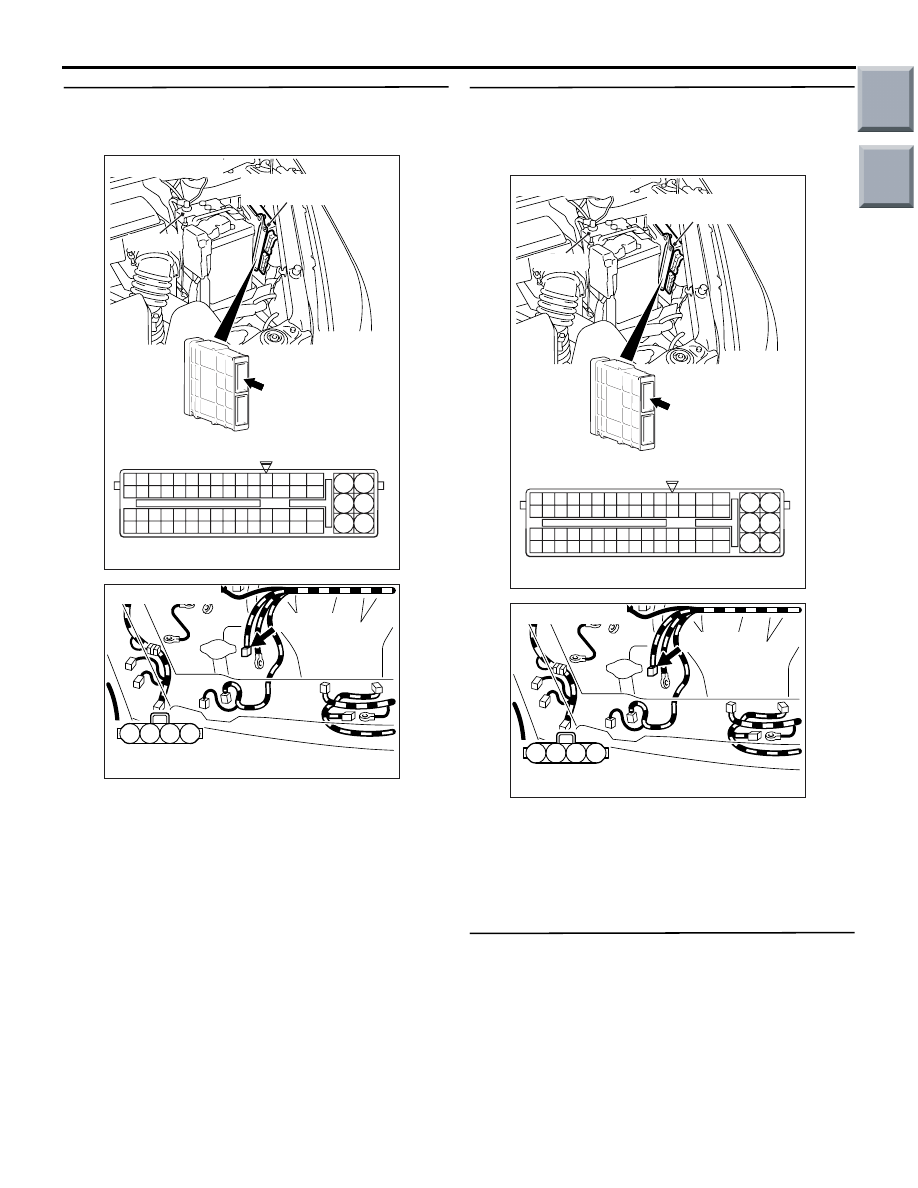

STEP 10. Connector check: A-114 engine-ECU
connector or engine-CVT-ECU connector and
A-131 alternator connector

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Repair or replace the connector.

STEP 11. Check harness between A-114 (terminal
No. 64) engine-ECU connector or
engine-CVT-ECU connector and A-131 (terminal
No. 1) alternator connector.

• Check output line for open/short circuit and dam-

age.

Q: Is the check result normal?

YES :

Go to Step 12 .

NO :

Repair the damaged harness wire.

STEP 12. Check the trouble symptom.

Q: Does trouble symptom persist?

YES :

Replace alternator.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AD

A-114

Connector:

A-114

Harness side connector

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Battery

AK402057

2 1

3

4

AC

Connector: A-131

A-131 (G)

A-131 Harness side
connector

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AD

A-114

Connector:

A-114

Harness side connector

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Battery

AK402057

2 1

3

4

AC

Connector: A-131

A-131 (G)

A-131 Harness side
connector
