TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-42

Code No. P0115: Engine Coolant Temperature Sensor System

OPERATION

• A power voltage of 5 V is applied to the engine

coolant temperature sensor output terminal (ter-
minal No. 1) from the engine-ECU <M/T> or
engine-CVT-ECU <CVT> (terminal No. 14).

• The power voltage is earthed to the engine-ECU

<M/T> or engine-CVT-ECU <CVT> (terminal No.
29) from the engine coolant temperature sensor
(terminal No. 2).

FUNCTION

• The engine coolant temperature sensor converts

the engine coolant temperature into a voltage sig-
nal, and inputs the voltage to the engine-ECU
<M/T> or engine-CVT-ECU <CVT>.

• In response to the signal, the engine-ECU <M/T>

or engine-CVT-ECU <CVT> controls the fuel
infection amount and the fast idle speed when the
engine is cold state.

• The engine coolant temperature sensor is a kind

of resistor, which has characteristics to reduce its
resistance as the engine coolant temperature
rises. Therefore, the sensor output voltage varies
with the engine coolant temperature, and
becomes lower as the engine coolant tempera-
ture rises.

AK402678

1 2

19

21

20

18

17

16

15

14

1213

11

8 9

L

10

37
52 53 54 555657585960616263646566

38 39 404142434445464748495051

22 23 24 252627282930313233343536

7

5

3

1

6

4

2

29

14

A-114

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Engine coolant
temperature sensor

Y-G

B

A-121

 (MU802406)

2

1

5 V

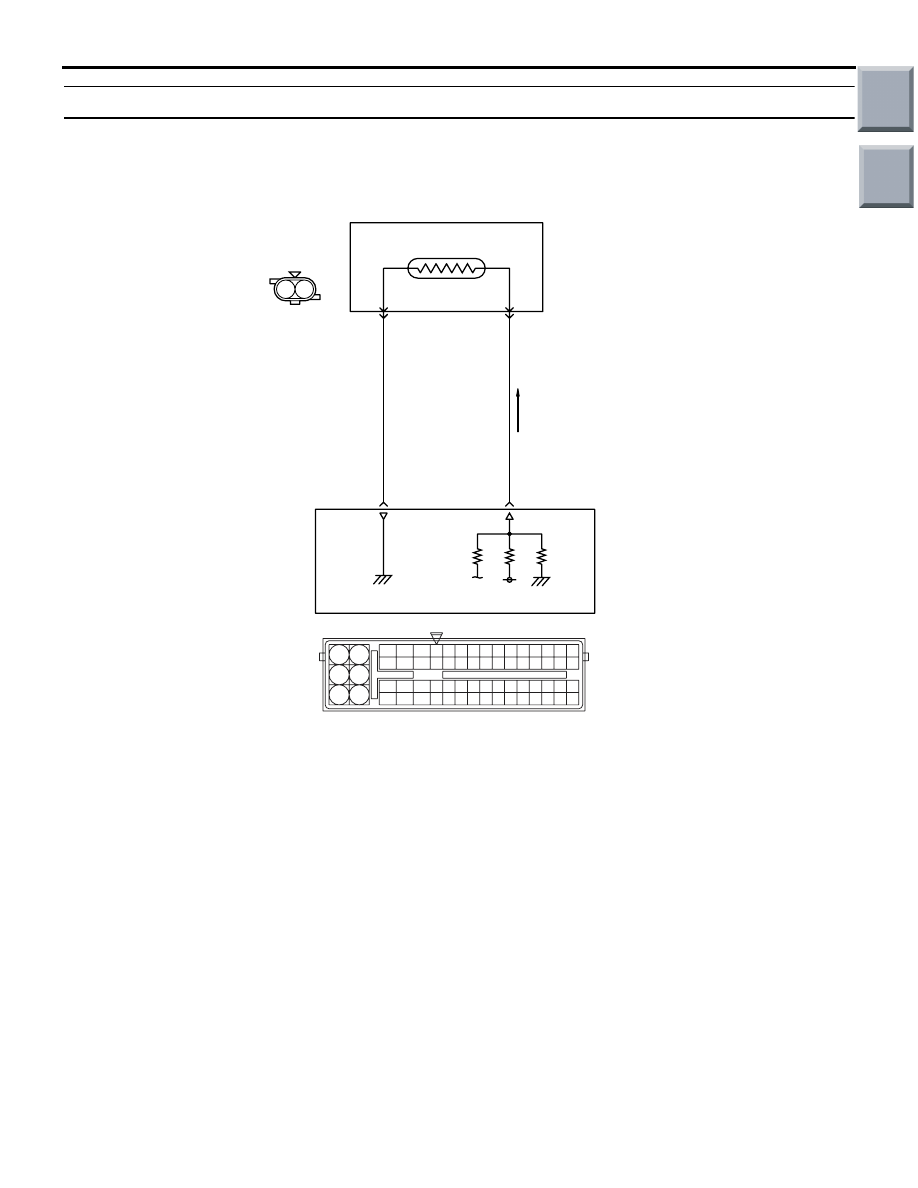

Engine Coolant Temperature Sensor Circuit

AD

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet  Pu: Purple

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-43

TROUBLE JUDGMENT

Check Condition

• 2 seconds later after the ignition switch has been

in ON position or just after the engine has started
up.

Judgment Criteria

• The sensor output voltage is 4.6 V or more (water

temperature of below

−40°C or equivalent) for 4

seconds.

or

• The sensor output voltage is 0.1 V or less (water

temperature of above 120

°C or equivalent) for 4

seconds.

Check Condition

• 2 seconds later after the engine has started up.

Judgment Criteria

• The sensor output voltage rises 1.6 V or more

(engine coolant temperature below 40

°C or

equivalent) from 1.6 V or less (engine coolant
temperature above 40

°C or equivalent).

• For the following 5 minutes, the sensor output

voltage should be 1.6 V or more (engine coolant
temperature above 40

°C or equivalent) <M/T>.

PROBABLE CAUSES

• Failed engine coolant temperature sensor

• Open/short circuit in engine coolant temperature

sensor circuit or loose connector contact

• Failed engine-ECU <M/T> or engine-CVT-ECU

<CVT>

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

• Item 21: Engine coolant temperature sensor

OK:

Engine cold state: At ambient temperature

(atmospheric temperature) or equivalent.

Engine hot state: At 80

 120°C

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

NO :

Go to Step 2 .

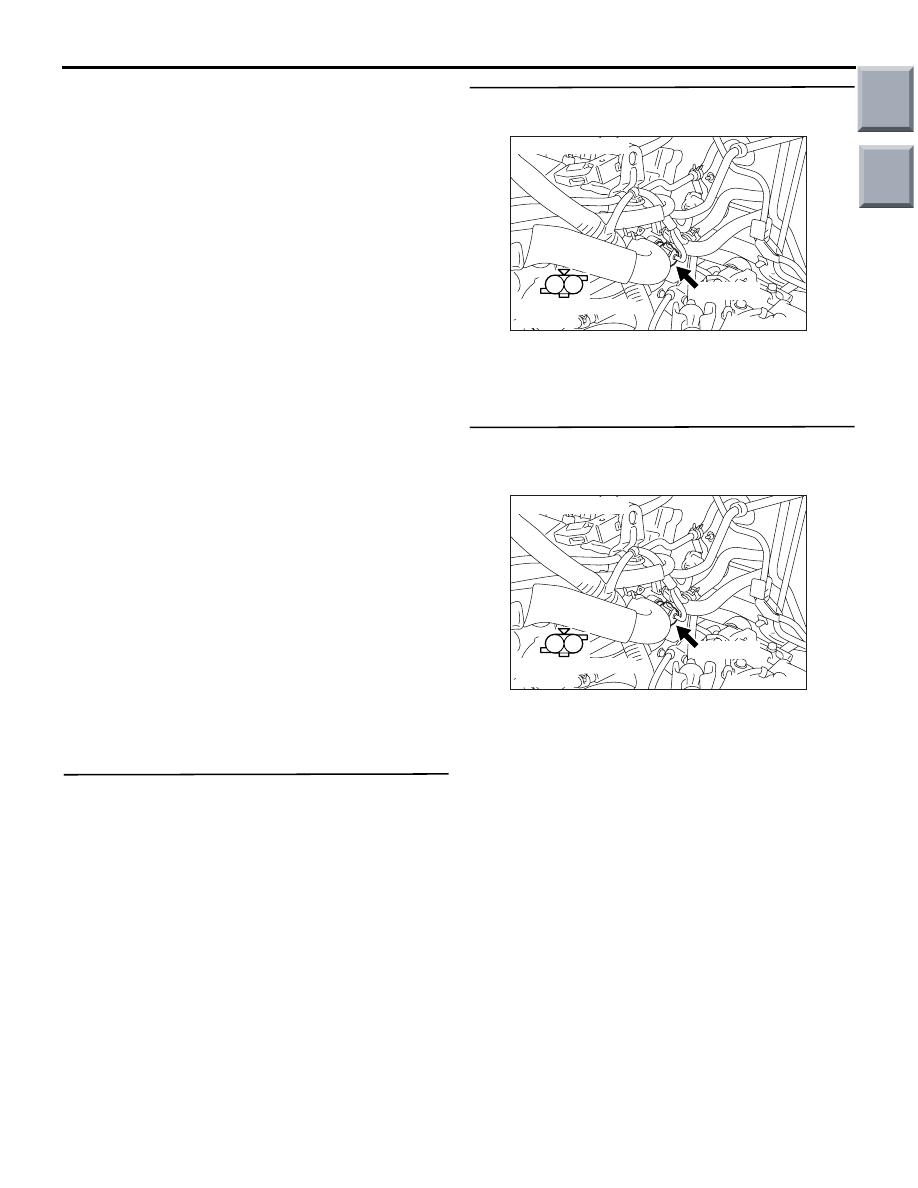

STEP 2. Connector check: A-121 engine coolant
temperature sensor connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

STEP 3. Perform resistance measurement at
A-121 engine coolant temperature sensor
connector.

• Disconnect connector, and measure at sensor

side.

• Resistance between terminal No. 1 and No. 2.

OK:

Engine coolant temperature at

20°C: 14  17

k

Engine coolant temperature at 0

°C: 5.1  6.5

k

Engine coolant temperature at 20

°C: 2.1  2.7

k

Engine coolant temperature at 40

°C: 0.9  1.3

k

Engine coolant temperature at 60

°C: 0.48

0.68 k

Engine coolant temperature at 80

°C: 0.26

0.36 k

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Replace engine coolant temperature
sensor.

AK402011

1

2

Connector: A-121

A-121 (B)

AD

A-121 Harness side
connector

AK402011

1

2

Connector: A-121

A-121 (B)

AD

A-121 Harness side
connector

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-44

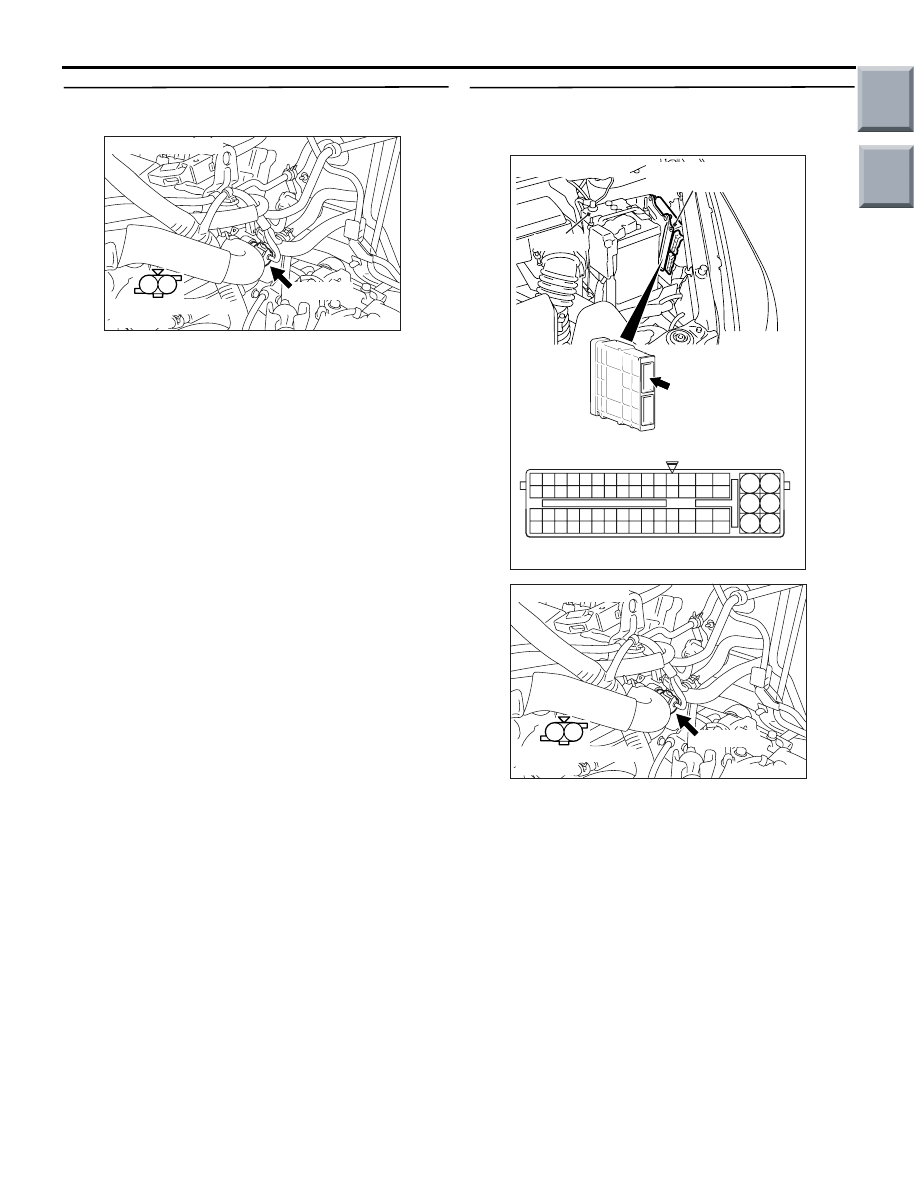

STEP 4. Perform voltage measurement at A-121
engine coolant temperature sensor connector.

• Disconnect connector and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 1 and earth.

OK: 4.5

 4.9 V

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Go to Step 5 .

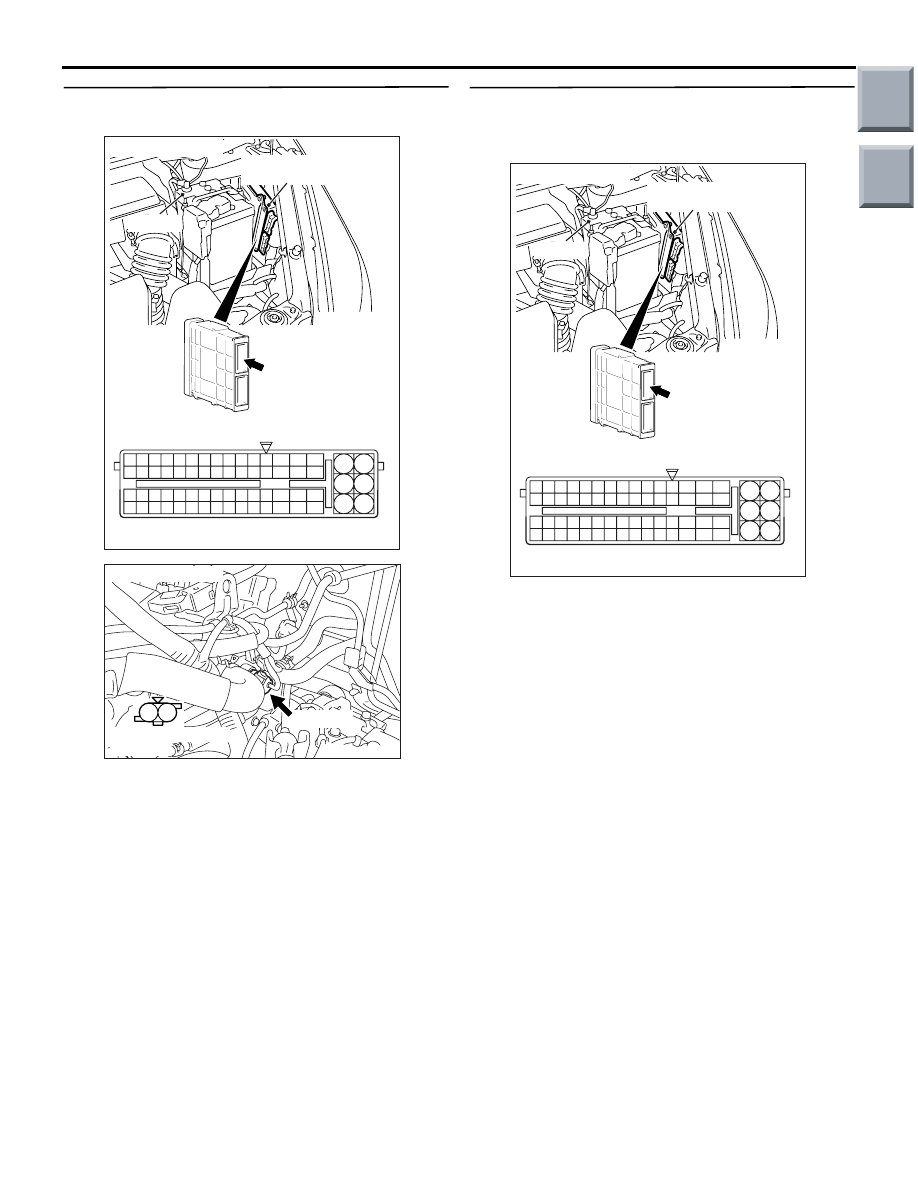

STEP 5. Perform voltage measurement at A-114
