Mitsubishi Canter (FE, FG). Manual - part 65

9 Technical  data

9.16 Electrical wiring diagram

260

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

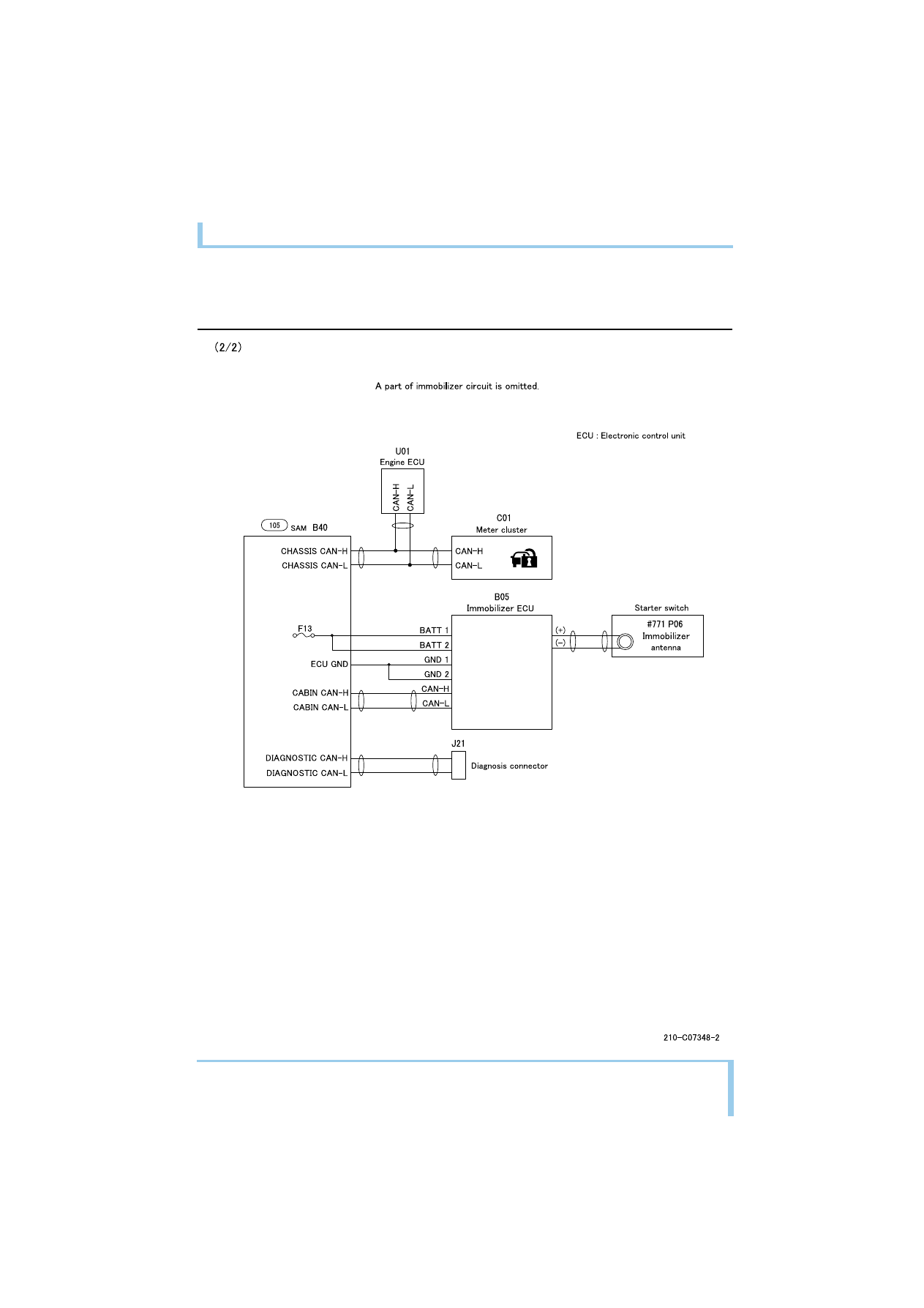

ENGINE STARTING CIRCUIT (2)

9 Technical  data

9.16 Electrical wiring diagram

261

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

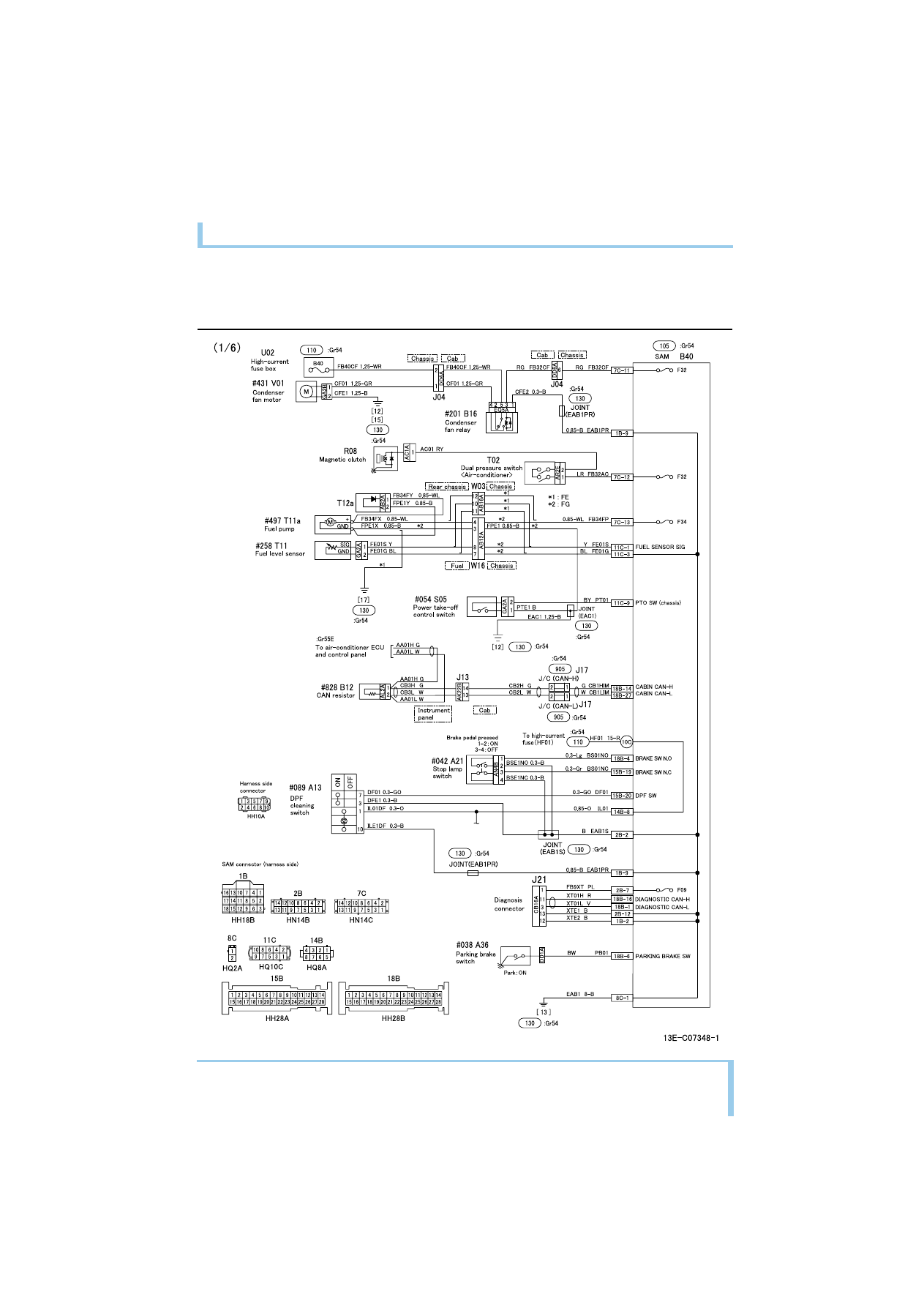

ENGINE ELECTRIC CIRCUIT (1/6)

9 Technical  data

9.16 Electrical wiring diagram

262

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

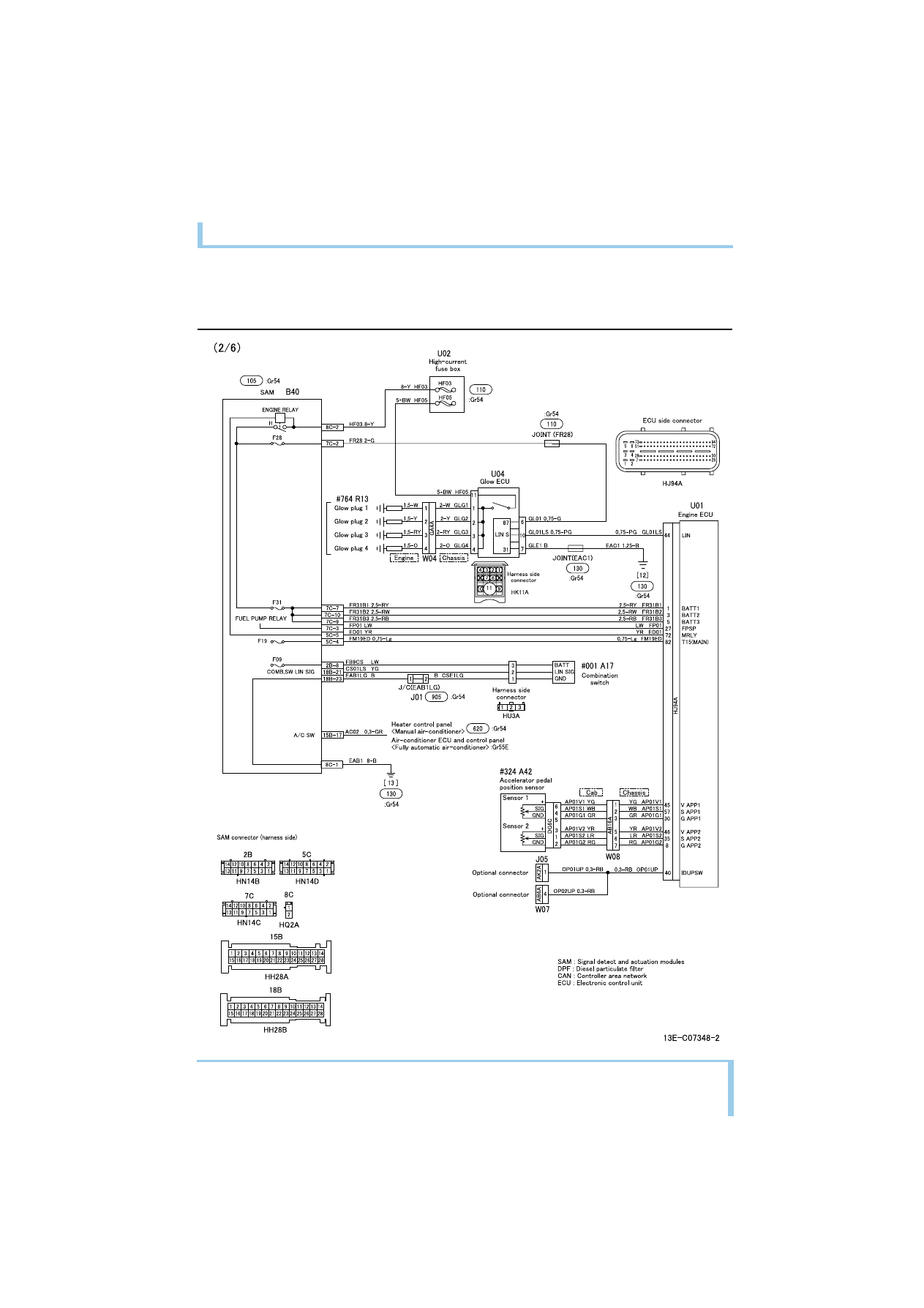

ENGINE ELECTRIC CIRCUIT (2/6)

9 Technical  data

9.16 Electrical wiring diagram

263

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

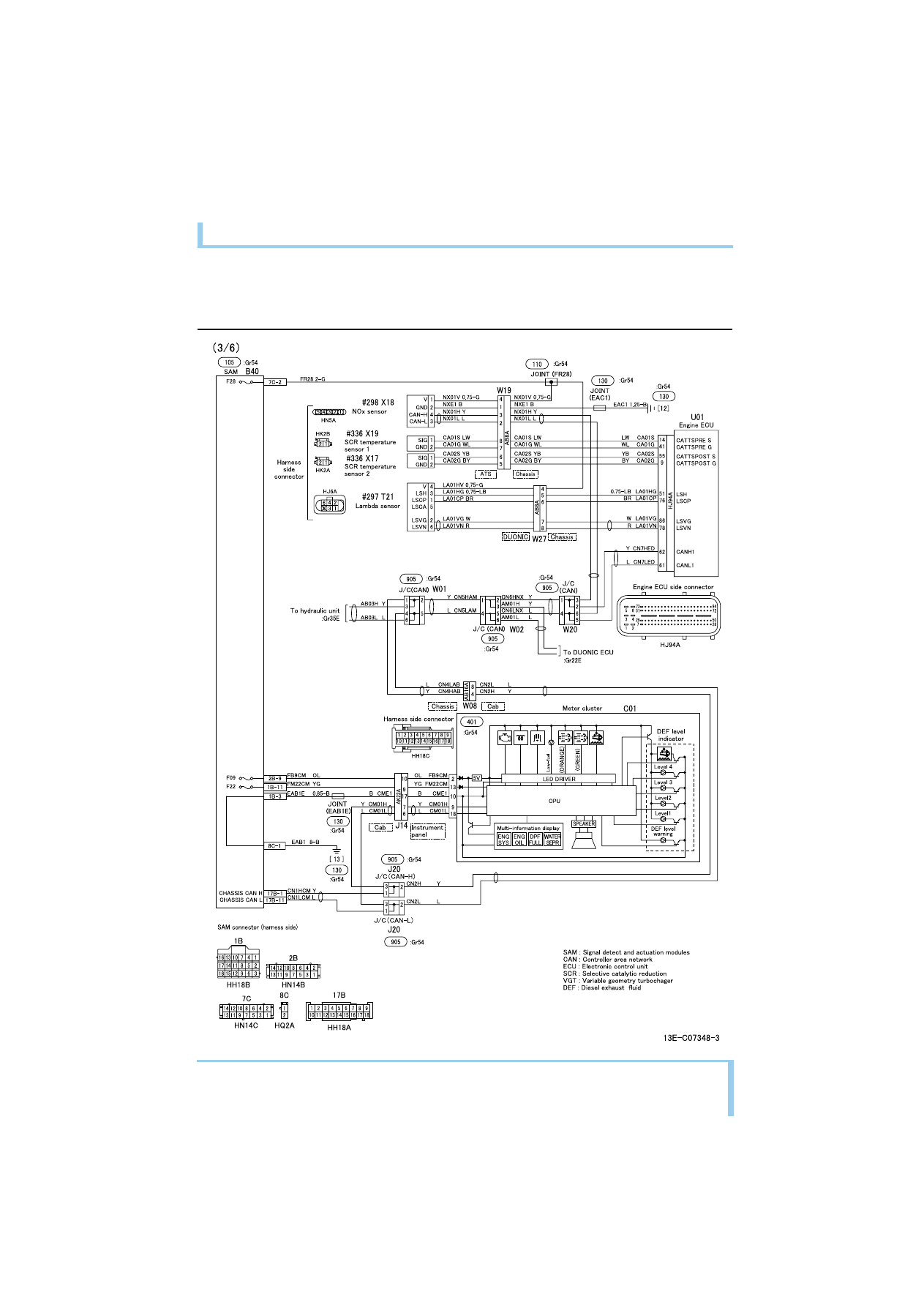

ENGINE ELECTRIC CIRCUIT (3/6)
