9.4 Chassis cab drawings

9.4.1

Chassis cab drawings

***PDF FILE –view file, unable to edit– ***

PDF files of Chassis cab drawings will be shown on clicking the Model name in left bookmark.

Model

Page

Down Load

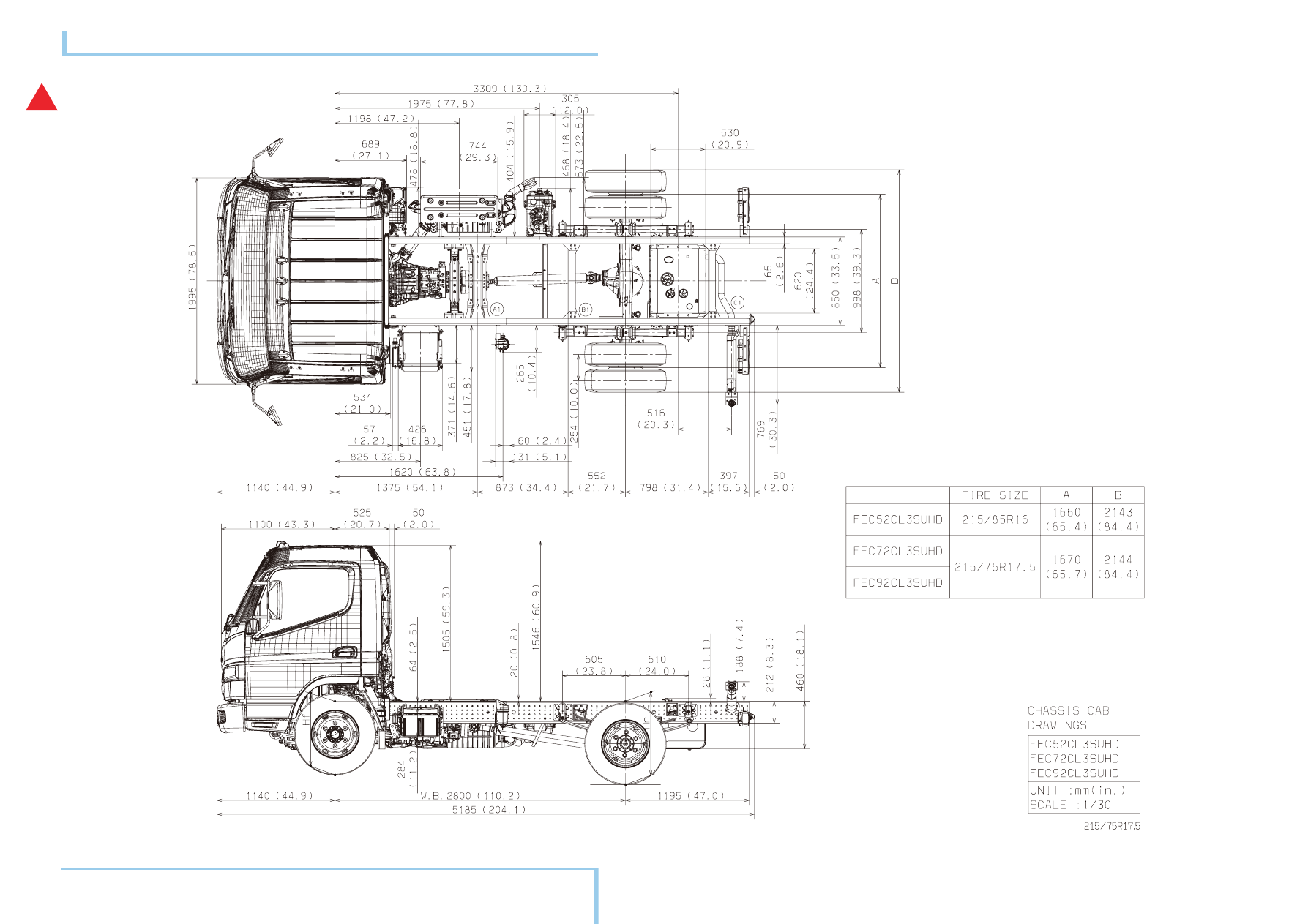

FEC52CL3SUHD
FEC72CL3SUHD
FEC92CL3SUHD

161

.dxf

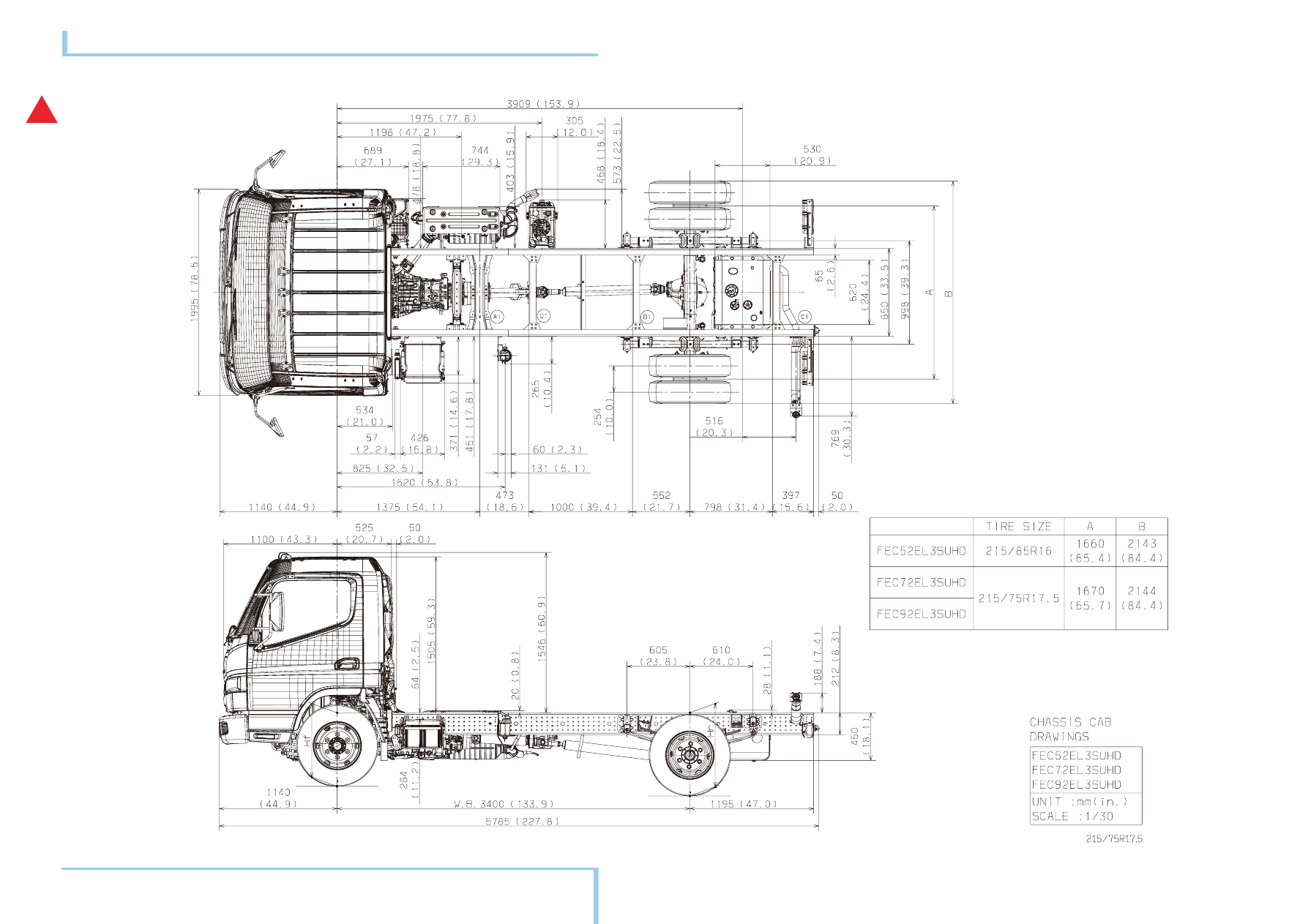

FEC52EL3SUHD
FEC72EL3SUHD
FEC92EL3SUHD

162

.dxf

FEC52GL3SUHD
FEC72GL3SUHD
FEC92GL3SUHD

163

.dxf

FEC72HL3SUHD
FEC92HL3SUHD

164

.dxf

Model

Page

Down Load

FEC72HL3WUHD

165

.dxf

FEC72KL3SUHD
FEC92KL3SUHD

166

.dxf

FEC72KL3WUHD

167

.dxf

FGB72EL3SUHD

168

.dxf
