Mitsubishi Canter (FE, FG). Manual - part 35





9 Technical  data

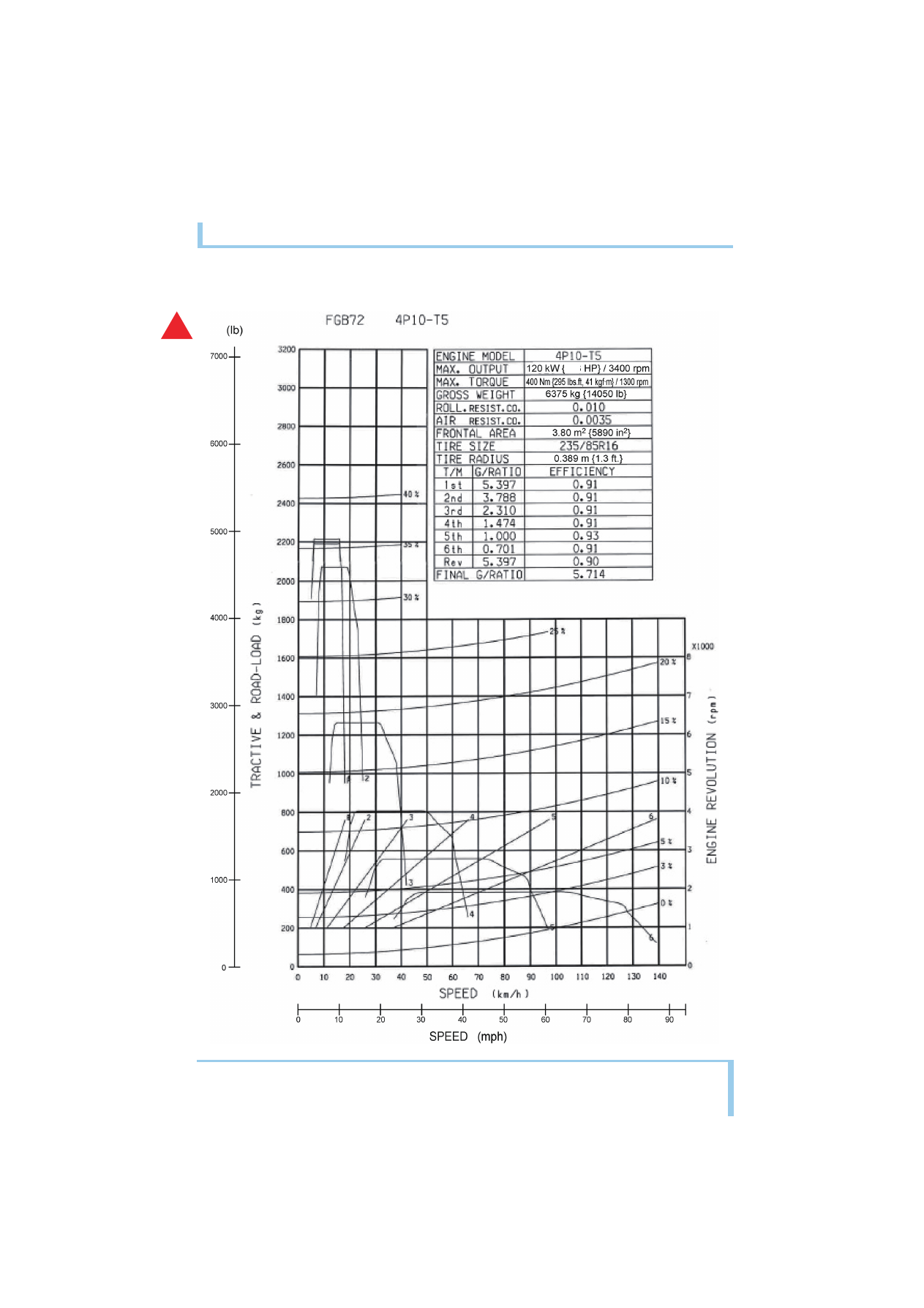

9.2 Performance curve

140

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

161

G

9 Technical  data

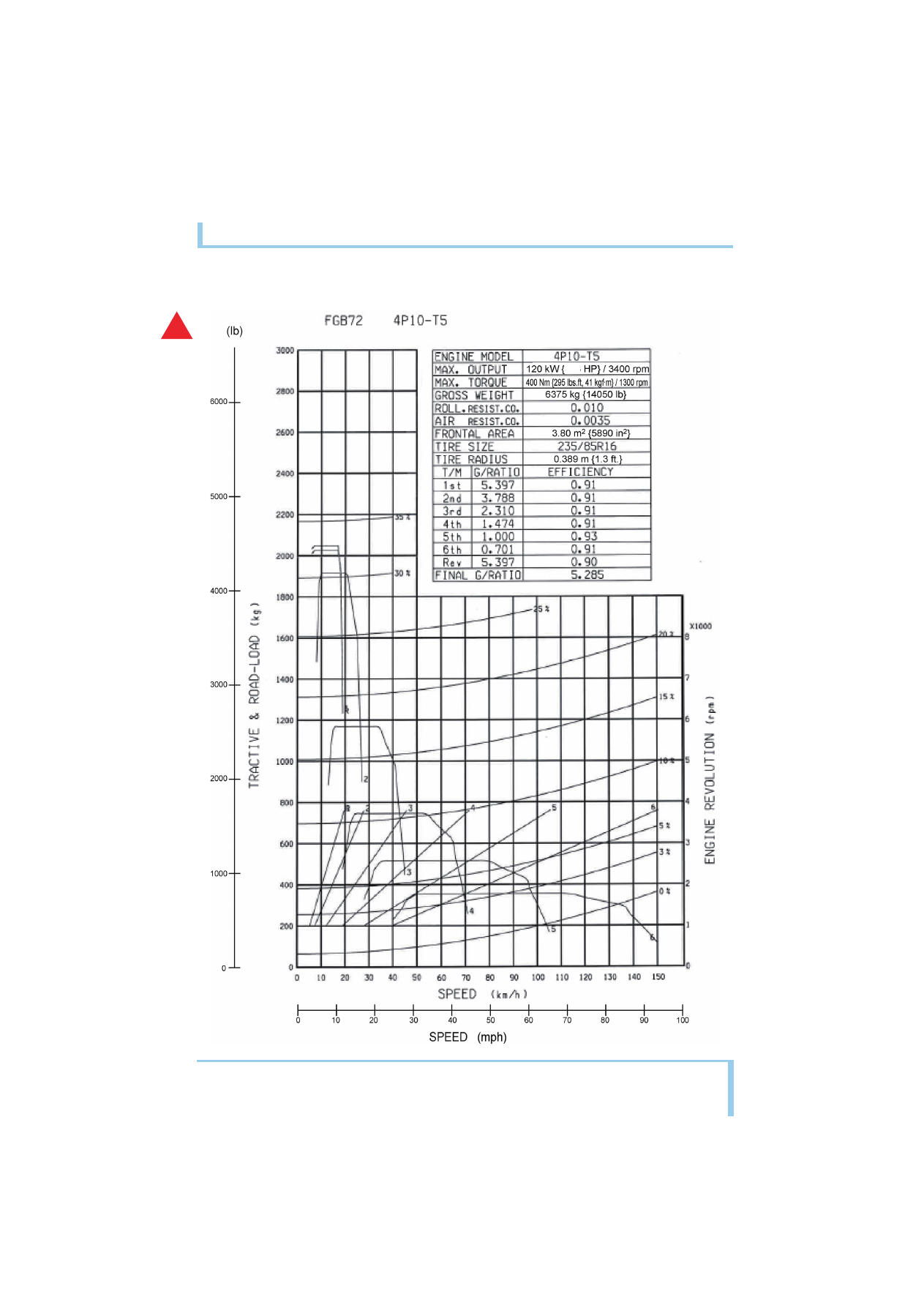

9.2 Performance curve

141

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

161

G

9 Technical  data

9.2 Performance curve

142

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

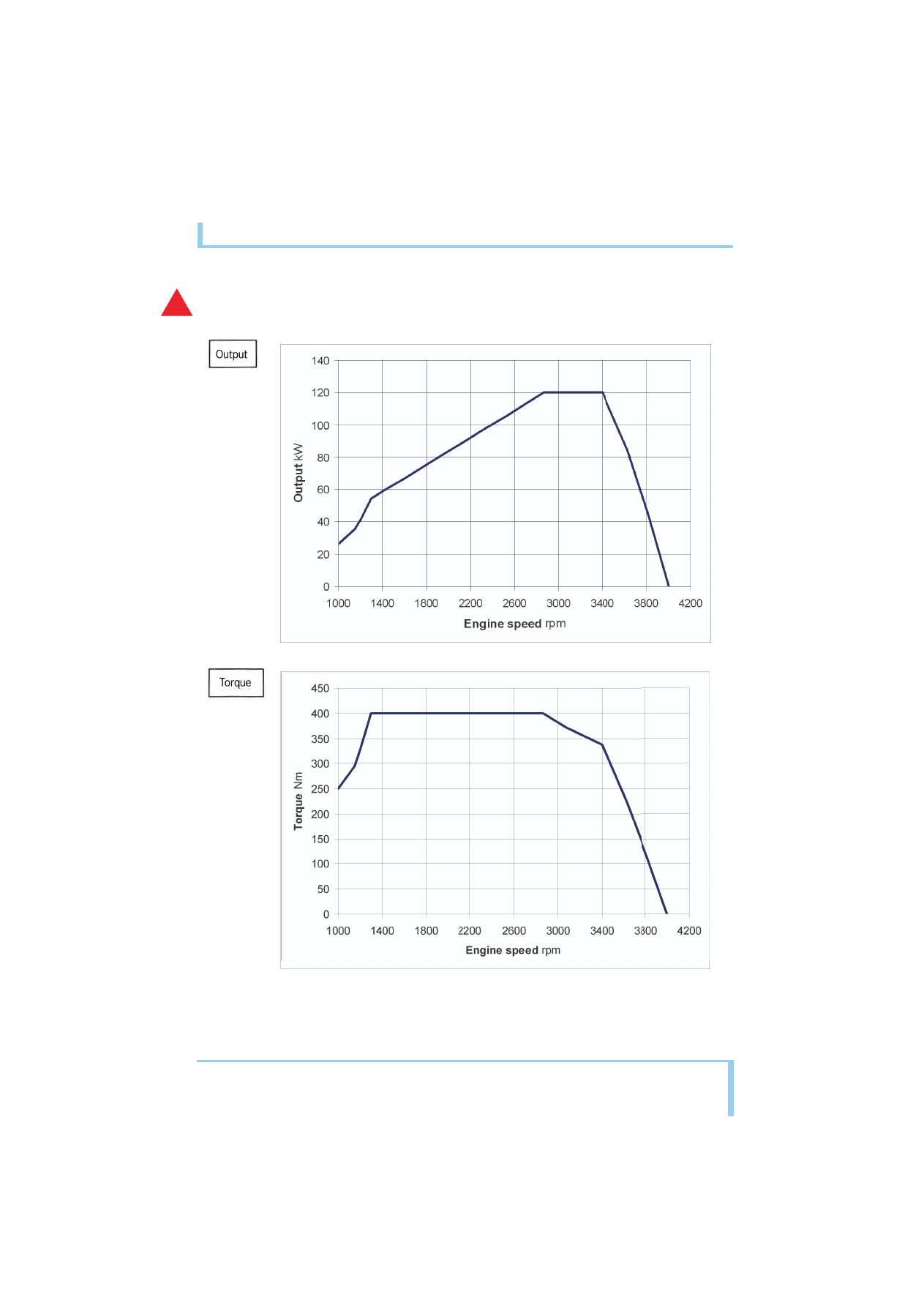

9.2.2

Engine performance curve

E

9 Technical  data

9.3 Weight distribution table

143

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

9.3 Weight distribution table

Model: FEC52CL3SUHD 120 (161) {kW(HP)}

Wheelbase

 {m (ft)} :

2.800 (9.2)

*1: From front axle center
*2: Chassis cab weight oil, fuel and coolant but exclude tire & disc, tools and persons.

Parts name

Weight

{Kg (lb)}

Distance *1

to center of

gravity
{m (ft)}

Front axle

load

{Kg (lb)}

Rear axle

load

{Kg (lb)}

Front bumper

11 (24)

-1.012 (-3)

15.0 (33)

-4 (-9)

Steering system

41 (90)

-0.719 (-2)

51.5 (115)

-10.5 (-21)

Engine control system

0 (0)

-1.000 (-3)

0.5 (1.1)

-0.1 (-0.2)

Brake, clutch control system

22 (49)

-1.000 (-3)

29.9 (66)

-7.9 (-19)

Air intake system

24 (53)

0.524 (1.7)

19.8 (44)

4.6 (10)

Parking brake system

5 (11)

0.085 (0.3)

4.8 (11)

0.2 (0.4)

Remote control system

9 (20)

0.196 (0.6)

8.4 (19)

0.6 (1.3)

Cab assembly, Front cab mounting

355 (780)

-0.300 (-1)

393.0 (865)

-38.0 (-81)

Cooling system

28 (62)

-0.320 (-1)

31.2 (69)

-3.2 (-7)

Engine, Transmission assembly

430 (945)

0.401 (1.3)

368.3 (810)

61.6 (135)

Rear cab mounting

44 (97)

-0.223 (-0.7)

47.5 (105)

-3.5 (-8)

Battery

62 (135)

0.889 (2.9)

42.3 (93)

19.7 (43)

Fuel system

136 (300)

3.230 (11)

-20.9 (-47)

157.0 (345)

Exhaust system

69 (150)

1.420 (4.7)

34.0 (75)

34.9 (77)

Propeller shaft assembly

12 (26)

1.896 (6.2)

3.9 (8.6)

8.1 (18)

Electric system

10 (22)

1.450 (4.8)

4.8 (11)

5.2 (11)

Frame and others

262 (575)

1.470 (4.8)

124.5 (275)

137.6 (305)

Engine and T/M cover

3 (6.6)

0.401 (1.3)

2.3 (5.1)

0.4 (0.9)

A/C unit

27 (60)

-0.780 (-3)

34.5 (76)

-7.5 (-17)

Electric others

39 (86)

-0.800 (-3)

49.8 (110)

-11.1 (-23)

ECU

4 (8.8)

-0.896 (-3)

5.3 (12)

-1.3 (-3)

SCR tank

18 (40)

1.975 (6.5)

5.2 (11)

12.5 (28)

1611 (3550)

1255.6 (2770)

1256 (2770)

355.3 (785)

355 (780)

Sprung weight

Unsprung weight

755 (1660)

277 (610)

478 (1050)

*2

2366 (5220)
2365 (5210)

1533 (3380)
1535 (3380)

833 (1840)
830 (1830)

Chassis Cab weight
