24

3 Planning of bodies

3.3 Dimensions, weights, vehicle overall length, height, and width

i

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

3.3 Dimensions, weights, vehicle overall length, height, and width

Dimensions and weight details can be found in the
drawings and technical data. They are based on a
vehicle that is fitted with standard equipment. Weight
tolerances of ±3% in production must be taken into
consideration.

The permissible axle loads and the maximum
permissible gross vehicle weight specified in the
technical data may not be exceeded.

The technical data can be found in the vehicle
documents, on the vehicle model plate.

a

Risk of accident

The vehicle tire load capacity may not be exceeded
by overloading the vehicle beyond its specified
gross vehicle weight. The tires could overheat and
suffer damage. This could cause an operator to lose
control of the vehicle and cause an accident with
possible injury or death.

Information on the permissible axle loads can be
found in this manual and on the vehicle model plate.

All legal provisions governing the permissible
vehicle length, height, and width must be taken into
account when planning bodies.

i

Information about changes in weight is available
from the department responsible

컄 page 15.

25

3 Planning of bodies

3.4 About vehicle body incline

i

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

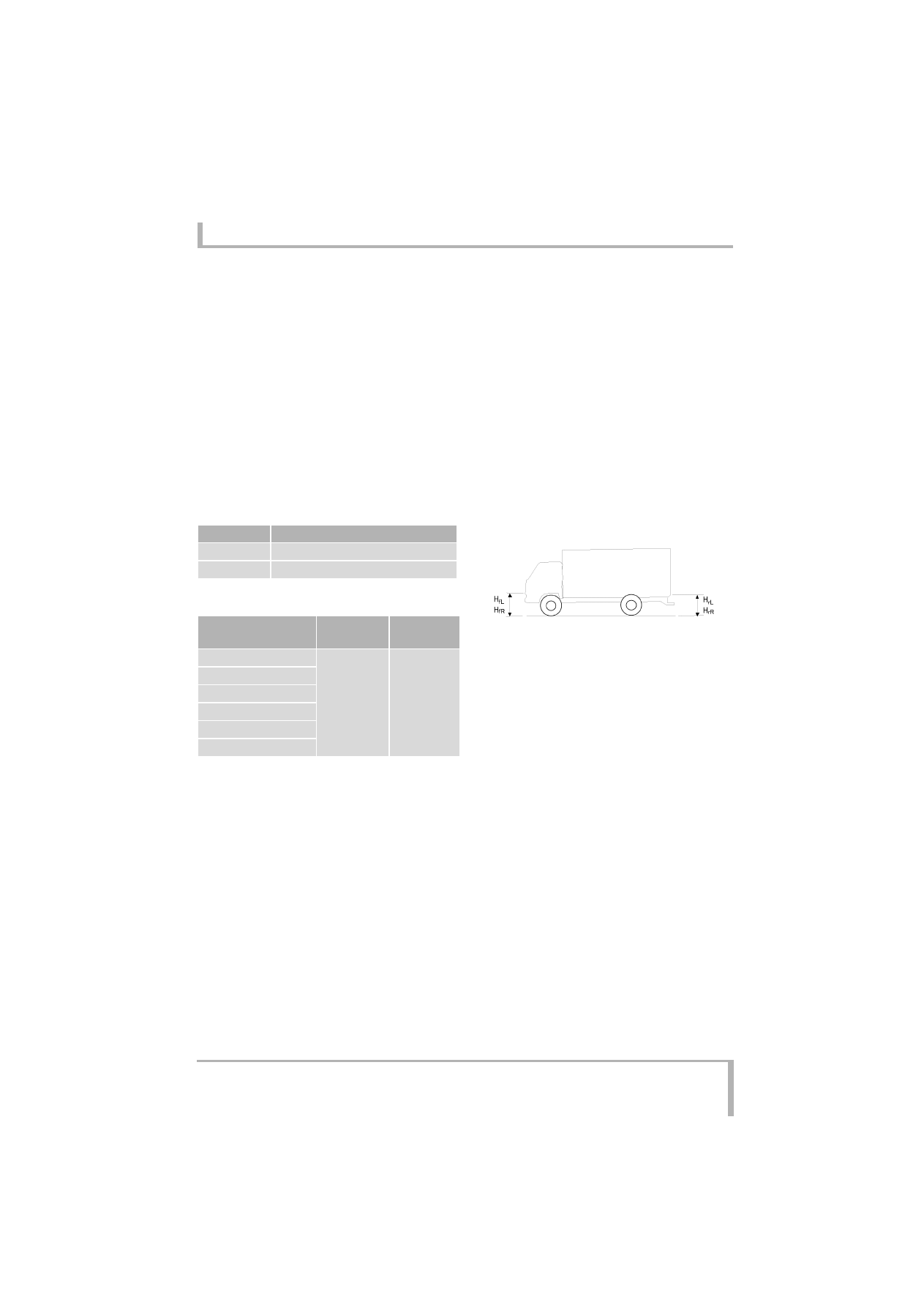

3.4 About vehicle body incline

• When mounting the rear body onto the chassis,

take care to evenly balance weight on the left and
right sides. If there is a difference in weight
between the left and right sides, adjust by adding
counterweights or spacers on the sub-frame.
Modification of axles suspension, including
removal or replacement of individual spring leaves,
is prohibited.
Also, use the chassis height adjustment shims
(4.5mm {0.18in.} thickness) set on the front and
rear springs.

Shim

Spacer Specification

• The following are target reference values for tilting

the body of an assembled vehicle.
• Left-right weight difference

|HfL - HfR|

≤

10mm {0.39in.}

|HrL - HrR|

≤

 10mm {0.39in.}

• Front-back  deviation

|(HfL - HfR) - (HrL - HrR)|

≤

 10mm {0.39in.}

HfL: Center height of headlamp (left side)
HfR: Center height of headlamp (right side)
HrL: Lower height of rear end of body outer panel

(left side)

HrR: Lower height of rear end of body outer panel

(right side)

MFTBC Part No.

Front

MC110153

Rear

MB161776

Material

Thickness

(mm{in.})

Finish

SS400(JIS G3101)

4.5

{0.18}

Painting for
rust
prevention

E275A(ISO 630)
S275JR/JO(EN10025)
SUP9(JIS G4801)
55Cr3(ISO683-14)
or equivalent

26

3 Planning of bodies

3.5 Tires

i

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

3.5 Tires

The body manufacturer must ensure that:

• the largest permissible factory-authorized tires can

be fitted.

• the distance between the tire and the mudguard or

wheel housing is sufficient even when snow or anti-
skid chains are fitted, with the suspension fully
compressed (including any twist) (Adherence to
valid regulations).

• that the relevant information in the drawings is

observed.

If the option of fitting snow and anti-skid chains
cannot be guaranteed, the operator should be
informed by the body manufacturer (operating
instructions).

Comply with federal, state, and local regulations and
codes governing the approval of tires. These
regulations may define a specific type of tire for your
vehicle or may forbid the use of certain tire types
which are approved in other countries. NAFTA does
not offer optional tire sizes for any model.

<FG>

Be sure to fit tires of the same size and same type on
all wheels.

a

Risk of accident

Exceeding the specified tire load-bearing capacity
or the permissible maximum tire speed can lead to
tire damage or failure. The operator could lose
control of the vehicle, and cause an accident and
injuries.

For this reason, only fit tires of a type and size
approved for your vehicle and observe the tire load-
bearing capacity required for your vehicle. Observe
tire speed index.

!

If you have other wheels fitted
• the brakes or components of the suspension

system could be damaged

• wheel and tire clearance can no longer be

guaranteed

• the brakes or components of the suspension

system can no longer function correctly.

!

If tires of different sizes are fitted, the power train
could be damaged.

27

3 Planning of bodies

3.6 Bolted and welded connections

i

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

3.6 Bolted and welded connections

3.6.1

Nuts and Bolts for Use on Frame

Pay attention to the following when removing nuts and
bolts used on a standard vehicle.

• Target Locations

Nuts and bolts used for tightening frame cross-
members and side members (including nuts and
bolts used for tightening the fuel tank and battery
together)
How to distinguish nuts and bolts

Bolt (8T) .... Identifying letter "8"
Nut (6T) .... Identification at diagonal corner

• Handling of nuts and bolts

(a) Bolts that have been removed cannot be used

again.  Tighten again using new bolts having the
same strength.

(b) Nuts and bolts must be tightened to the

following torques:
M10: 60 to 80 Nm {44 to 59 ft.lbs, 6.1 to 8.2
kgf.m}
M12: 98 to 120 Nm {72 to 89 ft.lbs, 10.0 to
12.0 kgf.m}

• In particular, cross-members must be tightened

when bolts used for tightening cross-members
together are removed for moving the fuel tank and
battery.

a

Risk of accident

Do not modify any bolted connections that are
relevant to safety, e.g. that are required for wheel
alignment, steering or braking functions.

When unfastening bolted connections make sure
that, when work is complete, the connection again
corresponds with the original condition.

Welding work on the chassis/body may only be
carried out by trained and qualified personnel.

The body, the attached or installed equipment and
any modifications must comply with the applicable
laws and ordinances as well as work safety or
accident prevention regulations, safety rules and
accident insurer requirements.

i

Further information on bolted and welded
connections can be found in Section 5 "Damage
prevention"

컄 page 65 and Section

6 "Modifications to the basic vehicle"

컄 page 81.
