ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-33

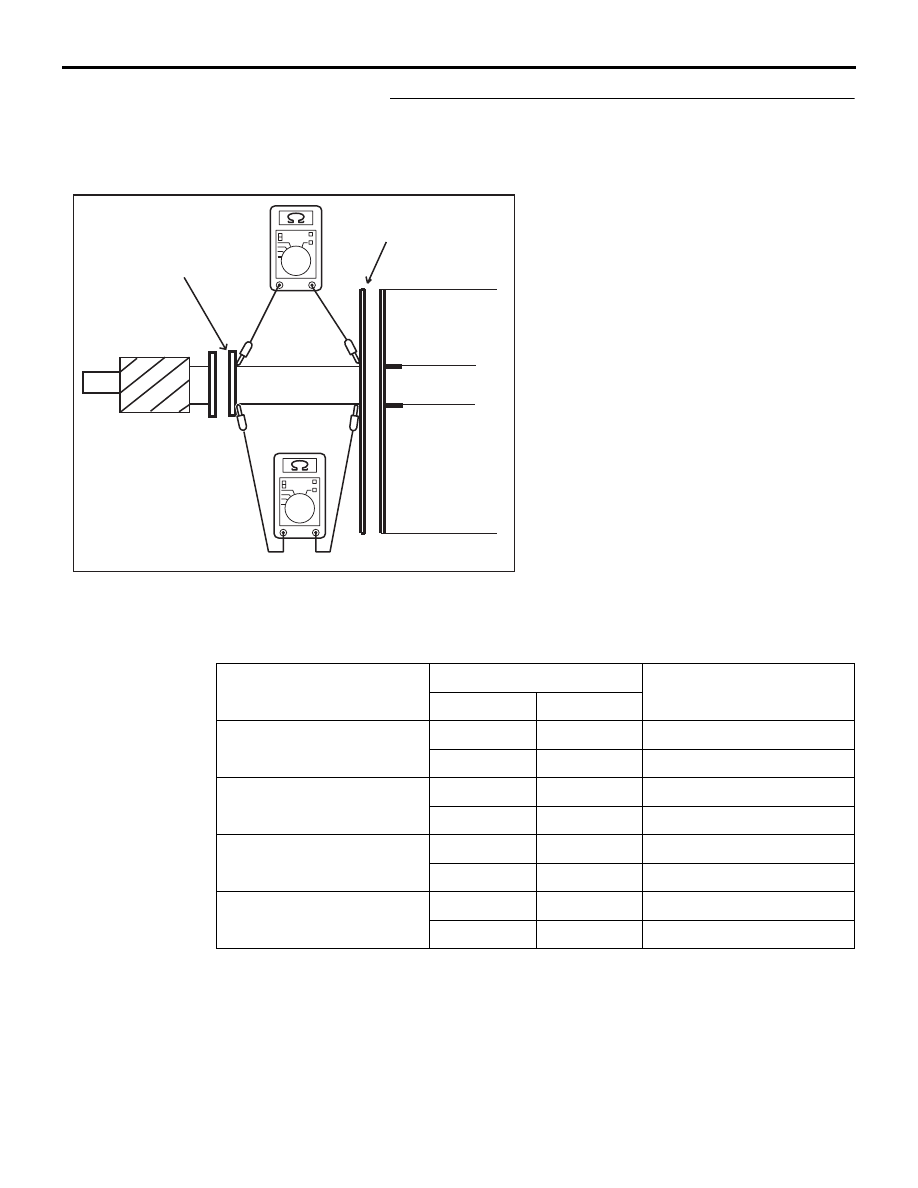

STEP 9. Check ABS-ECU connector A-02 and wheel speed
sensor <front: LH> connector A-04 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

NOTE: The special tool (Inspection test harness) MB991219
for connector pin contact pressure should be used. The test
probe should never be forcibly inserted, as it may cause a
defective contact.

              SIGNAL

   TERMINAL  NO.

  NORMAL CONDITION

 ABS (A-02)

   SENSOR

FR wheel speed sensor
(A-01)

9

2

Less than 2 ohms

10

1

Less than 2 ohms

RR wheel speed sensor
(D-30)

8

1

Less than 2 ohms

19

2

Less than 2 ohms

FL wheel speed sensor
(A-04)

16

2

Less than 2 ohms

5

1

Less than 2 ohms

RL wheel speed sensor
(D-31)

6

1

Less than 2 ohms

17

2

Less than 2 ohms

ABS-ECU
 CONNECTOR
 (A-02)

Supply

Signal

WHEEL SPEED
    SENSOR

Wheel speed
sensor connectors:
A-04,  A-01,  D-31,  D-30

Terminals:
 5, 10, 17, 19

35DB123A

Terminals:
 16, 9, 6, 8

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-34

Q: Are ABS-ECU connector A-02 and wheel speed sensor

<front: LH> connector A-04 damaged?
YES : Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Then go to Step 13.

NO :  Open or short circuit may be present in the front left

wheel speed sensor circuit. Repair the wiring harness
between ABS-ECU connector A-02 (terminals 5 and
16) and front left wheel speed sensor A-04 (terminals
1 and 2).Then go to Step 13.

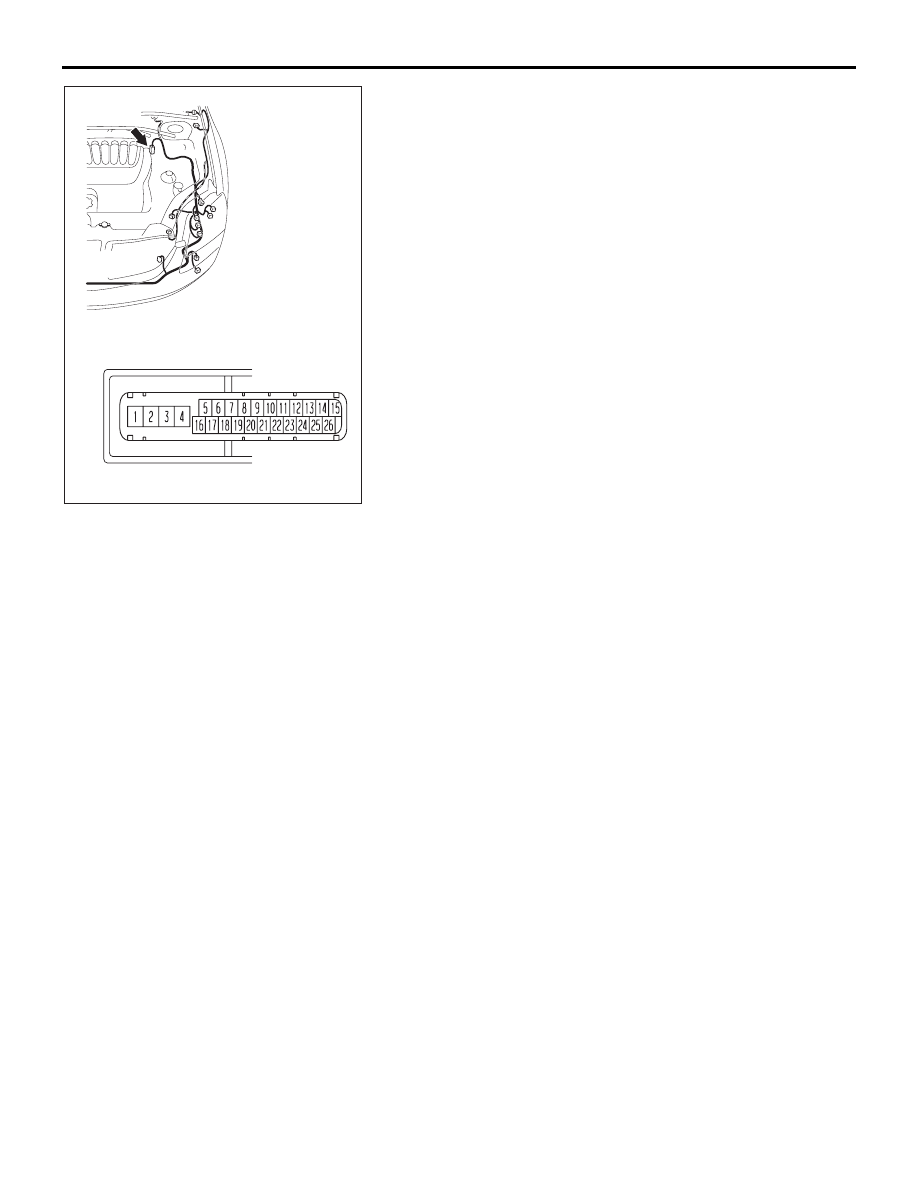

16DB402A

A-02 (GR)

CONNECTOR: A-02

A-02 HARNESS CONNECTOR:

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-35

STEP 10. Check ABS-ECU connector A-02, intermediate
connector C-25 and wheel speed sensor <Rear: RH>
connector D-30 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

NOTE: The special tool (Inspection test harness) MB991219
for connector pin contact pressure should be used. The test
probe should never be forcibly inserted, as it may cause a
defective contact.

              SIGNAL

   TERMINAL  NO.

  NORMAL CONDITION

 ABS (A-02)

   SENSOR

FR wheel speed sensor
(A-01)

9

2

Less than 2 ohms

10

1

Less than 2 ohms

RR wheel speed sensor
(D-30)

8

1

Less than 2 ohms

19

2

Less than 2 ohms

FL wheel speed sensor
(A-04)

16

2

Less than 2 ohms

5

1

Less than 2 ohms

RL wheel speed sensor
(D-31)

6

1

Less than 2 ohms

17

2

Less than 2 ohms

ABS-ECU
 CONNECTOR
 (A-02)

Supply

Signal

WHEEL SPEED
    SENSOR

Wheel speed
sensor connectors:
A-04,  A-01,  D-31,  D-30

Terminals:
 5, 10, 17, 19

35DB123A

Terminals:
 16, 9, 6, 8

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-36

Q: Are ABS-ECU connector A-02, intermediate connector

C-25 and wheel speed sensor <Rear: RH> connector
D-30 damaged?
YES : Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Then go to Step 13.

NO :  Open or short circuit may be present in the rear right

wheel speed sensor circuit. Repair the wiring harness
between ABS-ECU connector A-02 (terminals 8 and
19) and rear right wheel speed sensor D-30 (terminals
1 and 2).Then go to Step 13.

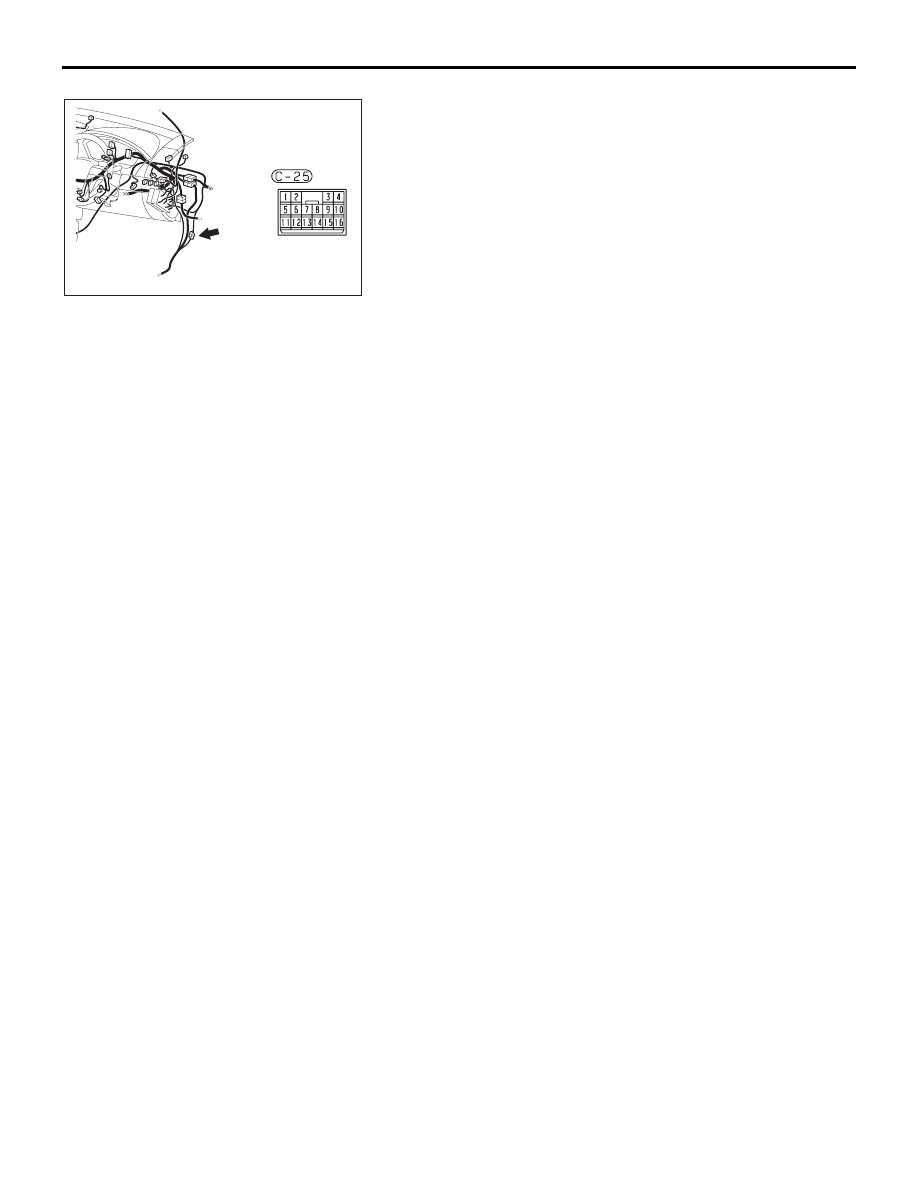

35DB033A

CONNECTOR: C-25

C-25
