RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-198

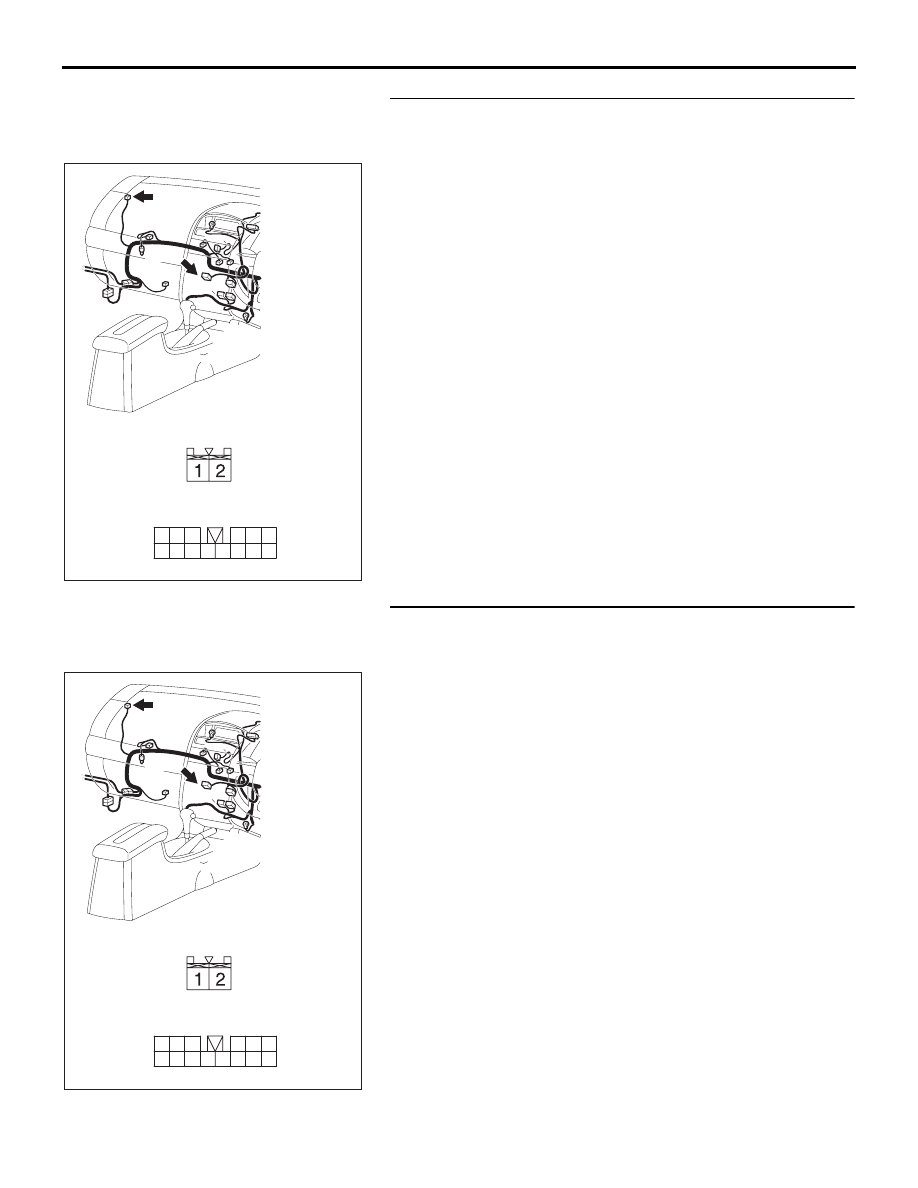

STEP 6. Check tweeter (LH) connector C-129 and radio and
CD player connector C-111 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are harness connectors C-129 and C-111 in good

condition?
YES :
Go to Step 7.
NO :  Repair or replace the component(s). Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

tweeter (LH) should sound.

STEP 7. Check the wiring harness between tweeter (LH)
connector C-129 (terminals 1 and 2) and radio and CD
player connector C-111 (terminals 5 and 13).
Q: Is the wiring harness between tweeter (LH) connector

C-129 (terminals 1 and 2) and radio and CD player
connector C-111 (terminals 5 and 13) in good condition?
YES :
The procedure is complete.
NO :  Repair the wiring harness. The tweeter (LH) should

sound.

16DB541A

C-111

C-129 (B)

CONNECTORS: C-129, C-111

HARNESS SIDE

C-129

HARNESS SIDE

C-111

3

9

4

12

14

6

13

5

1110

8

2

7

1

16DB541A

C-111

C-129 (B)

CONNECTORS: C-129, C-111

HARNESS SIDE

C-129

HARNESS SIDE

C-111

3

9

4

12

14

6

13

5

1110

8

2

7

1

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-199

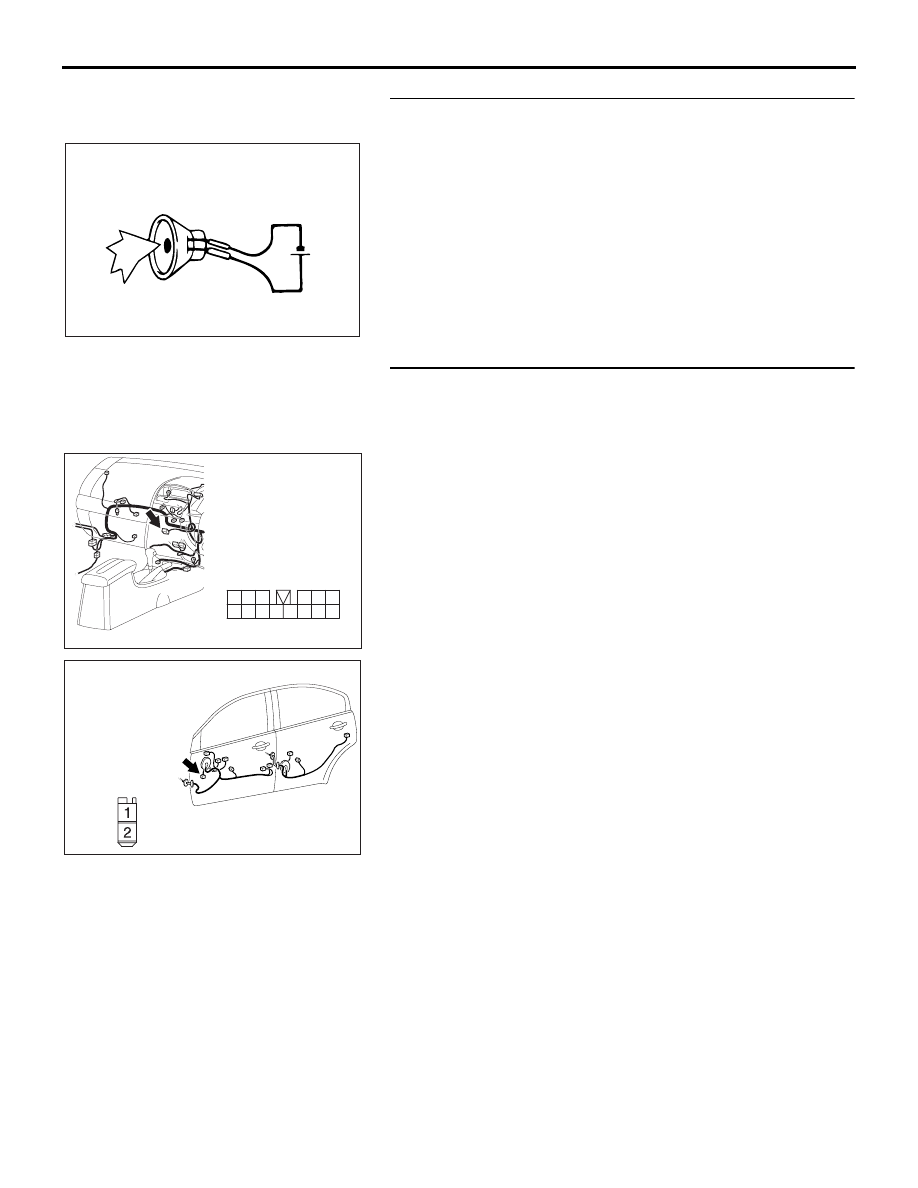

STEP 8. Check the front door speaker (LH).
(1) Remove the front door speaker (LH). Refer to

P.54A-232

.

(2) Check that the front door speaker (LH) generates noise

when a five-volt voltage is applied on the front door speaker
(LH) terminal.

Q: Is the front door speaker (LH) generating noise?

YES : Go to Step 9.
NO :  Replace the front door speaker (LH). The front door

speaker (LH) should sound.

STEP 9. Check front door speaker (LH) connector E-10 and
radio and CD player connector C-111 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Are harness connectors E-10 and C-111 in good

condition?
YES :
Go to Step 10.
NO :  Repair or replace the component(s). Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

front door speaker (LH) should sound.

ACX01868AB

5V

54DB041A

HARNESS SIDE

3

9

4

12

14

6

13

5

1110

8

2

7

1

CONNECTOR: C-111

AC305262

AO

CONNECTOR: E-10

HARNESS SIDE

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-200

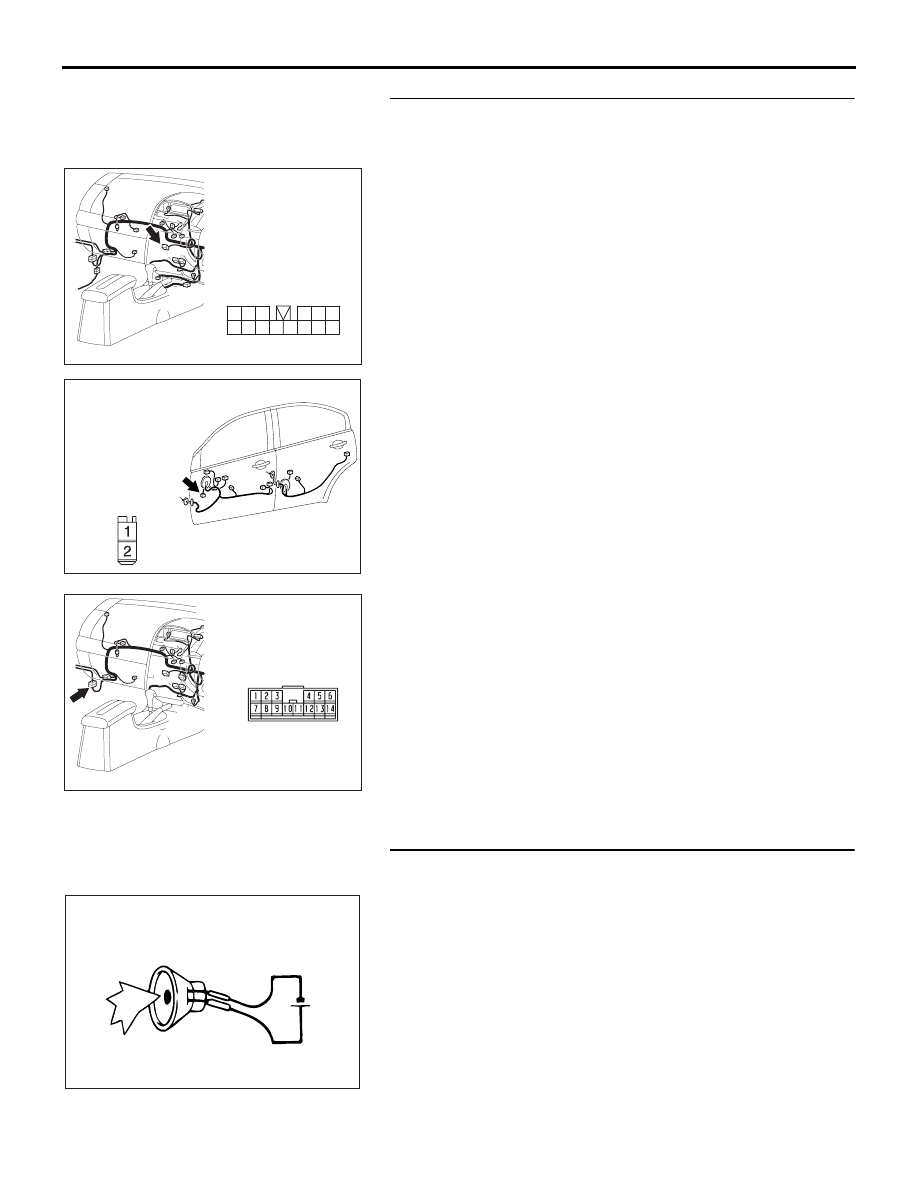

STEP 10. Check the wiring harness between front door
speaker (LH) connector E-10 (terminals 1 and 2) and radio
and CD player connector C-111 (terminals 5 and 13).

NOTE: Also check intermediate connector C-26 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-26 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between front door speaker (LH)

connector E-10 (terminals 1 and 2) and radio and CD
player connector C-111 (terminals 5 and 13) in good
condition?
YES :
The procedure is complete.
NO :  Repair the wiring harness. The front door speaker

(LH) should sound.

STEP 11. Check the front door speaker (RH).
(1) Remove the front door speaker (RH). Refer to

P.54A-232

.

(2) Check that the front door speaker (RH) generates noise

when a five-volt voltage is applied on the front door speaker
(RH) terminal.

Q: Is the front door speaker (RH) generating noise?

YES : Go to Step 12.
NO :  Replace the front door speaker (RH). The front door

speaker (RH) should sound.

54DB041A

HARNESS SIDE

3

9

4

12

14

6

13

5

1110

8

2

7

1

CONNECTOR: C-111

AC305262

AO

CONNECTOR: E-10

HARNESS SIDE

16DB322A

CONNECTOR:C-26

ACX01868AB

5V

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-201

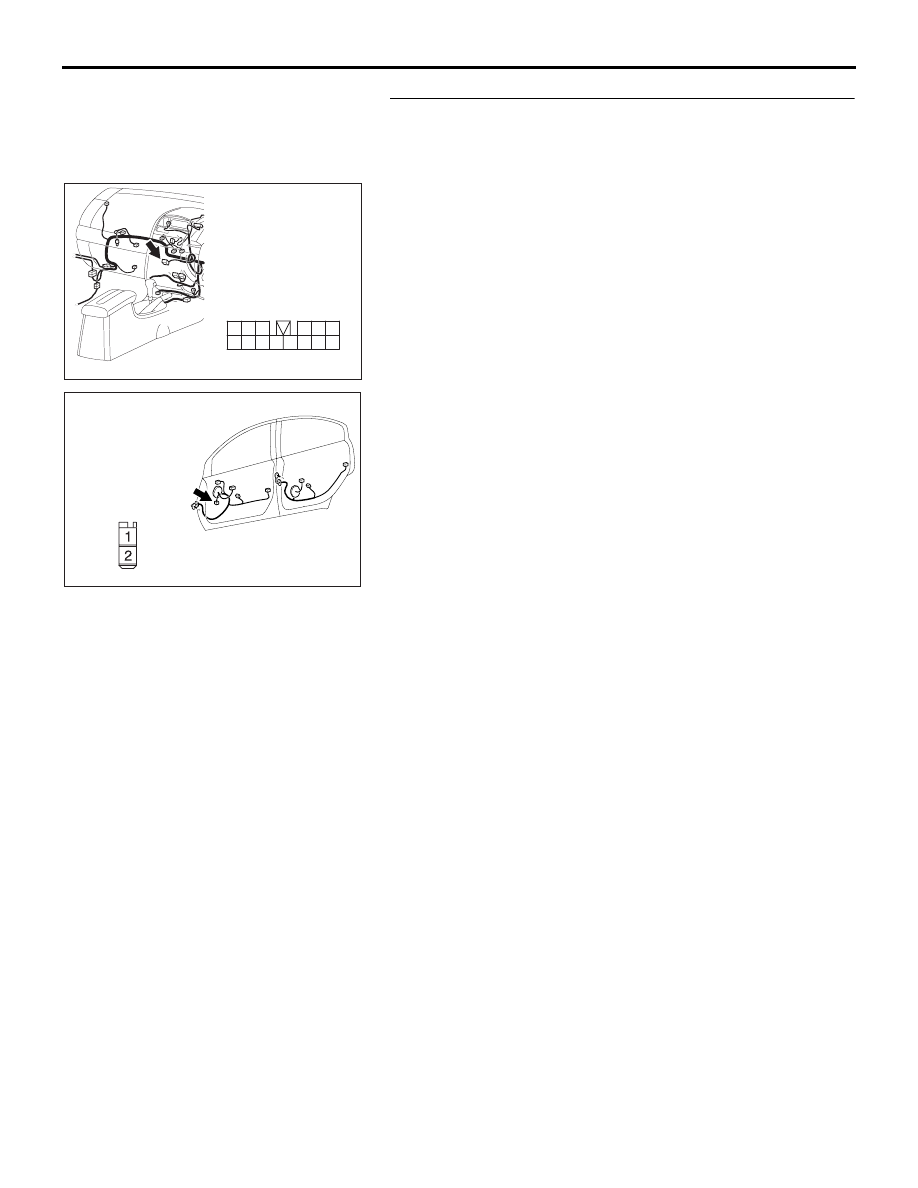

STEP 12. Check front door speaker (RH) connector E-02
and radio and CD player connector C-111 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are harness connectors E-02 and C-111 in good

condition?
YES :
Go to Step 13.
NO :  Repair or replace the component(s). Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

front door speaker (RH) should sound.

54DB041A

HARNESS SIDE

3

9

4

12

14

6

13

5

1110

8

2

7

1

CONNECTOR: C-111

AC305333

HARNESS SIDE

AL

CONNECTOR: E-02
