Mitsubishi 380. Manual - part 826

POST-COLLISION DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-228

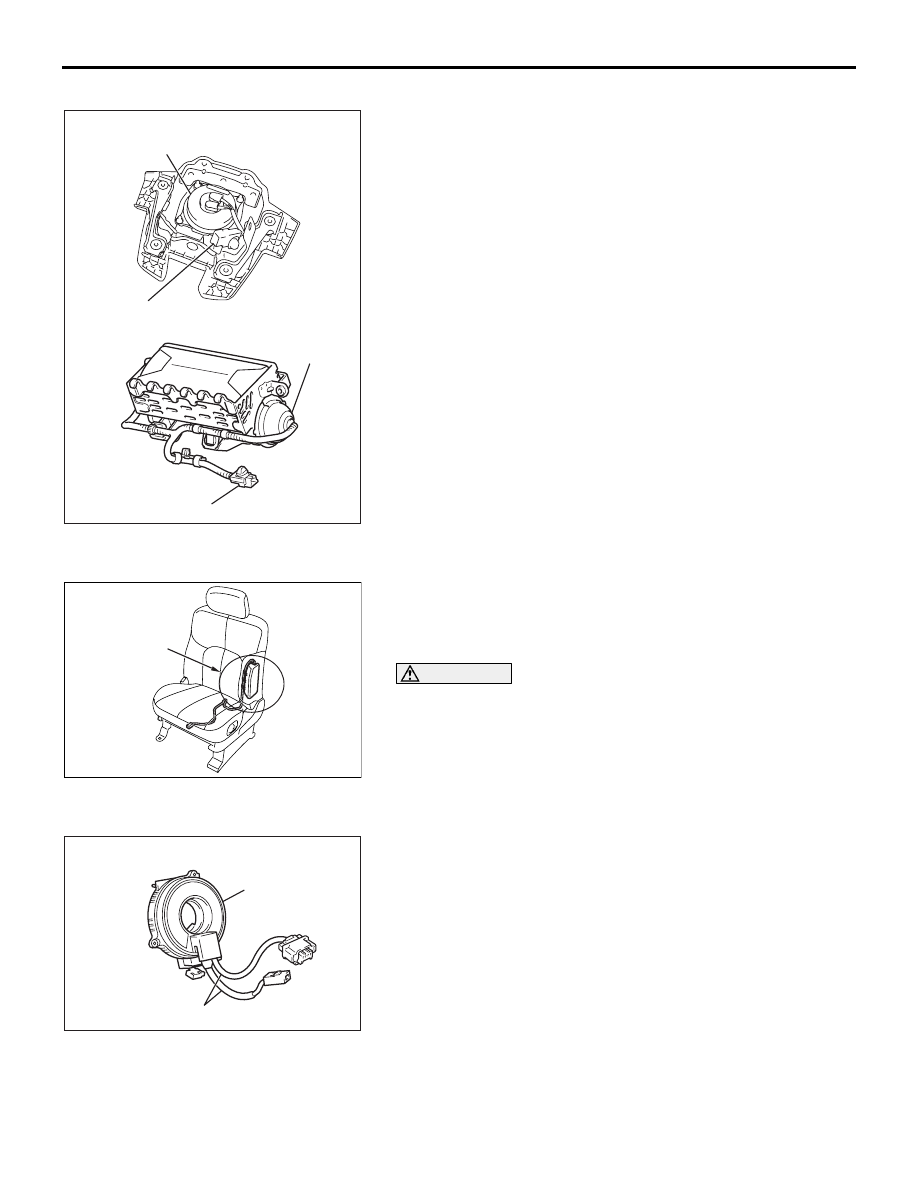

Air bag modules

1. Check the pad cover for dents, cracks or deformation.

2. Check the connector for damage, terminal deformities, and

the harness for binding.

3. Check the air bag inflator case for dents, cracks or

deformities.

4. Install the air bag module (driver's side) to the steering

wheel to check installation or alignment with the steering
wheel.

5. Install the air bag module (front passenger's side) to the

instrument panel and front deck crossmember to check
installation or alignment.

Front seatback assembly (Side-airbag module)

1. Check the air bag module deployment section for dents or

deformation.

2. Check that there is no connector damage, bent terminals or

harness crimping.

WARNING

[SRS is a safety related item, therefore there shall be no
attempt to repair any component or wiring harness related
to SRS]

Clock spring

1. Check the clock spring connectors and protective tube for

damage, and the terminals for deformation.

2. Visually check the case for damage.

AC307662AB

<DRIVER'S SIDE>

<FRONT PASSENGER'S SIDE>

INFLATOR CASE

CONNECTOR

INFLATOR
CASE

AC206854

AIR BAG MODULE
DEPLOYMENT
SECTION

AC306766AB

CASE

PROTECTIVE TUBE

POST-COLLISION DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-229

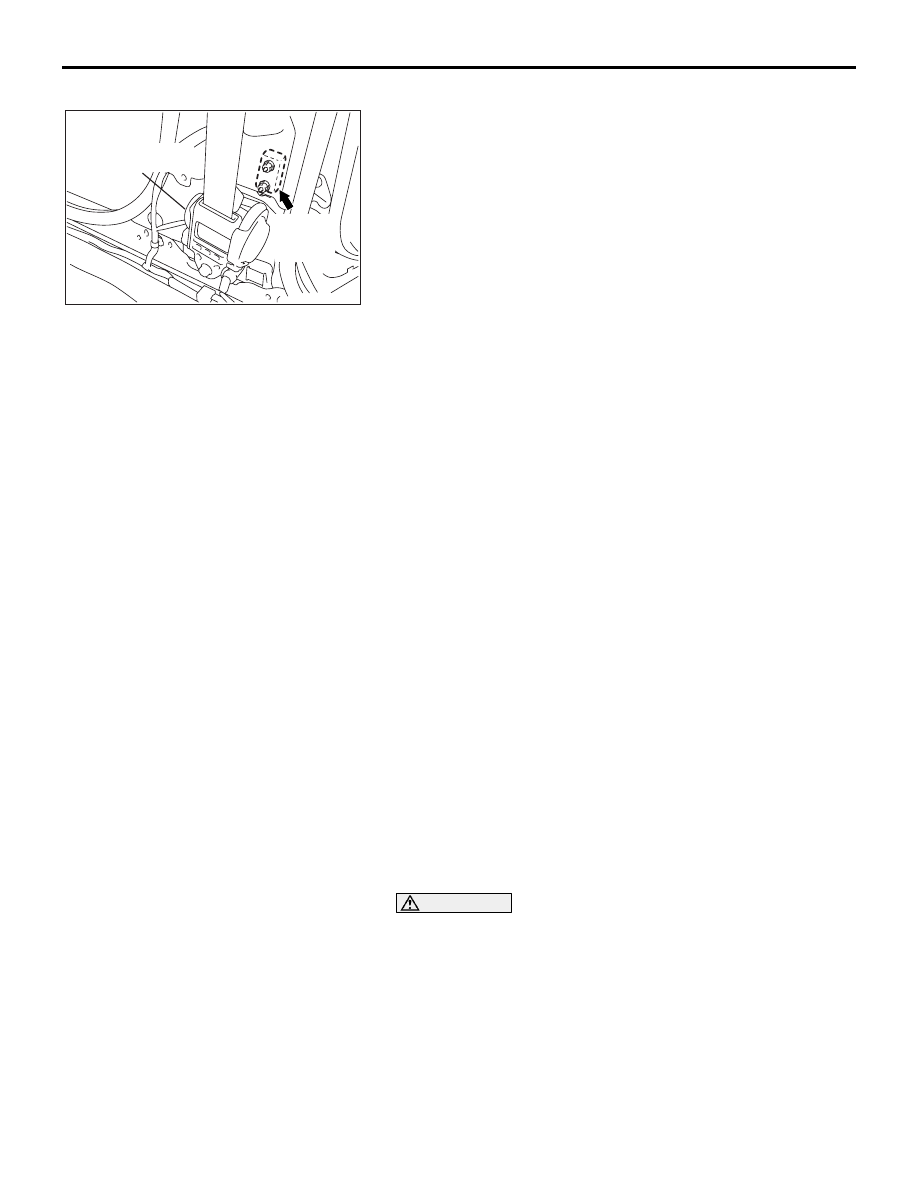

Side impact sensor

1. Check that there is no bending or corrosion in the center

pillar.

2. Check that there is no denting, breakage or bending of the

side impact sensor.

3. Check that there is no harness crimping, connector damage

or bent terminals.

NOTE: The illustration shows the side impact sensor (RH).
The position of the side impact sensor (LH) is symmetrical to
this.

Steering wheel, steering column and shaft
assembly

1. Check the wiring harness (built into the steering wheel) and

the connectors for damage, and the terminals for
deformation.

2. Install the air bag module to check fit or alignment with the

steering wheel.

3. Check the steering wheel for noise, binding or difficult

operation and excessive free play.

4. Check the steering column shaft shock absorbing

mechanism (Refer to GROUP 37, On-Vehicle Service

−

Steering Column Shaft Assembly Shock Absorbing
Mechanism Check ).

Seat belt with pre-tensioner

1. Check the seat belt for damage or deformation.

2. Check the seat belt with pre-tensioner for cracks or

deformation.

3. Check that the unit is installed correctly to the vehicle body.

Harness connector (Front wiring harness,
instrument panel wiring harness, and floor wiring
harness)

Check the harnesses for binding, the connectors for damage,
poor connection, and the terminals for deformation (Refer to

P.52B-16

WARNING

[SRS is a safety related item, therefore there shall be no
attempt to repair any component or wiring harness related
to SRS]

AC206185AC

FRONT SEAT BELT

RETRACTOR

SIDE

IMPACT

SENSOR

INDIVIDUAL COMPONENT SERVICE

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-230

INDIVIDUAL COMPONENT SERVICE

M1524002900282

WARNING

•

If heat damage occurs during paint work, remove the SRS-ECU, the air bag modules, the
clock spring, front seats, and the seat belt with pre-tensioner. Recheck the SRS system
operability after reinstalling them. (Refer to GROUP 00, Maintenance Service-SRS Mainte-
nance ).

•

SRS-ECU, air bag module, clock spring: 93

° C (200° F) or more

•

Seat belt with pre-tensioner: 90

°C (194° F) or more

•

If the SRS components are removed for the purpose of inspection, sheet metal repair,
painting, etc., they should be stored in a clean, dry place until they are reinstalled.

If the SRS components are to be removed or replaced as a result of maintenance, diagnosis, etc., follow the
appropriate procedure in this section. (Front impact sensor: refer to

P.52B-231

, SRS-ECU: refer to

P.52B-234

, Air bag modules and clock spring: refer to

P.52B-237

, Side impact sensor: refer to

P.52B-247

Seat belt with pre-tensioner: refer to

P.52B-250

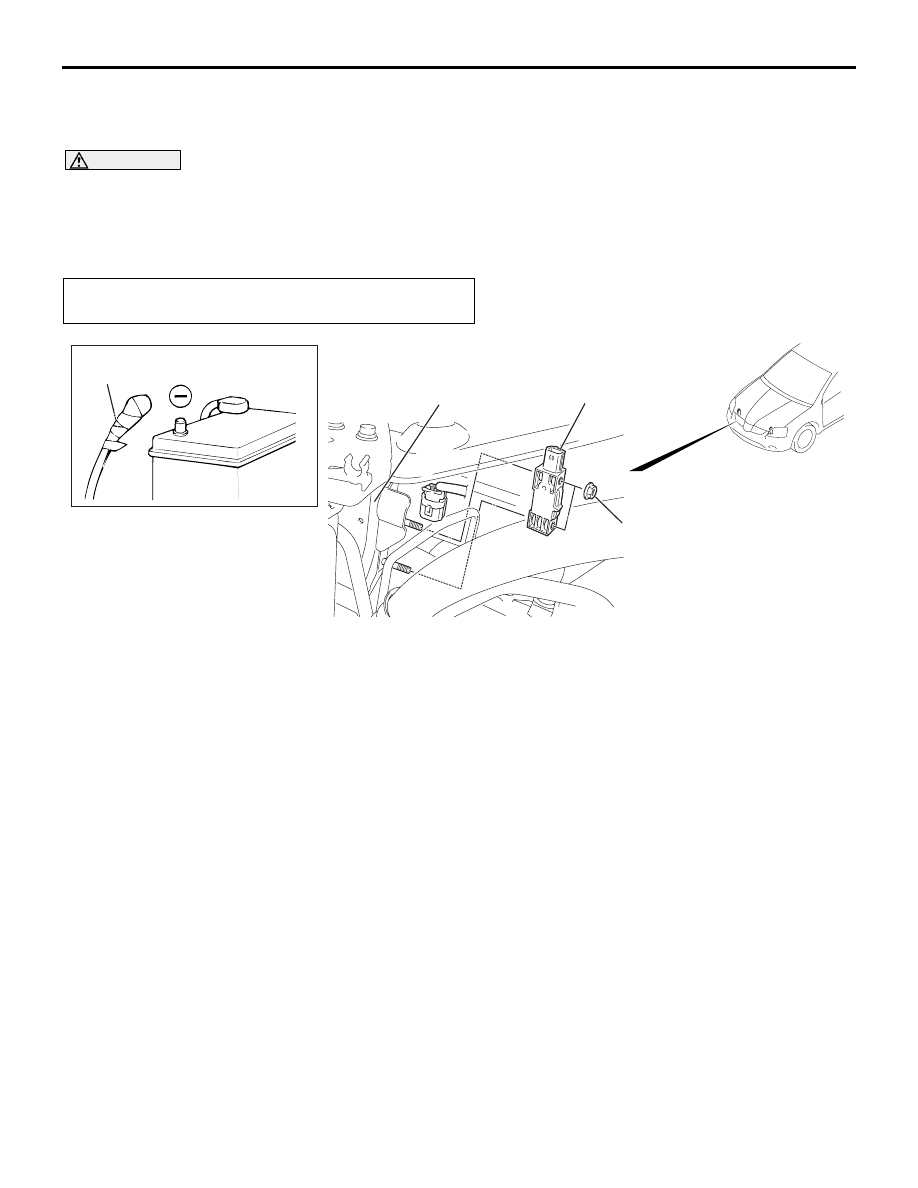

FRONT IMPACT SENSORS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-231

FRONT IMPACT SENSORS

REMOVAL AND INSTALLATION

M1524001500300

WARNING

•

Never repair or disassemble the front impact sensor. If faulty, replace it.

•

Handle the front impact sensors very carefully, taking care not to drop them. They must
be replaced if they are dropped.

•

Replace the sensors with new ones after the air bag has deployed.

NOTE: The figure indicates the right front impact
sensor. The left impact sensor is symmetrical to this.

Pre-removal Operation

• Turn the ignition key to the "LOCK" (OFF) position.

AC307984

7.5 ± 2.5 N·m
67 ± 22 in-lb

RADIATOR SUPPORT PANEL

REMOVAL STEPS

<<A>>

NEGATIVE (-) BATTERY CABLE
CONNECTION

•

AIR DUCT (REFER TO GROUP
15, AIR CLEANER )

FRONT IMPACT SENSOR

INSTALLATION STEPS

>>A<<

•

PRE-INSTALLATION
INSPECTION

>>B<<

FRONT IMPACT SENSOR

•

AIR DUCT (REFER TO GROUP
15, AIR CLEANER )

NEGATIVE (-) BATTERY CABLE
CONNECTION

>>C<<

•

POST-INSTALLATION
INSPECTION
