Mitsubishi 380. Manual - part 814





SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-180

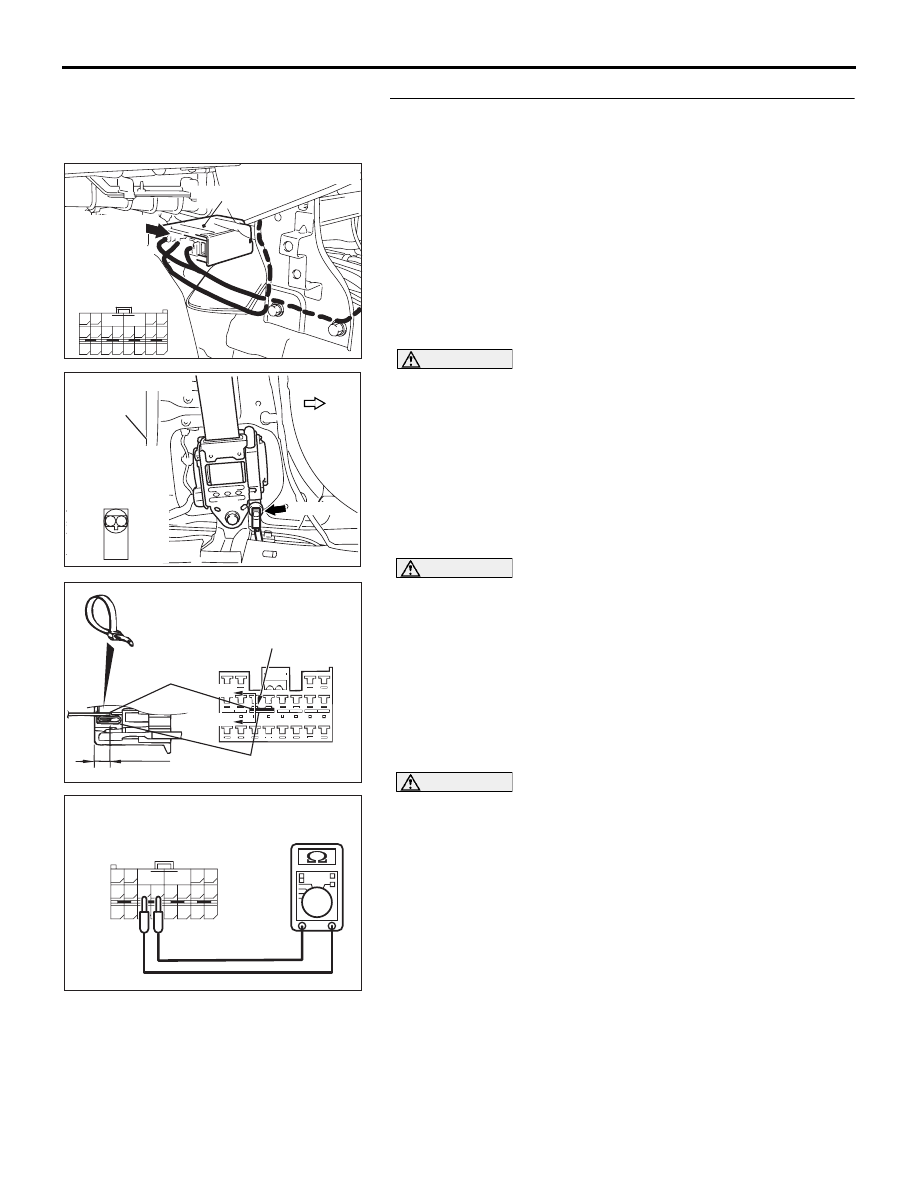

STEP 7. Check the passenger’s seat belt pre-tensioner
circuit. Measure the resistance at the SRS-ECU connector
D-27.
(1) Disconnect SRS-ECU connector D-27.

DANGER

To prevent the seat belt pre-tensioner from deploying
unintentionally, disconnect the passenger’s seat belt
pre-tensioner connector D-21 to short the squib cir-
cuit.

(2) Disconnect passenger's seat belt pre-tensioner connector

D-21. Use a flat-tipped screwdriver to unlock the locking
button at the harness side connector by withdrawing it
toward you in two stages, and then disconnect the
connector.

CAUTION

Insert an insulator such as a cable tie to a depth of 4mm
(0.16 inch) or more, otherwise the short spring will not be
released.
(3) Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)

thick] between terminals 7, 8 and the short spring to release
the short spring.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(4) Check for continuity between D-27 harness side connector

terminals 7 and 8.
It should be open circuit.

Q: Does continuity exist?

YES : Go to Step 8.
NO :  Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1470 sets,
replace the SRS-ECU (Refer to

P.52B-234

). Then go

to Step 9.

24DB064A

CONNECTOR: D-27

SRS-ECU

D-27 (Y)

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

D-27 Floor

harness

connector

(rear view)

AC306920AC

CONNECTOR: D-21

D-21 (B)

FOWARD

CENTER
PILLAR

HARNESS SIDE
CONNECTOR
(FRONT VIEW)

2 1

24DB084A

A

A

D-27 FLOOR HARNESS SIDE

CONNECTOR (FRONT VIEW)

TERMINAL

CABLE TIE

SHORT SPRING

4 mm (0.16 inch) OR MORE

SEC-
TION
A - A

24DB085A

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

D-27 FLOOR HARNESS

CONNECTOR SIDE

(REAR VIEW)

SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-181

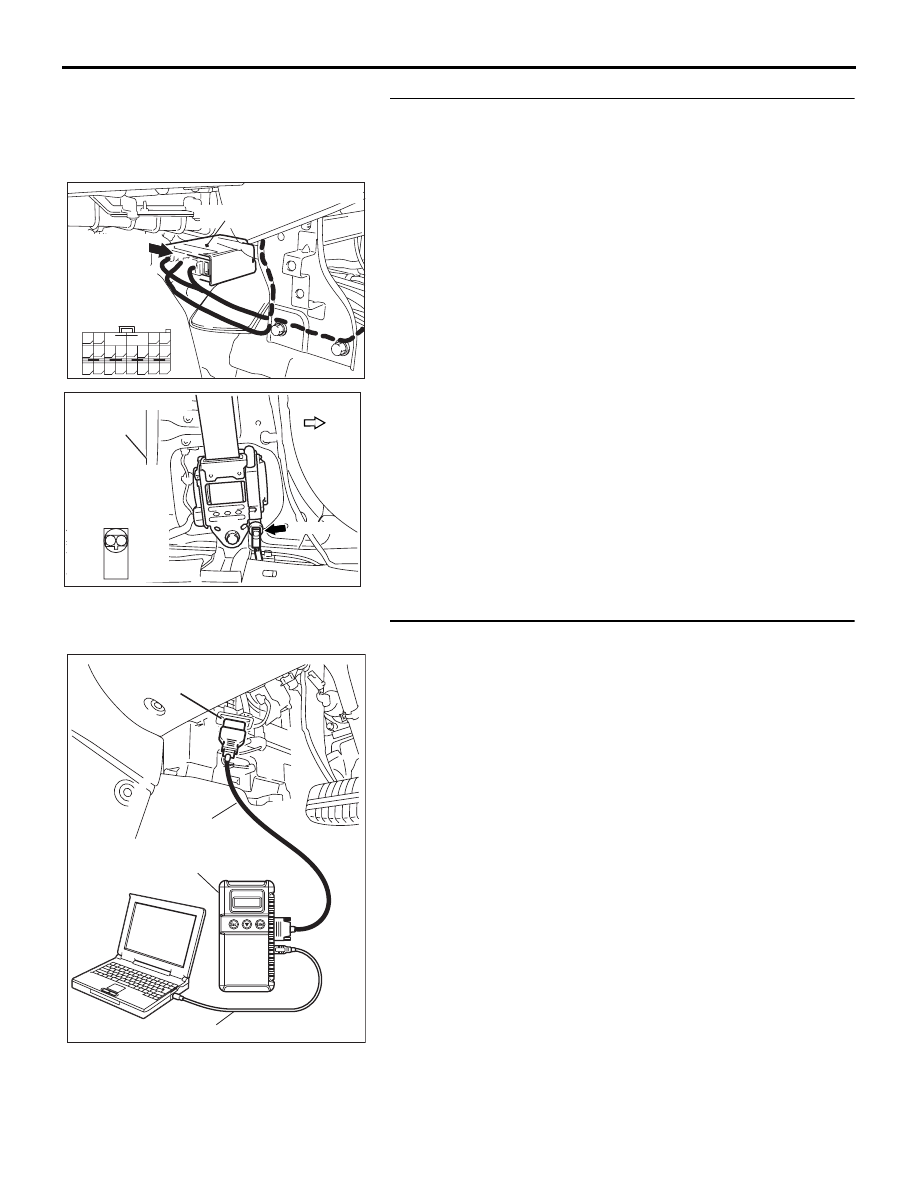

STEP 8. Check the harness for short circuit between
SRS-ECU connector D-27 (terminal No.7 and 8) and
passenger’s seat belt pre-tensioner connector D-21
(terminal No.1 and 2).
Q: Are harness wires between SRS-ECU connector D-27

(terminal No.7 and 8) and passenger’s seat belt
pre-tensioner connector D-21 (terminal No.1 and 2) in
good condition?
YES :
Go to Step 9.
NO :  Replace the harness wires between SRS-ECU

connector D-27 and passenger’s seat belt
pre-tensioner connector D-21. Then go to Step 9.

STEP 9. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC B1470 set?

YES : Return to Step 1.
NO :  The procedure is complete.

AC306920AC

CONNECTOR: D-21

D-21 (B)

FOWARD

CENTER
PILLAR

HARNESS SIDE
CONNECTOR
(FRONT VIEW)

2 1

24DB064A

CONNECTOR: D-27

SRS-ECU

D-27 (Y)

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

D-27 Floor

harness

connector

(rear view)

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-182

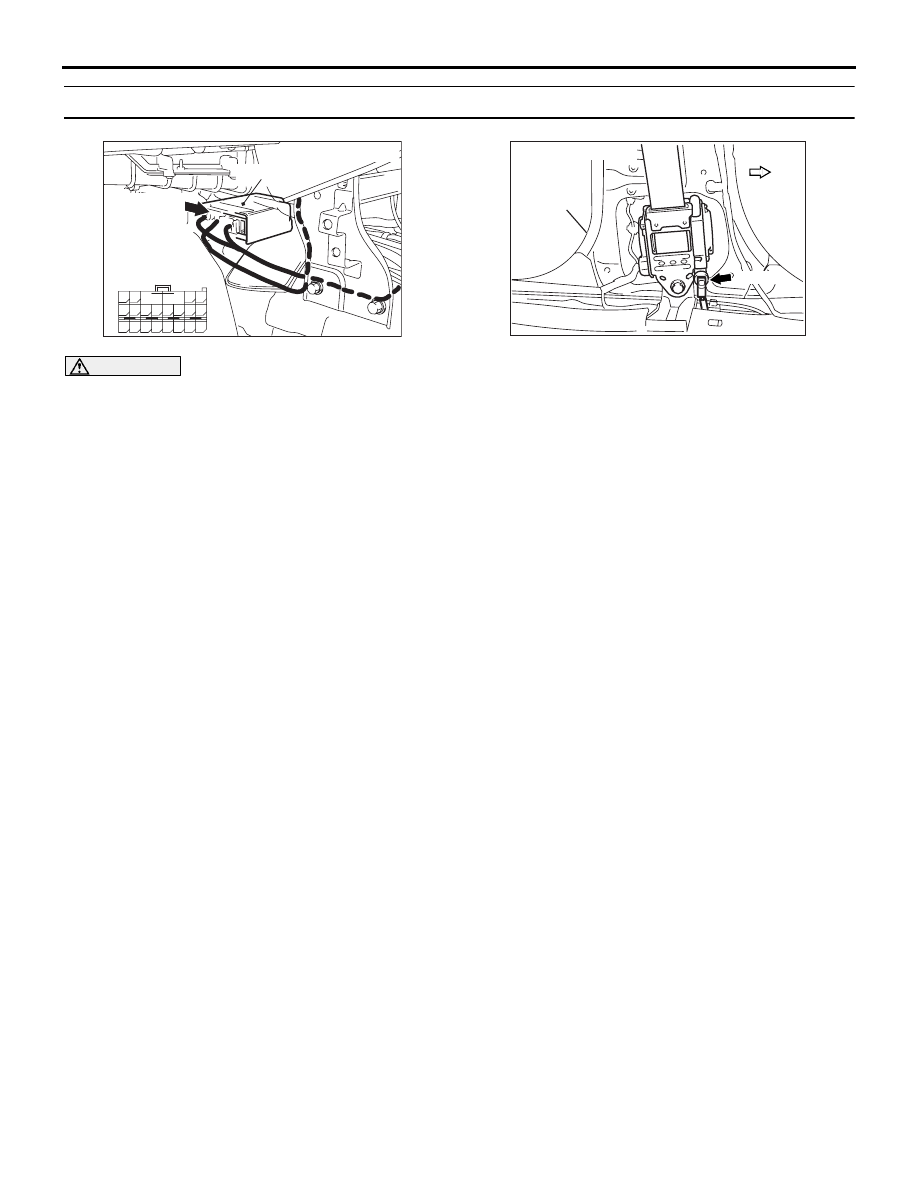

DTC B1471: Seat Belt Pre-Tensioner (LH) (Squib) System Fault 2 (Open in the Squib Circuit)

CAUTION

If DTC B1471 is set in the SRS-ECU, always diag-
nose the CAN main bus line.

.

CIRCUIT OPERATION

The SRS-ECU judges how severe a collision is by
detecting signals from the front impact sensors and
the front air bag analog G-sensor. If the impact is
over a predetermined level, the SRS-ECU sends an
ignition signal. At this time, if the front air bag safing
G-sensor is on, the pre-tensioner will deploy.

.

DTC SET CONDITIONS

This DTC is set if there is abnormal resistance
between the input terminals of the passenger's seat
belt pre-tensioner (squib).

.

TROUBLESHOOTING HITS

• Improper connector contact

• Open circuit in the passenger's seat belt pre-ten-

sioner (squib) circuit

• Malfunction of the SRS-ECU

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

.

DIAGNOSIS

Required Special Tools:

• MB991958: diagnostic tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991865: Dummy resistor

• MB991884: Resistor harness (For pre-tensioner)

24DB064A

CONNECTOR: D-27

SRS-ECU

D-27 (Y)

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

D-27 Floor

harness

connector

(rear view)

AC306920AB

CONNECTOR: D-21

D-21 (B)

FOWARD

CENTER
PILLAR

SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-183

STEP 1. Using diagnostic tool MB991958, diagnose the
CAN bus line.

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.
(1) Connect diagnostic tool MB991958. Refer to "How to

connect the diagnostic tool

P.52B-19

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis ).

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Use Troubleshooting/Inspection
Service Points

− How to Cope with Intermittent

Malfunctions ).

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
