DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-391

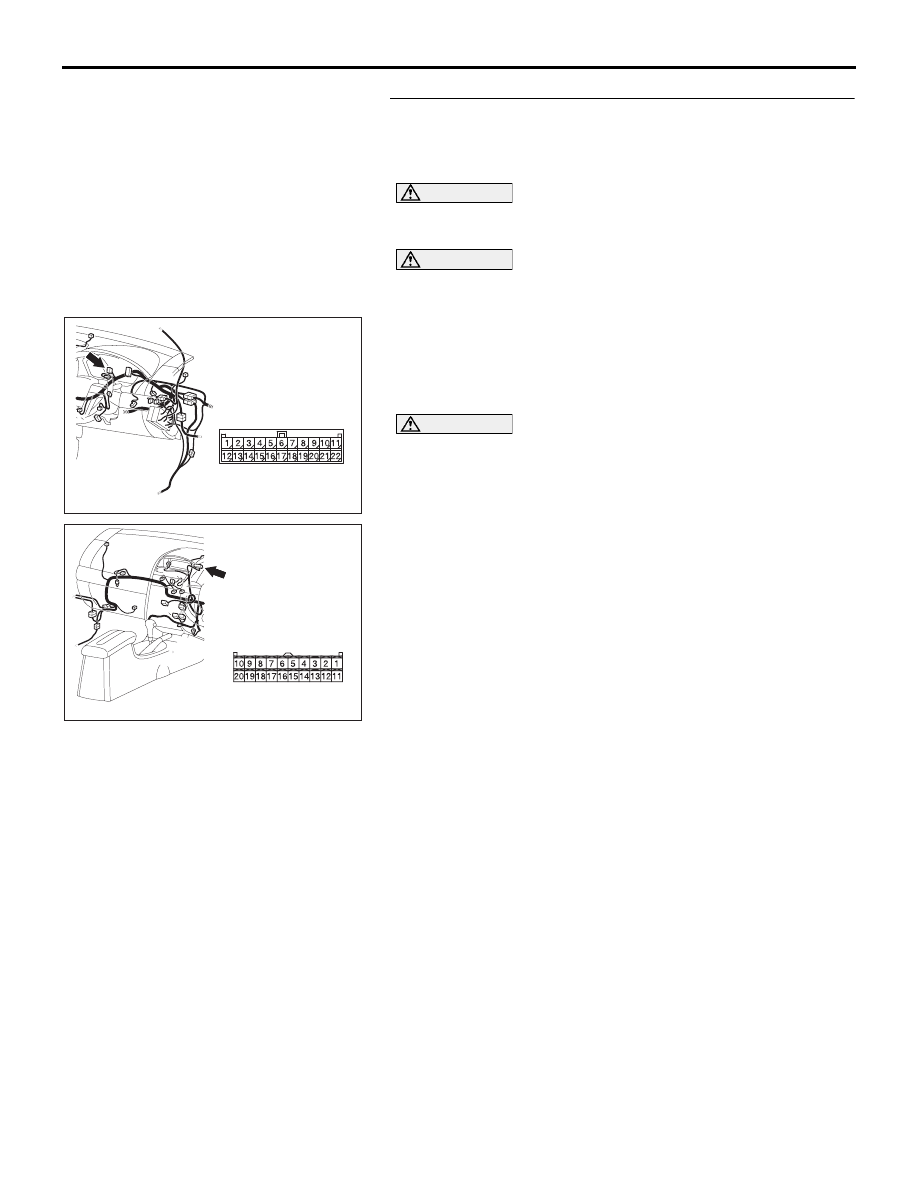

STEP 2. Check the CAN bus lines between joint connector
(3) and the multi-center display unit . Measure the
resistance between joint connector (3) C-02 and
multi-center display unit  connector C-05.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02 and multi-center display

unit  connector C-05, and measure the resistance at the
wiring harness sides of joint connector (3) C-02 and
multi-center display unit  connector C-05.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

16DB408A

CONNECTOR: C-02

16DB490A

CONNECTOR: C-05

HARNESS SIDE

C-05 (B)

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-392

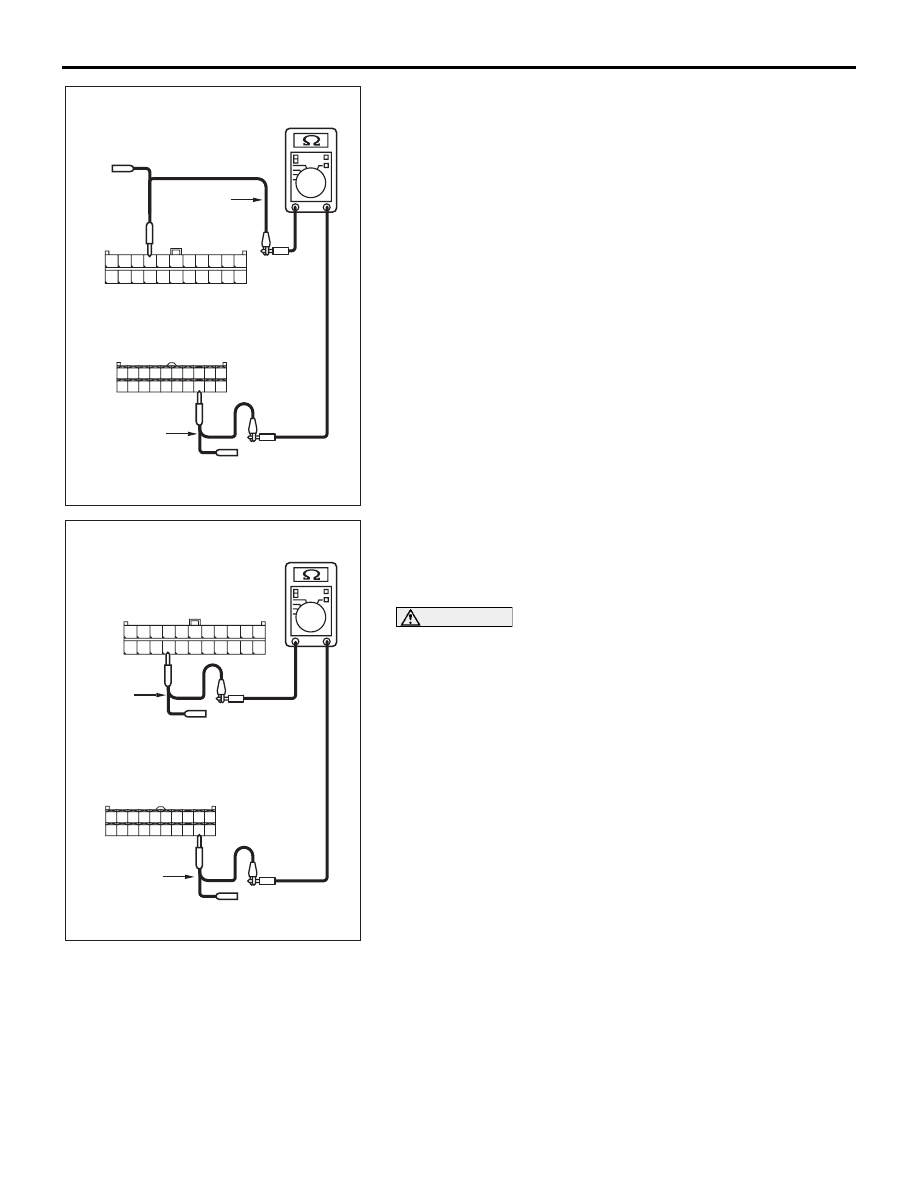

(4) Measure the resistance between joint connector (3)

terminal 8 and multi-center display unit  connector terminal
13.

OK: 2 ohms or less

(5) Measure the resistance between joint connector (3)

terminal 19 and multi-center display unit  connector terminal
12.

OK: 2 ohms or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Do all the resistances measure 2 ohms or less?

YES : If all the resistances measure 2 ohms or less, power

supply to the multi-center display  may be suspected.
Diagnose the multi-center display . Refer to GROUP
54A,

P.54A-284

.

NO :  If either of the resistances measures more than 2

ohms or all the resistances measure more than 2
ohms, repair the wiring harness between joint
connector (3) and the multi-center display unit
connector.

AC204582

HARNESS SIDE: C-02

TEST
HARNESS

11
22

10
21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

8

2

10 9

1

5

3

4

6

7

20191817161514131211

TEST
HARNESS

HARNESS SIDE: C-05

CJ

AC204582

HARNESS SIDE: C-02

CK

11
22

10
21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

8

2

10 9

1

5

3

4

6

7

20191817161514131211

HARNESS SIDE: C-05

TEST
HARNESS

TEST
HARNESS

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-393

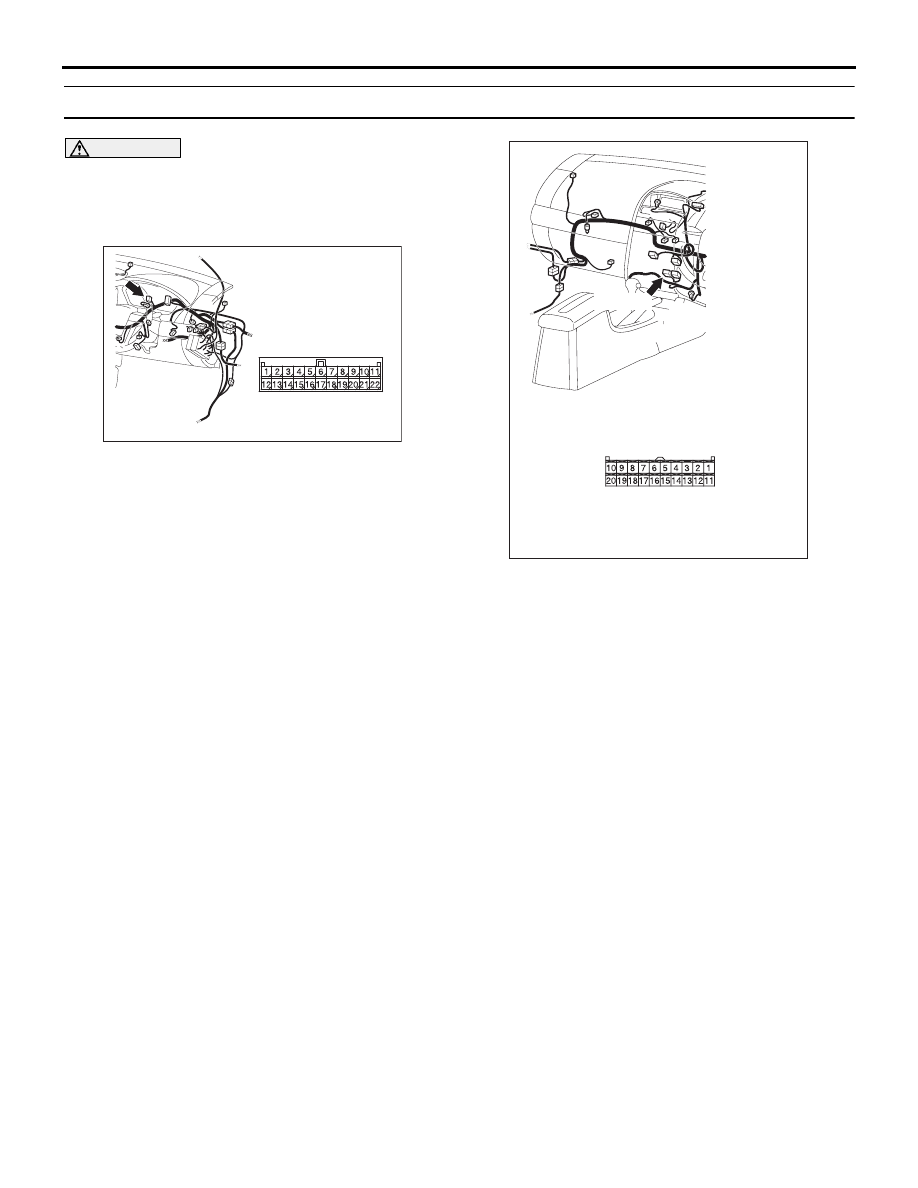

DIAGNOSTIC ITEM 16: Diagnose the lines between CAN main bus line and the A/C-ECU.

CAUTION

When servicing a CAN bus line, ground yourself
by touching a metal object such as an unpainted
water pipe. If you fail to do so, a component con-
nected to the CAN bus line may be damaged.

.

TROUBLE JUDGMENT

If the MUT-III cannot received signals from the
A/C-ECU, CAN bus line connector(s) are broken or
an open circuit has occurred.

.

COMMENTS ON TROUBLE SYMPTOM

The wiring harness wire or connectors may have
loose, corroded, or damage terminals, or terminals
pushed back in the connector, or the A/C-ECU may
be defective.

.

TROUBLESHOOTING HINTS

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

• The wiring harness or connectors may have

loose, corroded, or damage terminals, or termi-
nals pushed back in the connector

• The A/C-ECU may be defective

16DB408A

CONNECTOR: C-02

16DB477A

C-15 HARNESS SIDE

CONNECTOR:  C-15

C-15 (B)

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-394

DIAGNOSIS

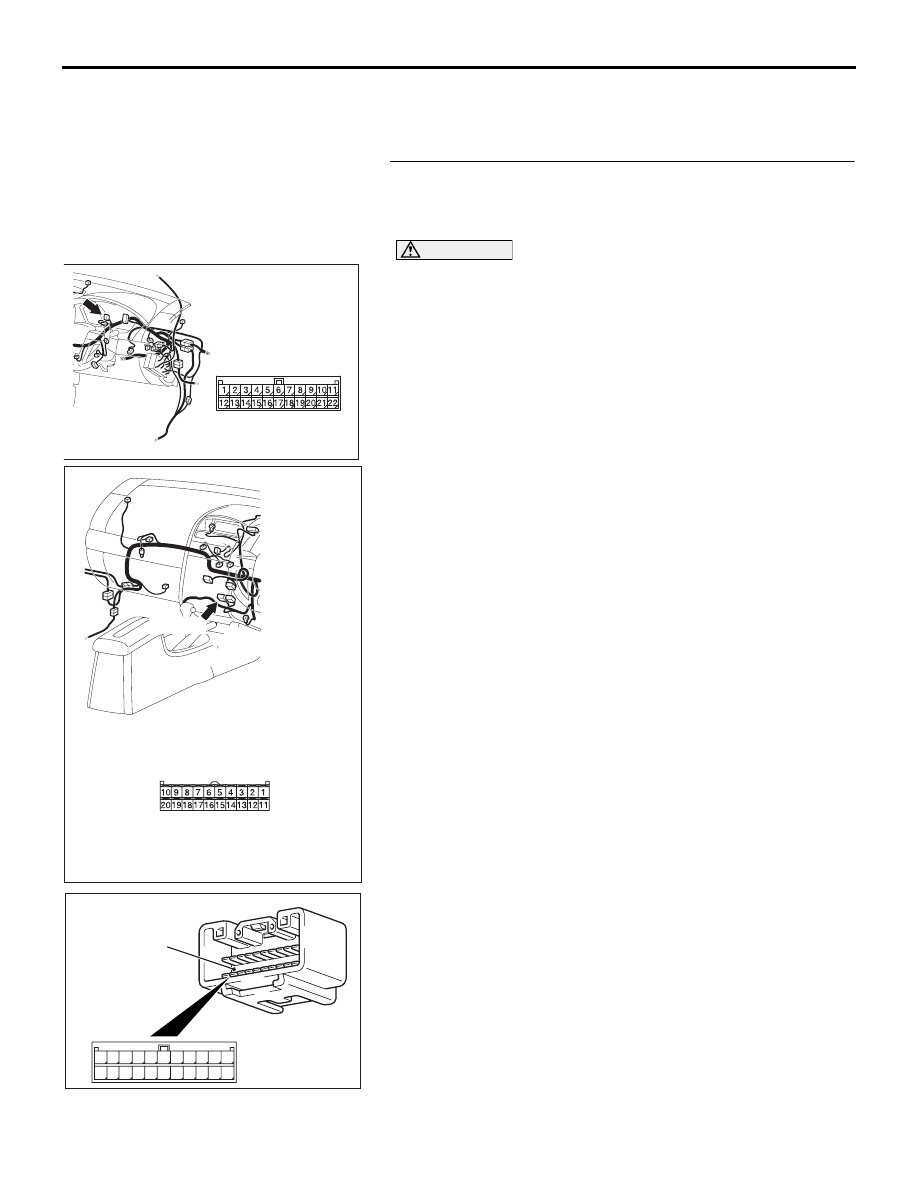

Required Special Tool:

• MB991223: Harness Set

STEP 1. Check joint connector (3) C-02 and A/C-ECU
connector C-15 automatic air conditioning system for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Check the joint connector at the wiring harness side for loose,
corroded or damaged terminals, or terminals pushed back in
the connector, and also check the short pin behind the connec-
tor for corrosion, deformation and delamination.

Q: Are joint connector (3) C-02 and A/C-ECU connector

C-15 automatic air conditioning system in good
condition?
YES : . Go to Step 2.
NO : . Repair the damaged parts. Replace the joint

connector as necessary.

16DB408A

CONNECTOR: C-02

16DB477A

C-15 HARNESS SIDE

CONNECTOR:  C-15

C-15 (B)

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11
22

AB

SHORT PIN
