DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-279

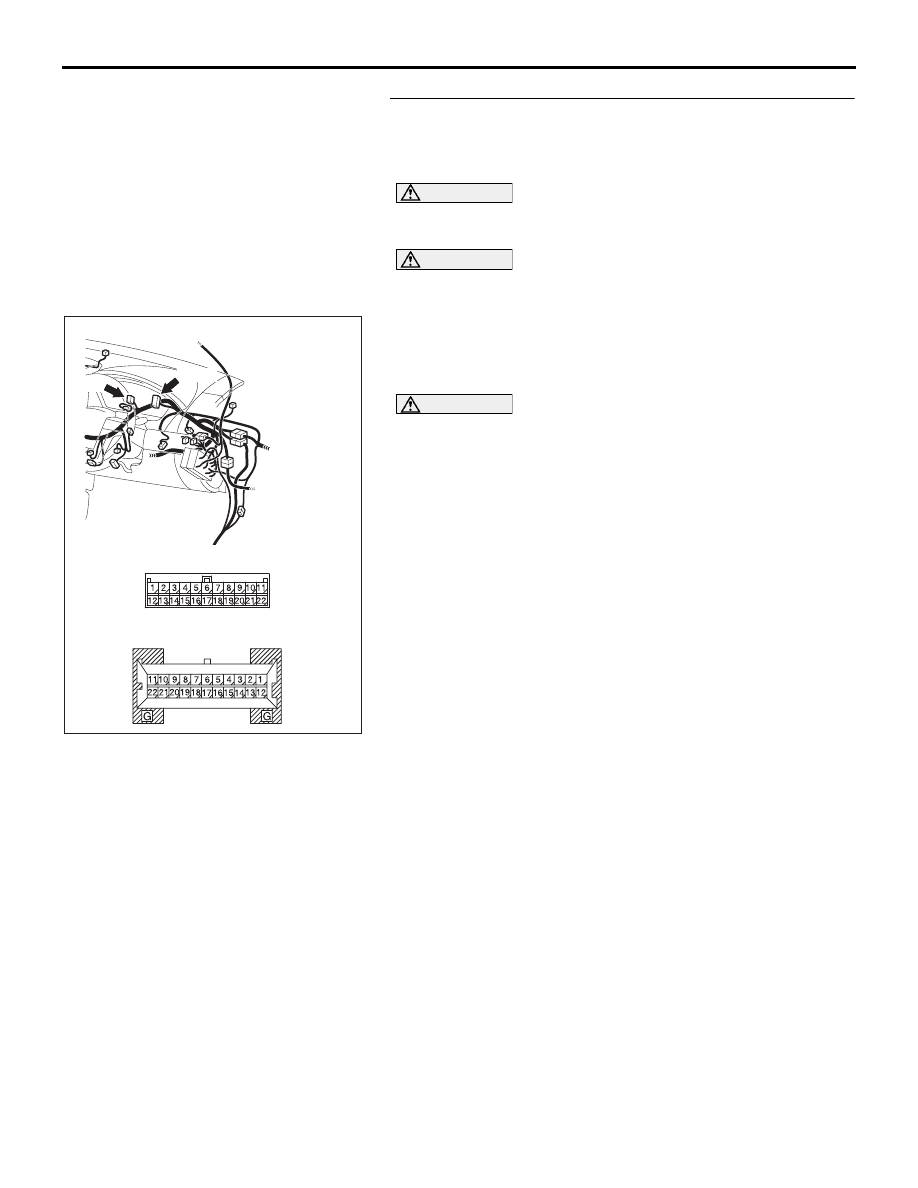

STEP 5. Check the CAN bus lines (communication line
only) between joint connector (3) and the combination
meter. Measure the resistance at joint connector (3) C-02
and combination meter connector C-101.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02 and combination meter

connector C-101, and measure the resistance between
each wiring harness side connector.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

16DB476A



HARNESS SIDE

C-101

CONNECTORS: C-02, C-101

C-02

C-02

C-101

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-280

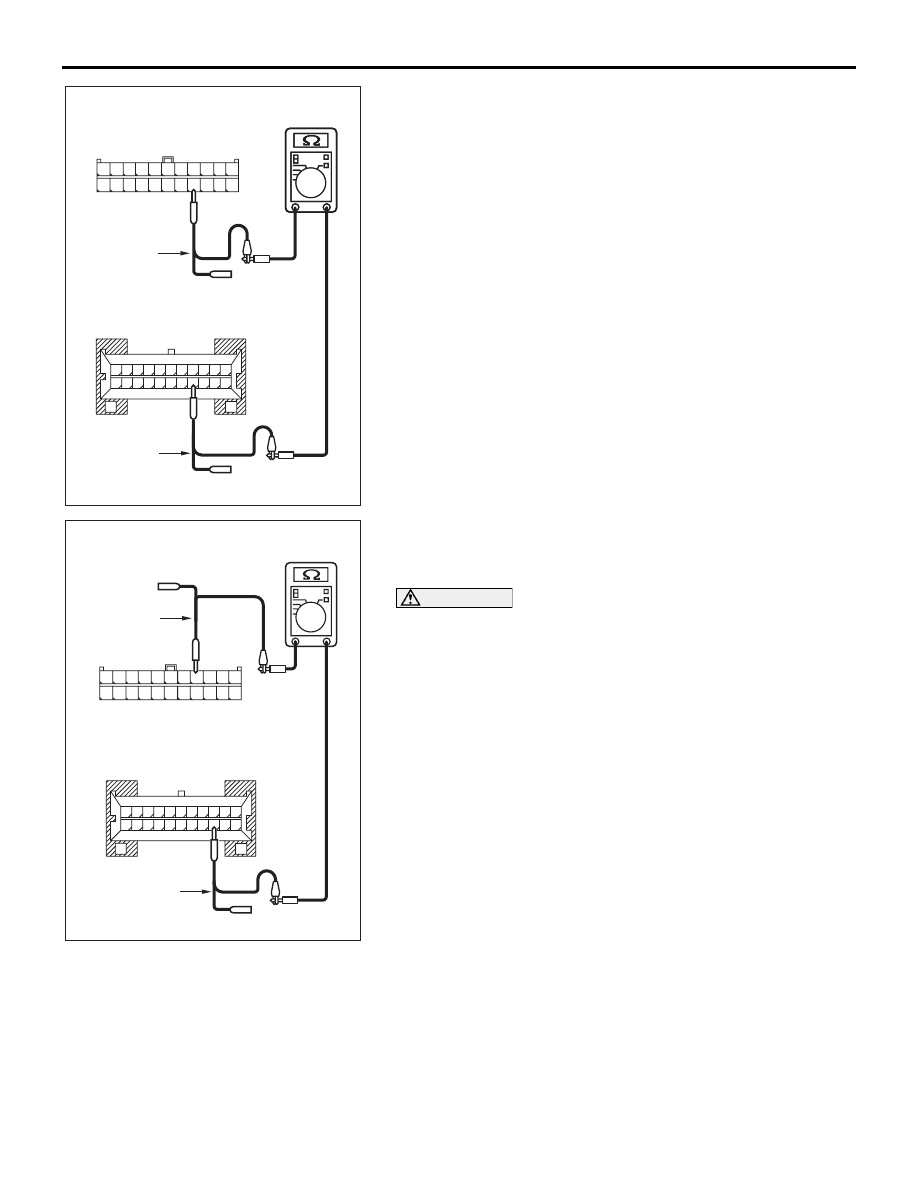

(4) Measure the resistance between joint connector (3)

terminal 15 and combination meter connector terminal 15.

OK: 2 ohms or less

(5) Measure the resistance between joint connector (3)

terminal 4 and combination meter connector terminal 14.

OK: 2 ohms or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Do all the resistances measure 2 ohms or less?

YES : If all the resistances measure 2 ohms or less, go to

Step 6.

NO :  If either of the resistances measures more than 2

ohms or all the resistances measure more than 2
ohms, repair the wiring harness between joint
connector (3) and the combination meter connector,
and then go to Step 2.

AC204582

11
22

10
21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

AC204582DB

HARNESS SIDE: C-02

TEST
HARNESS

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

TEST
HARNESS

HARNESS SIDE: C-101

AC204582

HARNESS SIDE: C-02

TEST
HARNESS

DC

11
22

10
21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

TEST
HARNESS

HARNESS SIDE: C-101

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-281

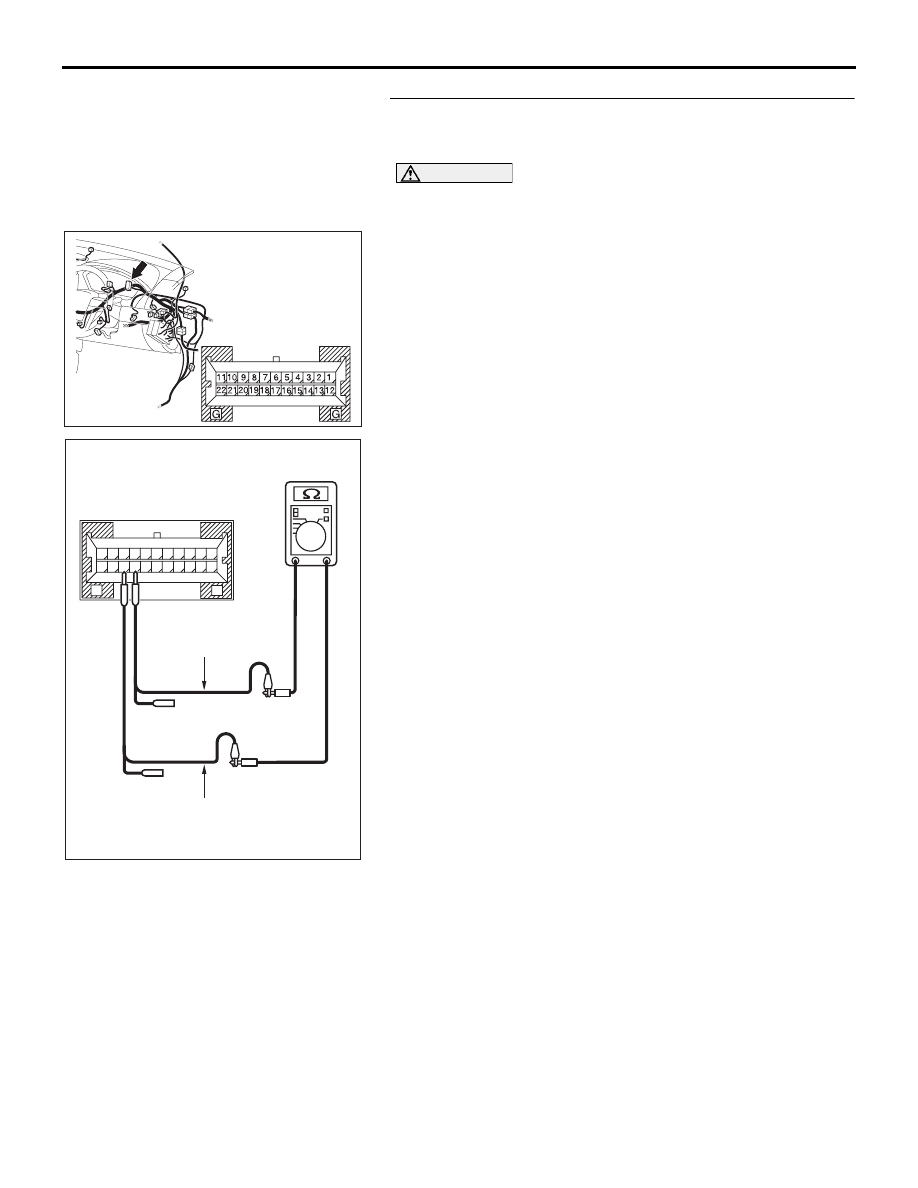

STEP 6. Check the terminator resistor inside the
combination meter. Measure the resistance at combination
meter connector C-101.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

(1) Disconnect combination meter C-101, and measure the

resistance at the component side of combination meter
connector C-101.

(2) Measure the resistance between combination meter

connector terminals 14 and 15.

OK: 120

± 20 Ω

Q: Does the resistance measure 120

± 20 Ω?

YES : If the resistance measures 120

± 20 Ω, go to Step 2.

NO :  If the resistance does not measure 120

± 20 Ω,

replace the combination meter, and then go to Step 2.

16DB499A

CONNECTOR: C-101

HARNESS SIDE

AC204582BY

COMPONENT SIDE: C-101

G

11
22

17

3

14

G

12

1

13

2

15

4

16

5

18

7

6

19

8

10

21

20

9

TEST
HARNESS

TEST HARNESS

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-282

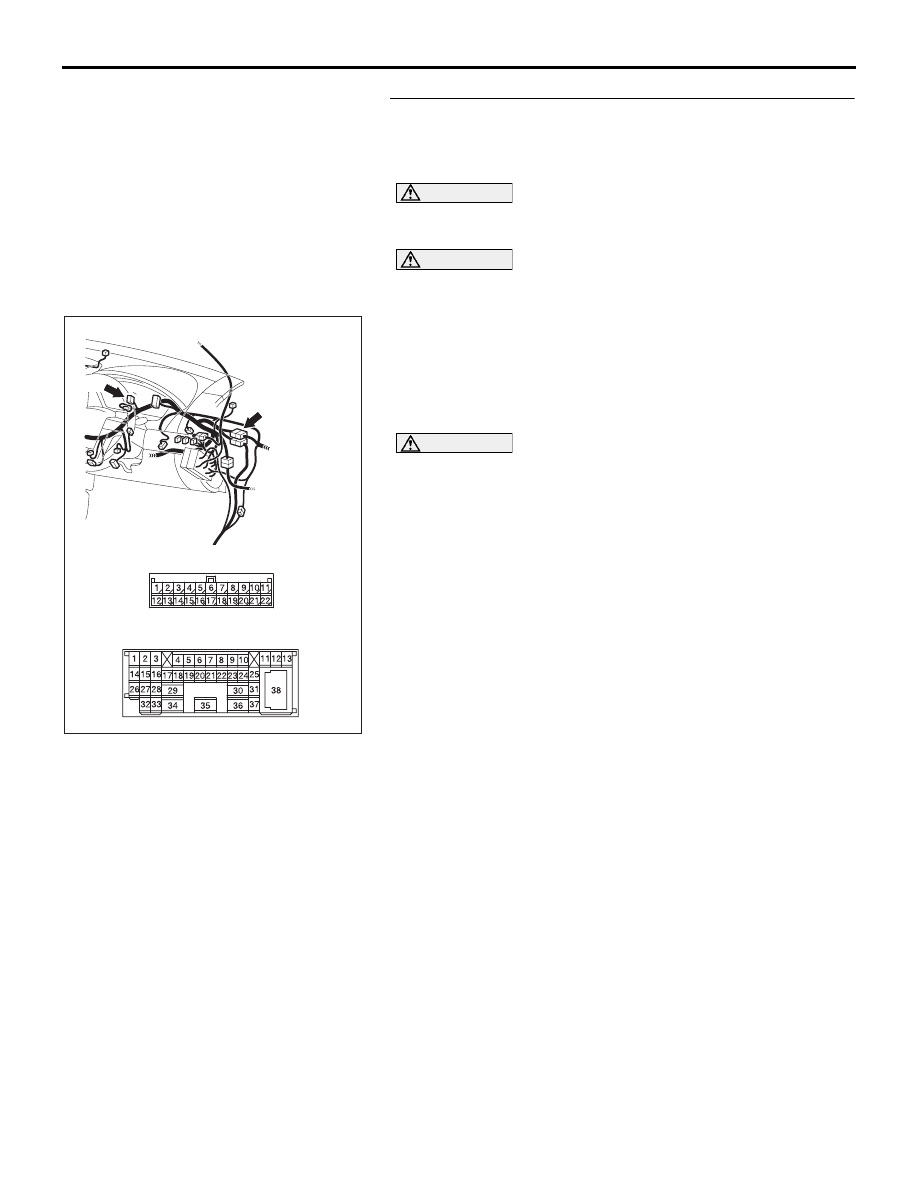

STEP 7. Check the CAN bus lines (communication line
only) between intermediate connector C-29 and joint
connector (3). Measure the resistance at intermediate
connector C-29 and joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02 and intermediate

connector C-29, and measure the resistance between the
wiring harness side connector of joint connector (3) C-02
and the female side connector of intermediate connector
C-29 (instrument panel wiring harness side).

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

16DB479A

CONNECTORS: C-02, C-29

C-02

C-02

C-29

C-29
