DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-162

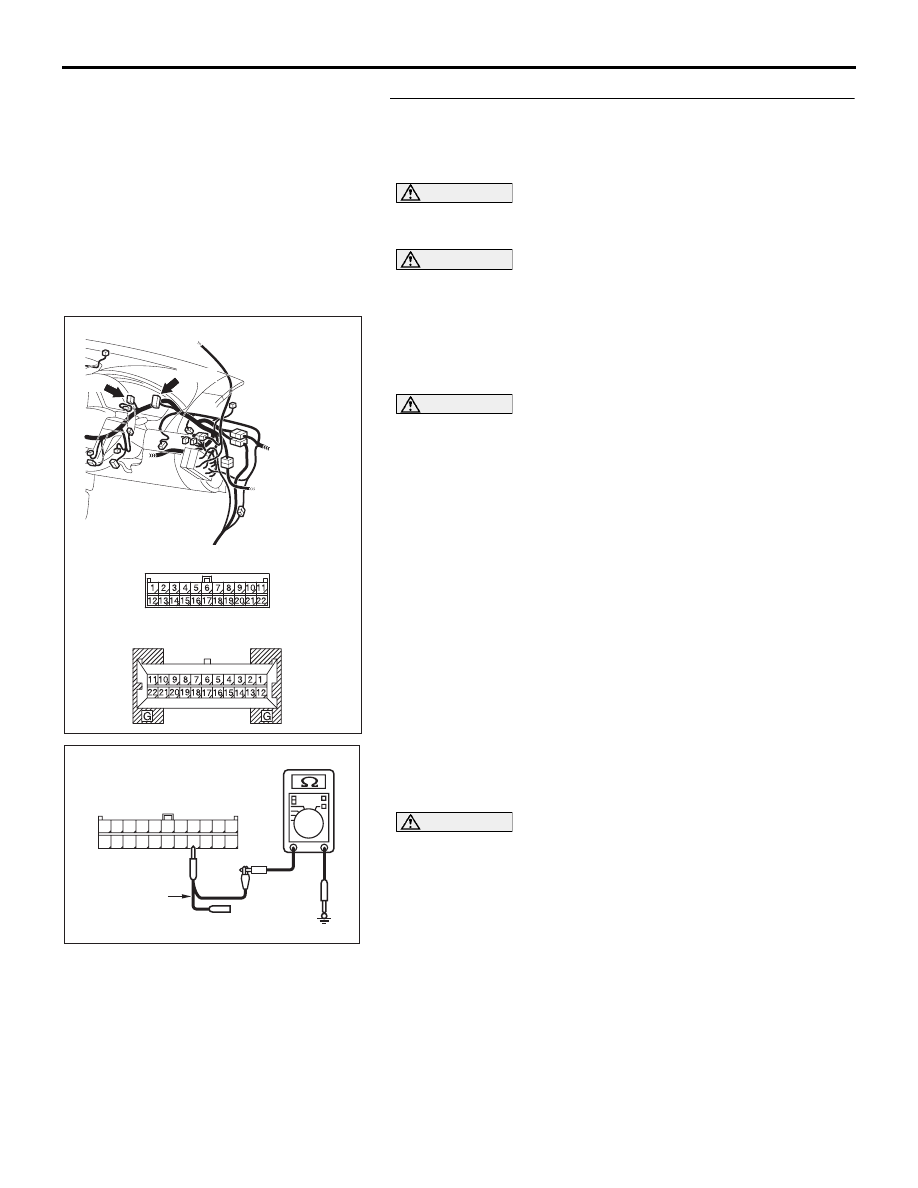

STEP 27. Check the CAN_L-side bus line (communication
line including ECUs) of the front wiring harness for short
to ground. Measure the resistance at intermediate
connector C-29.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect intermediate connector C-29, and measure the

resistance at the male side (at front wiring harness side).

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between intermediate connector

terminal 12 and body ground.

OK: 1 k

Ω or more

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, go to Step

28   .

NO :  If the resistance measures less than 1 k

Ω, go to Step

42.

52DB014A

CONNECTOR: C-29

AC209364

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

MALE SIDE: C-29

TEST HARNESS

GA

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-163

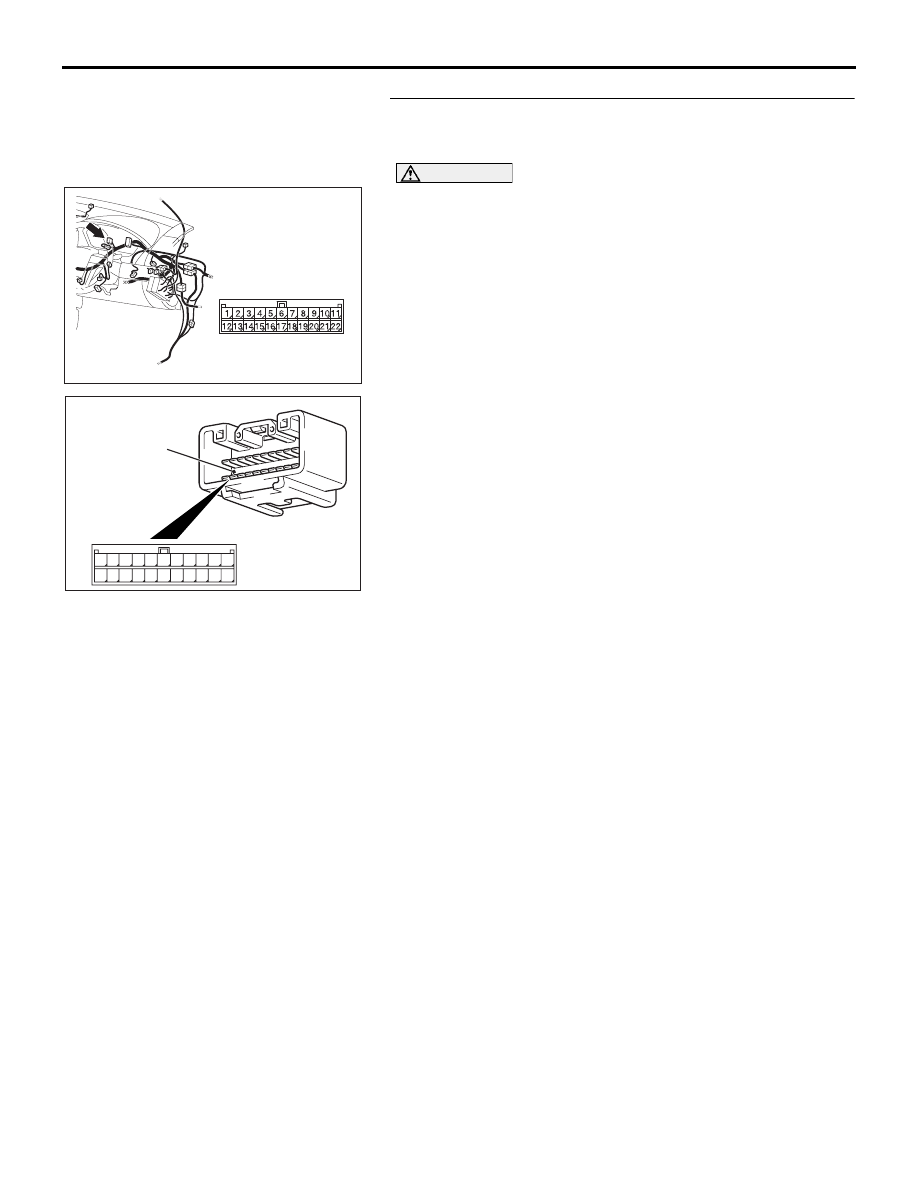

STEP 28. Check joint connector (3) C-02 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Check the joint connector at the wiring harness side for loose,
corroded or damaged terminals, or terminals pushed back in
the connector, and also check the short pin behind the connec-
tor for corrosion, deformation and delamination.

Q: Is joint connector (3) C-02 in good condition?

YES : Go to Step 29.
NO :  Repair the damaged parts. Replace the joint

connector as necessary.

16DB408A

CONNECTOR: C-02

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11
22

AB

SHORT PIN

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-164

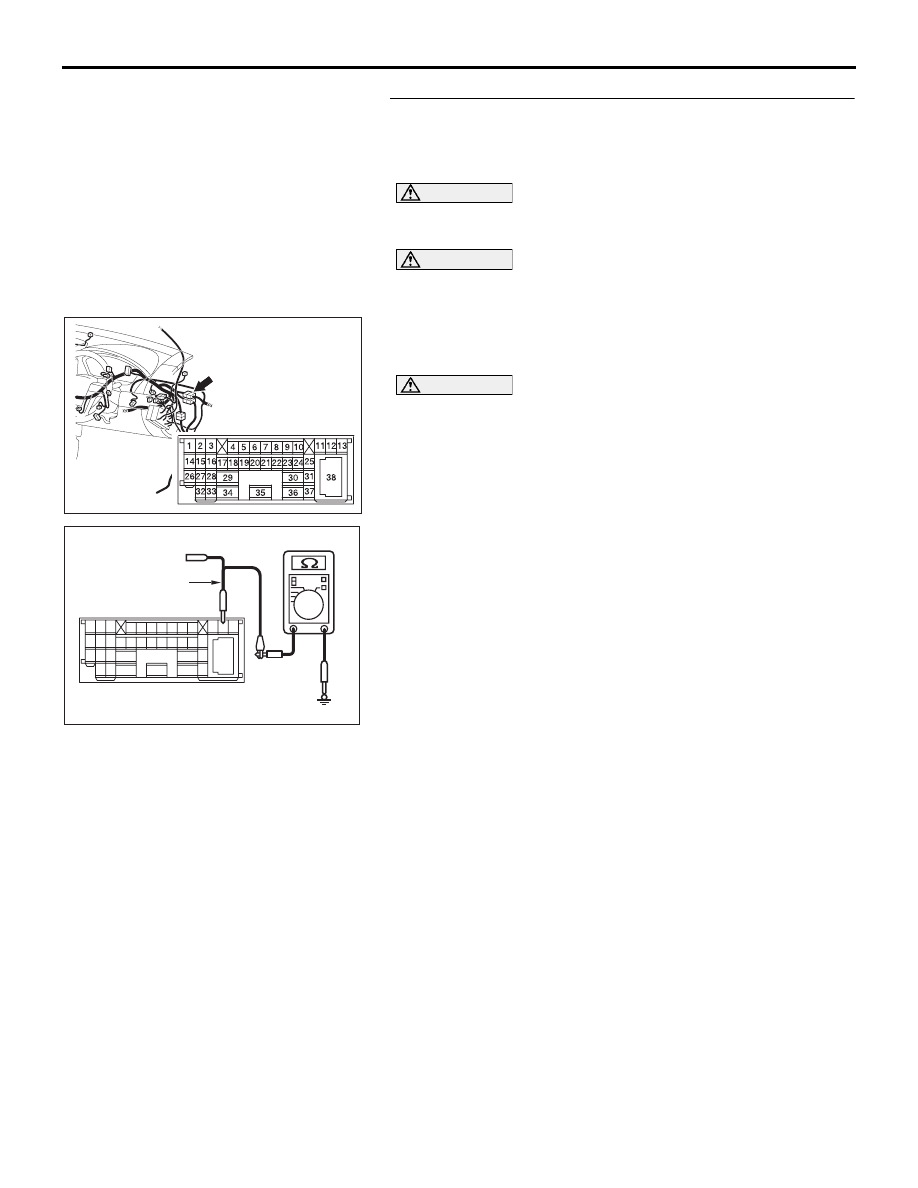

STEP 29. Check the CAN_L line (communication line
including the combination meter) between joint connector
(3) and the combination meter connector for short to
ground. Measure the resistance at joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02, and measure the

resistance at the wiring harness side of joint connector (3)
C-02.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between joint connector (3)

terminal 15 and body ground.

OK: 1 k

Ω or more

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, go to Step

31   .

NO :  If the resistance measures less than 1 k

Ω, go to Step

30.

16DB408A

CONNECTOR: C-02

AC209364IG

11
22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

HARNESS SIDE: C-02

TEST
HARNESS

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-165

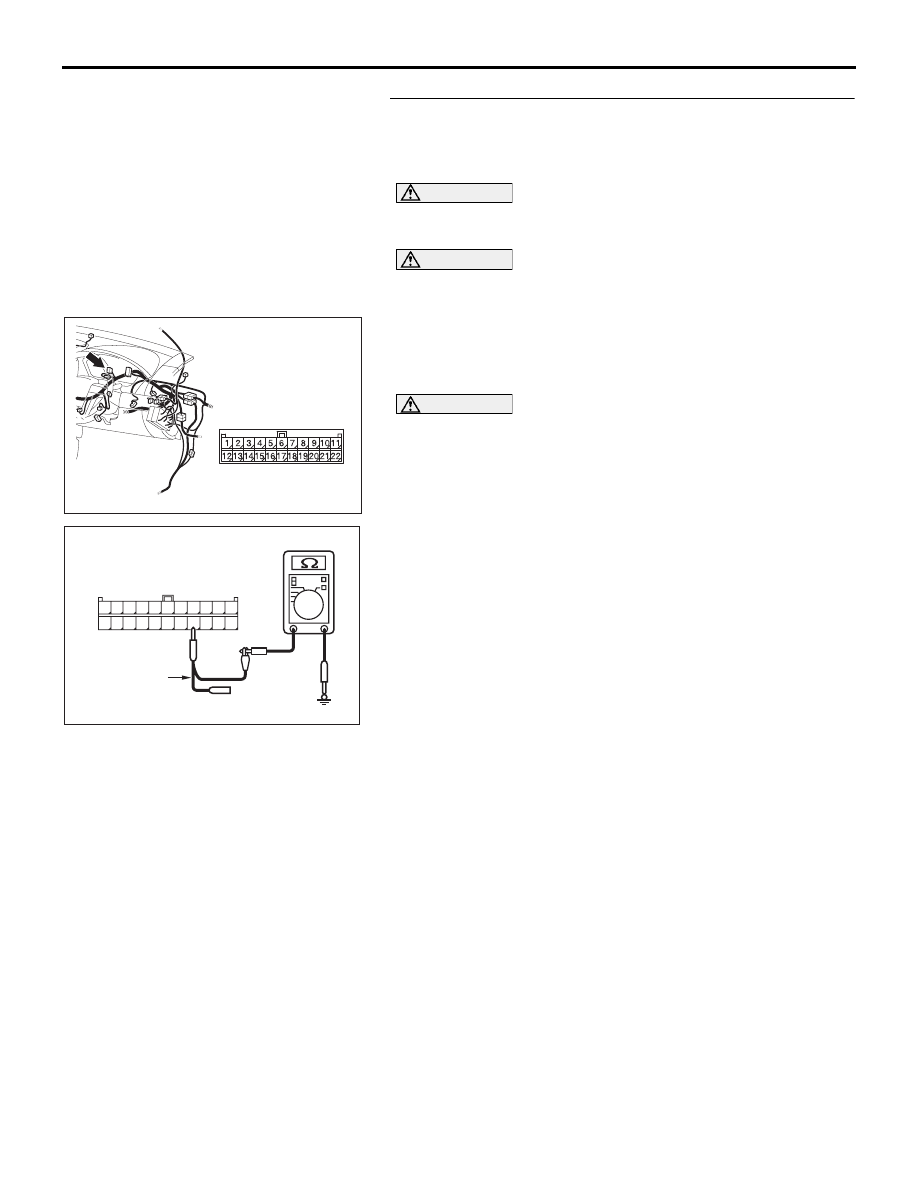

STEP 30. Check the CAN_L line (communication line only)
between joint connector (3) and the combination meter
connector for short to ground. Measure the resistance at
joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02 and combination meter

connector C-101, and measure the resistance at the wiring
harness side of joint connector (3) C-02.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between joint connector (3)

terminal 15 and body ground.

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, diagnose

CAN bus lines thoroughly by referring to

P.54C-323

.

NO :  If the resistance measures less than 1 k

Ω, repair the

wiring harness between joint connector (3) and the
combination meter connector.

16DB476A



HARNESS SIDE

C-101

CONNECTORS: C-02, C-101

C-02

C-02

C-101

AC209364IG

11
22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

HARNESS SIDE: C-02

TEST
HARNESS
