MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-644

ACTUATOR TEST REFERENCE TABLE

M1131152500570

MUT-III
DIAGNOS
TIC TOOL
DISPLAY

ITEM
NO.

INSPECTION
ITEM

DRIVE
CONTENTS

INSPECTION REQUIREMENT

NORMAL
CONDITION

INSPECTION
PROCEDURE
NO.

REFERENCE
PAGE

1

Injectors

Cut fuel to
No.1 injector

Engine: warm up, idle (cut
the fuel supply to each
injector in turn and check
cylinders which don’t
affect idling.)

Idling
becomes
unstable.

Code No.
P0201

P.13A-272

2

Cut fuel to
No.2 injector

Code No.
P0202

P.13A-280

3

Cut fuel to
No.3 injector

Code No.
P0203

P.13A-287

4

Cut fuel to
No.4 injector

Code No.
P0204

P.13A-295

5

Cut fuel to
No.5 injector

Code No.
P0205

P.13A-302

6

Cut fuel to
No.6 injector

Code No.
P0206

P.13A-310

10

Purge
control
solenoid
valve

Solenoid
valve turns
from OFF to
ON.

Ignition switch: "ON"

Clicks
when
solenoid
valve is
driven.

Code No.
P0443

P.13A-389

14

PWM
Radiator
fan

Actuate fan
motor

• Ignition switch "ON"

• A/C switch "ON"

Fan motor
is rotated

Symptom
chart

P.14-3

16

A/C relay

Activate A/C
relay

• Ignition switch "ON"

• A/C switch "ON/OFF"

Relay
operates

-

-

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-645

CHECK AT THE ELECTRONIC CONTROL UNIT (ECU)

1. Disconnect the ECU connectors B-20 and B-21

and connect check harness special tool
MB992044



between the ECU connectors.

2. Measure the voltage between each check

harness connector terminal and check harness
connector ground terminal (No. 25 or No. 29).

TERMINAL VOLTAGE CHECK CHART

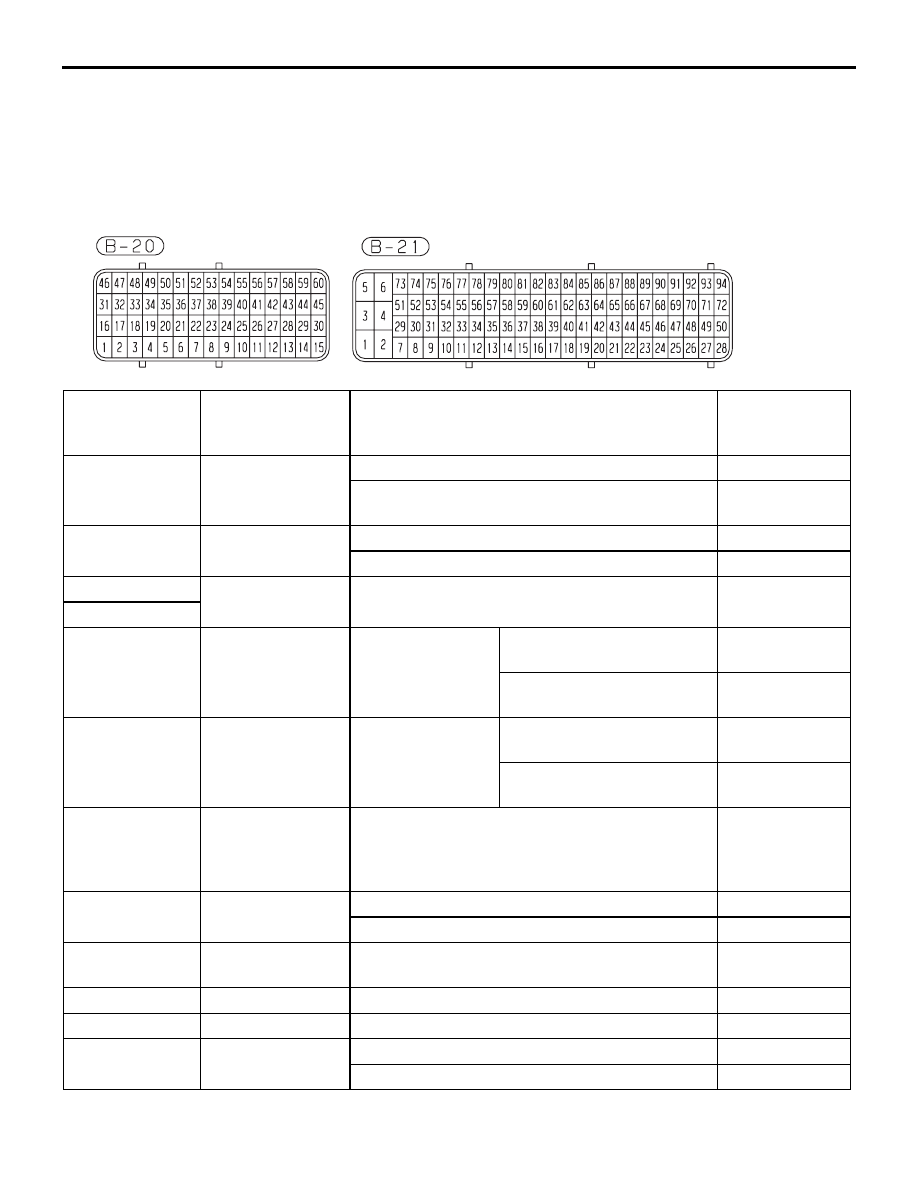

03DB159A

Check Harness Special Tool MB992044 Connector Terminal Arrangement

(CONNECTOR
HOUSING NO.)
TERMINAL NO.

INSPECTION
ITEM

INSPECTION CONDITION (ENGINE
CONDITION)

NORMAL
CONDITION

(B-21) - 71

Fan control

Ignition switch: "ON"

5 V fan off

Carry out the actuator test to revolve the fan at
high speed.

1 V or less

(B-21) - 92

Fuel pump relay

Ignition switch: "ON"

B+

Engine: idling

1 V or less

(B-20) - 25

Sensor supplied
voltage

Ignition switch: "ON"

4.9

− 5.1 V

(B-21) - 76

(B-21) - 59

Accelerator pedal
position sensor
(main)

Ignition switch:
"ON"

Release the accelerator
pedal

0.996 V

Depress the accelerator
pedal fully

4.043 V

(B-21) - 81

Accelerator pedal
position sensor
(sub)

Ignition switch:
"ON"

Release the accelerator
pedal

0.996 V

Depress the accelerator
pedal fully

4.043 V



(B-21) - 75

Power supply
voltage applied to
accelerator pedal
position sensor

Ignition switch: "ON"

4.9

− 5.1 V

(B-21) - 21

Brake lamp switch

Depress the brake pedal

B+

Release the brake pedal

1 V or less

(B-21) - 16

Backup power
supply

Ignition switch: "LOCK" (OFF)

B+

(B-21) - 70

Ignition switch-IG

Ignition switch: "ON"

B+

(B-20) - 05

Power supply

Ignition switch: "ON"

B+

(B-20) - 24

MPI relay (power
supply)

Ignition switch: "LOCK" (OFF)

B+

Ignition switch: "ON"

1 V or less

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-646

(B-20) - 53

Power steering
pressure switch

Engine: warming
up, idling

When steering wheel is not
turned

B+

When steering wheel is
turned

1V or less

(B-20) - 06

A/C compressor
clutch relay

• Engine: idling

• A/C switch: OFF→ ON (A/C compressor is

operating)

B+

→ 1 V or less

as A/C clutch
cycles

(B-20) - 09

Ignition switch-ST

Engine: cranking

8 V or more

(B-20) - 15

Left bank heated
oxygen sensor
(front)

Engine: warming up, 2,500 r/min (check using a
digital voltmeter)

⇔ 0.8 V

(changes
repeatedly)

(B-20) - 45

Right bank heated
oxygen sensor
(front)

Engine: warming up, 2,500 r/min (check using a
digital voltmeter)

⇔ 0.8 V

(changes
repeatedly)

(B-20) - 56

Engine coolant
temperature
sensor

Ignition switch:
"ON"

When engine coolant
temperature is

−20°C (−4°F)

3.9

− 4.5 V

When engine coolant
temperature is 0

°C (32°F)

3.2

− 3.8 V

When engine coolant
temperature is 20

°C (68°F)

2.3

− 2.9 V

When engine coolant
temperature is 40

°C (104°F)

1.3

− 1.9 V

When engine coolant
temperature is 60

°C (140°F)

0.7

− 1.3 V

When engine coolant
temperature is 80

°C (176°F)

0.3

− 0.9 V

(B-20) - 10

Power supply
voltage applied to
throttle position
sensor

Ignition switch: "ON"

4.9

− 5.1 V

(B-20) - 30

Left bank heated
oxygen sensor
(rear)

• Engine: warming up

• Revving

0 and 0.6

− 1.0 V

alternates

(B-20) - 60

Right bank heated
oxygen sensor
(rear)

• Engine: warming up

• Revving

0 and 0.6

− 1.0 V

alternates

(CONNECTOR
HOUSING NO.)
TERMINAL NO.

INSPECTION
ITEM

INSPECTION CONDITION (ENGINE
CONDITION)

NORMAL
CONDITION

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-647

(B-20) - 57

Throttle position
sensor (sub)

• Remove the

intake air hose
at the throttle
body.

• Ignition switch:

"ON"

• Visually inspect

throttle plate for
full travel.

Fully depress and release
accelerator pedal.

WARNING

If the air intake duct is
removed from the
throttle body take great
care to keep fingers
away from the throttle
plate. The drive motor
has very high torque
and is capable of
random movement at
any time. Do not under
any circumstances
activate the throttle
plate by hand.

1172

− 4043 mV

(B-20) - 42

Throttle position
sensor (main)

• Remove the

intake air hose
at the throttle
body.

• Ignition switch:

"ON"

• Visually inspect

throttle plate for
full travel.

Fully depress and release
accelerator pedal.

WARNING

If the air intake duct is
removed from the
throttle body take great
care to keep fingers
away from the throttle
plate. The drive motor
has very high torque
and is capable of
random movement at
any time. Do not under
any circumstances
activate the throttle
plate by hand.

1172

− 4043 mV

(B-20) - 41

Manifold absolute
pressure sensor

Ignition switch:
"ON"

AT altitude of 0 m (0 ft.)

3.8

− 4.2 V

AT altitude of 600 m (1,969
ft.)

3.5

− 3.9 V

AT altitude of 1,200 m (3,937
ft.)

3.3

− 3.7 V

AT altitude of 1,800 m (5,906
ft.)

3.0

− 3.4 V

Engine: warming up, idling

0.6

− 1.4 V

When engine is suddenly revved

Voltage Varies

(B-20) - 23

Crankshaft
position sensor

Engine: cranking

0.4 - 4.0 V

Engine: idling

2.0 - 3.0 V

(CONNECTOR
HOUSING NO.)
TERMINAL NO.

INSPECTION
ITEM

INSPECTION CONDITION (ENGINE
CONDITION)

NORMAL
CONDITION
