MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-520

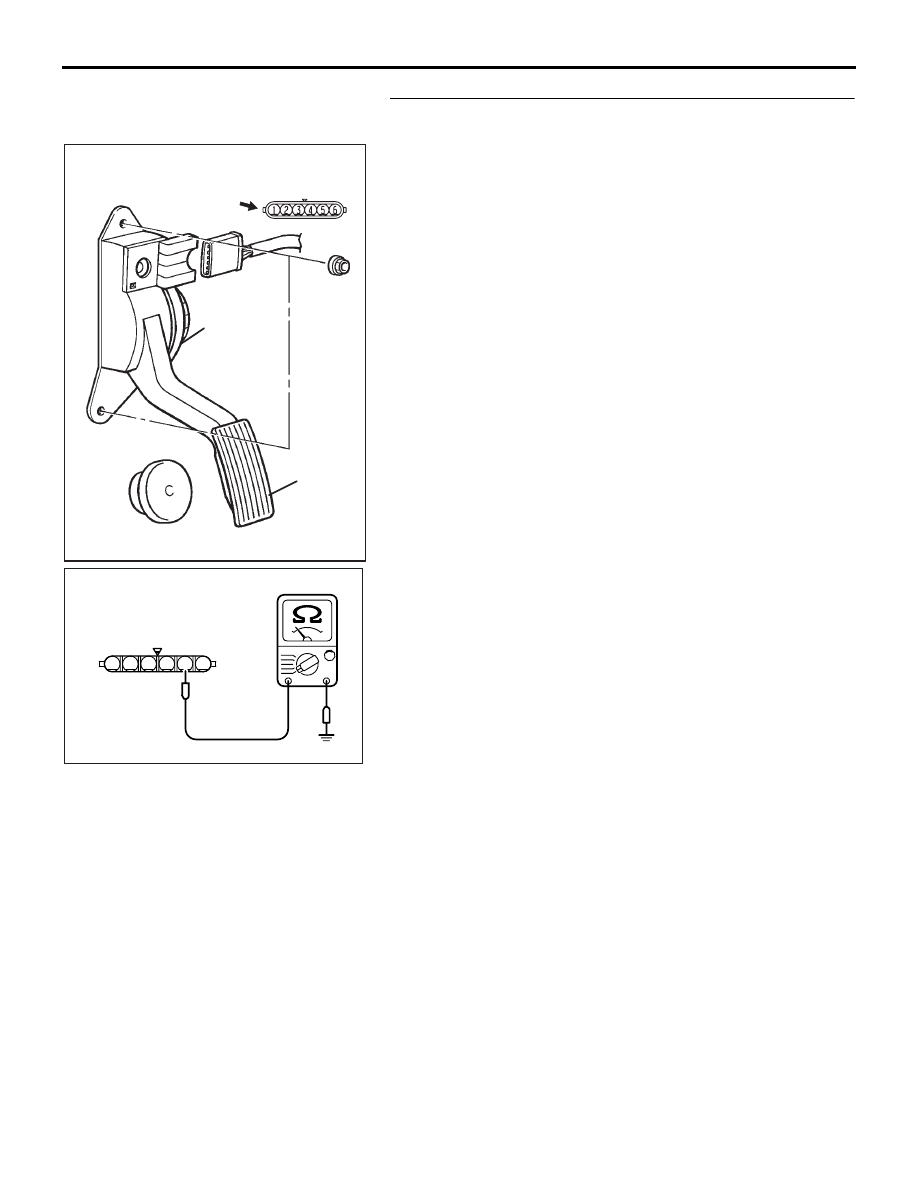

STEP 5. Check the continuity at accelerator pedal position
sensor harness side connector C-24.
(1) Disconnect the connector C-24 and measure at the harness

side.

(2) Measure the continuity between terminal No. 2 and ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 7.
NO : Go to Step 6.

ACCELERATOR
PEDAL

CONNECTOR: C-24

C-24 (B)

ACCELERATOR
PEDAL POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

16DB562A

6 5 4 3 2

AK303204

C-24 HARNESS

CONNECTOR:

COMPONENT SIDE

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-521

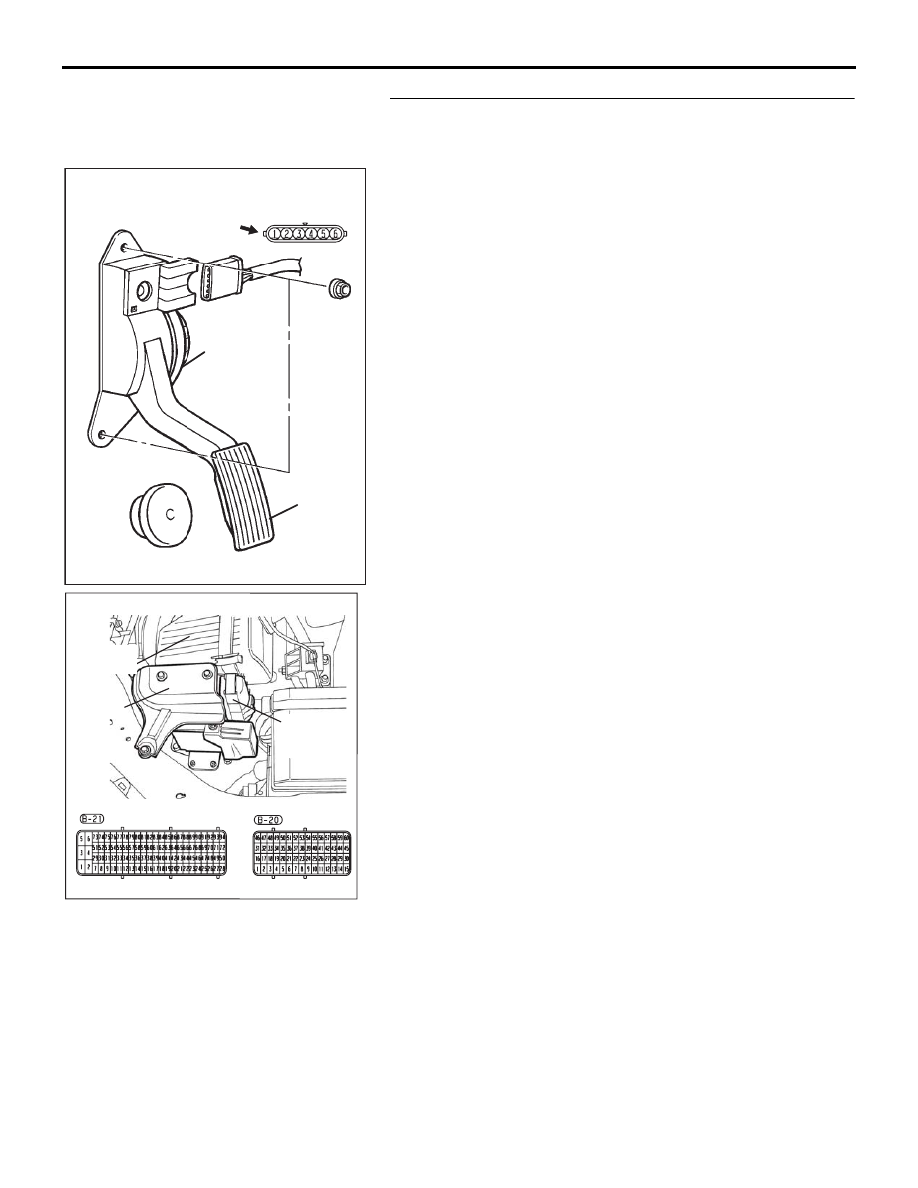

STEP 6. Check for harness damage between accelerator
pedal position sensor connector C-24 (terminal No. 2) and
ENGINE-ECU connector B-21 (terminal No. 35).
Q: Is the harness wire in good condition?

YES : Go to Step 7.
NO : Repair it. Then go to Step 12.

ACCELERATOR
PEDAL

CONNECTOR: C-24

C-24 (B)

ACCELERATOR
PEDAL POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

16DB562A

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-522

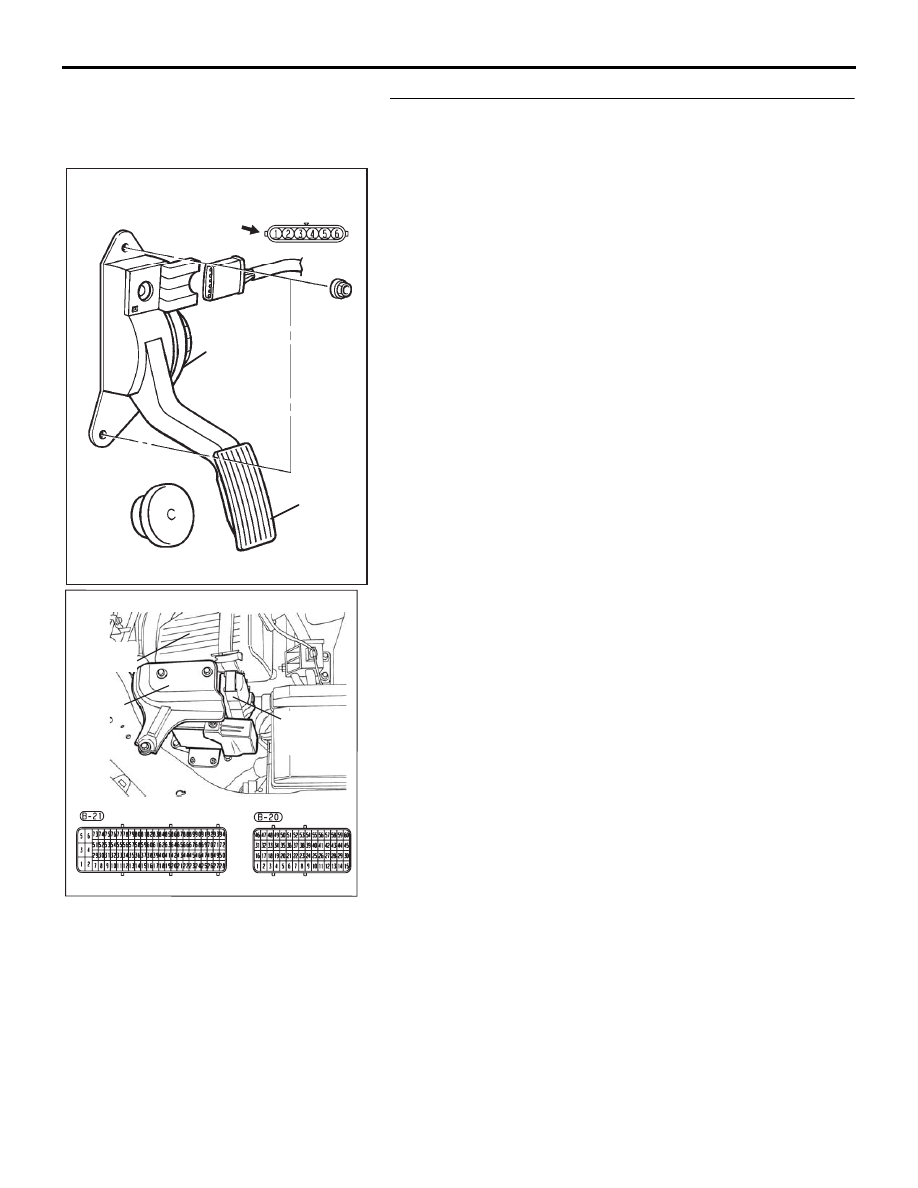

STEP 7. Check for harness damage between accelerator
pedal position sensor connector C-24 (terminal No. 5) and
ENGINE-ECU connector B-21 (terminal No. 75).
Q: Is the harness wire in good condition?

YES : Go to Step 8.
NO : Repair it. Then go to Step 12.

ACCELERATOR
PEDAL

CONNECTOR: C-24

C-24 (B)

ACCELERATOR
PEDAL POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

16DB562A

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-523

STEP 8. Check for harness damage between accelerator
pedal position sensor connector C-24 (terminal No. 6) and
ENGINE-ECU connector B-21 (terminal No. 76).
Q: Is the harness wire in good condition?

YES : Go to Step 9.
NO : Repair it. Then go to Step 12.

ACCELERATOR
PEDAL

CONNECTOR: C-24

C-24 (B)

ACCELERATOR
PEDAL POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

16DB562A

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER
