MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-456

STEP 1. Check harness connector B-06 at throttle actuator
control motor for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 8.

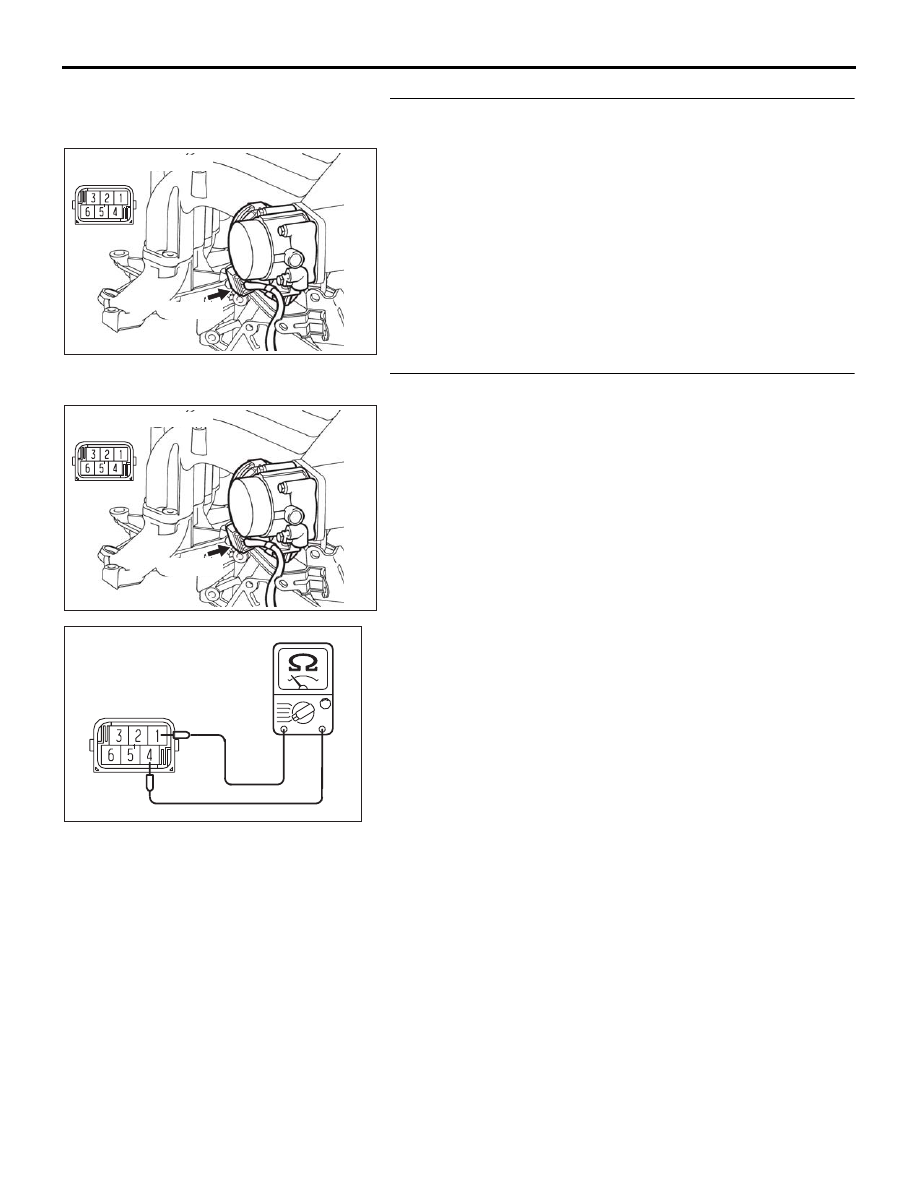

STEP 2. Check the throttle actuator control motor.
(1) Disconnect the connector B-06.

(2) Measure the resistance between throttle actuator control

motor side connector terminal No. 1 and No. 4.

Standard value: 1.5

± 0.3 ohms [at 20°C (68°F)]

Q: Is the measured resistance between standard value?

YES : Go to Step 3.
NO :  Replace the throttle body assembly. Then go to Step

8.

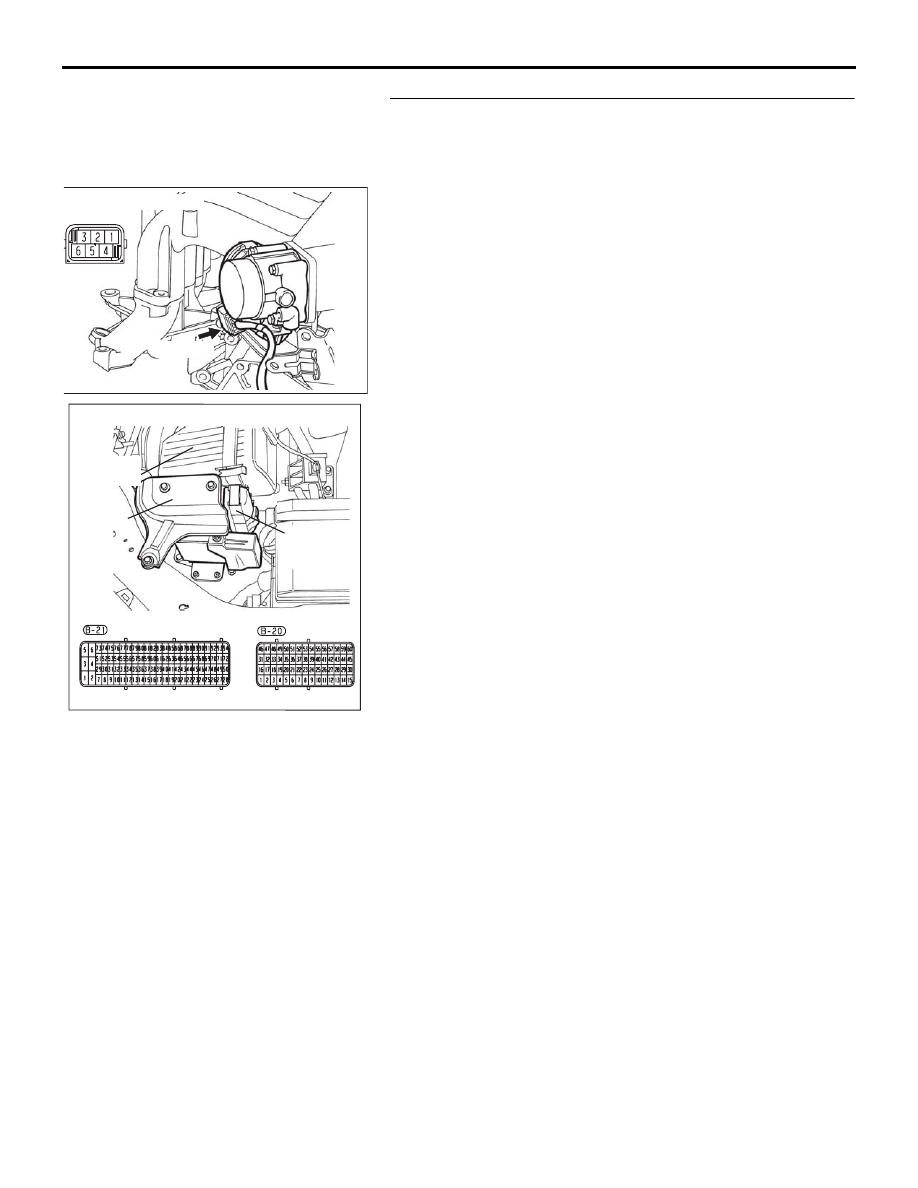

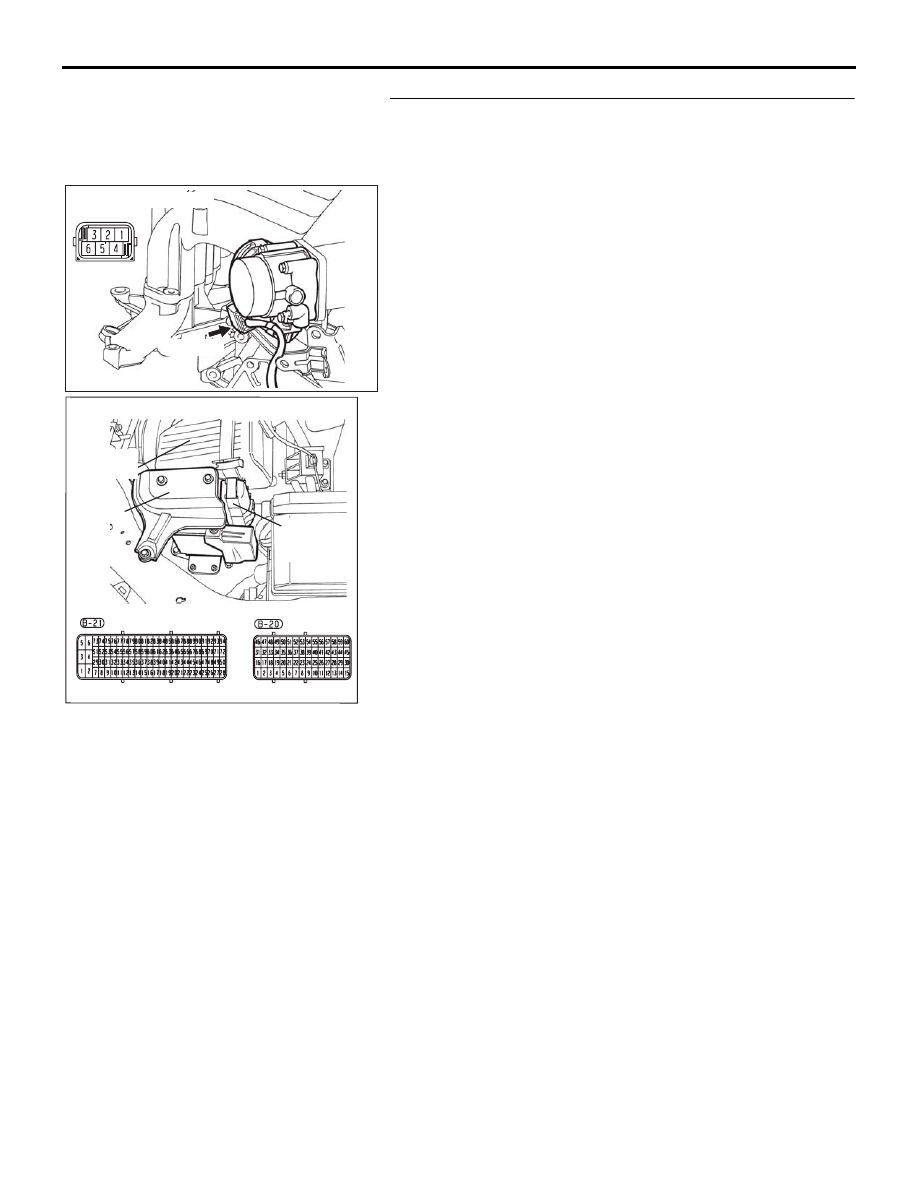

03DB180A

CONNECTOR: B-06

B-06 (B)

03DB180A

CONNECTOR: B-06

B-06 (B)

03DB181A

THROTTLE ACTUATOR

CONTROL MOTOR

CONNECTOR

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-457

STEP 3. Check harness connector B-20 at ENGINE-ECU for
damage
Q: Is the harness connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 8.

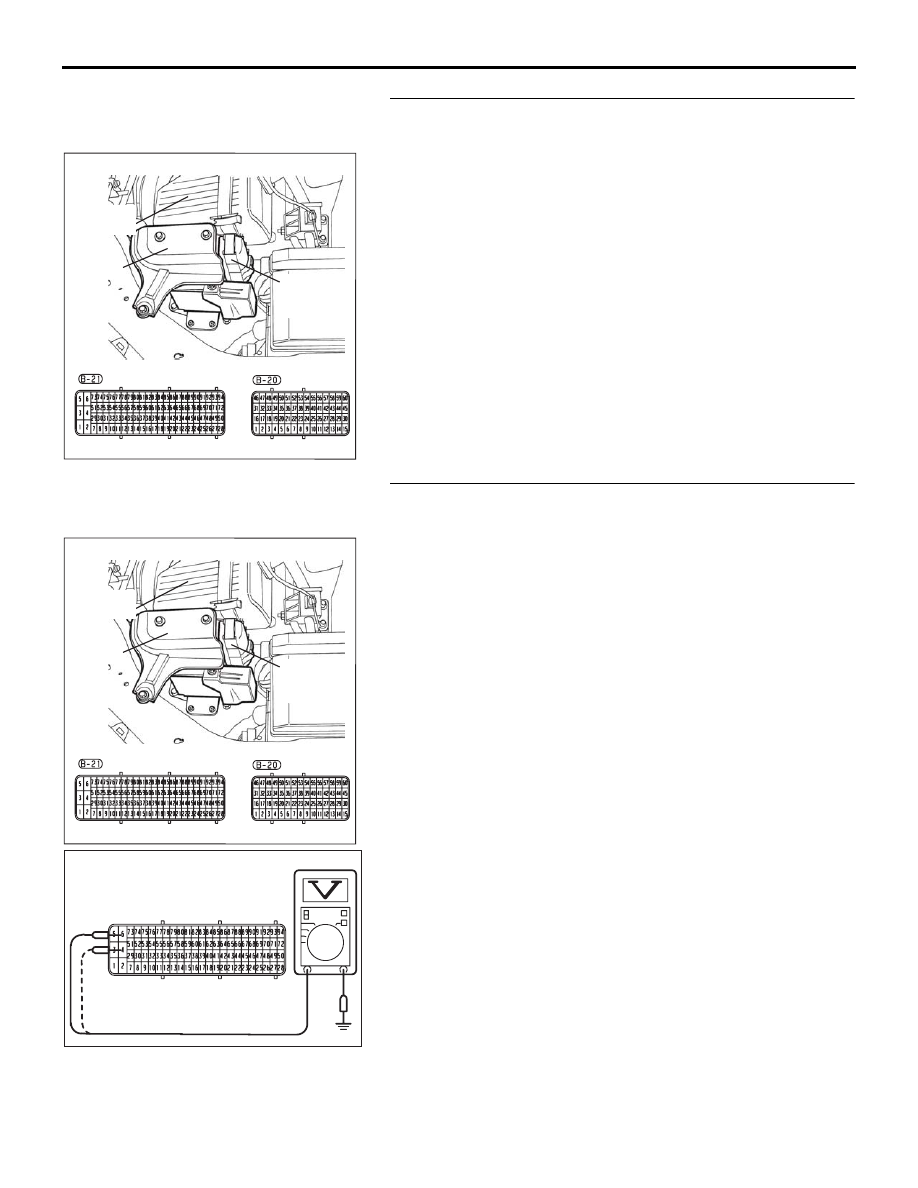

STEP 4. Check the continuity at ENGINE-ECU harness side
connector B-21.
(1) Disconnect the connector B-21 and measure at the harness

side.

(2) Measure the continuity between terminals No. 4 and ground

,No. 6 and ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 5.
NO :  Repair harness wire between ENGINE-ECU

connector B-21 (terminals No. 04, No. 06) and ground
because of open circuit or harness damage. Then go
to Step 8.

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

03DB163A

B-21 HARNESS

CONNECTOR

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-458

STEP 5. Check for open circuit and harness damage
between throttle actuator control motor connector B-06
(terminal No. 4) and ENGINE-ECU connector B-20 (terminal
No. 50).
Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair it. Then go to Step 8.

03DB180A

CONNECTOR: B-06

B-06 (B)

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-459

STEP 6. Check for open circuit and harness damage
between throttle actuator control motor connector B-06
(terminal No. 1) and ENGINE-ECU connector B-20 (terminal
No. 49).
Q: Is the harness wire in good condition?

YES : Go to Step 7.
NO :  Repair it. Then go to Step 8.

03DB180A

CONNECTOR: B-06

B-06 (B)

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER
