MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI)

13A-224

DTC P0152: Heated Oxygen Sensor Circuit High Voltage (bank 2, sensor 1).

.

CIRCUIT OPERATION

• A voltage corresponding to the oxygen concen-

tration in the exhaust gas is sent to the
ENGINE-ECU (terminal No. 15) from the output
terminal (terminal No. 1) of the left bank heated
oxygen sensor (front).

• Terminal No. 2 of the left bank heated oxygen

sensor (front) is grounded with ENGINE-ECU
(terminal No. 14).

.

TECHNICAL DESCRIPTION

• The left bank heated oxygen sensor (front)

detects the concentration of oxygen in the
exhaust gas; it converts those data to voltage,
and input the resulting signals to the
ENGINE-ECU.

• When the left bank heated oxygen sensor (front)

begins to deteriorate, the heated oxygen sensor
signal response becomes poor.

• The ENGINE-ECU forcibly varies the air/fuel mix-

ture to make it leaner and richer, and checks the
response speed of the left bank heated oxygen
sensor (front). In addition, the ENGINE-ECU also
checks for an open circuit in the left bank heated
oxygen sensor (front) output line.

.

DTC SET CONDITIONS

Check Conditions

• Battery voltage < 11.02 volts

• Engine coolant temperature is higher than 80°C.

Judgment Criteria

• Internal Resistance of the Nernst - cell is equal or

greater than a modelled resistance based on the
heating output of the O2-sensor and the mod-
elled exhasused gas temperature.

• Idling.

• MIL is activated after 2 Drive cycles.

• No limp home.

.

EOBD DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− EOBD Drive Cycle −

P.13A-11

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are: )

• Short circuit to battery voltage in left bank heated

oxygen sensor (front) output line.

• Wiring harness or connector damage.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

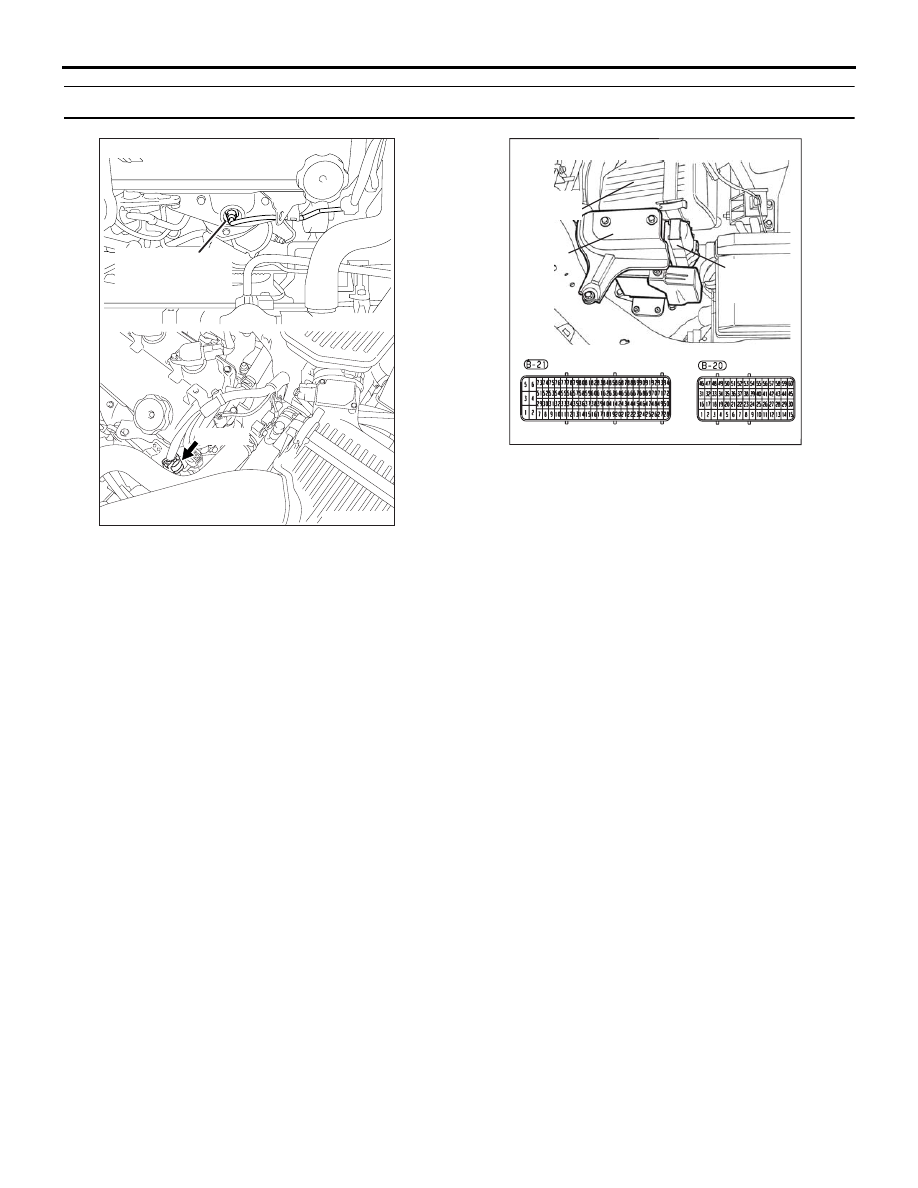

AK303070

LEFT BANK

HEATED OXYGEN

SENSOR (FRONT)

CONNECTOR: B-25

B-25 (B)

AB

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI)

13A-225

DIAGNOSIS

Required Special Tools:

•  Diagnostic tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Using diagnostic tool, check data list item AE:
Heated Oxygen Sensor Bank 2, Sensor 1 (left front).

CAUTION

To prevent damage to diagnostic tool, always turn the igni-
tion switch to the "LOCK" (OFF) position before connect-
ing or disconnecting diagnostic tool .

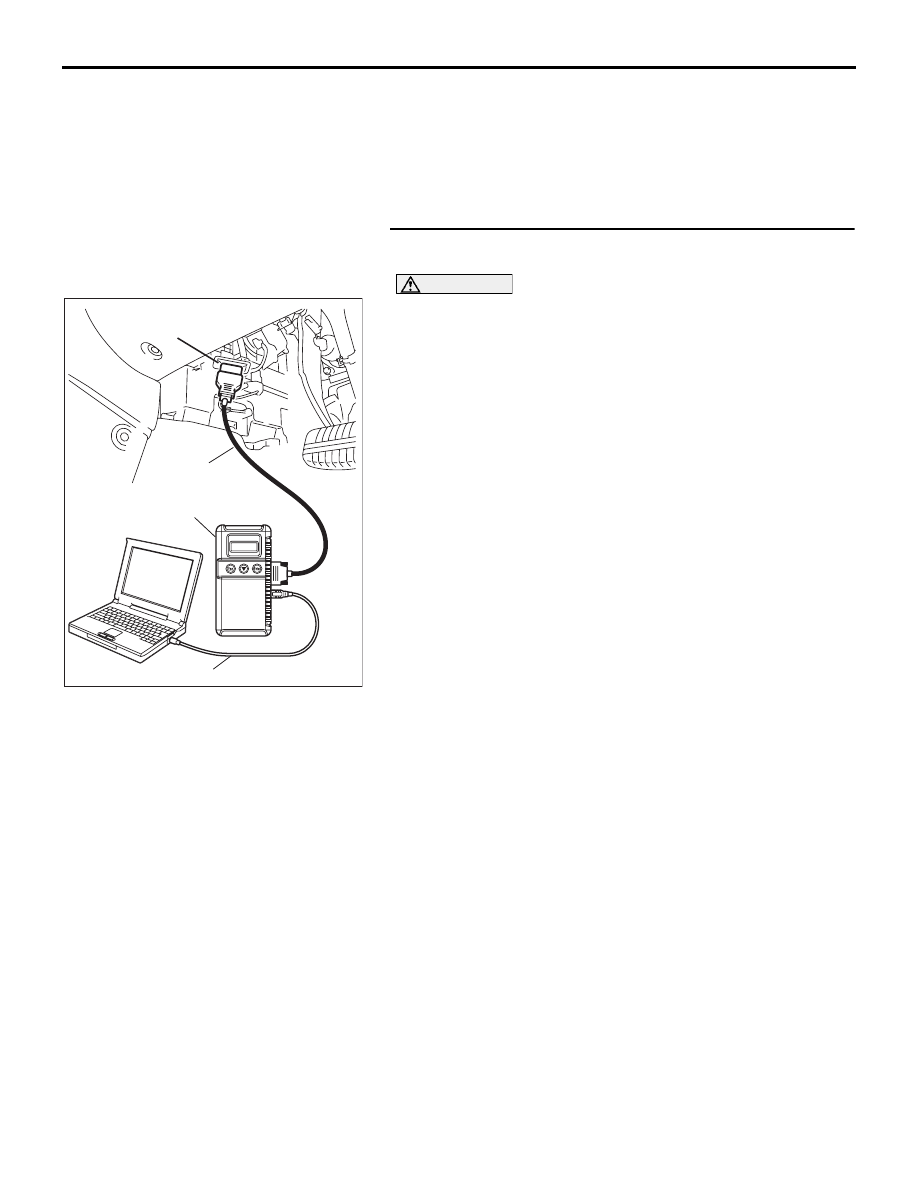

(1) Connect diagnostic tool  to the data link connector.
(2) Start the engine and run at idle.
(3) Ensure engine is at running temperature (80

° C or higher).

(4) Set diagnostic tool  to the data reading mode for item AE,

Heated Oxygen Sensor Bank 2, Sensor 1 (left front).

• Warm engine. When the engine is revved up and down,

the output voltage should cycle between  0.1 to 0.8 volt.

• Warm engine. When the engine is idling, the output volt-

age should alternate between 0.1 to 0.6 - 1.0 volt.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

NOTE: If data list readings are low or appear slow to cycle
during check the sensor is likely to be malfuctioning. Ensure
wiring and connector checks are performed prior to replac-
ing sensor.

Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Then go to Step 2.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI)

13A-226

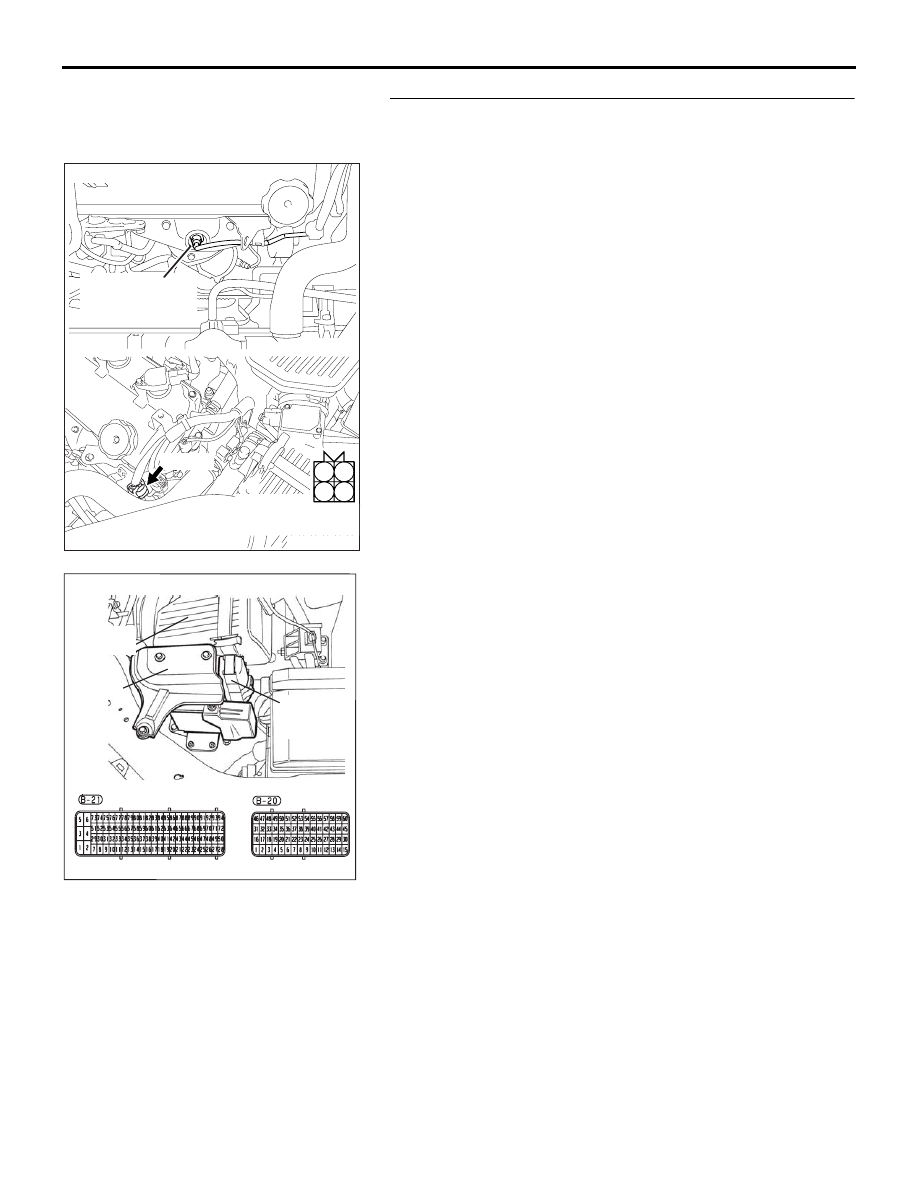

STEP 2. Check harness connector B-25 at left bank heated
oxygen sensor (front) and harness connector B-20 at
ENGINE-ECU for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 5.

AK303071

1

2

3

4

LEFT BANK

HEATED OXYGEN

SENSOR (FRONT)

CONNECTOR: B-25

B-25 (B)

AB

HARNESS

CONNECTOR:

COMPONENT SIDE

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI)

13A-227

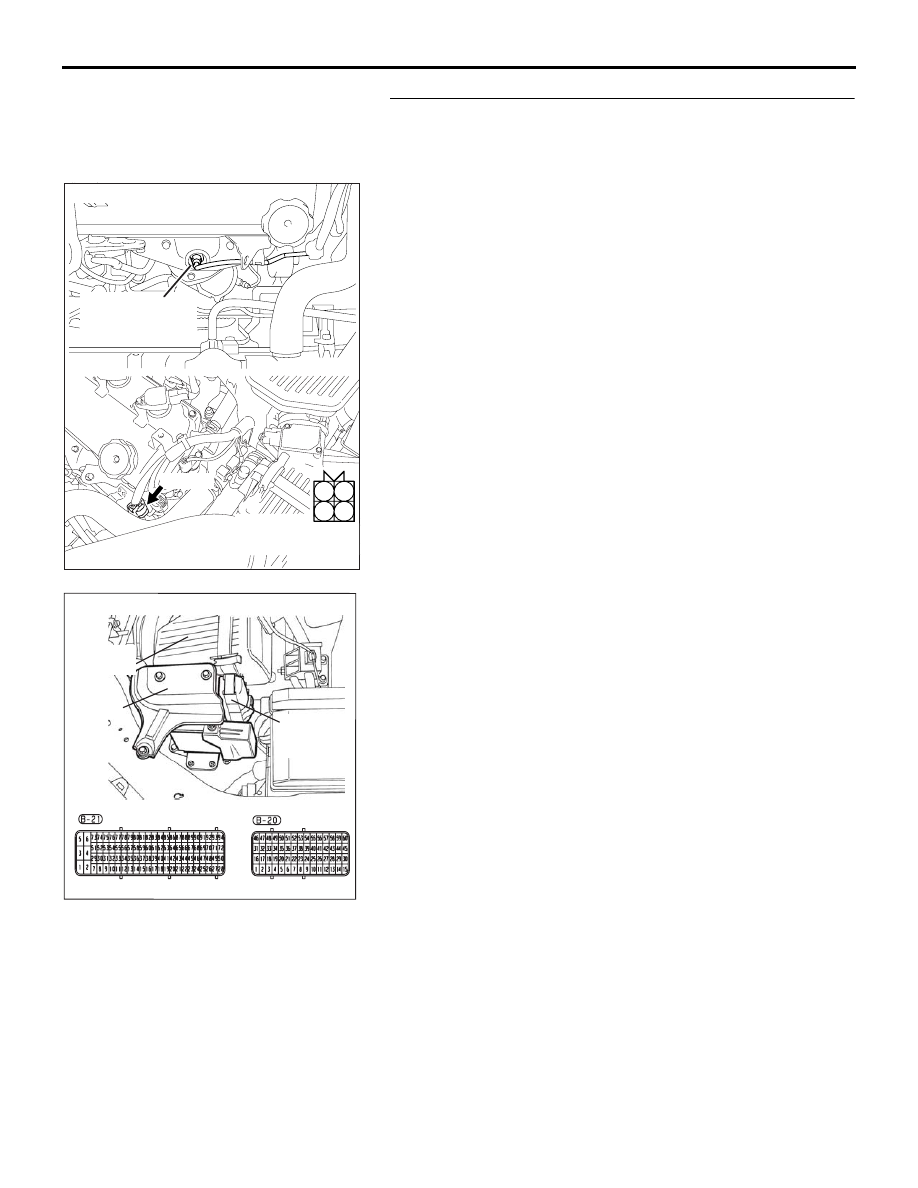

STEP 3. Check for short circuit to power supply between
left bank heated oxygen sensor (front) connector B-25
(terminal No. 1) and ENGINE-ECU connector B-20 (terminal
No. 15).
Q: Is the harness wire in good condition?

YES : Then go to Step 4.
NO :  Repair or replace it. Then go to Step 5.

AK303071

1

2

3

4

LEFT BANK

HEATED OXYGEN

SENSOR (FRONT)

CONNECTOR: B-25

B-25 (B)

AB

HARNESS

CONNECTOR:

COMPONENT SIDE

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER
